Dark Power Pro 13 | 1300W
Model Dark Power Pro 13 | 1300WPart no. BN331EAN 4260052189368
68 specifications
- Noise23.2 dB
- Weight2.41 kg
- ColourBlack
- Total power1300 W
- Motherboard power connector20+4 pin ATX
- PurposePC
Overview
- Noise
- 23.2 dB
- Weight
- 2.41 kg
- Colour
- Black
- Total power
- 1300 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Brand
- be quiet!
- Category
- Power Supply Unit
- Model
- Dark Power Pro 13 | 1300W
- Part number
- BN331
- EAN / UPC
- 4260052189368
- Also known as
- be quiet! Dark Power Pro 13 | 1300W power supply unit 20+4 pin ATX ATX Black
Specifications
68 specifications in 10 groups
Power
| Specification | Value |
|---|---|
| Total power | 1300 W |
| Peak power | 1400 W |
| AC input voltage | 115 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 15 - 9 A |
| Power factor | 0.99 |
| Combined power (+3.3V) | 150 W |
| Combined power (+12V) | 1300 W |
| Combined power (+5V) | 150 W |
| Combined power (-12V) | 6 W |
| Combined power (+5Vsb) | 17.5 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+12V1) | 35 A |
| Max output current (+12V2) | 35 A |
| Max output current (+12V3) | 40 A |
| Max output current (+12V4) | 40 A |
| Max output current (+5V) | 25 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 3.5 A |
| Efficiency | 94.5% |
| Hold time | 18 ms |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 60 cm |
| Number of PATA power connectors | 5 |
| Number of SATA power connectors | 16 |
| SATA power cable length | 500,600,750,800,900,950,1050 mm |
| Peripheral (Molex) power connectors (4-pin) | 0 |
| Peripheral (Molex) power cable length | 600,750,900,1050 mm |
| EPS power connector (8-pin) | Yes |
| EPS power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 6 |
| PCI Express power cable length | 60 cm |
| CPU power cable length | 70 cm |
| ATX power connector (20+4 pin) | Yes |
| PCI Express connector | Yes |
| Cabling type | Fully-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Titanium |
| ATX version | 3.0 |
| EPS version | 2.92 |

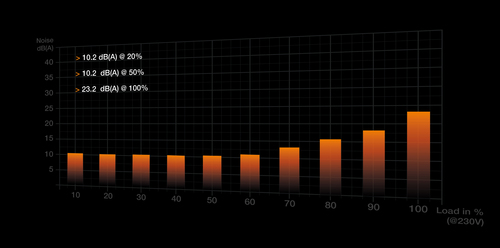

| Noise level | 23.2 dB |
| Bearing technology | FDB |
| Mean time between failures (MTBF) | 100000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 13.5 cm |
| Number of fans | 1 fan(s) |
| Illumination | No |
Packaging content
| Specification | Value |
|---|---|
| Cables included | CPU, PCIe, Peripheral (Molex), SATA |
| Cable tie(s) included | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CCC, CE, Federal Communications Commission (FCC), UKCA |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 200 mm |
| Height | 86 mm |
| Weight | 2.41 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 253 mm |
| Package depth | 417 mm |
| Package height | 152 mm |
| Package weight | 6.8 kg |
Technical details
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Logistics data
| Specification | Value |
|---|---|
| Products per shipping (inner) case | 2 pc(s) |
| Shipping (inner) case height | 28.3 cm |
| Shipping (inner) case length | 44 cm |
| Shipping (inner) case net weight | 14.4 kg |
| Shipping (inner) case width | 32.5 cm |
| Warranty period | 10 year(s) |
