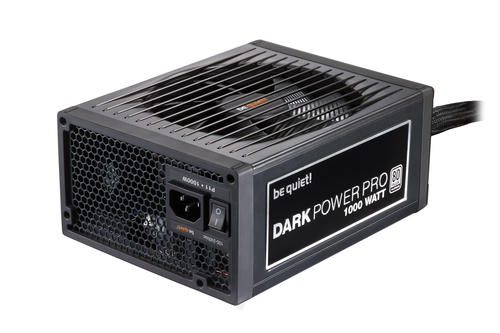

be quiet! Dark Power Pro 11
Model Dark Power Pro 11Part no. BN251EAN 4260052183762
49 specifications
- Noise10.4 dB
- Weight2.38 kg
- ColourBlack
- Total power1000 W
- Motherboard power connector20+4 pin ATX
- PurposePC
Overview
- Noise
- 10.4 dB
- Weight
- 2.38 kg
- Colour
- Black
- Total power
- 1000 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Brand
- be quiet!
- Category
- Power Supply Unit
- Model
- Dark Power Pro 11
- Part numbers
- BN251, BN254, BN255, BN253, BN250, BN252
- EAN / UPC
- 4260052183762, 4260052183793, 4260052183809, 4260052183786 +2 more
- Also known as
- be quiet! Dark Power Pro 11 power supply unit 1000 W 20+4 pin ATX ATX Black
Specifications
49 specifications in 10 groups
Power
| Specification | Value |
|---|---|
| Total power | 1000 W |
| Peak power | 1100 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 14 A |
| Maximum input current (@110V) | +12V1,+12V2,+12V3,+12V4,+3.3V,+5V,+5Vsb,-12V |
| Power factor | 0.99 |
| Combined power (+3.3V) | 25 W |
| Combined power (+5V) | 25 W |
| Combined power (-12V) | 0.5 W |
| Efficiency | 94.1% |
| Hold time | 19.29 ms |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |

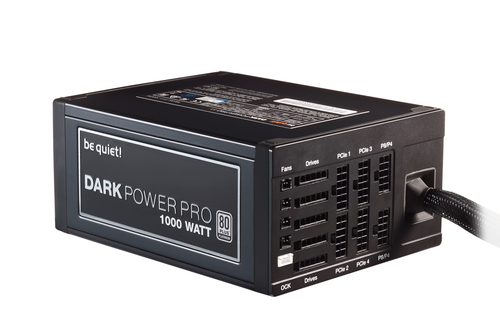

Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 10 |
| Peripheral (Molex) power connectors (4-pin) | 7 |
| EPS power connector (8-pin) | Yes |
| PCI Express power connectors (6-pin) | 1 |
| PCI Express power connectors (6+2 pin) | 8 |
| CPU power connector (4+4 pin) | Yes |
| Floppy disk drive connector | Yes |
| Floppy drive power connector | 2 |
| CPU power connectors (8-pin) | 1 |

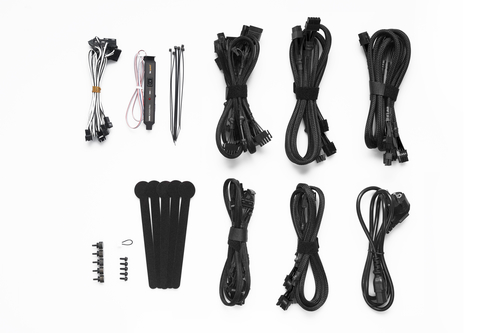

| Cabling type | Semi-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Platinum |
| ATX version | 2.4 |
| EPS version | 2.92 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |

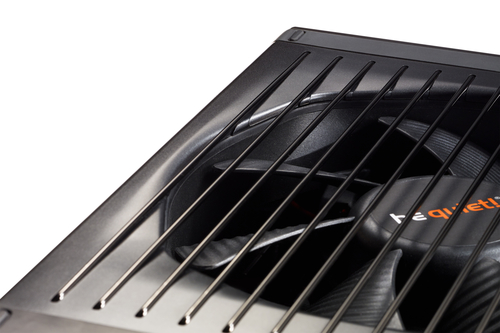

| Cooling type | Active |
| Fan diameter | 13.5 cm |
| Number of fans | 1 fan(s) |
| Fan speed | 1800 |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | ErP, WEEE |
Safety regulation & standards
| Specification | Value |
|---|---|
| Safety | CE, CB, TÜV, FCC, cTUVus, RCM, CU |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 193 mm |
| Height | 86 mm |
| Weight | 2.38 kg |

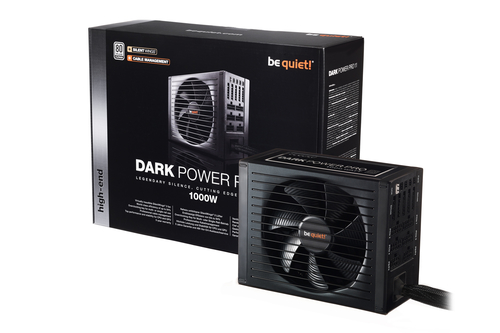

Packaging data
| Specification | Value |
|---|---|
| Package width | 305 mm |
| Package depth | 514 mm |
| Package height | 378 mm |
| Package weight | 4.59 kg |
| Package type | Box |
Technical details
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Other features
| Specification | Value |
|---|---|
| Noise level (quiet mode, 50%) | 10.4 dB |
| Noise level (full-load mode, 100%) | 26.3 dB |
What people say
Reviews & ratings
be quiet! Dark Power Pro 11
No reviews yet
Be the first to tell others how be quiet! Dark Power Pro 11 works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare be quiet! Dark Power Pro 11

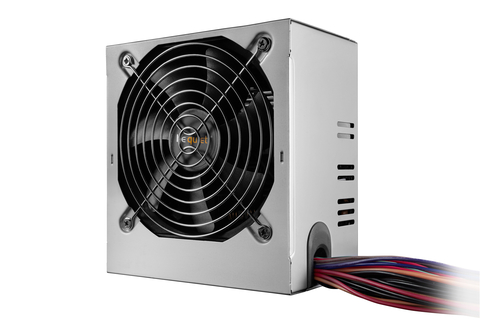

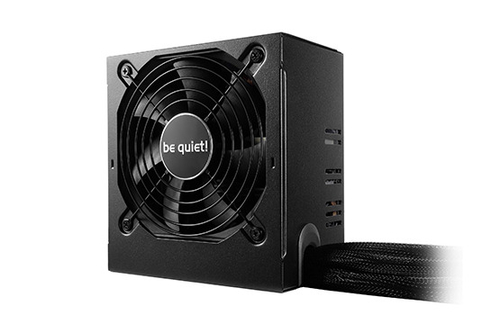

All power supply unit comparisons- be quiet! Dark Power Pro 11 vsbe quiet! System Power 8Compare specs
- be quiet! Dark Power Pro 11 vsbe quiet! System Power B8Compare specs

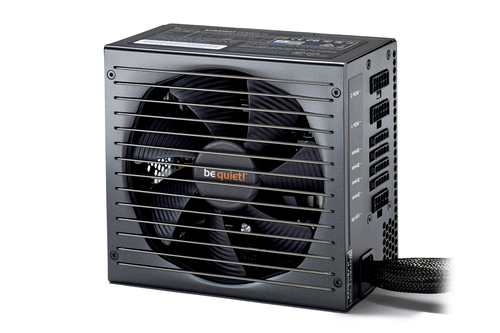

- be quiet! Dark Power Pro 11 vsbe quiet! BN233 power supply unitCompare specs
- be quiet! Dark Power Pro 11 vsbe quiet! BN234 power supply unitCompare specs

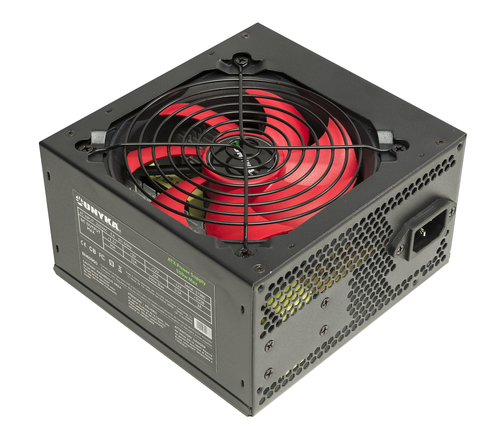

- be quiet! Dark Power Pro 11 vsUNYKAch 51980 power supply unitCompare specs

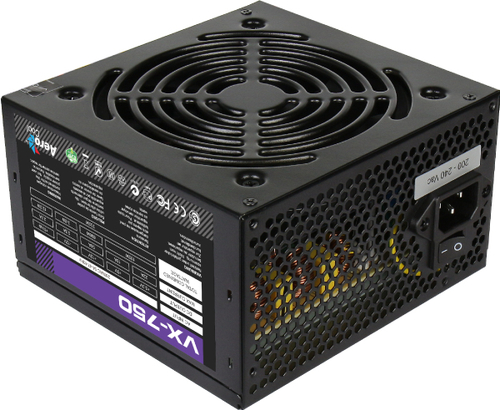

- be quiet! Dark Power Pro 11 vsAerocool VX750 power supply unitCompare specs

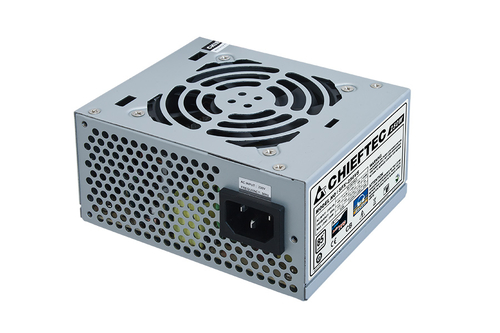

- be quiet! Dark Power Pro 11 vsChieftec SFX-250VS power supply unitCompare specs
