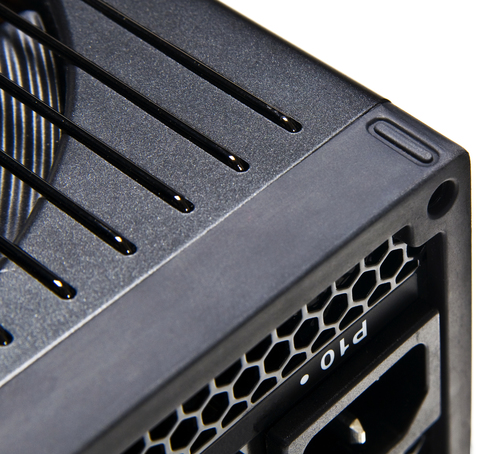

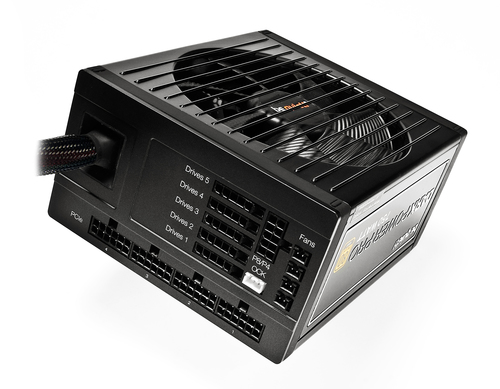

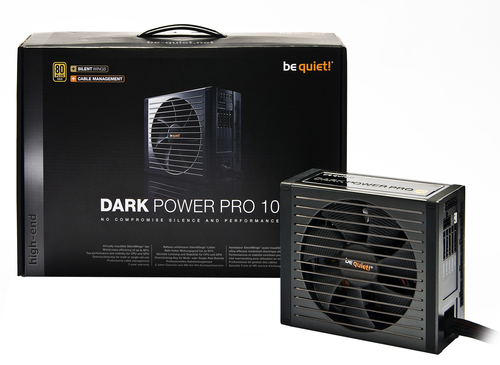

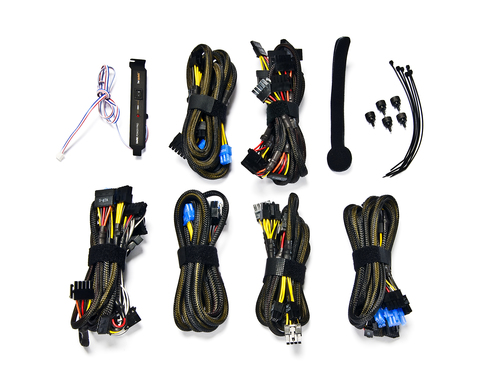

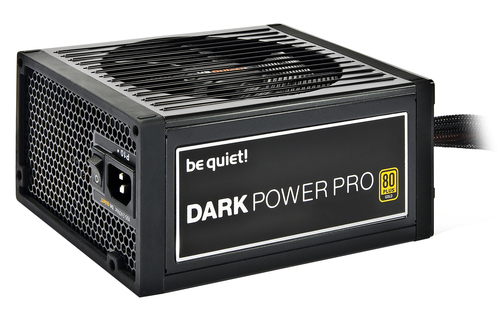

be quiet! Dark Power Pro 10

be quiet! Dark Power Pro 10

Model Dark Power Pro 10Part no. BN205EAN 4260052182246

60 specifications
  • Noise12.9 dB
  • Weight3.51 kg
  • ColourBlack
  • Total power550 W
  • Motherboard power connector20+4 pin ATX
  • PurposePC
See all specifications

Overview

Noise
12.9 dB
Weight
3.51 kg
Colour
Black
Total power
550 W
Motherboard power connector
20+4 pin ATX
Purpose
PC
Brand
be quiet!
Model
Dark Power Pro 10
Part numbers
BN205, BN200, BN201, BN202, BN203, BN204
EAN / UPC
4260052182246, 3548388015157, 4260052182192, 3548388015164 +5 more
Also known as
be quiet! Dark Power Pro 10 power supply unit 550 W 20+4 pin ATX ATX Black

Specifications

60 specifications in 10 groups

Power

Total power550 W
Peak power610 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Input current7 - 3.5 A
Maximum input current (@110V)+12V1,+12V2,+12V3,+12V4,+3.3V,+5V,+5Vsb,-12V
Power factor0.99
Power Factor Correction (PFC) typeActive
Combined power (+3.3V)110 W
Combined power (+12V)540 W
Combined power (+5V)110 W
Combined power (-12V)6 W
Combined power (+5Vsb)15 W
Max output current (+3.3V)25 A
Max output current (+12V)45 A
Max output current (+12V1)20 A
Max output current (+12V2)20 A
Max output current (+12V3)25 A
Max output current (+12V4)25 A
Max output current (+5V)25 A
Max output current (-12V)0.5 A
Max output current (+5Vsb)3 A
Efficiency93%
Hold time24 ms
Power protection featuresOver current, Over power, Over voltage, Overheating, Short circuit, Under voltage

Ports & interfaces

Motherboard power connector20+4 pin ATX
Number of SATA power connectors9
Peripheral (Molex) power connectors (4-pin)7
PCI Express power connectors (6-pin)1
PCI Express power connectors (6+2 pin)4
CPU power connector (4+4 pin)Yes
Floppy drive power connector1
CPU power connectors (8-pin)1
Cabling typeSemi-Modular

Performance

PurposePC
Power supply unit (PSU) form factorATX
80 PLUS certification80 PLUS Gold
ATX version2.31
EPS version2.92
Noise level12.9 dB
Bearing technologyFDB
Mean time between failures (MTBF)300000 h

Design

Product colourBlack
Cooling typeActive
Fan diameter13.5 cm
Number of fans1 fan(s)
Fan speed1500

Operational conditions

Operating temperature (T-T)0 - 40 °C

Certificates

Compliance certificatesRoHS
CertificationCE, CB, TÜV, Nemko (N), Semko (S), Fimko (FI), Demko (D), FCC, cTUVus

Weight & dimensions

Width150 mm
Depth180 mm
Height86 mm
Weight3.51 kg

Packaging data

Package weight4.08 kg

Technical details

Sustainability certificatesENERGY STAR

Other features

Noise level (silent mode, <30%)11.7 dB
Noise level (quiet mode, 50%)11.7 dB
Noise level (full-load mode, 100%)12.9 dB
Package dimensions (WxDxH)272 x 118 x 400 mm
