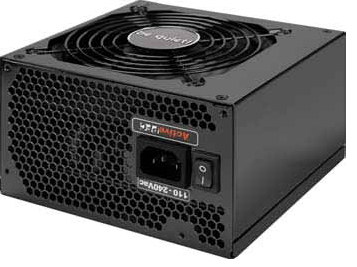

be quiet! BQT S6-SYS-EP-350W
Model BQT S6-SYS-EP-350WEAN 4260052181157
48 specifications
- ColourBlack
- Total power350 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Operating temperature (T-T)10 - 50 °C
Overview
- Colour
- Black
- Total power
- 350 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Operating temperature (T-T)
- 10 - 50 °C
- Brand
- be quiet!
- Category
- Power Supply Unit
- Model
- BQT S6-SYS-EP-350W
- Part number
- BQT S6-SYS-EP-350W
- EAN / UPC
- 4260052181157
- Also known as
- be quiet! BQT S6-SYS-EP-350W power supply unit 20+4 pin ATX ATX Black
Specifications
48 specifications in 7 groups
Power
| Specification | Value |
|---|---|
| Total power | 350 W |
| AC input voltage | 115 - 230 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 4.5 A |
| Maximum input current (@110V) | +12V1,+12V2,+3.3V,+5V,+5Vsb,-12V |
| Power factor | 0.99 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 80 W |
| Combined power (+12V) | 240 W |
| Combined power (+5V) | 70 W |
| Combined power (-12V) | 6 W |
| Combined power (+5Vsb) | 10 W |
| Max output current (+3.3V) | 24 A |
| Max output current (+12V) | 20 A |
| Max output current (+5V) | 23 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 2.5 A |
| Efficiency | 86% |
| Hold time | 17 ms |
| Power protection features | Short circuit |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 3 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| CPU P4 connector (4-pin) | 1 |
| Floppy drive power connector | 1 |
| Connector(s) | IEC C14 |
| Cabling type | Non-Modular |
| Monitor outlet | No |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS |
| ATX version | 2.2 |
| Mean time between failures (MTBF) | 100000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Side |
| Illumination | No |
| LED indicators | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 50 °C |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 1.58 kg |
Other features
| Specification | Value |
|---|---|
| Voltage tolerance | 5% |
| Power management | No |
| Power over Ethernet (PoE) | No |
| Power supply type | AC/DC |
| Redundant power supply (RPS) support | No |
| Power rocker switch | Yes |
