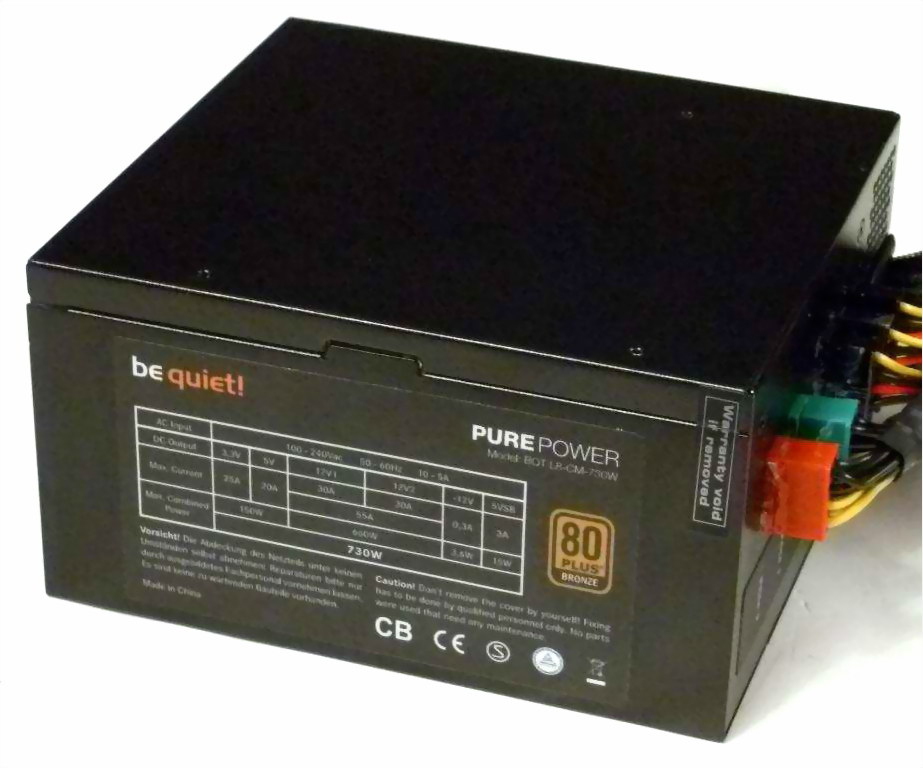

be quiet! BQT L8-CM-730W
Model BQT L8-CM-730W
39 specifications
- ColourBlack
- Total power730 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Operating temperature (T-T)5 - 40 °C
- SafetyCB, CE, S
Overview
- Colour
- Black
- Total power
- 730 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Operating temperature (T-T)
- 5 - 40 °C
- Safety
- CB, CE, S
- Brand
- be quiet!
- Category
- Power Supply Unit
- Model
- BQT L8-CM-730W
- Part number
- BQT L8-CM-730W
- Also known as
- be quiet! BQT L8-CM-730W power supply unit 20+4 pin ATX ATX Black
Specifications
39 specifications in 9 groups
Power
| Specification | Value |
|---|---|
| Total power | 730 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 10 A |
| Maximum input current (@110V) | +12V1,+12V2,+3.3V,+5V,+5Vsb,-12V |
| Combined power (+3.3V) | 80 W |
| Combined power (+12V) | 600 W |
| Combined power (+5V) | 70 W |
| Combined power (-12V) | 3.5 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+12V) | 55 A |
| Max output current (+5V) | 15 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Connector(s) | IEC C14 |
| Cabling type | Semi-Modular |
| Monitor outlet | No |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Bronze |
| Mean time between failures (MTBF) | 100000 h |
| Compatible products | PC |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Side |
| Illumination | No |
| LED indicators | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
Safety regulation & standards
| Specification | Value |
|---|---|
| Safety | CB, CE, S |
Certificates
| Specification | Value |
|---|---|
| Certification | CE |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
Other features
| Specification | Value |
|---|---|
| Power management | Yes |
| Power over Ethernet (PoE) | No |
| Power supply type | AC/DC |
| Redundant power supply (RPS) support | No |
| Power rocker switch | Yes |
