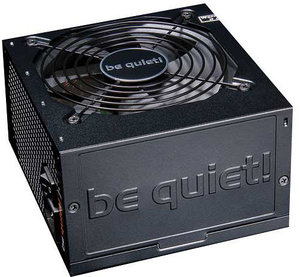

be quiet! BQT L7-630W
Model BQT L7-630W
56 specifications
- Noise25 dB
- ColourBlack
- Total power630 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Operating temperature (T-T)5 - 40 °C
Overview
- Noise
- 25 dB
- Colour
- Black
- Total power
- 630 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Operating temperature (T-T)
- 5 - 40 °C
- Brand
- be quiet!
- Category
- Power Supply Unit
- Model
- BQT L7-630W
- Part number
- BQT L7-630W
- Also known as
- be quiet! BQT L7-630W power supply unit 20+4 pin ATX ATX Black
Specifications
56 specifications in 9 groups
Power
| Specification | Value |
|---|---|
| Total power | 630 W |
| Peak power | 634 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 10 A |
| Maximum input current (@110V) | +12V1,+12V2,+3.3V,+5V,+5Vsb,-12V |
| Power factor | 0.99 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 70 W |
| Combined power (+12V) | 420 W |
| Combined power (+5V) | 60 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 17.5 A |
| Max output current (+12V) | 40.5 A |
| Max output current (+5V) | 14.1 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.6 A |
| Efficiency | 86.44% |
| Power protection features | Over current, Over power, Over voltage, Short circuit, Under voltage, Overheating |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 5 |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| PCI Express power connectors (6+2 pin) | 1 |
| CPU power connector (4+4 pin) | Yes |
| Floppy drive power connector | 1 |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS |
| ATX version | 2.3 |
| EPS version | 2.92 |
| Noise level | 25 dB |
| Bearing technology | FDB |
| Mean time between failures (MTBF) | 100000 h |
| Compatible products | Intel C6 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan speed | 1650 |
| Fan location | Side |
| Illumination | No |
| LED indicators | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
Safety regulation & standards
| Specification | Value |
|---|---|
| Safety | CE, CB, TUV, N, S, Fl, D |
Certificates
| Specification | Value |
|---|---|
| Certification | ErP, WEEE |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 140 mm |
| Depth | 150 mm |
| Height | 86 mm |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 140 x 150 x 86 mm |
| Parallel processing technology support | Hybrid CrossFireX |
| Power management | Yes |
| Power over Ethernet (PoE) | No |
| Redundant power supply (RPS) support | No |
| Power rocker switch | Yes |
