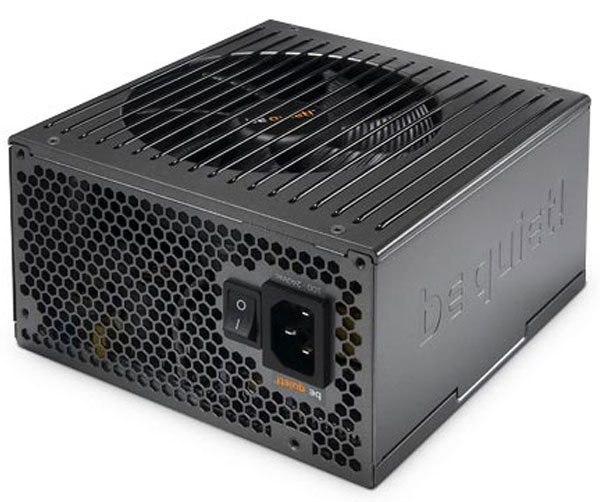

be quiet! BQT E7-600W

be quiet! BQT E7-600W

Model BQT E7-600W

66 specifications
  • Noise24 dB
  • Weight2.3 kg
  • ColourBlack, Grey
  • Total power600 W
  • Motherboard power connector20+4 pin ATX
  • PurposePC
See all specifications

Overview

Noise
24 dB
Weight
2.3 kg
Colour
Black, Grey
Total power
600 W
Motherboard power connector
20+4 pin ATX
Purpose
PC
Brand
be quiet!
Model
BQT E7-600W
Part number
BQT E7-600W
Also known as
be quiet! BQT E7-600W power supply unit 20+4 pin ATX ATX Black, Grey

Specifications

66 specifications in 11 groups

Power

Total power600 W
Peak power670 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Input current9 A
Maximum input current (@110V)+12V1,+12V2,+3.3V,+5V,+5Vsb,-12V
Power factor0.99
Power Factor Correction (PFC) typeActive
Combined power (+3.3V)85 W
Combined power (+12V)540 W
Combined power (+5V)75 W
Combined power (-12V)6 W
Combined power (+5Vsb)15 W
Max output current (+3.3V)28 A
Max output current (+12V)45 A
Max output current (+5V)25 A
Max output current (-12V)0.5 A
Max output current (+5Vsb)3 A
Efficiency89%
Hold time19 ms
Power protection featuresOver current, Over power, Over voltage, Short circuit, Under voltage, Overheating

Ports & interfaces

Motherboard power connector20+4 pin ATX
Number of SATA power connectors6
Peripheral (Molex) power connectors (4-pin)5
PCI Express power connectors (6-pin)1
PCI Express power connectors (6+2 pin)2
CPU P4 connector (4-pin)1
CPU power connector (4+4 pin)Yes
Floppy drive power connector2
Connector(s)IEC C14

Performance

PurposePC
Power supply unit (PSU) form factorATX
80 PLUS certification80 PLUS Bronze
ATX version2.3
EPS version2.92
Noise level24 dB
Bearing technologyFDB
Mean time between failures (MTBF)100000 h
Compatible productsIntel C6

Design

Product colourBlack, Grey
Cooling typeActive
Fan diameter12 cm
Number of fans1 fan(s)
Fan speed2500
Fan locationSide
IlluminationNo
LED indicatorsNo

Operational conditions

Operating temperature (T-T)0 - 40 °C

Certificates

Compliance certificatesRoHS
CertificationWEEE, RoHS, ErP

Safety regulation & standards

SafetyCE, CB, TUV, N, S, Fl, D

Weight & dimensions

Width150 mm
Depth160 mm
Height86 mm
Weight2.3 kg

Packaging data

Package weight3.08 kg
Case or master carton dimensions (W x D x H)285 x 360 x 660 mm
Case or master carton weight20 kg

Technical details

Sustainability certificatesENERGY STAR

Other features

Dimensions (WxDxH)150 x 160 x 86 mm
Package dimensions (WxDxH)250 x 100 x 330 mm
Parallel processing technology supportHybrid CrossFireX, Quad-GPU SLI
Power over Ethernet (PoE)No
Power supply typeAC/DC
Redundant power supply (RPS) supportNo
Power rocker switchYes
