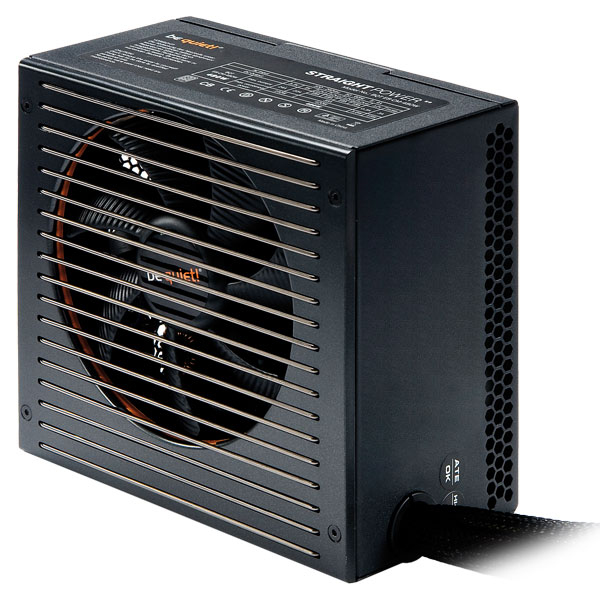

be quiet! BN155 power supply unit
500 W 20+4 pin ATX ATX Black
Model BN155Part no. BQT E8-500W
28 specifications
- Noise19.1 dB
- ColourBlack
- Total power500 W
- Motherboard power connector20+4 pin ATX
- PurposePC
Overview
- Noise
- 19.1 dB
- Colour
- Black
- Total power
- 500 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Brand
- be quiet!
- Category
- Power Supply Unit
- Model
- BN155
- Part number
- BQT E8-500W
- Also known as
- be quiet! BN155 power supply unit 500 W 20+4 pin ATX ATX Black
Specifications
28 specifications in 6 groups
Power
| Specification | Value |
|---|---|
| Total power | 500 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Maximum input current (@110V) | +12V,+3.3V,+5V,+5Vsb,-12V |
| Power protection features | Over current, Over power, Over voltage, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 6 |
| Peripheral (Molex) power connectors (4-pin) | 5 |
| PCI Express power connectors (6-pin) | 1 |
| PCI Express power connectors (6+2 pin) | 1 |
| CPU P4 connector (4-pin) | 1 |
| CPU power connector (4+4 pin) | Yes |
| Floppy drive power connector | 2 |
| Connector(s) | IEC C14 |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Silver |
| ATX version | 2.3 |
| EPS version | 2.92 |
| Noise level | 19.1 dB |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Side |
| LED indicators | No |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, CF |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 160 x 150 x 86 mm |
