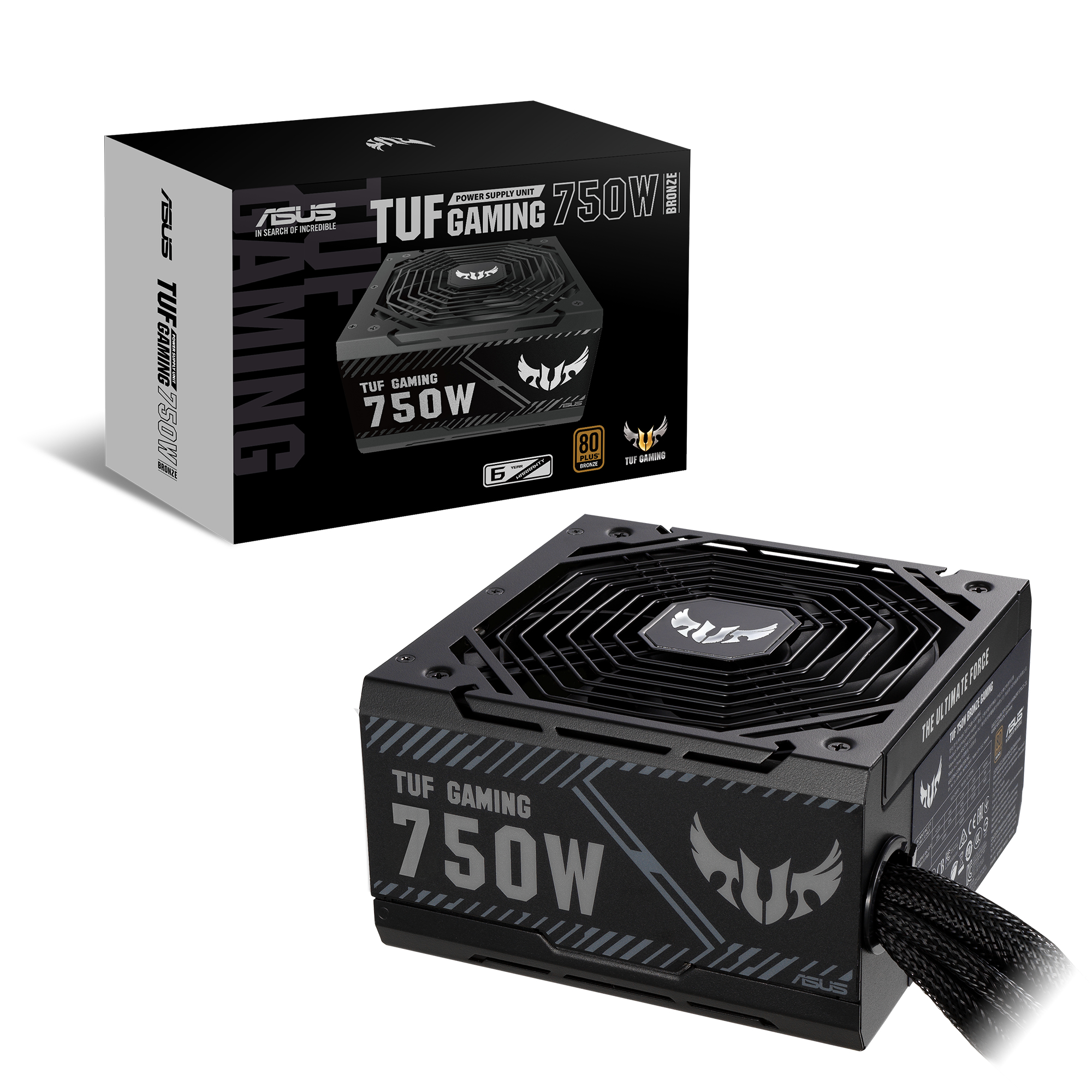

TUF-GAMING-750B power supply unit
750 W 20+4 pin ATX ATX Black
Model TUF-GAMING-750BPart no. 90YE00D0-B0ZA00EAN 4718017724036
18 specifications
- Weight2.18 kg
- ColourBlack
- Total power750 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Width150 mm
Overview
- Weight
- 2.18 kg
- Colour
- Black
- Total power
- 750 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Width
- 150 mm
- Brand
- ASUS
- Category
- Power Supply Unit
- Model
- TUF-GAMING-750B
- Part numbers
- 90YE00D0-B0ZA00, 90YE00D0-B0NA00, 90YE00D0-B0WA00
- EAN / UPC
- 4718017724036, 4718017724029, 4718017724098, 4718017724142
- Also known as
- ASUS TUF-GAMING-750B power supply unit 750 W 20+4 pin ATX ATX Black
Specifications
18 specifications in 6 groups
Power
| Specification | Value |
|---|---|
| Total power | 750 W |
| AC input voltage | 100 - 240 V |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 5 |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| PCI Express connector | Yes |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Bronze |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Illumination | No |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 150 mm |
| Height | 86 mm |
| Weight | 2.18 kg |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
