TUF-GAMING-550B power supply unit
550 W 24-pin ATX ATX Black
Model TUF-GAMING-550BPart no. 90YE00D2-B0NA00EAN 4718017724289
38 specifications
- Weight1.89 kg
- ColourBlack
- Total power550 W
- Motherboard power connector24-pin ATX
- PurposePC
- Width150 mm
Overview
- Weight
- 1.89 kg
- Colour
- Black
- Total power
- 550 W
- Motherboard power connector
- 24-pin ATX
- Purpose
- PC
- Width
- 150 mm
- Brand
- ASUS
- Category
- Power Supply Unit
- Model
- TUF-GAMING-550B
- Part numbers
- 90YE00D2-B0NA00, 90YE00D2-B0WA00
- EAN / UPC
- 4718017724289, 4718017724401, 4718017724296
- Also known as
- ASUS TUF-GAMING-550B power supply unit 550 W 24-pin ATX ATX Black
Specifications
38 specifications in 8 groups
Power
| Specification | Value |
|---|---|
| Total power | 550 W |
| AC input voltage | 100 - 240 V |
| Input current | 25 A |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 549.6 W |
| Combined power (+5V) | 120 W |
| Combined power (-12V) | 9.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+12V) | 45.8 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.8 A |
| Max output current (+5Vsb) | 3 A |
Ports & interfaces
| Specification | Value |
|---|---|

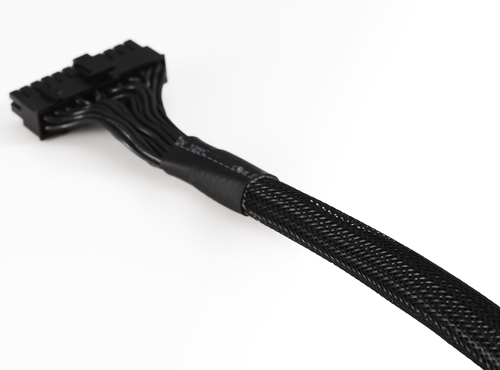

| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 5 |
| SATA power cable length | 120,400 mm |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| PCI Express power connectors (6+2 pin) | 2 |
| PCI Express power cable length | 60 cm |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 80 cm |

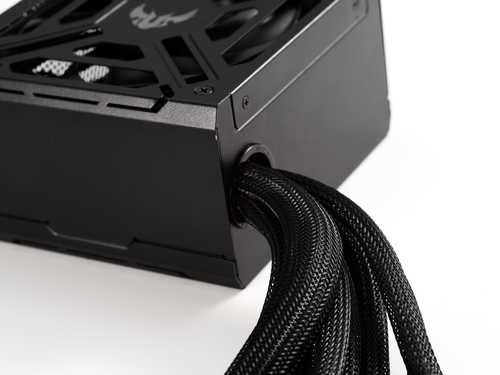

| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Bronze |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 13.5 cm |
| Number of fans | 1 fan(s) |
| On/off switch | Yes |
Packaging content
| Specification | Value |
|---|---|
| Cables included | CPU, PCIe, SATA |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 150 mm |
| Height | 86 mm |
| Weight | 1.89 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 2.58 kg |
| Package type | Box |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
