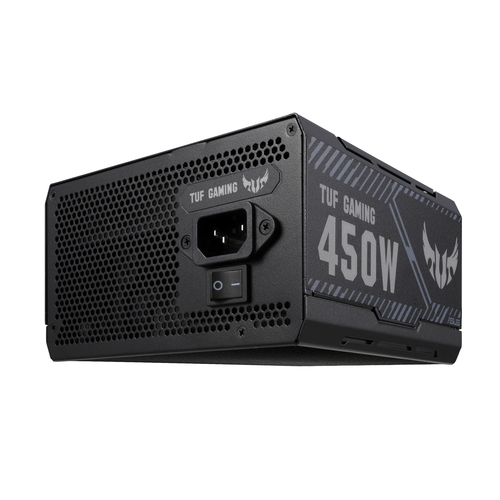

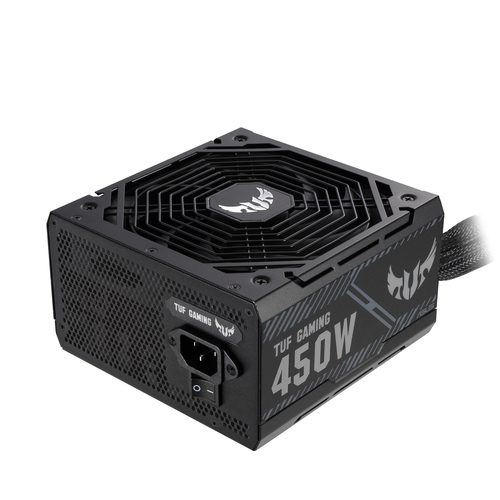

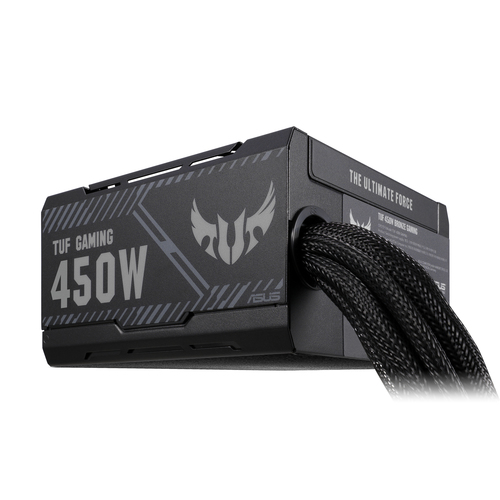

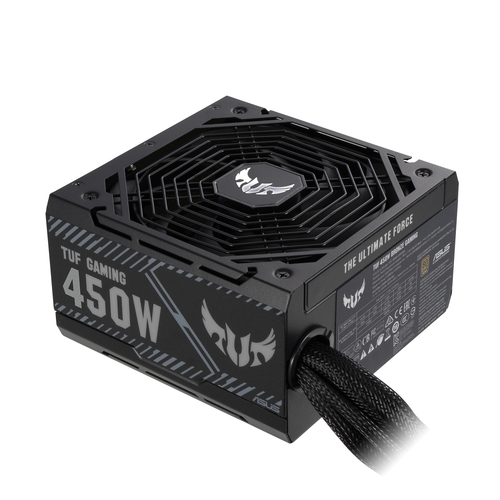

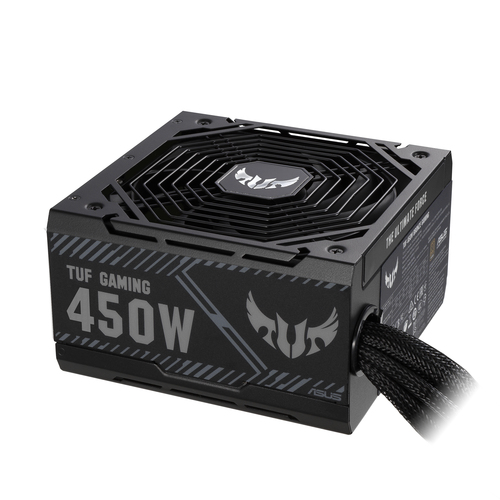

TUF-GAMING-450B power supply unit
450 W 20+4 pin ATX ATX Black
Model TUF-GAMING-450BPart no. 90YE00D3-B0NA00EAN 4718017724418
19 specifications
- ColourBlack
- Total power450 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Width150 mm
Overview
- Colour
- Black
- Total power
- 450 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Width
- 150 mm
- Brand
- ASUS
- Category
- Power Supply Unit
- Model
- TUF-GAMING-450B
- Part number
- 90YE00D3-B0NA00
- EAN / UPC
- 4718017724418
- Also known as
- ASUS TUF-GAMING-450B power supply unit 450 W 20+4 pin ATX ATX Black
Specifications
19 specifications in 6 groups
Power
| Specification | Value |
|---|---|
| Total power | 450 W |
| AC input voltage | 100 - 240 V |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 37.4 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.8 A |
| Max output current (+5Vsb) | 3 A |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 5 |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Bronze |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 150 mm |
| Height | 86 mm |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
