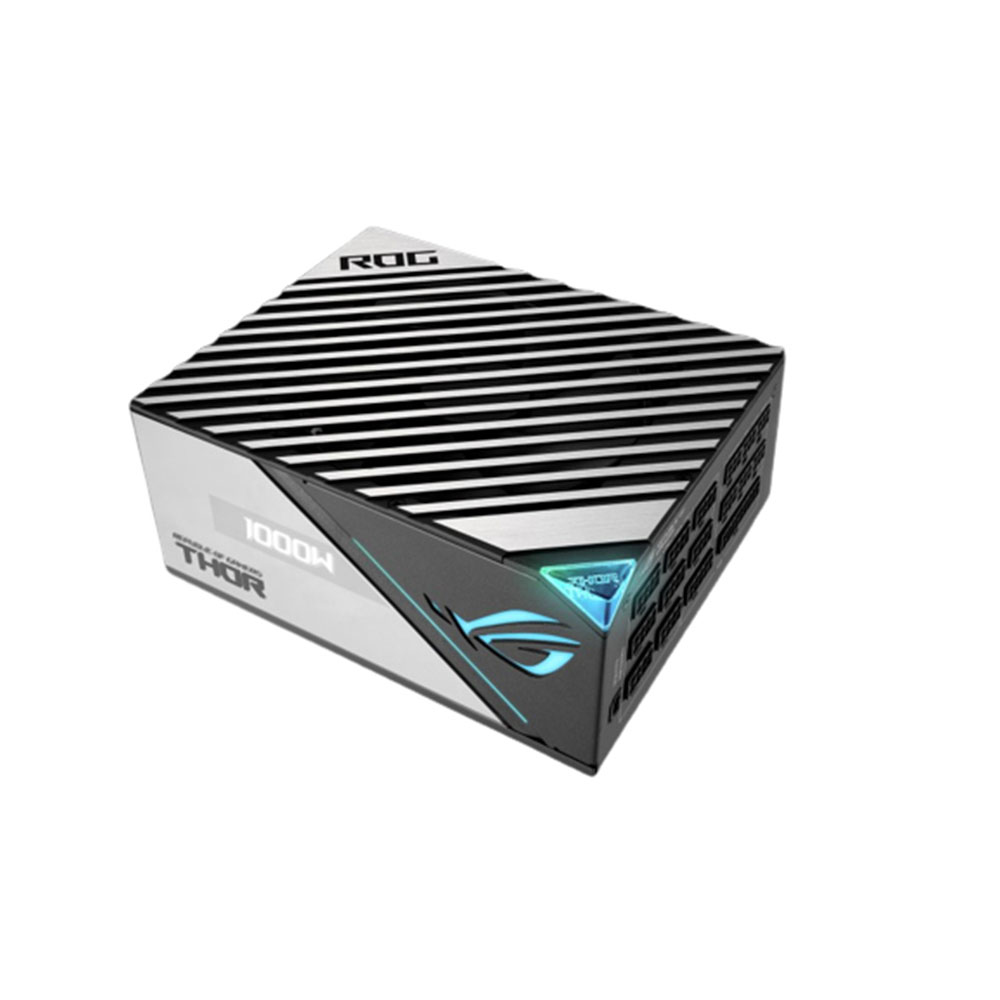

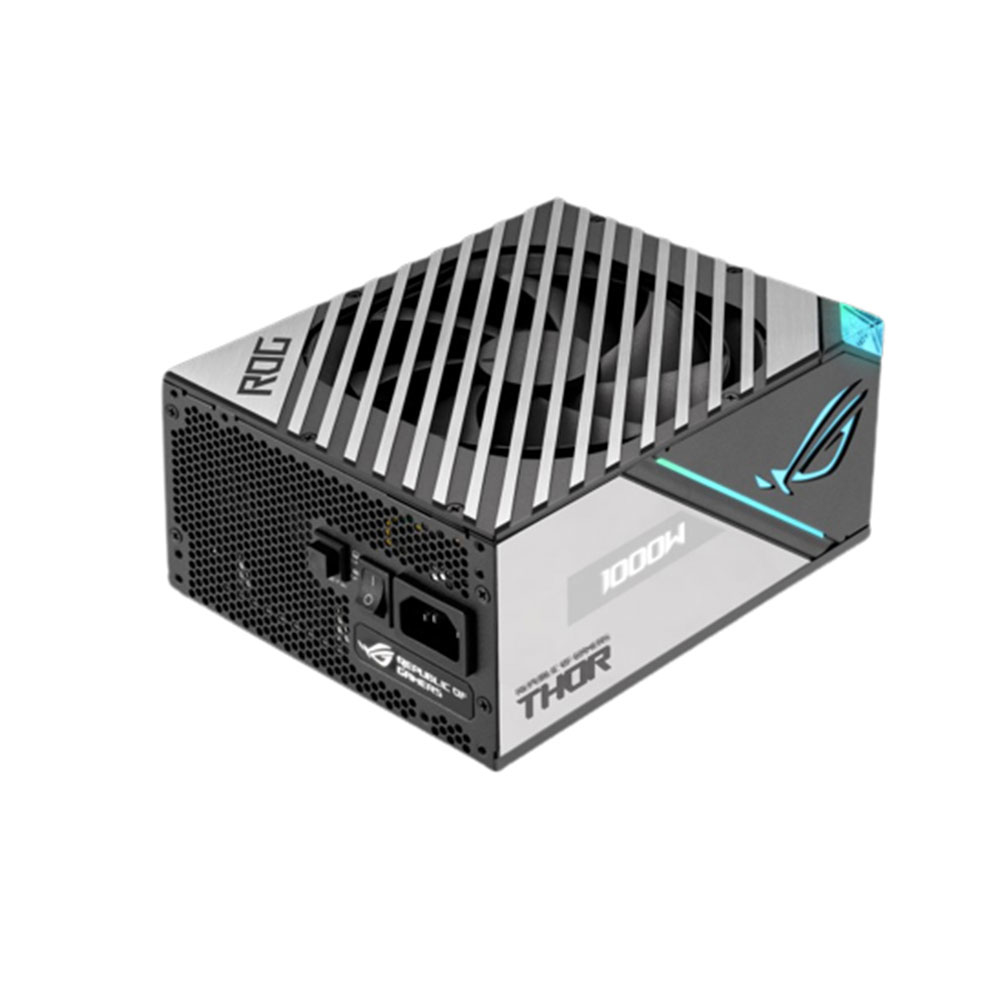

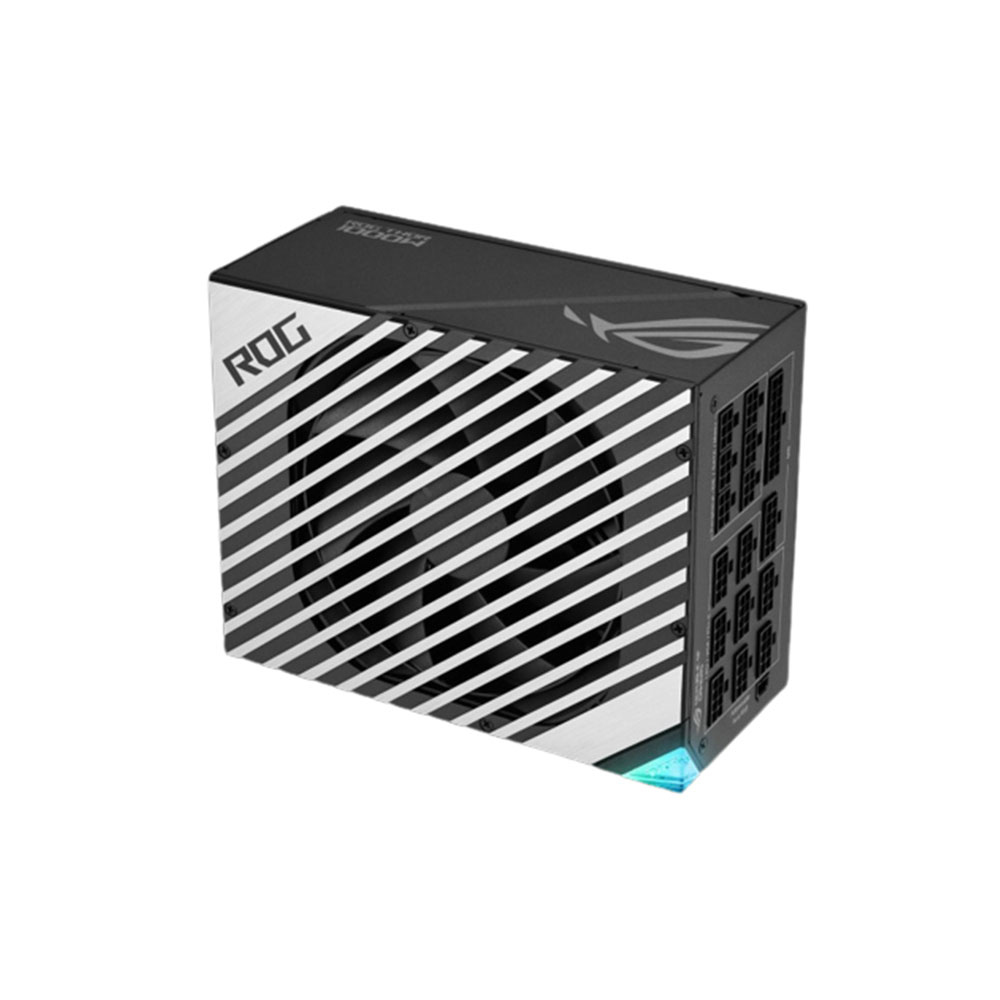

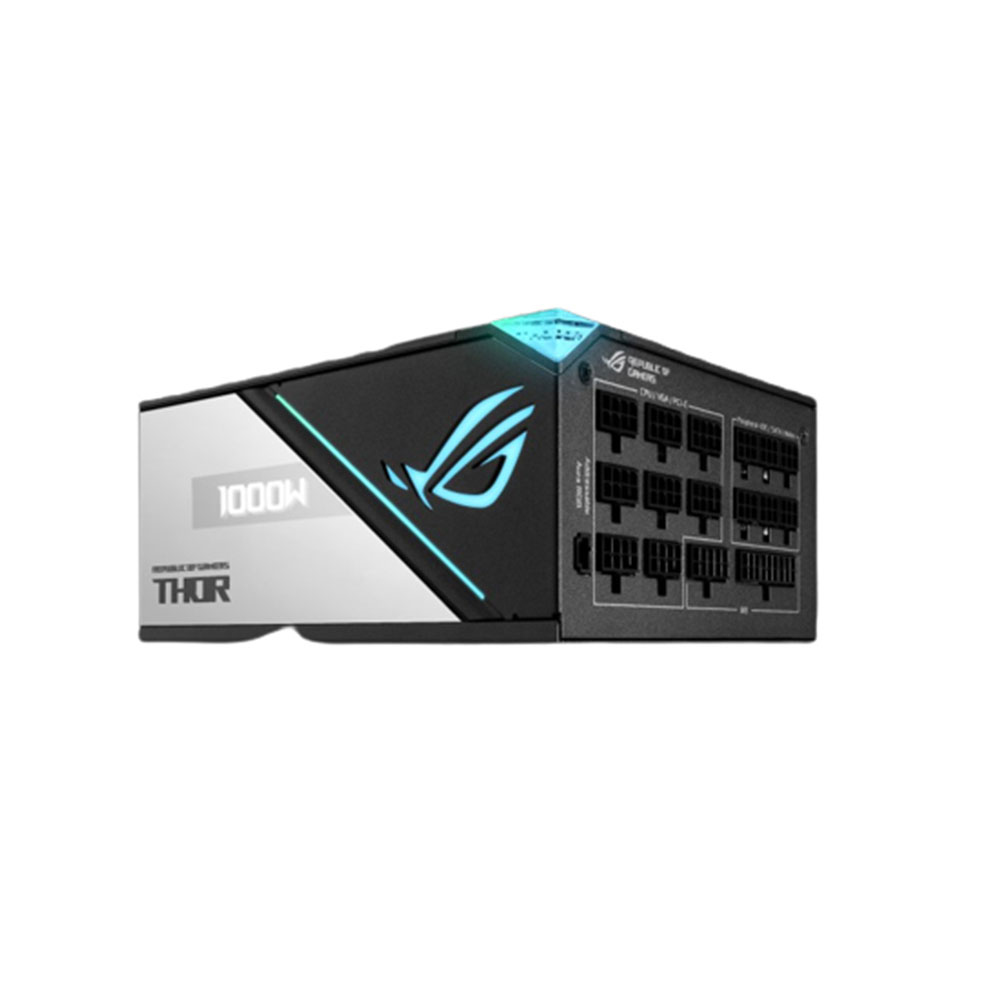

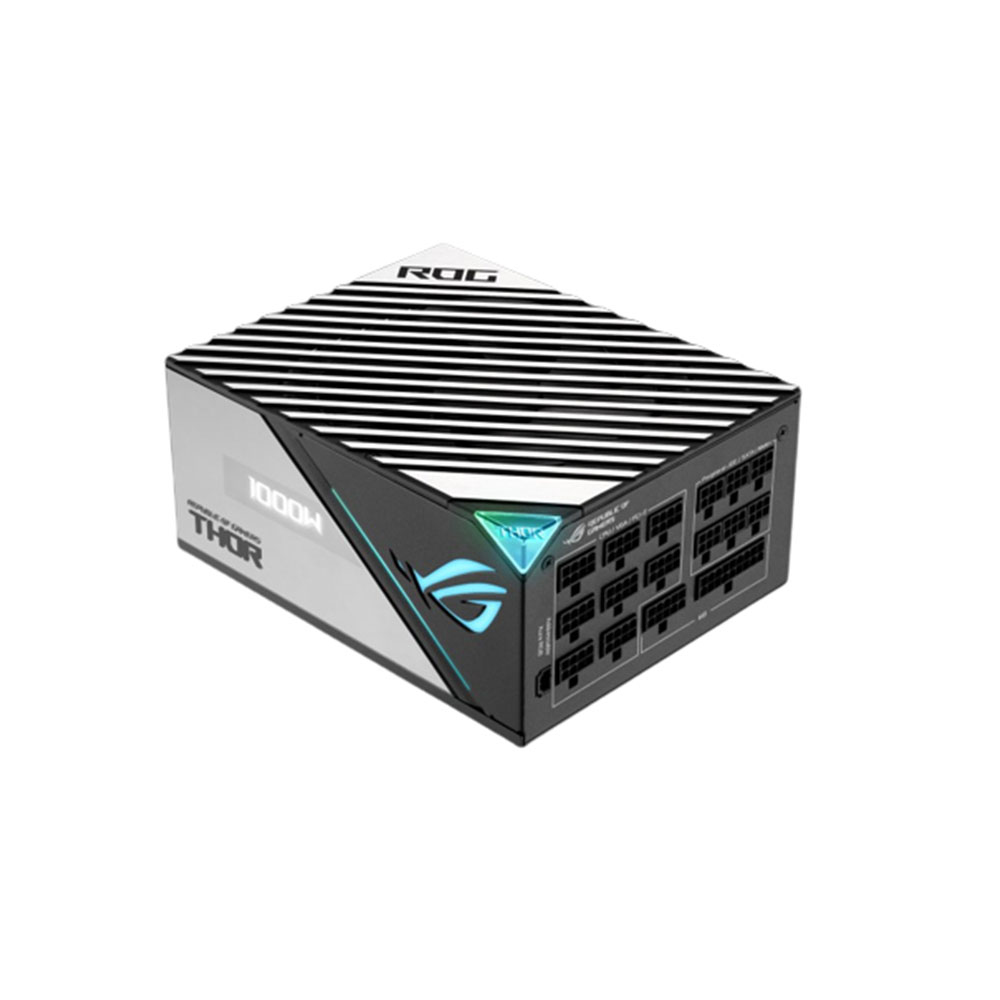

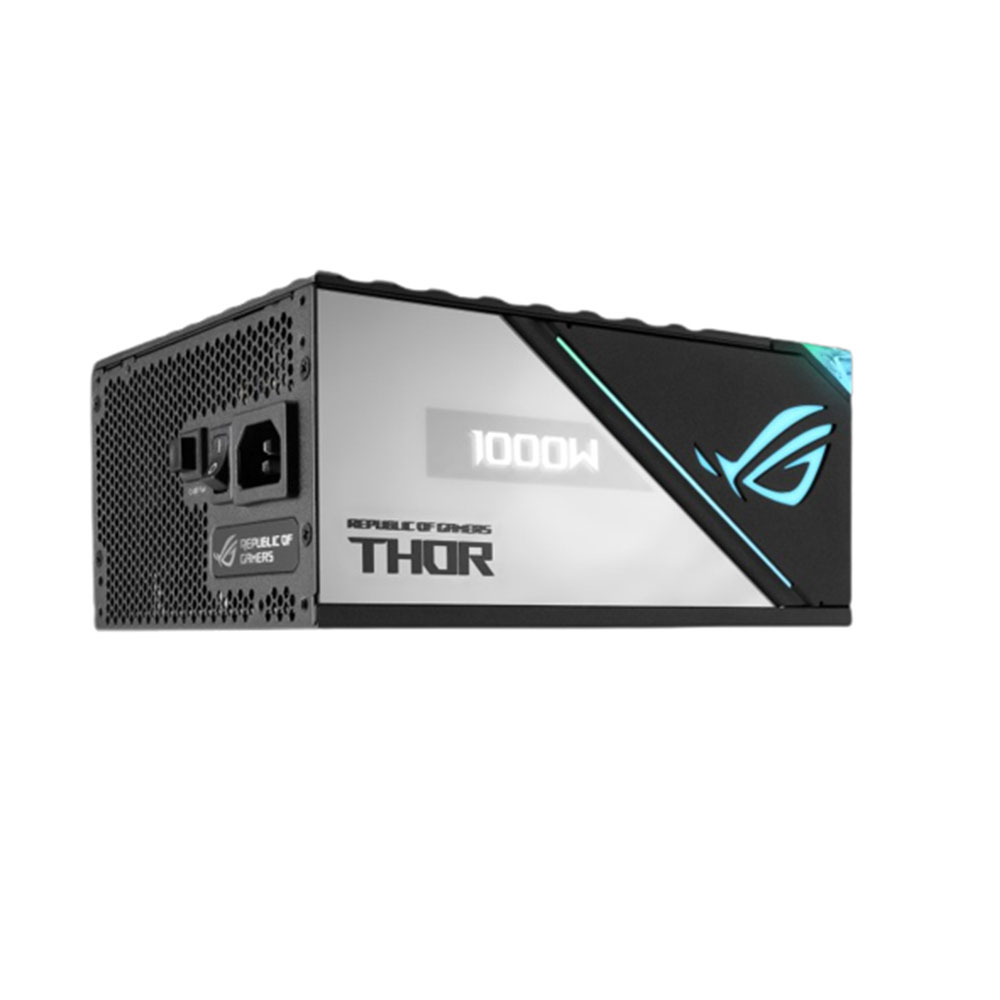

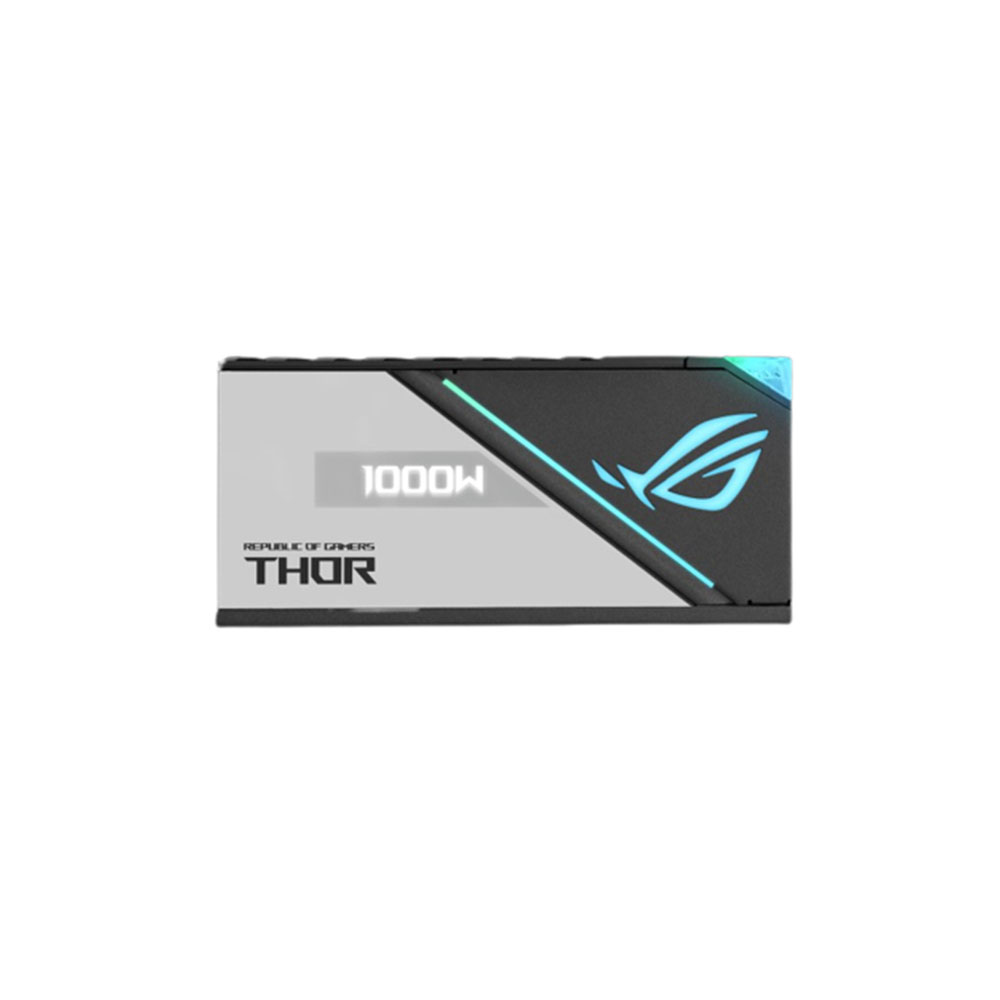

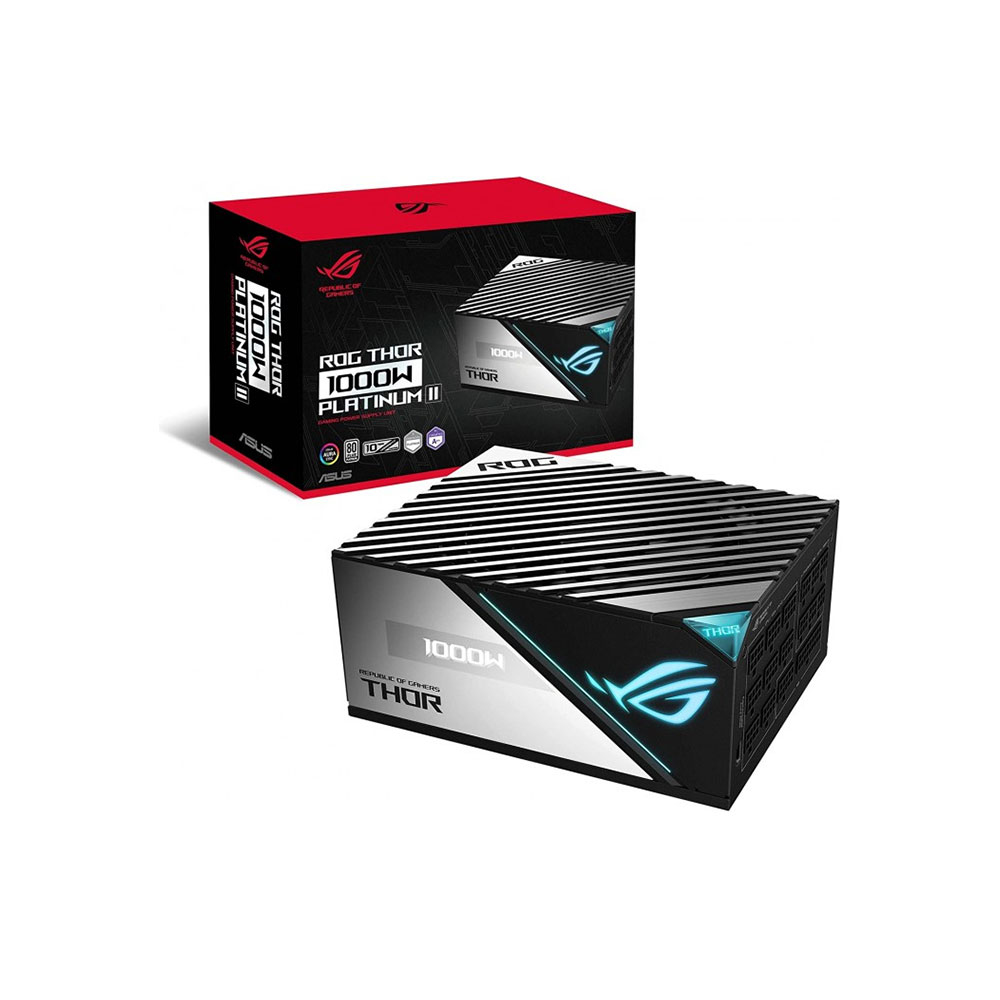

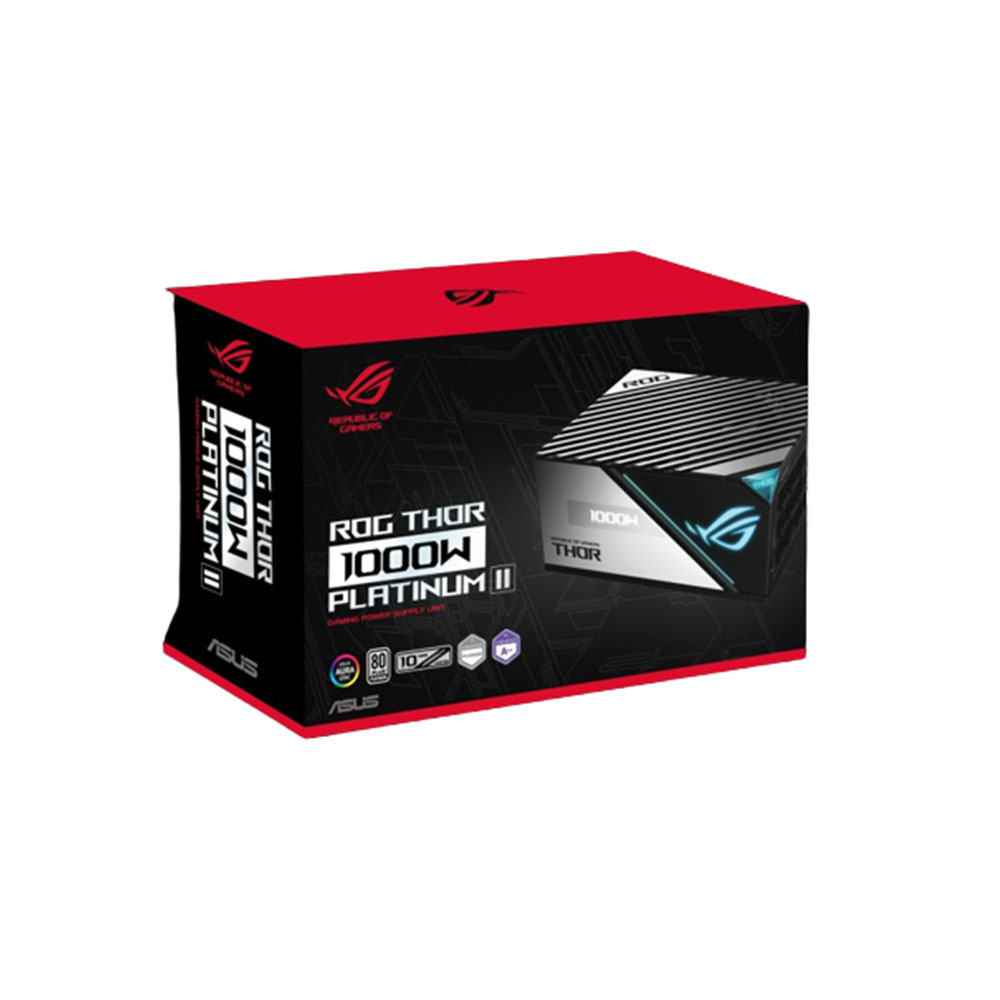

THOR 1000P2-GAMING
Model THOR 1000P2-GAMINGPart no. 90YE00L4-B0NA00EAN 4711081746294
40 specifications
- Noise0 dB
- Weight2.37 kg
- ColourBlack, Silver
- Total power1000 W
- Motherboard power connector20+4 pin ATX
- PurposePC
Overview
- Noise
- 0 dB
- Weight
- 2.37 kg
- Colour
- Black, Silver
- Total power
- 1000 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Brand
- ASUS
- Category
- Power Supply Unit
- Model
- THOR 1000P2-GAMING
- Part number
- 90YE00L4-B0NA00
- EAN / UPC
- 4711081746294
- Also known as
- ASUS ROG THOR 1000P2-GAMING power supply unit 1000 W 20+4 pin ATX ATX Black, Silver
Specifications
40 specifications in 7 groups
Power
| Specification | Value |
|---|---|
| Total power | 1000 W |
| AC input voltage | 100 - 240 V |
| Maximum input current (@220V) | 83 A |
| Combined power (+3.3V) | 125 W |
| Combined power (+12V) | 996 W |
| Combined power (+5V) | 125 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+12V) | 83 A |
| Max output current (+5V) | 125 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features | Over current, Over power, Over voltage, Overdischarge, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 12 |
| Peripheral (Molex) power connectors (4-pin) | 6 |
| PCI Express power connectors (6+2 pin) | 8 |
| PCI Express power connectors (8-pin) | 1 |
| CPU P4 connector (4-pin) | 2 |
| CPU power connector (4+4 pin) | Yes |
| PCI Express connector | Yes |
| Cabling type | Fully-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Platinum |
| Silent mode | Yes |
| Noise level | 0 dB |
Design
| Specification | Value |
|---|---|
| Product colour | Black, Silver |
| Cooling type | Active |
| Illumination | Yes |
| LED indicators | Yes |
Packaging content
| Specification | Value |
|---|---|
| Cables included | CPU, DC, PCIe, Peripheral (Molex), SATA |
| Cable tie(s) included | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | ROHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 190 mm |
| Depth | 150 mm |
| Height | 86 mm |
| Weight | 2.37 kg |
