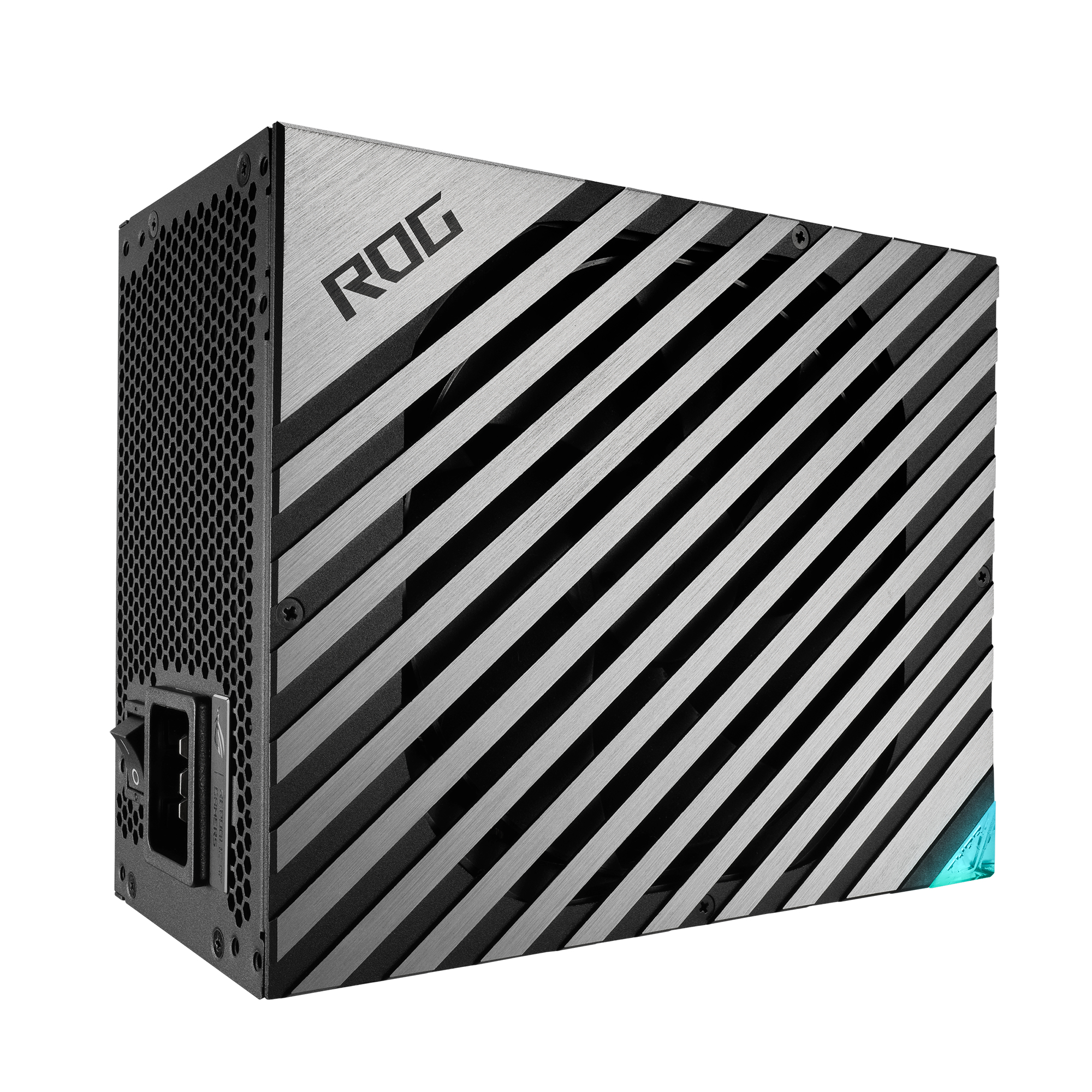

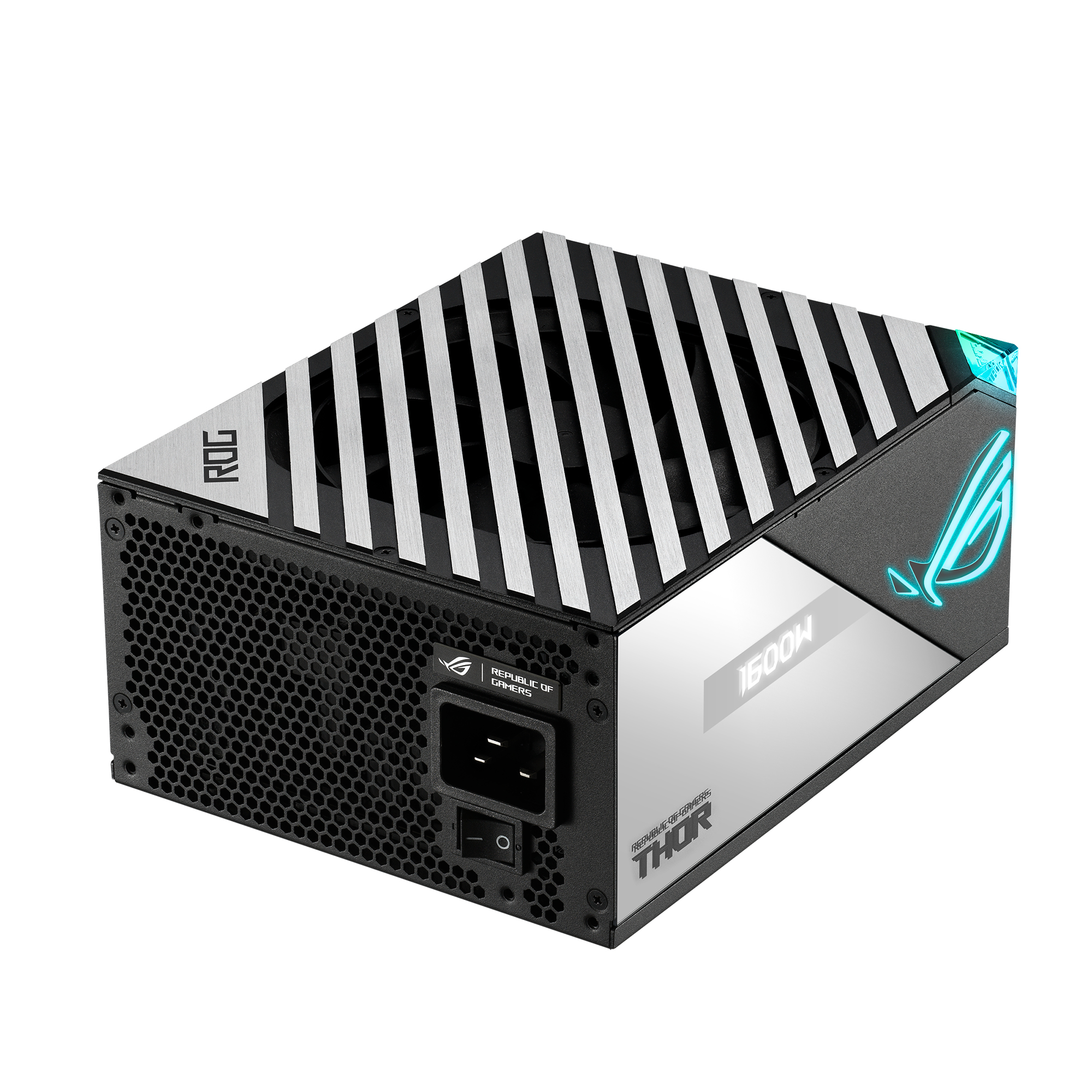

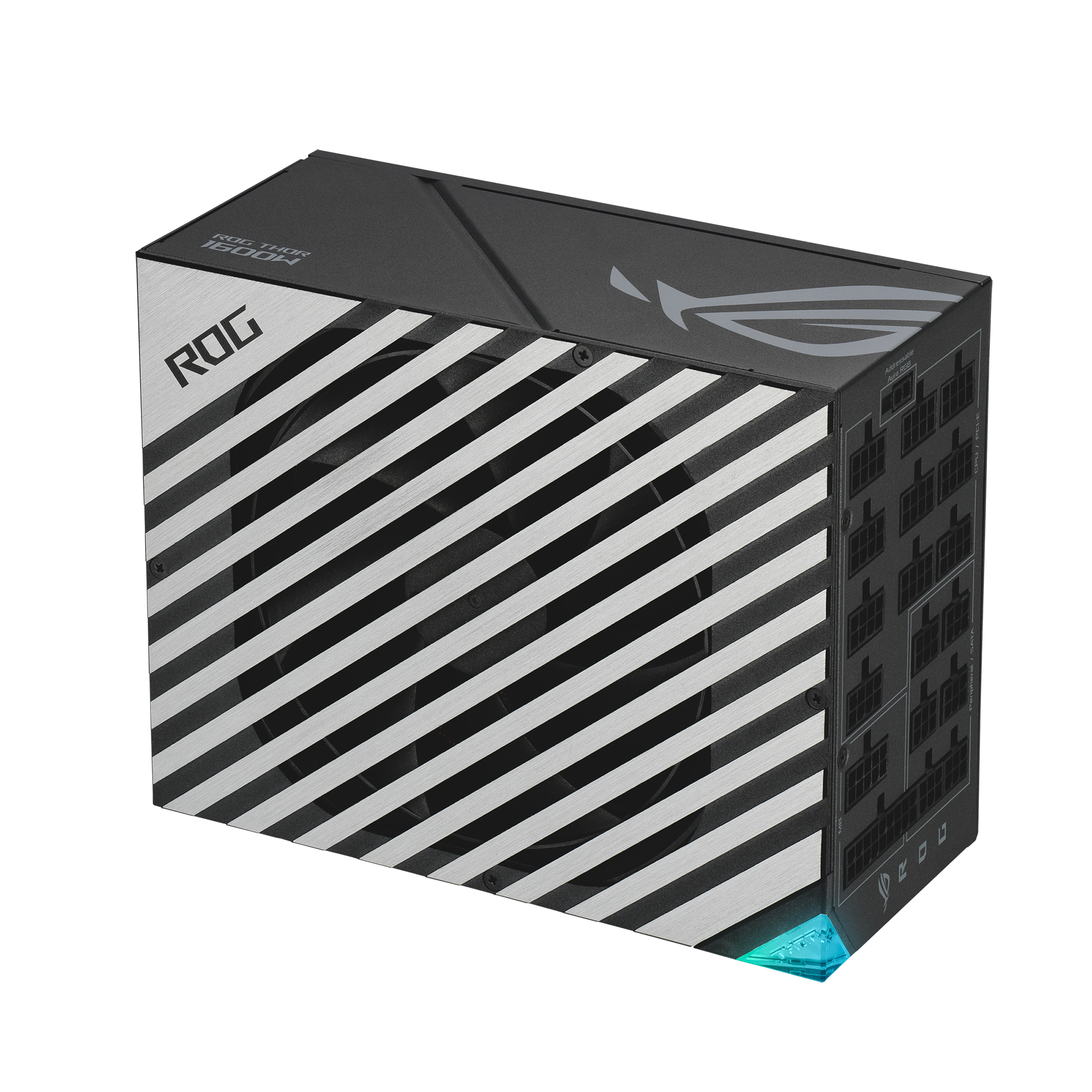

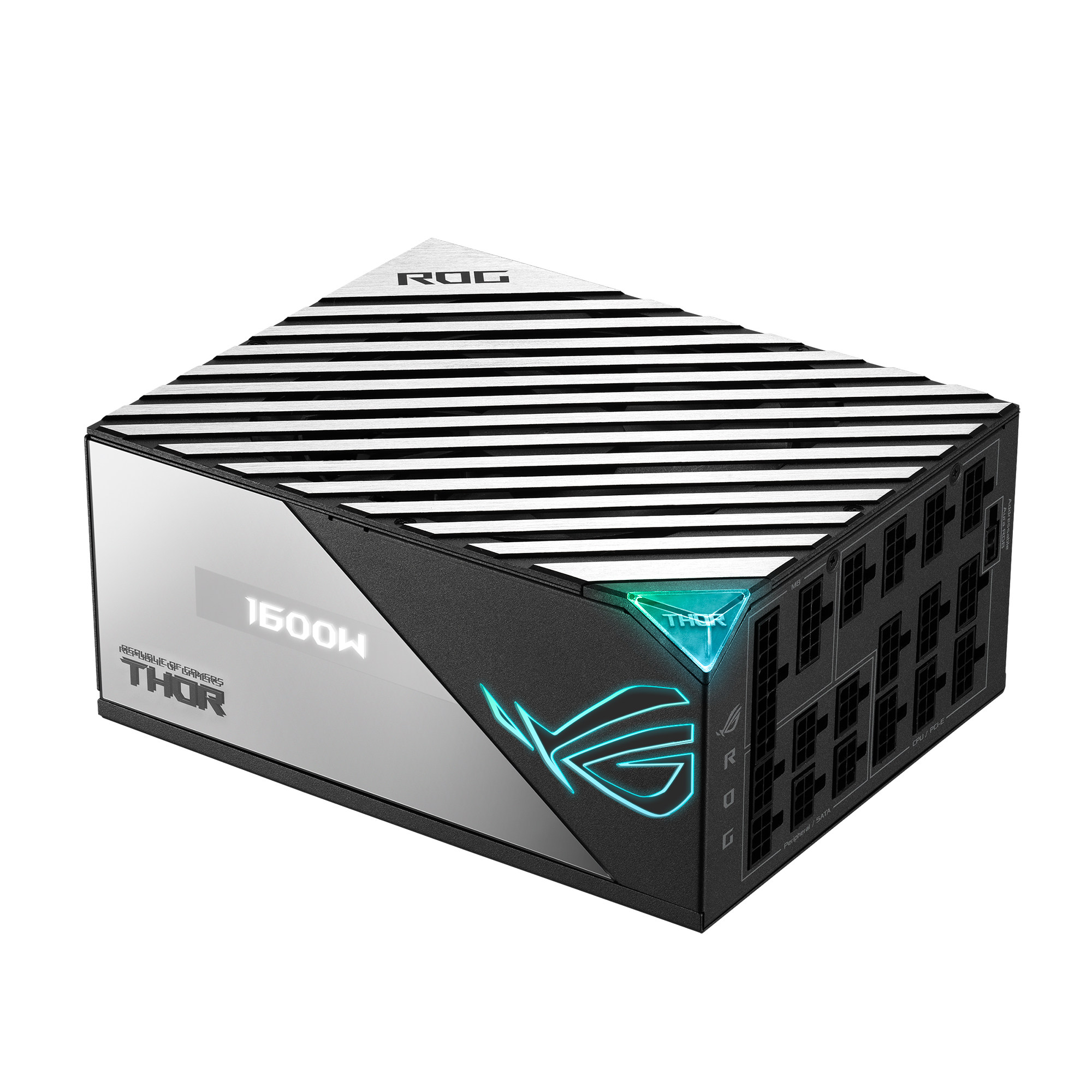

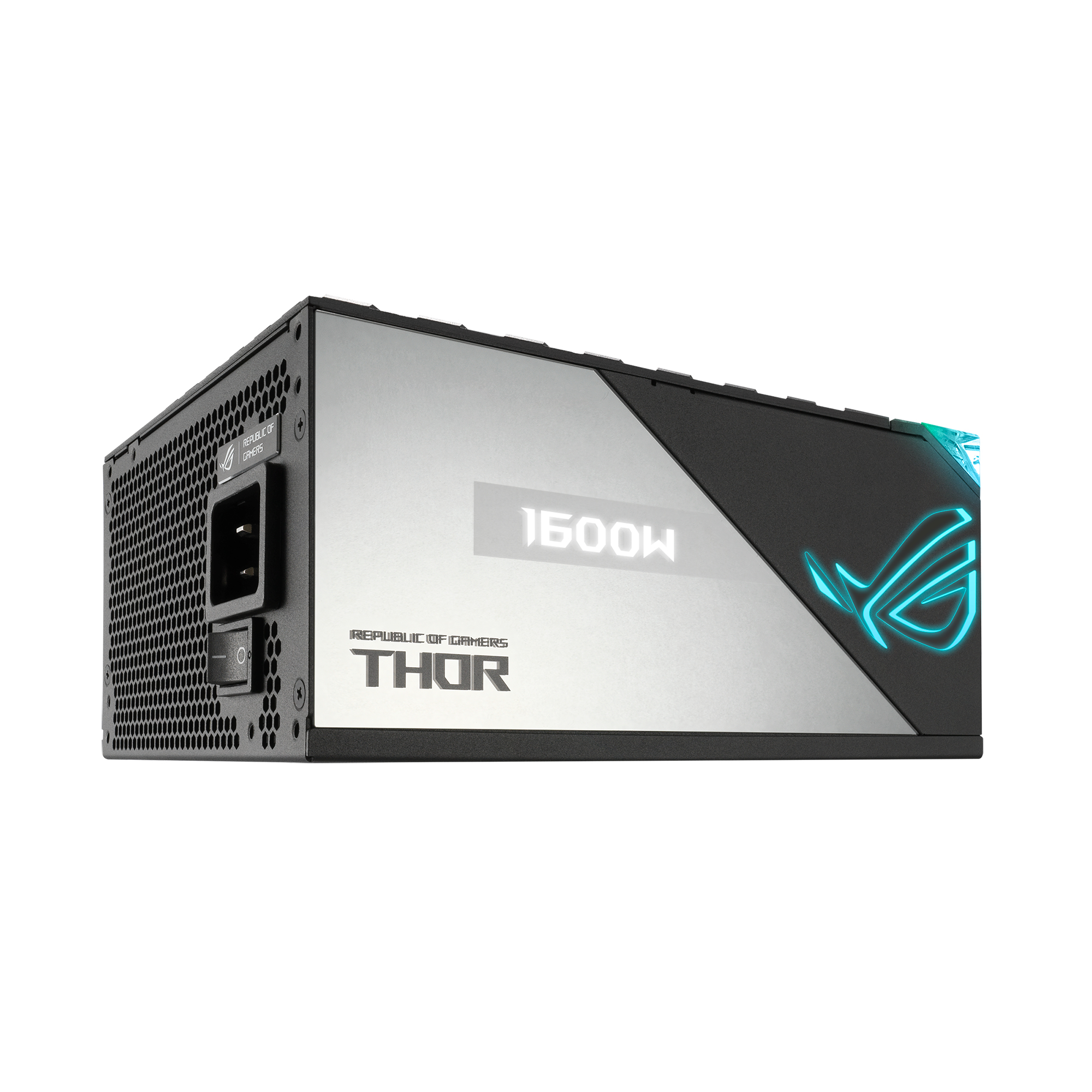

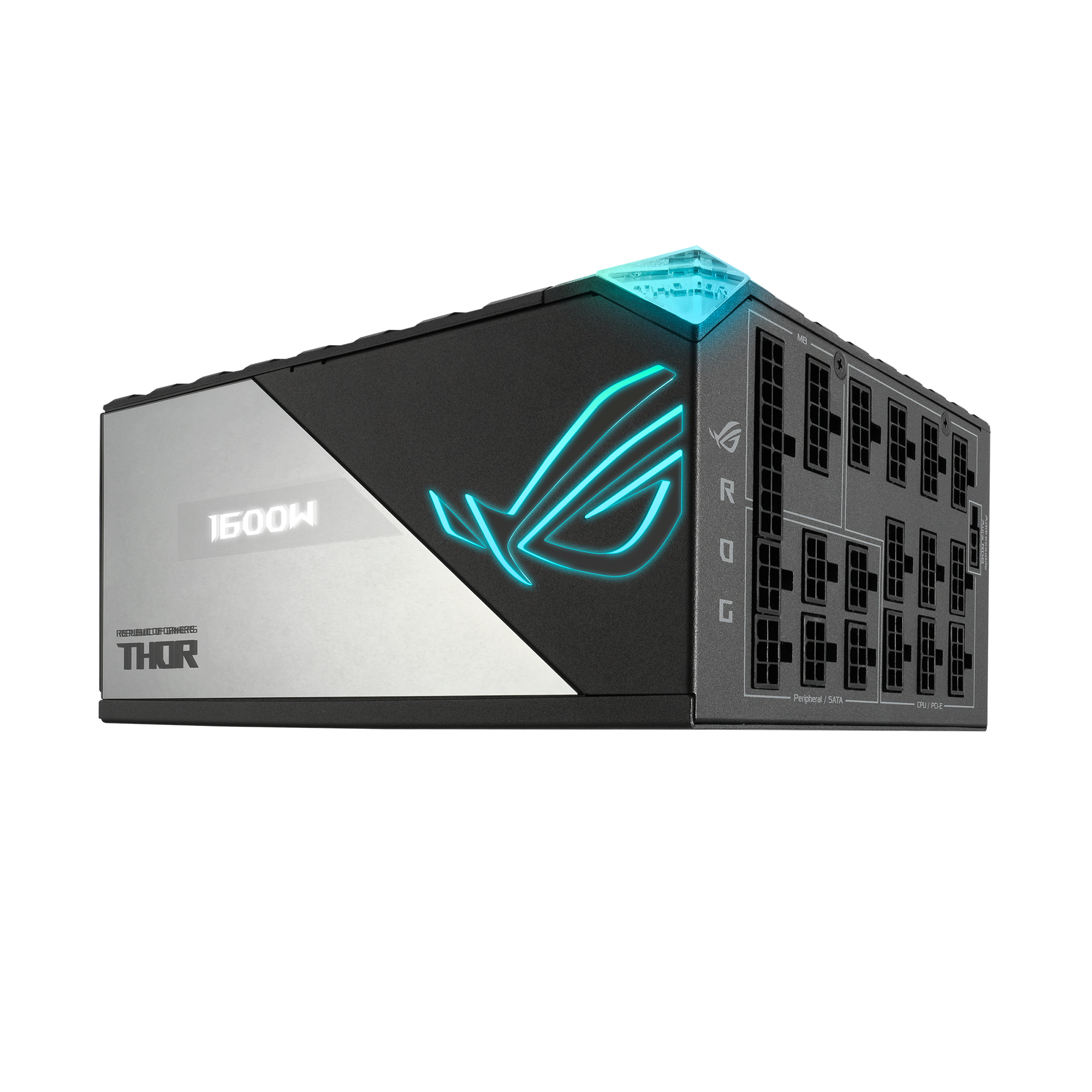

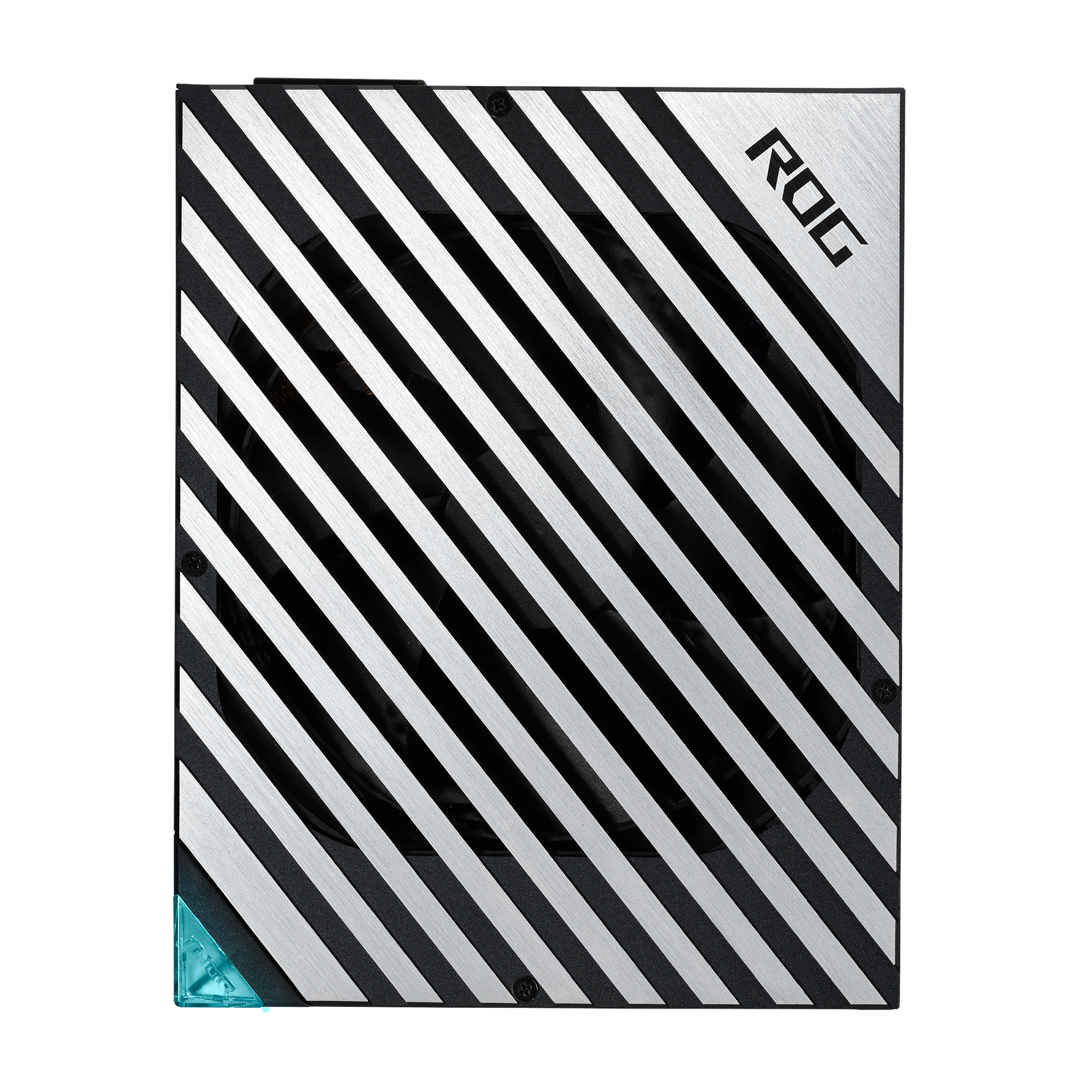

ROG Thor power supply unit
1600 W 20+4 pin ATX Black, Silver
Model ThorPart no. 90YE00K0-B0ZA00
38 specifications
- Weight2.69 kg
- ColourBlack, Silver
- Total power1600 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Width190 mm
Overview
- Weight
- 2.69 kg
- Colour
- Black, Silver
- Total power
- 1600 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Width
- 190 mm
- Brand
- ASUS
- Category
- Power Supply Unit
- Model
- Thor
- Part numbers
- 90YE00K0-B0ZA00, 90YE00L0-B0ZA00, 90YE00L1-B0ZA00
- Also known as
- ASUS ROG Thor power supply unit 1600 W 20+4 pin ATX Black, Silver
Specifications
38 specifications in 8 groups
Power
| Specification | Value |
|---|---|
| Total power | 1600 W |
| AC input voltage | 100 - 240 V |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 1600 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 133.3 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features | Over current, Over power, Over voltage, Short circuit, Under voltage |

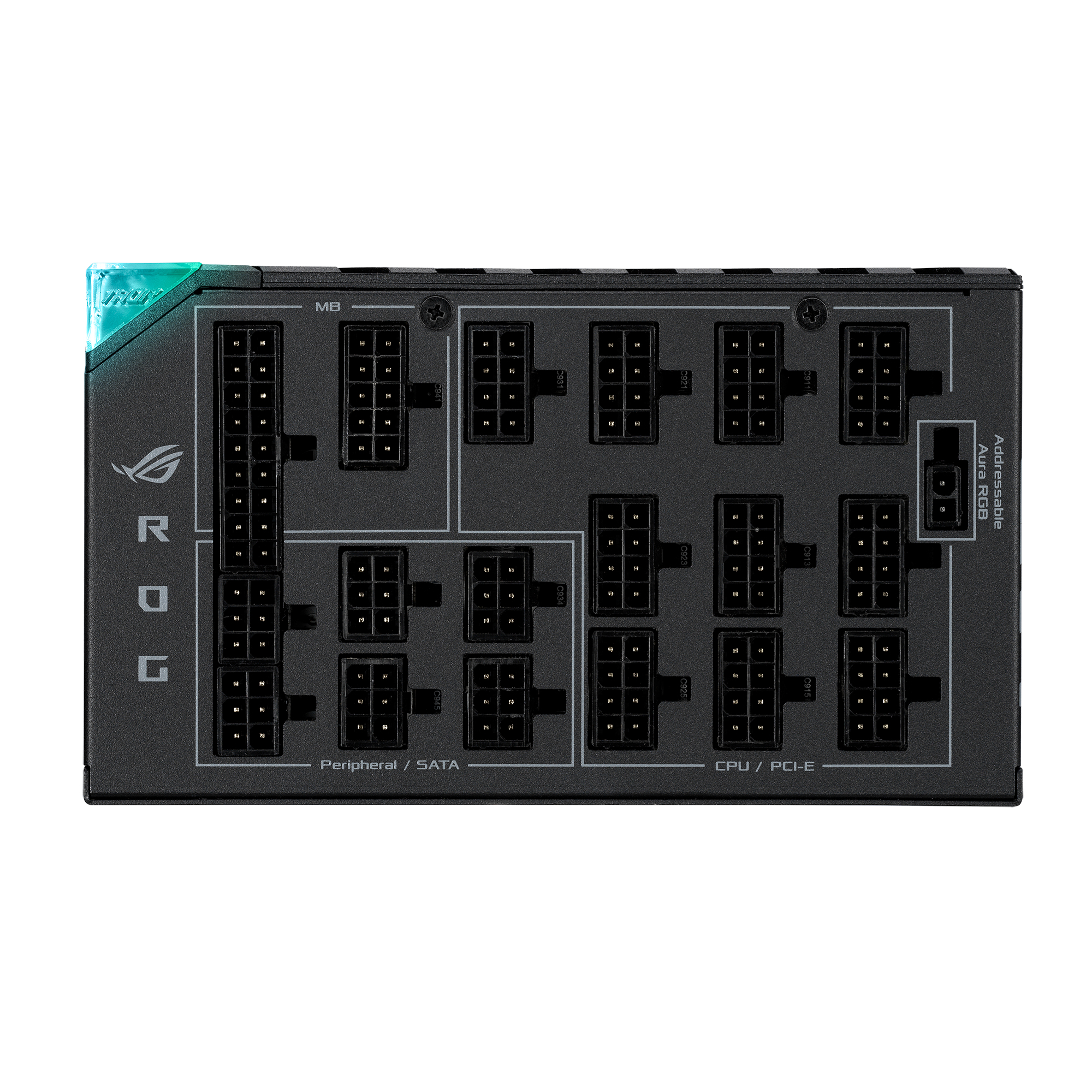

Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 12 |
| Peripheral (Molex) power connectors (4-pin) | 6 |
| PCI Express power connectors (6+2 pin) | 10 |
| PCI Express power connectors (16-pin) | 1 |
| CPU power connector (4+4 pin) | Yes |
| Cabling type | Fully-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| 80 PLUS certification | 80 PLUS Titanium |
Design
| Specification | Value |
|---|---|
| Product colour | Black, Silver |
| Cooling type | Active |
| Number of fans | 1 fan(s) |
| Fan location | Top |

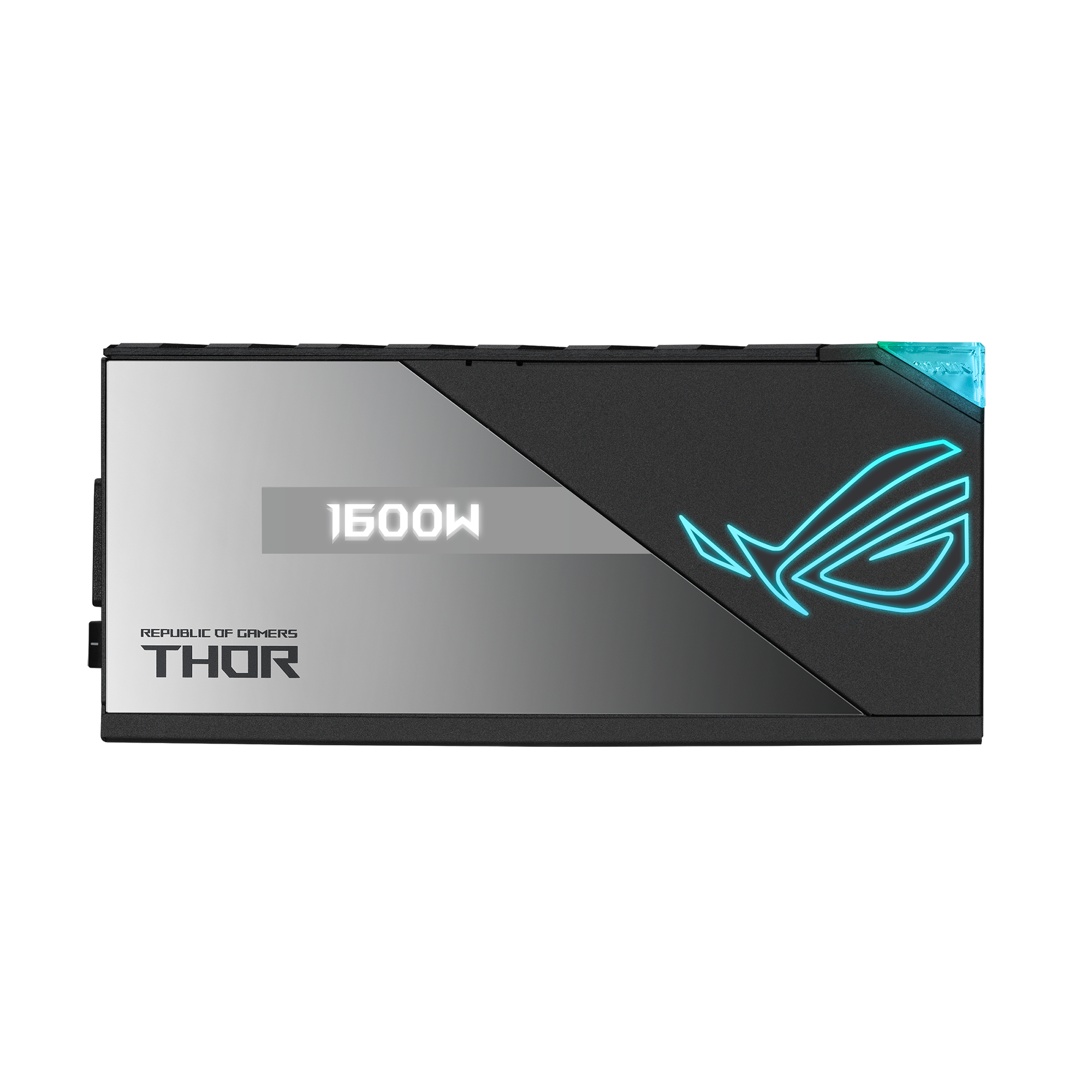

| Built-in display | Yes |
| Illumination | Yes |
| Display type | OLED |
| On/off switch | Yes |
Packaging content
| Specification | Value |
|---|---|
| Cable tie(s) included | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 190 mm |
| Depth | 150 mm |
| Height | 86 mm |
| Weight | 2.69 kg |
Packaging data
| Specification | Value |
|---|---|
| Manual | Yes |
| Package type | Box |
