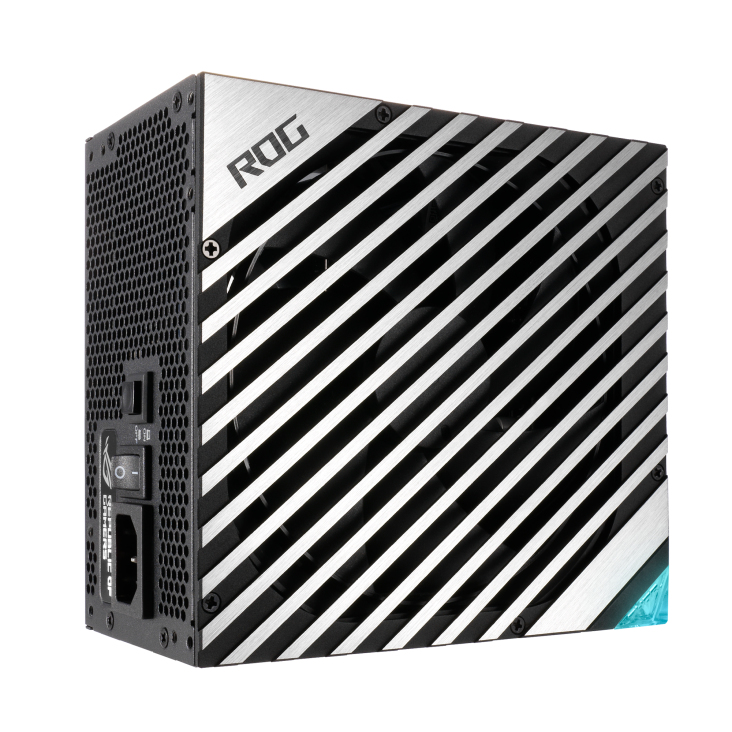

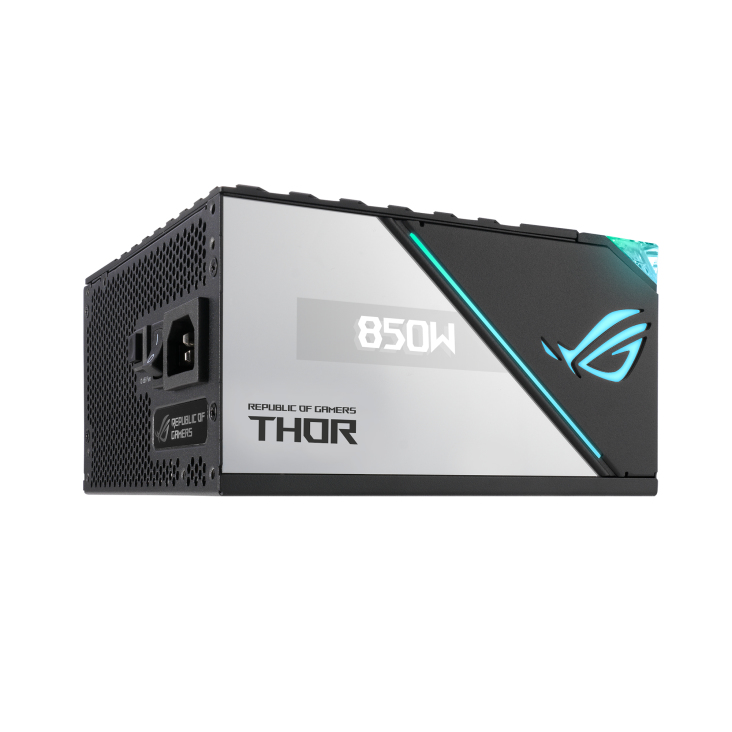

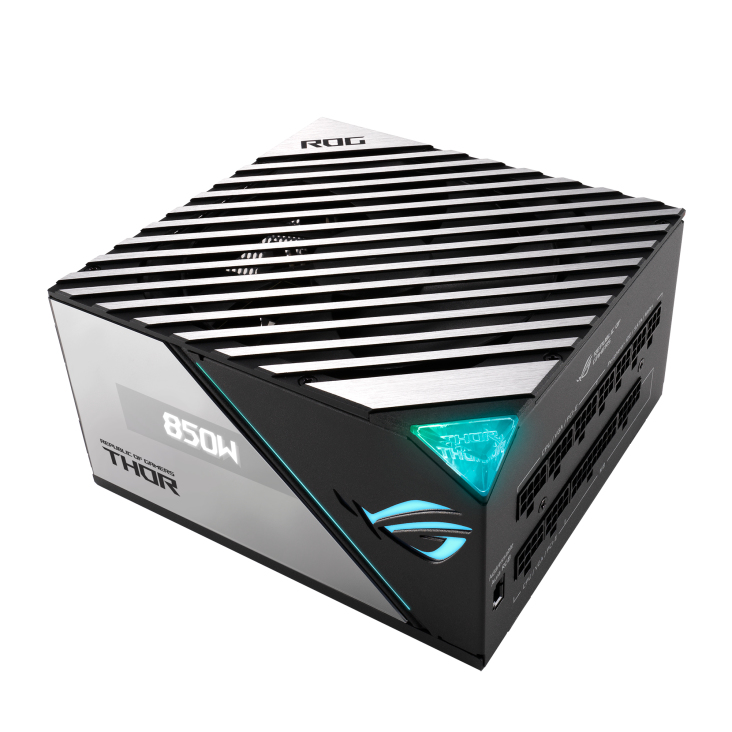

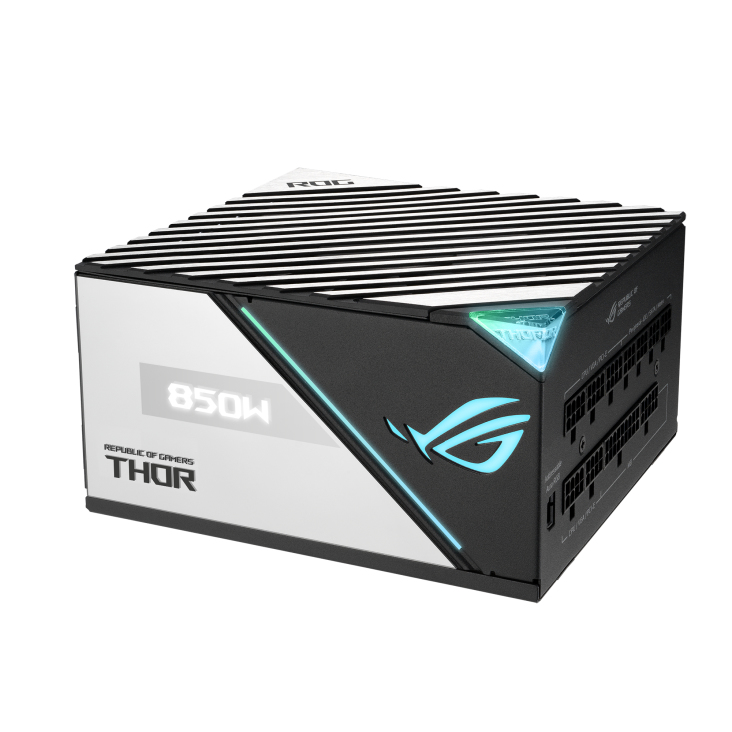

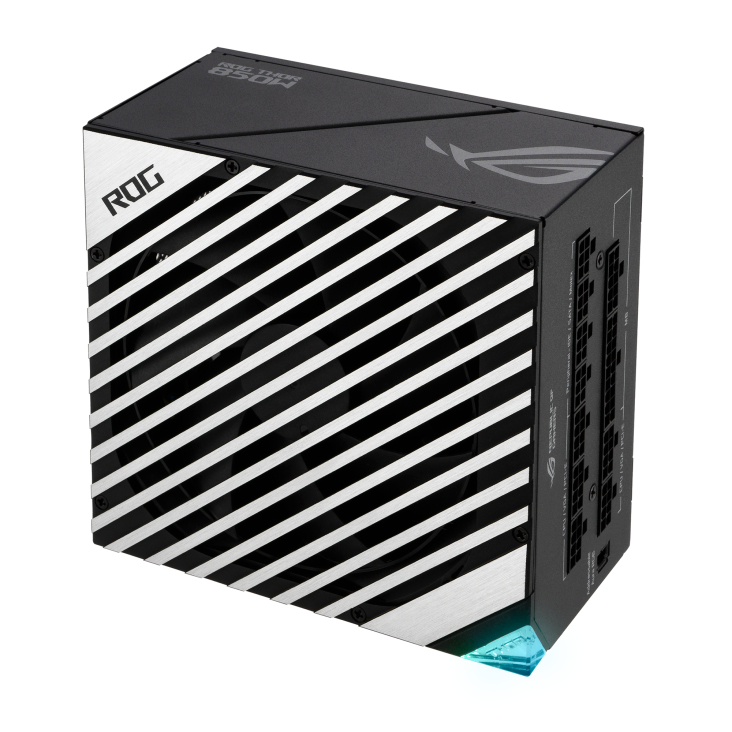

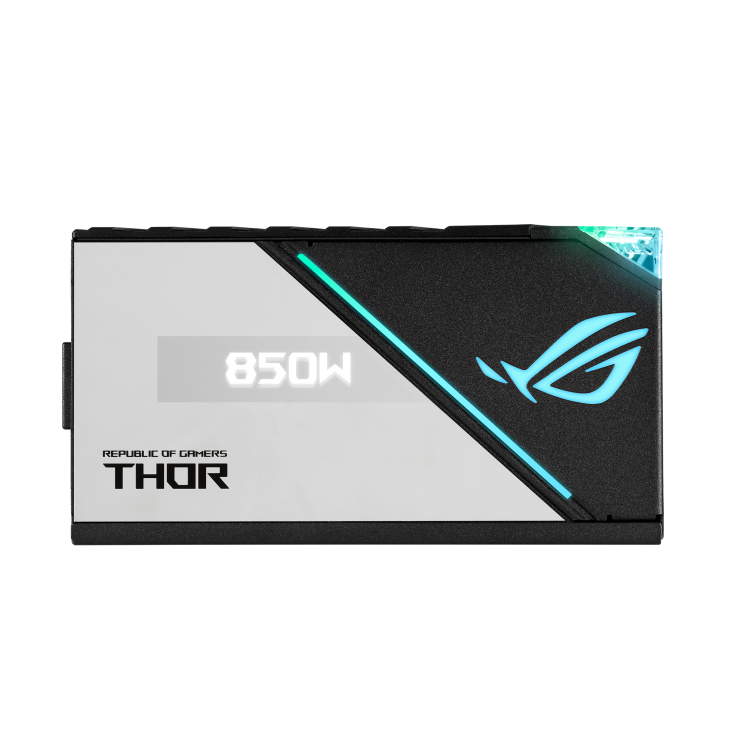

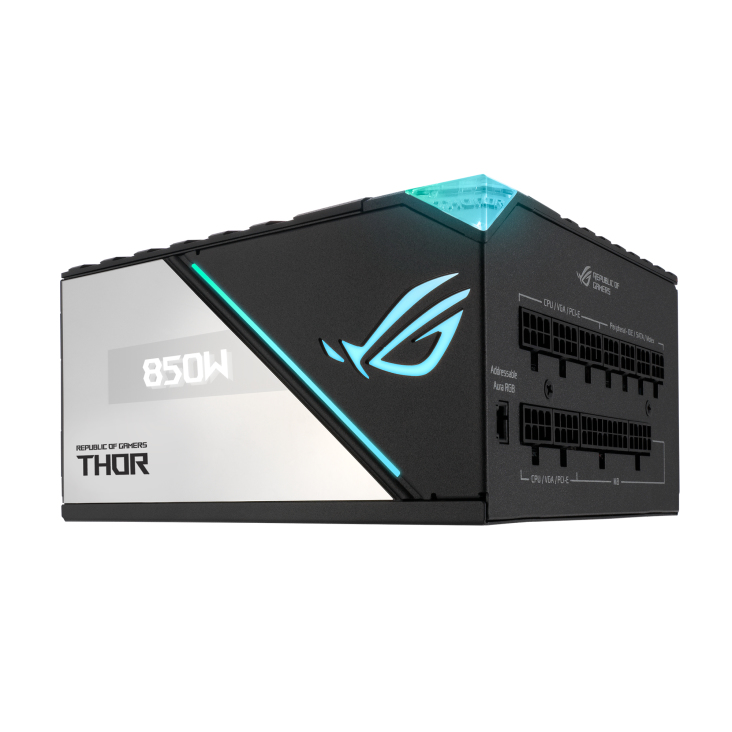

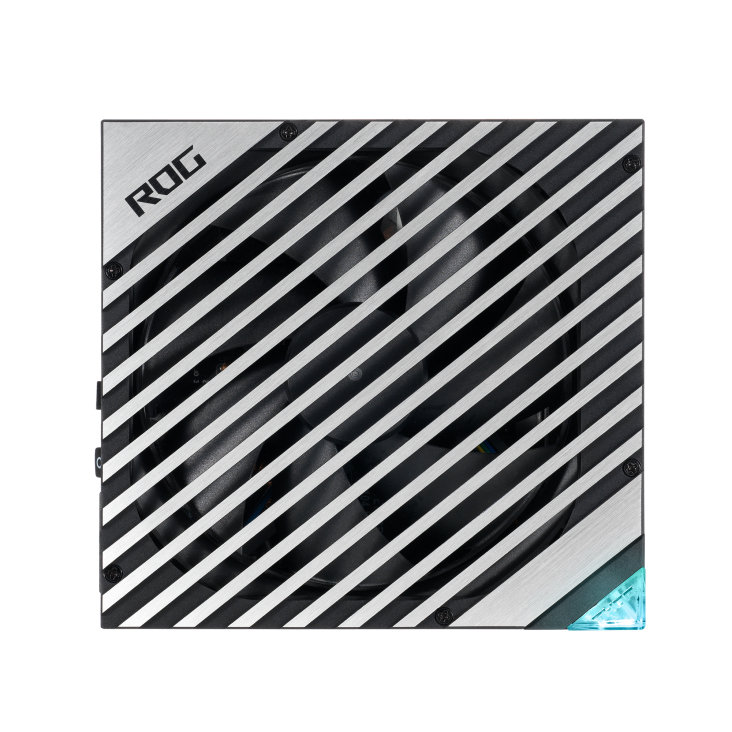

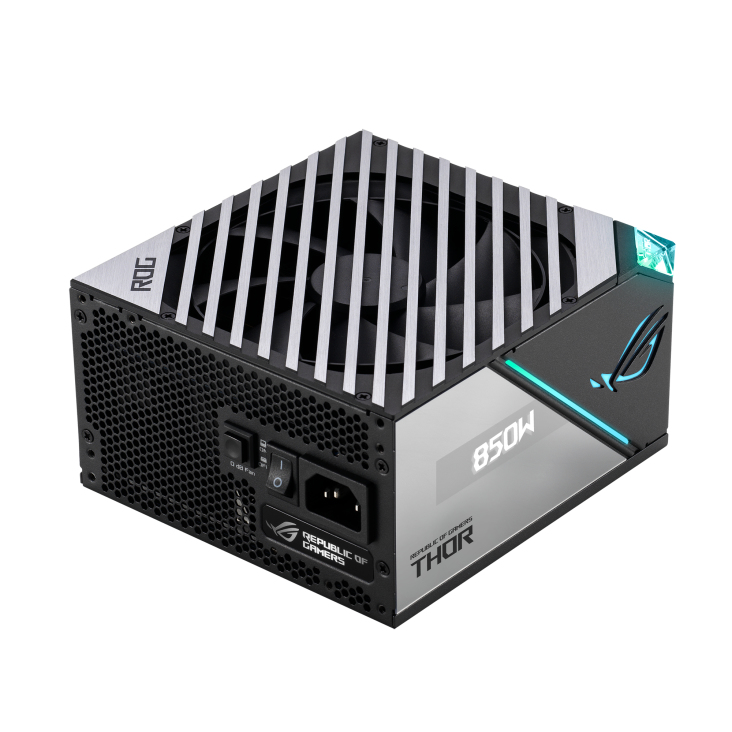

ROG THOR 850W Platinum II
Model ROG THOR 850W Platinum IIPart no. 90YE00L2-B0NA00EAN 4711081236450
45 specifications
- Weight1.86 kg
- ColourBlack, Blue, Grey
- Total power850 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Width160 mm
Overview
- Weight
- 1.86 kg
- Colour
- Black, Blue, Grey
- Total power
- 850 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Width
- 160 mm
- Brand
- ASUS
- Category
- Power Supply Unit
- Model
- ROG THOR 850W Platinum II
- Part number
- 90YE00L2-B0NA00
- EAN / UPC
- 4711081236450
- Also known as
- ASUS ROG THOR 850W Platinum II power supply unit 20+4 pin ATX Black, Blue, Grey
Specifications
45 specifications in 8 groups
Power
| Specification | Value |
|---|---|
| Total power | 850 W |
| AC input voltage | 100 - 240 V |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 852 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 71 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features | Over current, Over power, Over voltage, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 61 cm |
| Number of SATA power connectors | 10 |
| SATA power cable length | 120,400 mm |
| Peripheral (Molex) power connectors (4-pin) | 6 |
| Peripheral (Molex) power cable length | 120,450 mm |
| PCI Express power connectors (6+2 pin) | 3 |
| PCI Express power connectors (16-pin) | 1 |
| PCI Express power cable length | 67.5 cm |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 65 cm |
| Cabling type | Fully-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| 80 PLUS certification | 80 PLUS Platinum |
| Silent mode | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black, Blue, Grey |
| Cooling type | Active |
| Fan diameter | 13.5 cm |
| Number of fans | 1 fan(s) |
| Built-in display | Yes |
Packaging content
| Specification | Value |
|---|---|
| Cables included | CPU, PCIe, Peripheral (Molex), SATA |
| Cable tie(s) included | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 160 mm |
| Depth | 150 mm |
| Height | 86 mm |
| Weight | 1.86 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 378 mm |
| Package depth | 240 mm |
| Package height | 130 mm |
| Package weight | 4.07 kg |
| Package type | Box |
