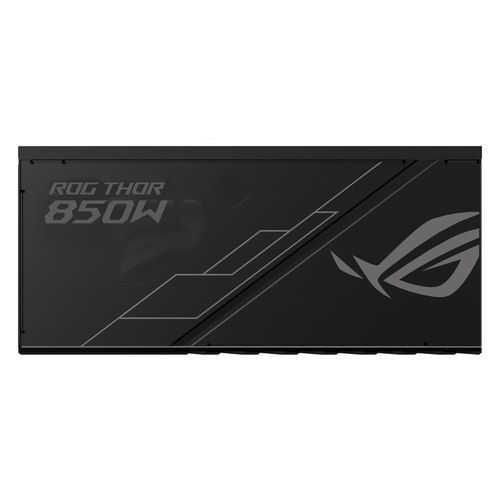

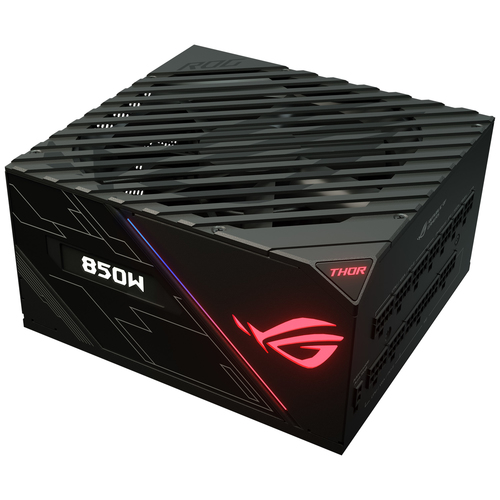

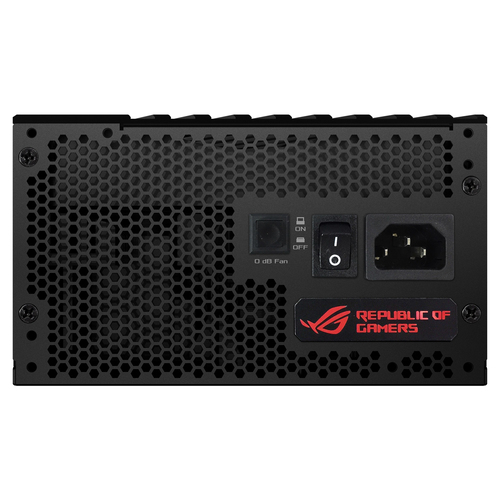

ASUS ROG-THOR-850P power supply unit
852 W 24-pin ATX ATX Black
Model ROG-THOR-850PPart no. 90YE0090-B001N0EAN 4718017217286
31 specifications
- ColourBlack
- Total power852 W
- Motherboard power connector24-pin ATX
- PurposePC
- Width160 mm
Overview
- Colour
- Black
- Total power
- 852 W
- Motherboard power connector
- 24-pin ATX
- Purpose
- PC
- Width
- 160 mm
- Brand
- ASUS
- Category
- Power Supply Unit
- Model
- ROG-THOR-850P
- Part numbers
- 90YE0090-B001N0, 90YE0090-B001W0
- EAN / UPC
- 4718017217286, 4718017128599, 192876128589, 4718017128537 +1 more
- Also known as
- ASUS ROG-THOR-850P power supply unit 852 W 24-pin ATX ATX Black
Specifications
31 specifications in 9 groups
Power
| Specification | Value |
|---|---|
| Total power | 852 W |
| AC input voltage | 100 - 240 V |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 71 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 80% |
| Power protection features | Over current, Over power, Over voltage, Short circuit |

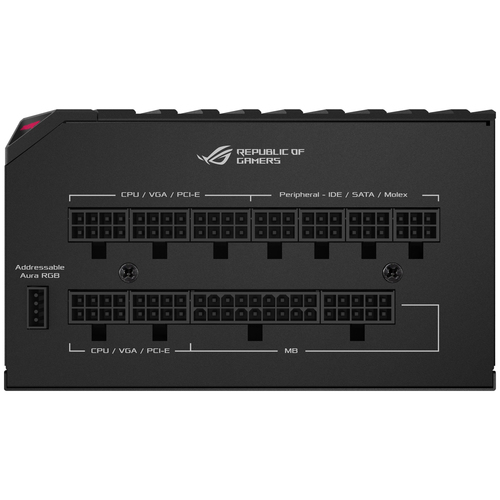

Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 24-pin ATX |
| PCI Express power connectors (6+2 pin) | 2 |
| CPU power connector (4+4 pin) | Yes |
| Cabling type | Fully-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Platinum |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 13.5 cm |
| Number of fans | 1 fan(s) |
| Illumination | Yes |
| On/off switch | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 160 mm |
| Depth | 150 mm |
| Height | 86 mm |
Packaging data
| Specification | Value |
|---|---|
| Manual | Yes |
| Package type | Box |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
Other features
| Specification | Value |
|---|---|
| Warranty card | Yes |
| Illumination colour | Blue, Green, Red |
