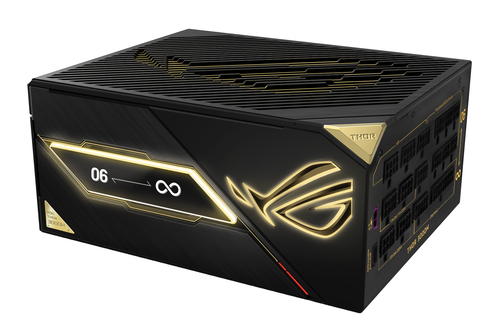

ROG Thor 3000W Titanium III Edition 20
Model ROG Thor 3000W Titanium III Edition 20Part no. 90YE00VA-B0NA00EAN 199291587267
49 specifications
- Weight2.5 kg
- ColourBlack
- Total power3000 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Width190 mm
Overview
- Weight
- 2.5 kg
- Colour
- Black
- Total power
- 3000 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Width
- 190 mm
- Brand
- ASUS
- Category
- Power Supply Unit
- Model
- ROG Thor 3000W Titanium III Edition 20
- Part number
- 90YE00VA-B0NA00
- EAN / UPC
- 199291587267, 4711636587181
- Also known as
- ASUS ROG Thor 3000W Titanium III Edition 20 power supply unit 20+4 pin ATX ATX Black
Specifications
49 specifications in 7 groups
Power
| Specification | Value |
|---|---|
| Total power | 3000 W |
| AC input voltage | 100 - 240 V |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 125 W |
| Combined power (+12V) | 3000 W |
| Combined power (+5V) | 125 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 30 A |
| Max output current (+12V) | 250 A |
| Max output current (+5V) | 30 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features | Overheating, Over current, Over power, Over voltage, Short circuit, Under power |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 61 cm |
| Number of SATA power connectors | 9 |
| SATA power cable length | 400,120 mm |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| Peripheral (Molex) power cable length | 400,150 mm |
| PCI Express power connectors (6+2 pin) | 3 |
| PCI Express power connectors (16-pin) | 4 |
| PCI Express power cable length | 75 cm |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 100 cm |
| Cabling type | Fully-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Platinum |
| ATX version | 3.1 |
| Bearing technology | DBB |
| Mean time between failures (MTBF) | 120000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| Illumination | Yes |
| On/off switch | Yes |
Packaging content
| Specification | Value |
|---|---|
| Cables included | CPU, PCIe, SATA, Peripheral (Molex) |
| Packaging content | Power Cord x 1 Motherboard Power Cable x 1 (610mm) CPU Cable x 3 (1000mm) ROG EQUALIZER 12V-2x6 PCI-E Cable with GPU-First x1 (750mm) ROG EQUALIZER 12V-2x6 PCI-E Cable x3 (750mm) PCI-E Cable 1-to-1 x 3 (750mm) SATA Cable 1-to-3 x 3 (400+120+120mm) Peripheral 1-to-3 x 1 (400+150+150mm) Addressable RG |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 190 mm |
| Depth | 150 mm |
| Height | 86 mm |
| Weight | 2.5 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 397 mm |
| Package depth | 250 mm |
| Package height | 159 mm |
| Package weight | 6.28 kg |
| Package type | Box |
