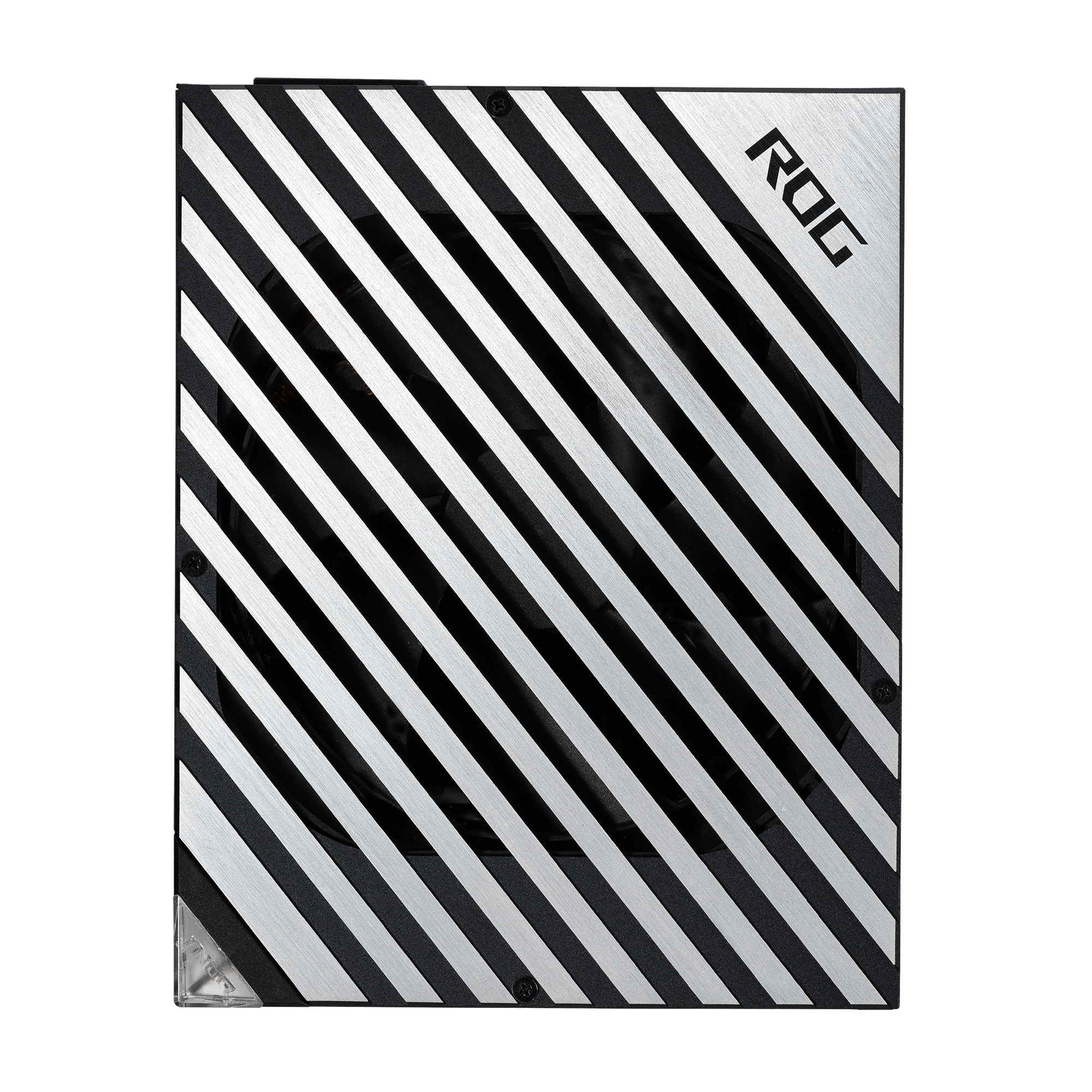

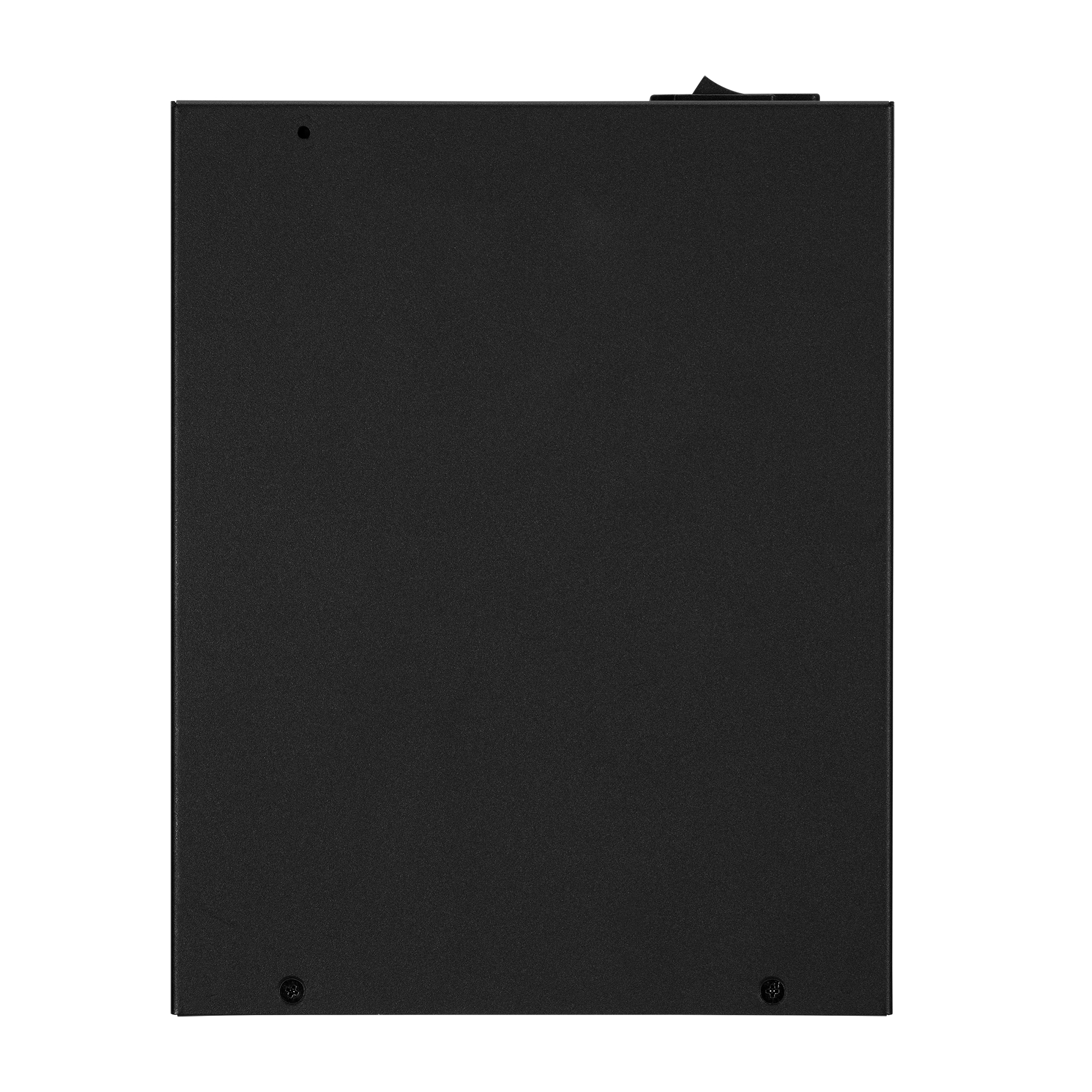

ROG THOR 1600W Titanium
Model ROG THOR 1600W TitaniumPart no. 90YE00K0-B0NA00EAN 4711081198390
41 specifications
- Weight2.69 kg
- ColourBlack, Silver
- Total power1600 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Width190 mm
Overview
- Weight
- 2.69 kg
- Colour
- Black, Silver
- Total power
- 1600 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Width
- 190 mm
- Brand
- ASUS
- Category
- Power Supply Unit
- Model
- ROG THOR 1600W Titanium
- Part number
- 90YE00K0-B0NA00
- EAN / UPC
- 4711081198390
- Also known as
- ASUS ROG THOR 1600W Titanium power supply unit 20+4 pin ATX ATX Black, Silver
Specifications
41 specifications in 10 groups
Power
| Specification | Value |
|---|---|
| Total power | 1600 W |
| AC input voltage | 100 - 240 V |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 1600 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 133.3 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features | Over power, Overcharge, Overheating, Overload, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 12 |
| Peripheral (Molex) power connectors (4-pin) | 6 |
| PCI Express power connectors (6+2 pin) | 10 |
| PCI Express power connectors (16-pin) | 1 |
| CPU P4 connector (4-pin) | 2 |
| CPU power connector (4+4 pin) | Yes |
| ATX power connector (20+4 pin) | Yes |
| Cabling type | Fully-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Titanium |
Design
| Specification | Value |
|---|---|
| Product colour | Black, Silver |
| Cooling type | Active |
| Fan diameter | 13.5 cm |
| Illumination | Yes |
| On/off switch | Yes |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, CPU, PCIe, Peripheral (Molex), SATA |
| Cable tie(s) included | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, Low Voltage Directive (LVD), RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 190 mm |
| Depth | 150 mm |
| Height | 86 mm |
| Weight | 2.69 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 2.71 kg |
| Package type | Box |
Technical details
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
