ROG THOR 1200W Platinum II
Model ROG THOR 1200W Platinum IIPart no. 90YE00L0-B0NA00EAN 4711081236061
40 specifications
- Weight2.37 kg
- ColourGrey
- Total power1200 W
- Motherboard power connector24-pin ATX
- PurposePC
- Width190 mm
Overview
- Weight
- 2.37 kg
- Colour
- Grey
- Total power
- 1200 W
- Motherboard power connector
- 24-pin ATX
- Purpose
- PC
- Width
- 190 mm
- Brand
- ASUS
- Category
- Power Supply Unit
- Model
- ROG THOR 1200W Platinum II
- Part number
- 90YE00L0-B0NA00
- EAN / UPC
- 4711081236061
- Also known as
- ASUS ROG THOR 1200W Platinum II power supply unit 24-pin ATX ATX Grey
Specifications
40 specifications in 8 groups
Power
| Specification | Value |
|---|---|
| Total power | 1200 W |
| AC input voltage | 100 - 240 V |
| Maximum input current (@220V) | 100 A |
| Combined power (+3.3V) | 125 W |
| Combined power (+12V) | 1200 W |
| Combined power (+5V) | 125 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+12V) | 100 A |
| Max output current (+5V) | 25 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features | Over power, Over voltage, Overcharge, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 12 |
| Peripheral (Molex) power connectors (4-pin) | 6 |
| PCI Express power connectors (6+2 pin) | 8 |
| CPU power connector (4+4 pin) | Yes |
| ATX Power connector (24-pin) | Yes |
| Cabling type | Fully-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Platinum |
Design
| Specification | Value |
|---|---|
| Product colour | Grey |
| Cooling type | Active |
| Number of fans | 1 fan(s) |
| Illumination | Yes |

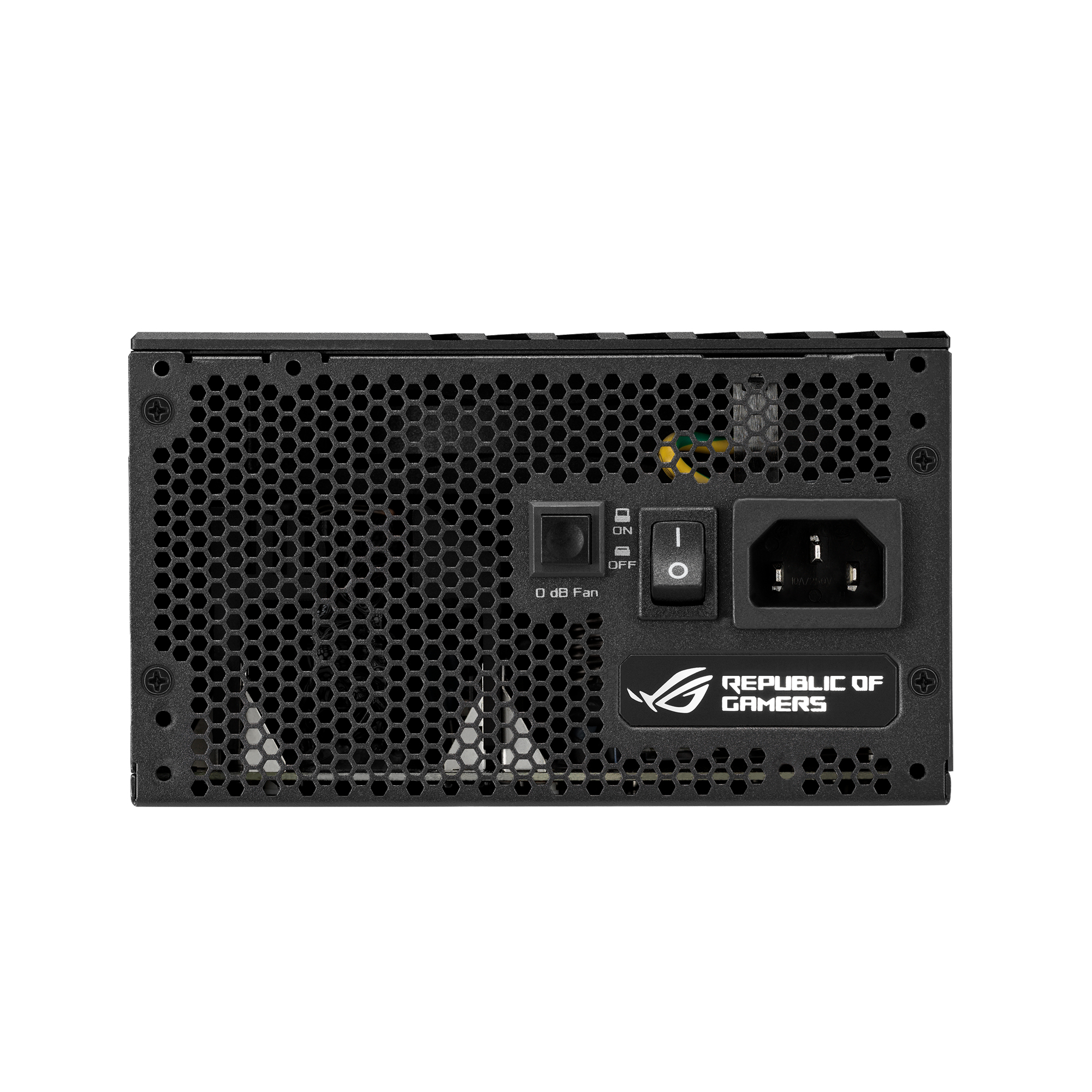

| On/off switch | Yes |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 190 mm |
| Depth | 150 mm |
| Height | 86 mm |
| Weight | 2.37 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 378 mm |
| Package depth | 240 mm |
| Package height | 130 mm |
| Package weight | 4.78 kg |
| Package type | Box |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
