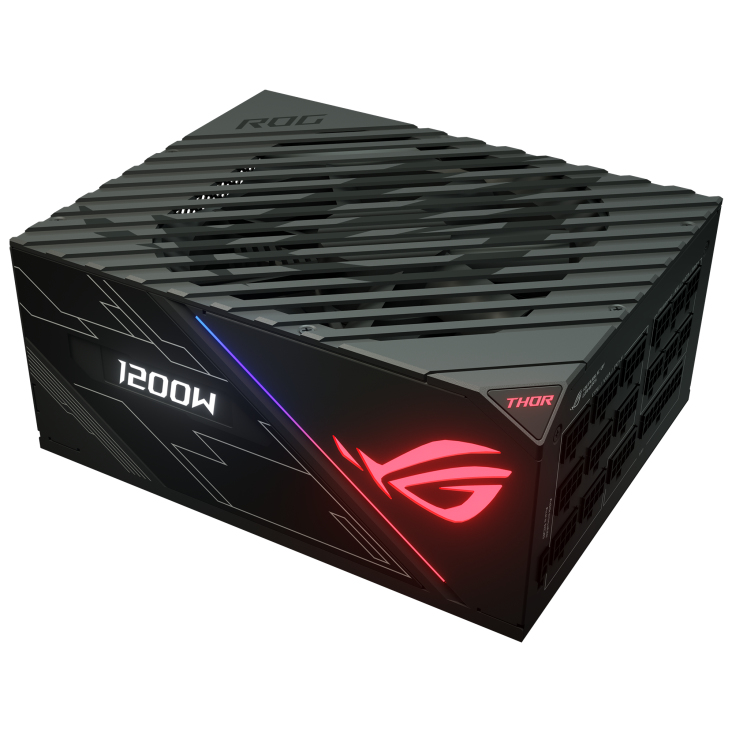

ROG Thor 1200W Platinum
Model ROG Thor 1200W PlatinumPart no. 90YE0080-B001A0
36 specifications
- Noise0 dB
- ColourBlack
- Total power1200 W
- Motherboard power connector24-pin ATX
- Power supply unit (PSU) form factorATX
- Width190 mm
Overview
- Noise
- 0 dB
- Colour
- Black
- Total power
- 1200 W
- Motherboard power connector
- 24-pin ATX
- Power supply unit (PSU) form factor
- ATX
- Width
- 190 mm
- Brand
- ASUS
- Category
- Power Supply Unit
- Model
- ROG Thor 1200W Platinum
- Part number
- 90YE0080-B001A0
- Also known as
- ASUS ROG Thor 1200W Platinum power supply unit 24-pin ATX ATX Black
Specifications
36 specifications in 7 groups
Power
| Specification | Value |
|---|---|
| Total power | 1200 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Maximum input current (@220V) | 25 A |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 852 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 71 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 89% |

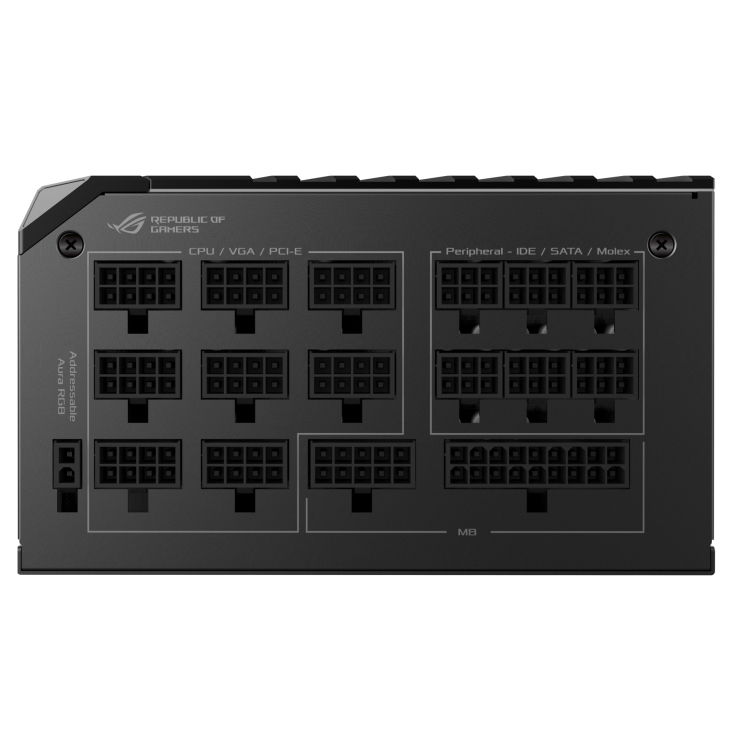

Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 12 |
| PCI Express power connectors (6-pin) | 8 |
| CPU P4 connector (4-pin) | 2 |
| Floppy drive power connector | 1 |
| Cabling type | Fully-Modular |
Performance
| Specification | Value |
|---|---|
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Platinum |
| Silent mode | Yes |
| Noise level | 0 dB |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |

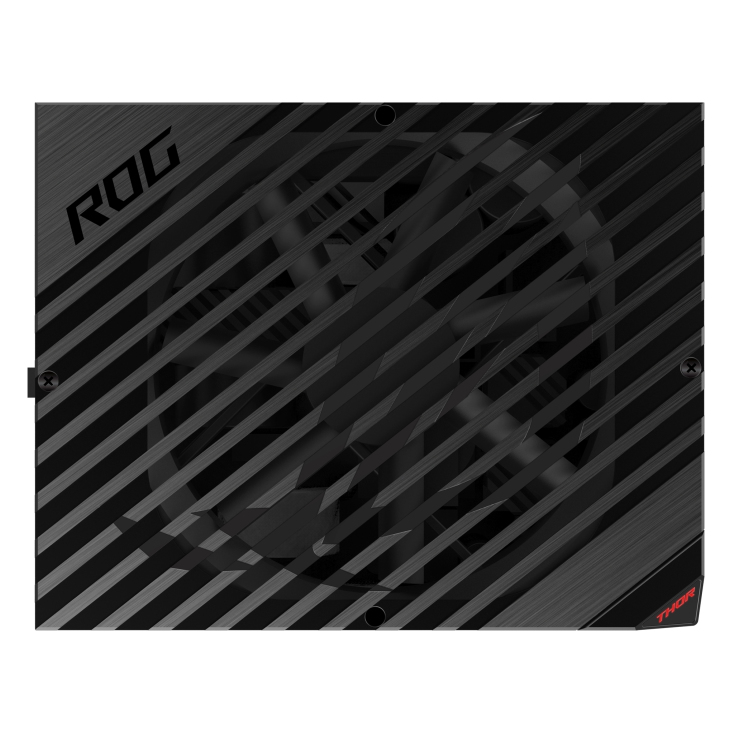

| Fan diameter | 13.5 cm |
| Illumination | Yes |

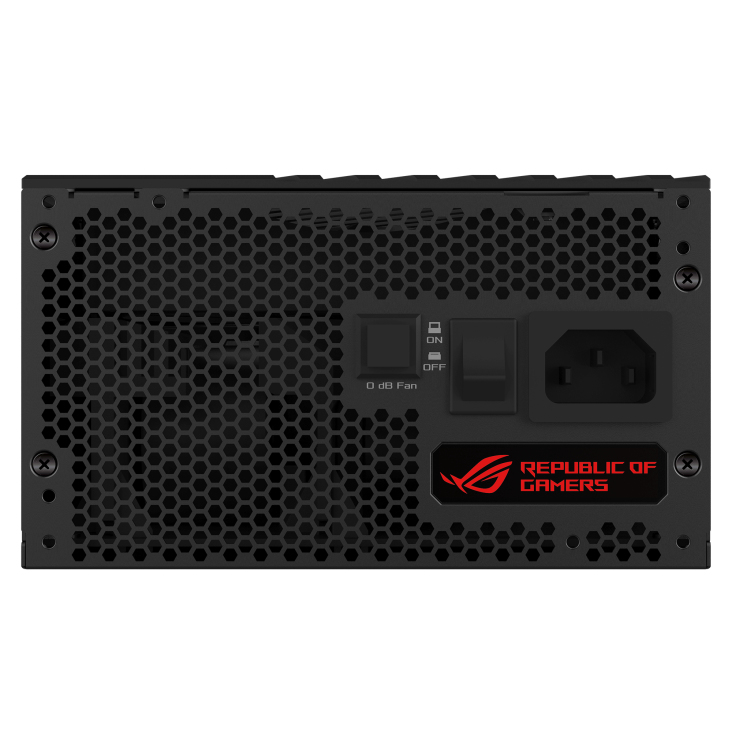

| On/off switch | Yes |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, CPU, SATA |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | LAMBDA A +, 80 PLUS ® Platinum, ETA |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 190 mm |
| Depth | 150 mm |
| Height | 86 mm |
