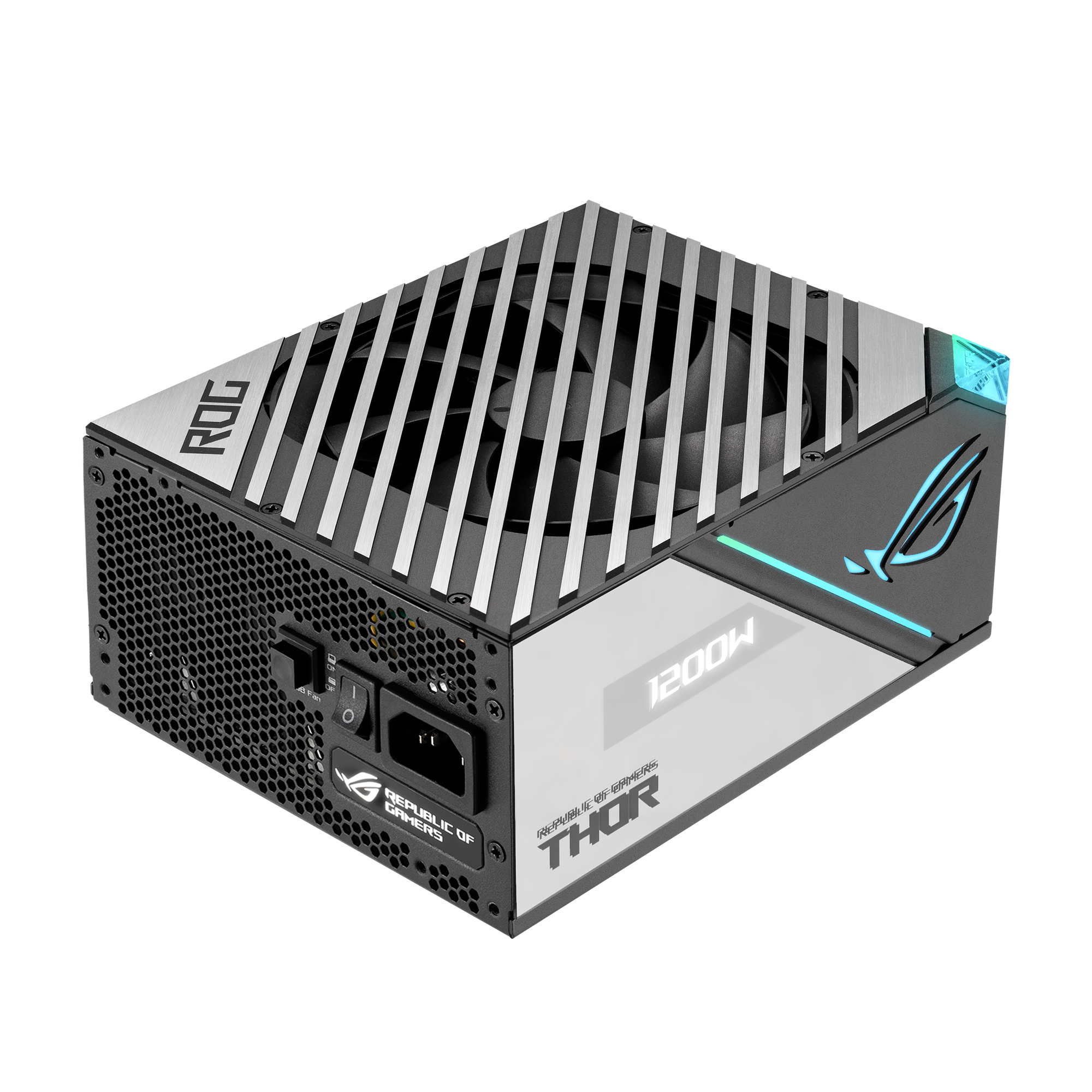

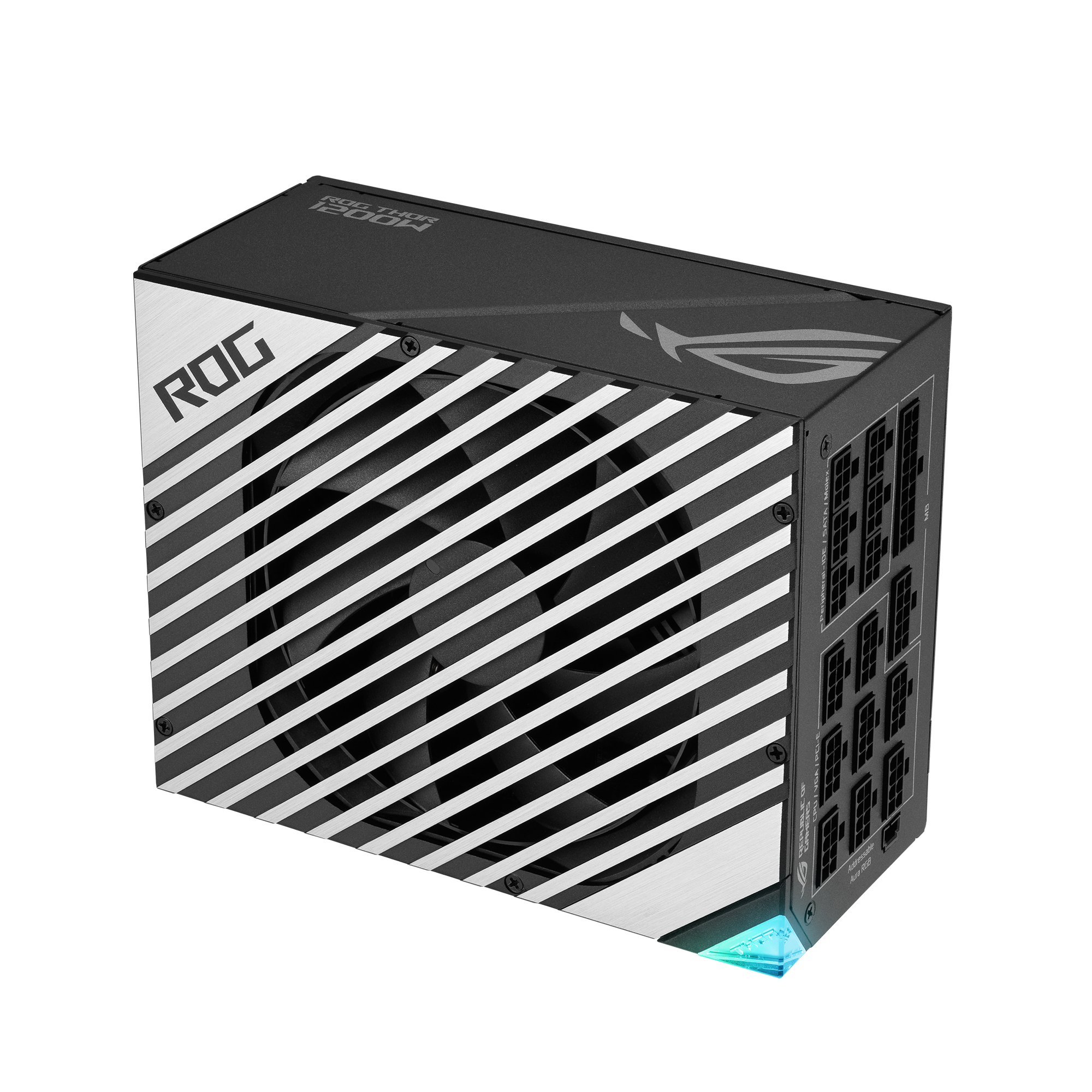

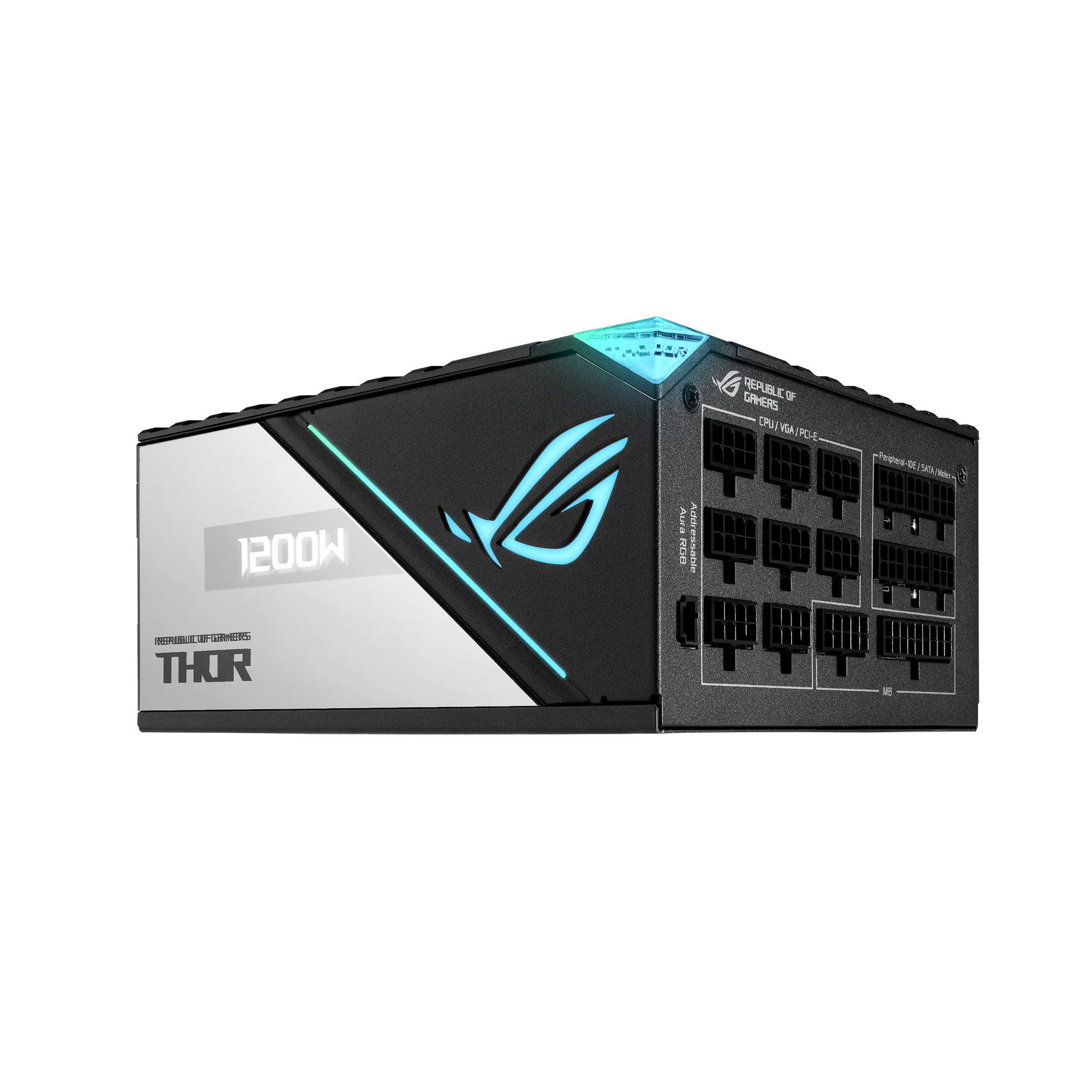

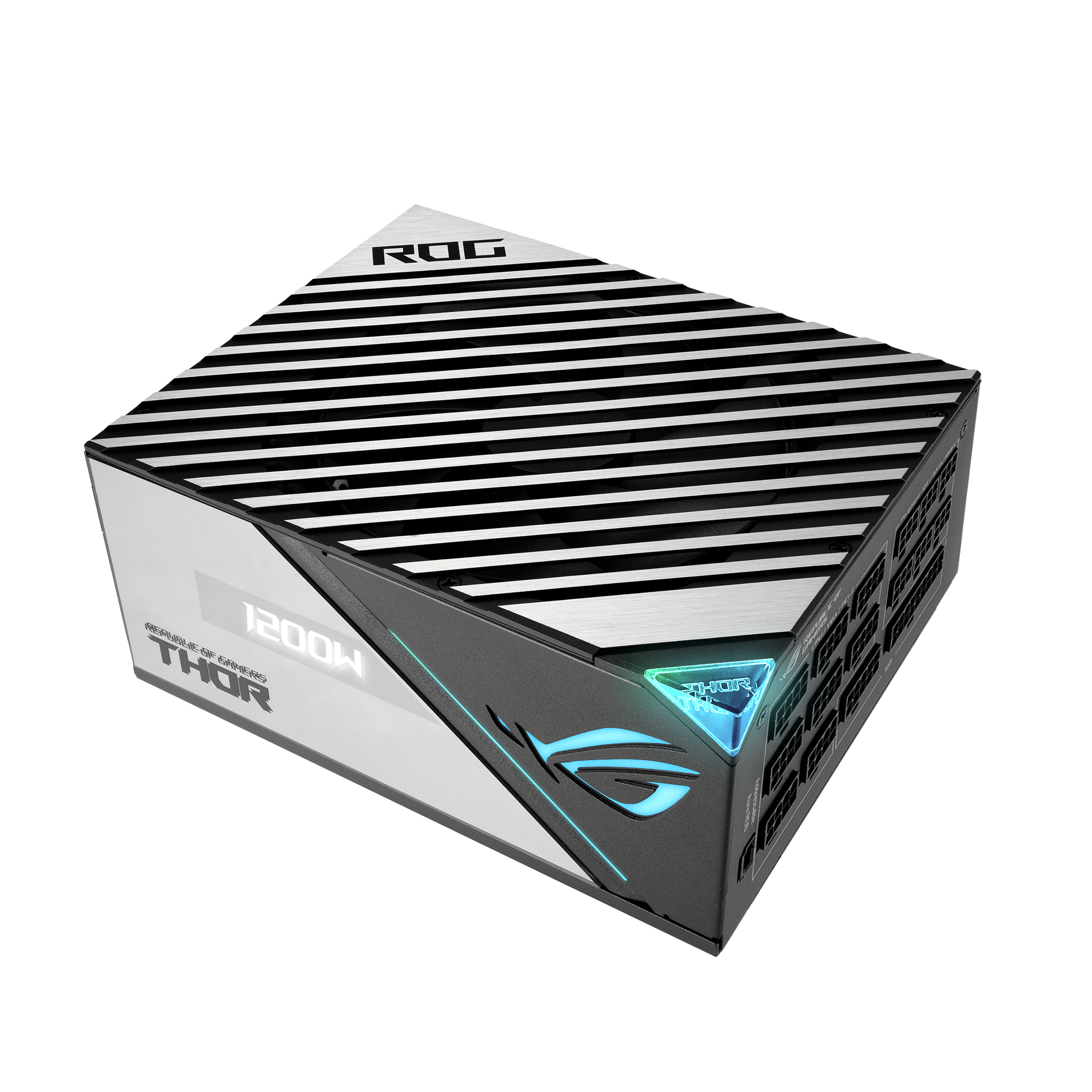

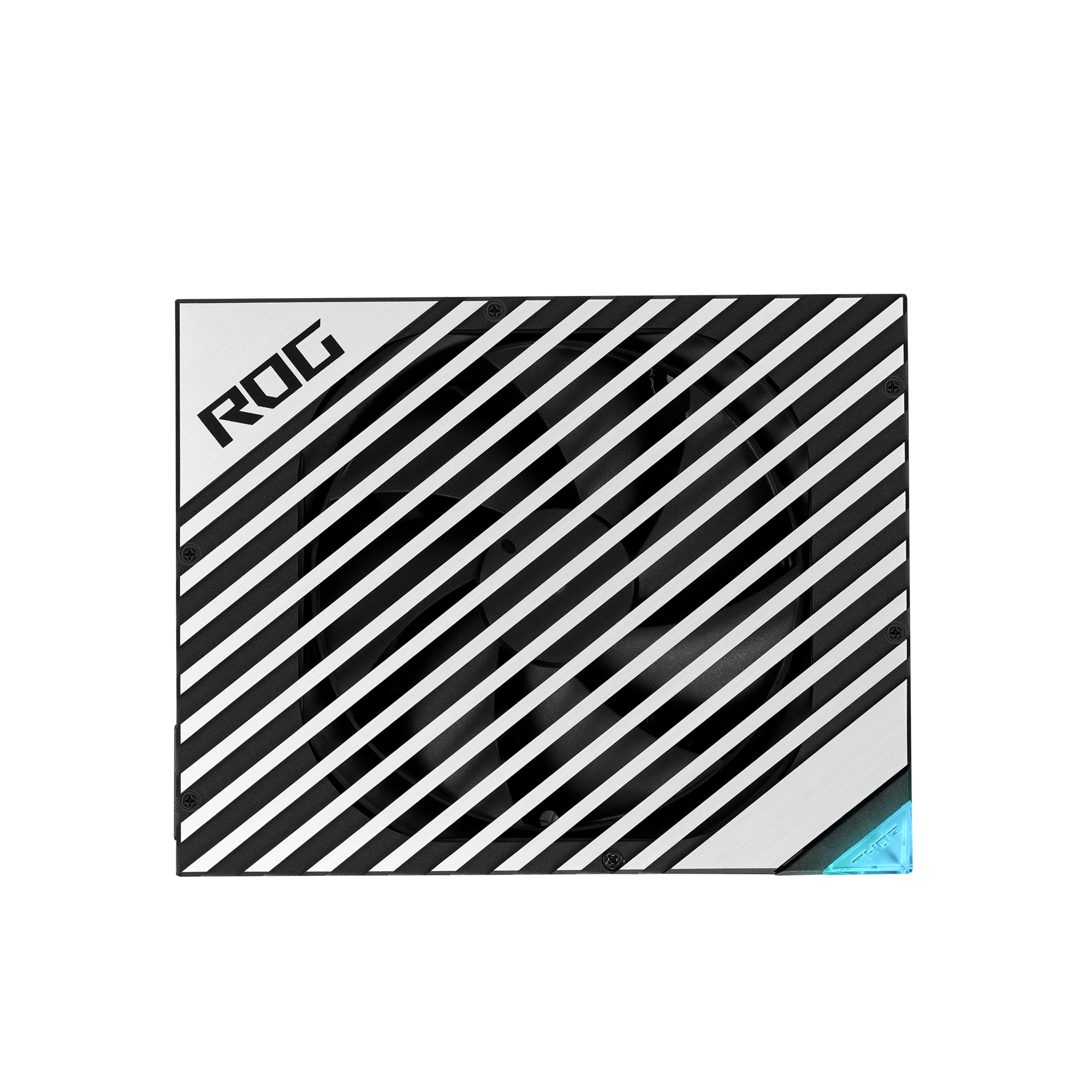

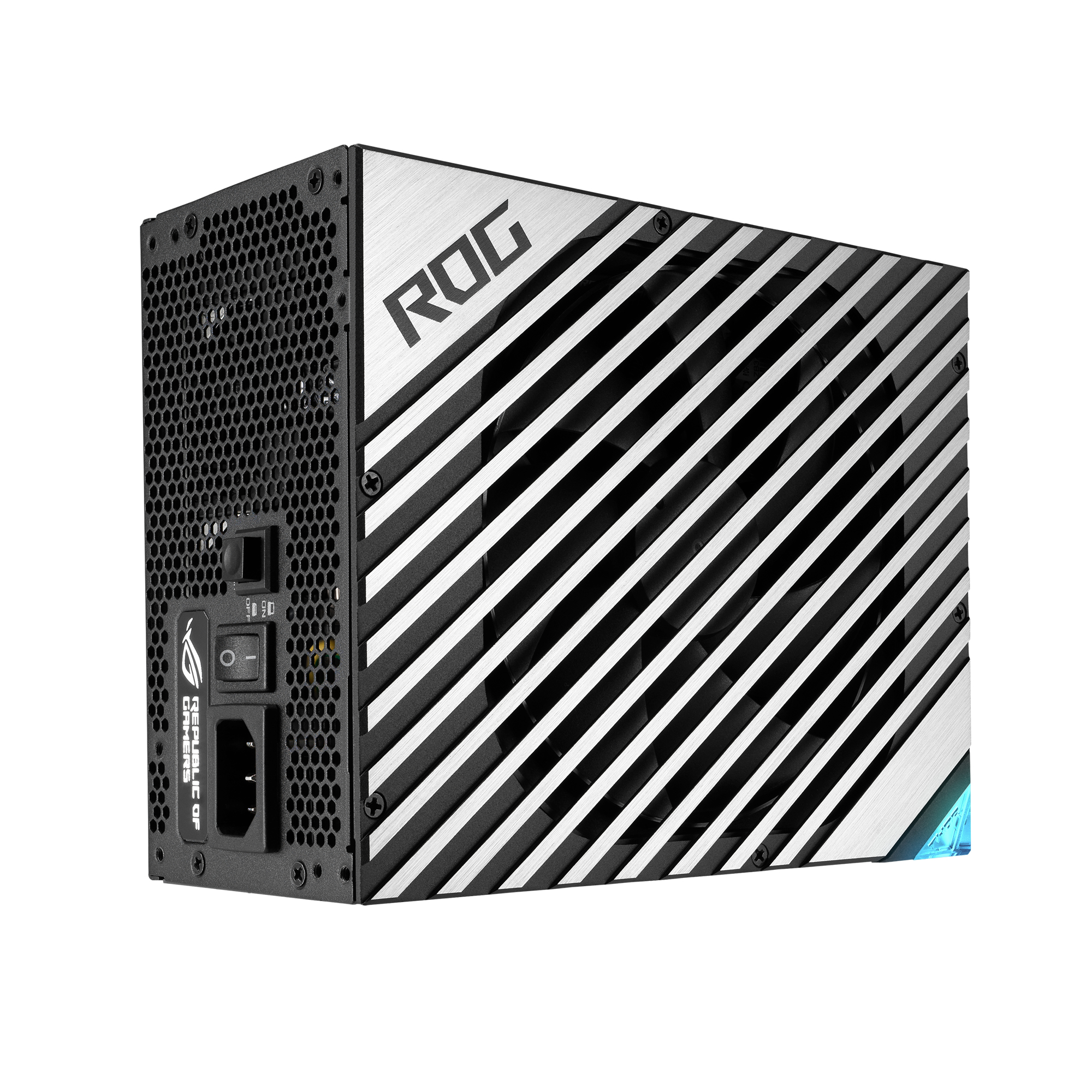

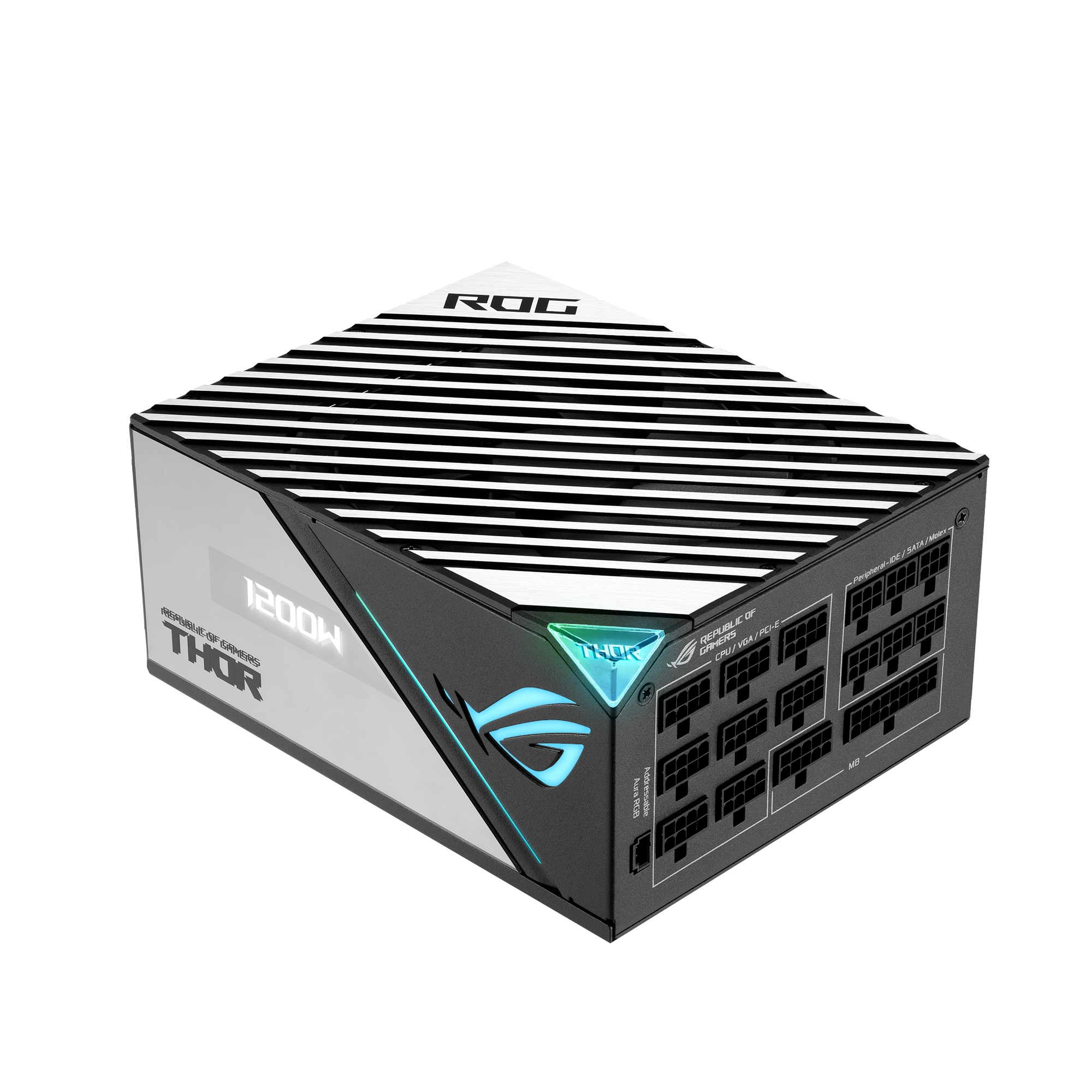

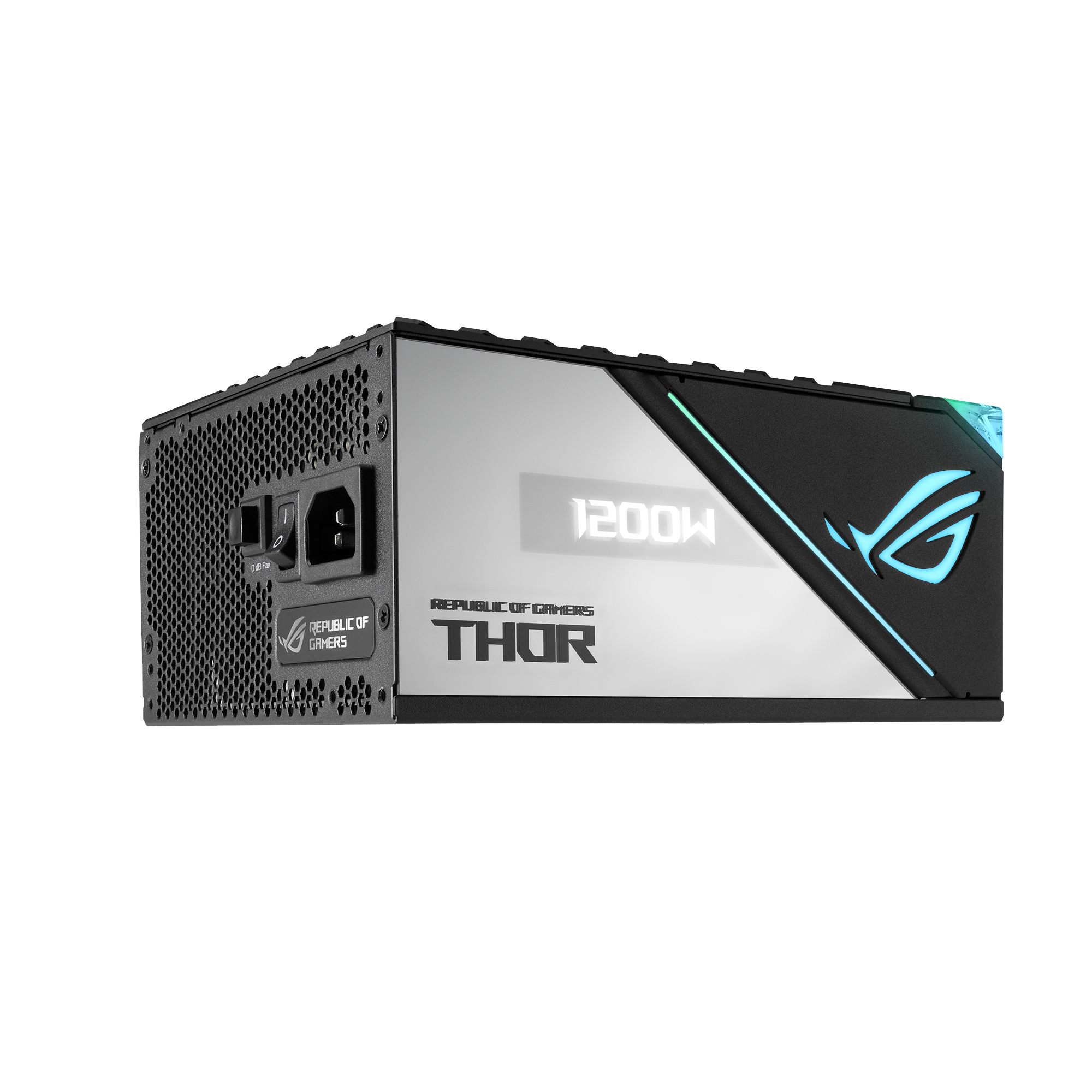

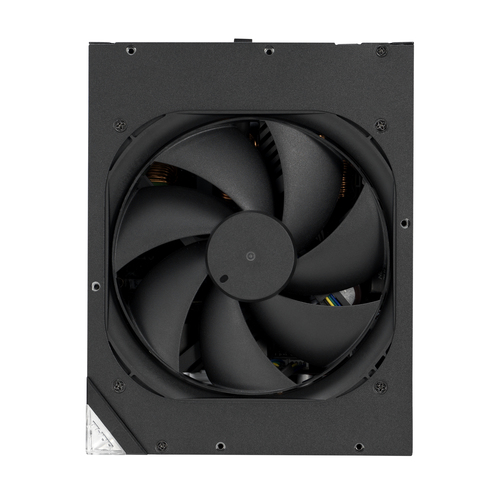

ROG-THOR-1200P2-GAMING power supply unit
1200 W 20+4 pin ATX ATX Black, Silver
Model ROG-THOR-1200P2-GAMINGEAN 195553801041
45 specifications
- Weight2.37 kg
- ColourBlack, Silver
- Total power1200 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Width150 mm
Overview
- Weight
- 2.37 kg
- Colour
- Black, Silver
- Total power
- 1200 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Width
- 150 mm
- Brand
- ASUS
- Category
- Power Supply Unit
- Model
- ROG-THOR-1200P2-GAMING
- Part number
- ROG-THOR-1200P2-GAMING
- EAN / UPC
- 195553801041, 4711081236214, 4711081801047
- Also known as
- ASUS ROG-THOR-1200P2-GAMING power supply unit 1200 W 20+4 pin ATX ATX Black, Silver
Specifications
45 specifications in 9 groups
Power
| Specification | Value |
|---|---|
| Total power | 1200 W |
| AC input voltage | 100 - 240 V |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 125 W |
| Combined power (+12V) | 1200 W |
| Combined power (+5V) | 125 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+12V) | 100 A |
| Max output current (+5V) | 25 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 89% |
| Power protection features | Over current, Over power, Over voltage, Overheating, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 12 |
| Peripheral (Molex) power connectors (4-pin) | 6 |
| PCI Express power connectors (6+2 pin) | 8 |
| PCI Express power connectors (16-pin) | 1 |
| CPU power connector (4+4 pin) | Yes |
| ATX power connector (20+4 pin) | Yes |
| Cabling type | Fully-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Platinum |
| Silent mode | Yes |
| Bearing technology | Ball bearing |
Design
| Specification | Value |
|---|---|
| Product colour | Black, Silver |
| Cooling type | Active |
| Fan diameter | 13.5 cm |
| Number of fans | 1 fan(s) |
| Built-in display | Yes |
| Illumination | Yes |
| Display type | LED |
| On/off switch | Yes |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, CPU, PCIe, Peripheral (Molex), SATA |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | Lambda A++, 80 Plus Platinum |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 190 mm |
| Height | 86 mm |
| Weight | 2.37 kg |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
Technical details
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
