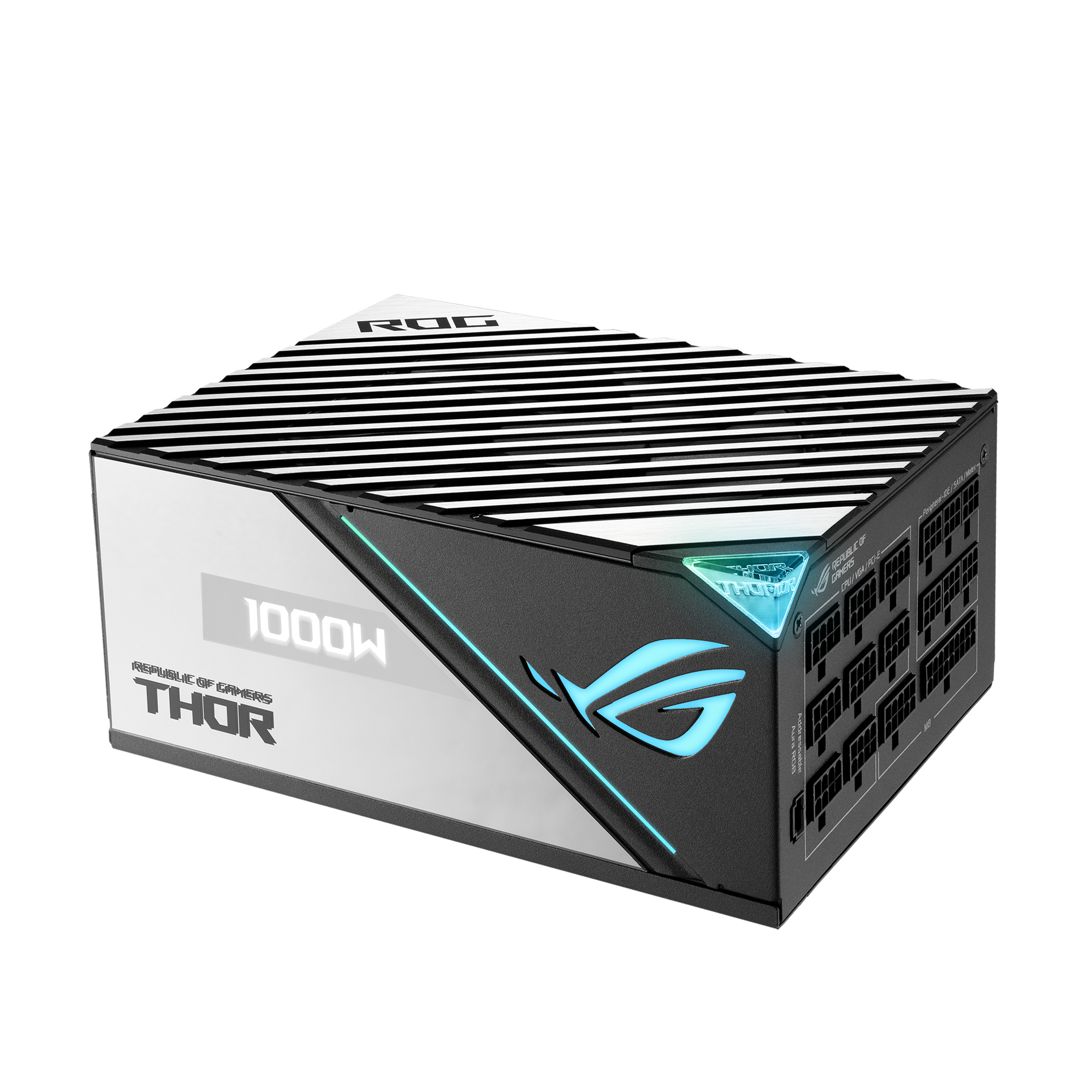

ROG-THOR-1000P2-GAMING power supply unit
1000 W 24-pin ATX ATX Black, Silver
Model ROG-THOR-1000P2-GAMINGPart no. 90YE00L4-B0ZA00EAN 4711081746416
34 specifications
- Weight2.37 kg
- ColourBlack, Silver
- Total power1000 W
- Motherboard power connector24-pin ATX
- PurposePC
- SafetyROHS
Overview
- Weight
- 2.37 kg
- Colour
- Black, Silver
- Total power
- 1000 W
- Motherboard power connector
- 24-pin ATX
- Purpose
- PC
- Safety
- ROHS
- Brand
- ASUS
- Category
- Power Supply Unit
- Model
- ROG-THOR-1000P2-GAMING
- Part numbers
- 90YE00L4-B0ZA00, 90YE00L1-B0NA00
- EAN / UPC
- 4711081746416, 195553236225, 195553746366, 195553801201 +4 more
- Also known as
- ASUS ROG-THOR-1000P2-GAMING power supply unit 1000 W 24-pin ATX ATX Black, Silver
Specifications
34 specifications in 9 groups
Power
| Specification | Value |
|---|---|
| Total power | 1000 W |
| AC input voltage | 100 - 240 V |
| Power Factor Correction (PFC) type | Active |
| Max output current (+3.3V) | 25 A |
| Max output current (+12V) | 83 A |
| Max output current (+5V) | 25 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 89% |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 24-pin ATX |
| Motherboard power cable length | 61 cm |
| Number of SATA power connectors | 12 |
| Peripheral (Molex) power connectors (4-pin) | 6 |
| PCI Express power connectors (6+2 pin) | 8 |
| CPU power connector (4+4 pin) | Yes |
| Cabling type | Fully-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Platinum |
Design
| Specification | Value |
|---|---|
| Product colour | Black, Silver |
| Fan diameter | 13.5 cm |
| Number of fans | 1 fan(s) |
Safety regulation & standards
| Specification | Value |
|---|---|
| Safety | ROHS |
Certificates
| Specification | Value |
|---|---|
| Certification | ROHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 190 mm |
| Depth | 150 mm |
| Height | 86 mm |
| Weight | 2.37 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 378 mm |
| Package depth | 240 mm |
| Package height | 130 mm |
| Package weight | 4.78 kg |
| Package type | Box |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
