ROG-THOR-1000P-EVA-GAMING power supply unit
1000 W 24-pin ATX ATX Black, Grey, Red
Model ROG-THOR-1000P-EVA-GAMINGPart no. 90YE00L3-B0AA00EAN 4711081723264
34 specifications
- Weight2.35 kg
- ColourBlack, Grey, Red
- Total power1000 W
- Motherboard power connector24-pin ATX
- PurposePC
- Width190 mm
Overview
- Weight
- 2.35 kg
- Colour
- Black, Grey, Red
- Total power
- 1000 W
- Motherboard power connector
- 24-pin ATX
- Purpose
- PC
- Width
- 190 mm
- Brand
- ASUS
- Category
- Power Supply Unit
- Model
- ROG-THOR-1000P-EVA-GAMING
- Part number
- 90YE00L3-B0AA00
- EAN / UPC
- 4711081723264
- Also known as
- ASUS ROG-THOR-1000P-EVA-GAMING power supply unit 1000 W 24-pin ATX ATX Black, Grey, Red
Specifications
34 specifications in 8 groups
Power
| Specification | Value |
|---|---|
| Total power | 1000 W |
| AC input voltage | 100 - 240 V |
| Combined power (+3.3V) | 125 W |
| Combined power (+12V) | 996 W |
| Combined power (+5V) | 125 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+12V) | 83 A |
| Max output current (+5V) | 25 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
Ports & interfaces
| Specification | Value |
|---|---|

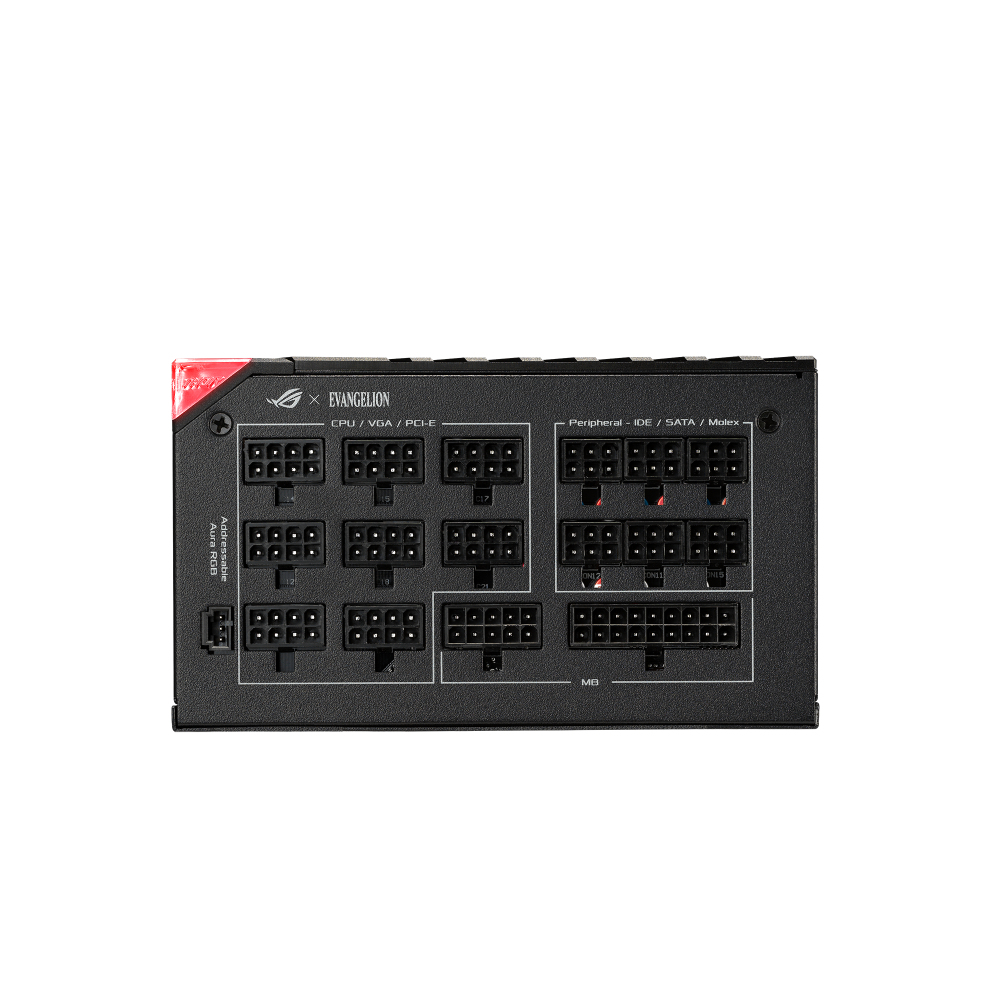

| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 12 |
| Peripheral (Molex) power connectors (4-pin) | 6 |
| PCI Express power connectors (6+2 pin) | 8 |
| CPU power connector (4+4 pin) | Yes |
| Cabling type | Fully-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Platinum |
| Silent mode | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black, Grey, Red |
| Fan diameter | 13.5 cm |
| Number of fans | 1 fan(s) |
| Illumination | Yes |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, CPU, PCIe, Peripheral (Molex), SATA |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | OPP/OVP/UVP/SCP/OCP/OTP |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 190 mm |
| Depth | 150 mm |
| Height | 86 mm |
| Weight | 2.35 kg |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
