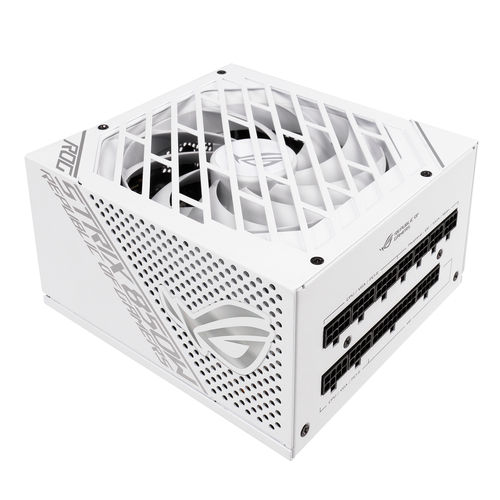

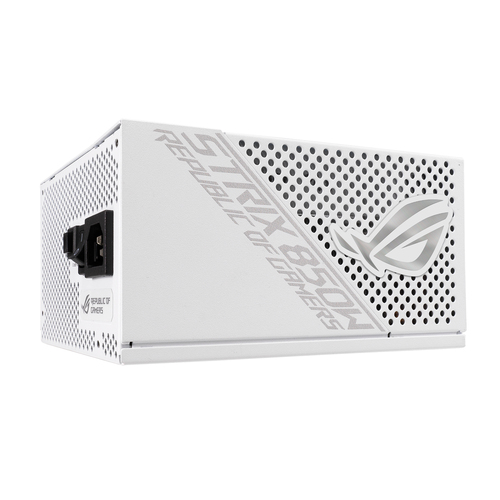

ROG -STRIX-850G-WHITE-N power supply unit
850 W 20+4 pin ATX ATX
Model ROG-STRIX-850G-WHITE-NPart no. 90YE00A9-B0NA00EAN 197105232204
45 specifications
- Weight1.83 kg
- ColourWhite
- Total power850 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Width160 mm
Overview
- Weight
- 1.83 kg
- Colour
- White
- Total power
- 850 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Width
- 160 mm
- Brand
- ASUS
- Category
- Power Supply Unit
- Model
- ROG-STRIX-850G-WHITE-N
- Part number
- 90YE00A9-B0NA00
- EAN / UPC
- 197105232204, 4711387232200
- Also known as
- ASUS ROG -STRIX-850G-WHITE-N power supply unit 850 W 20+4 pin ATX ATX
Specifications
45 specifications in 8 groups
Power
| Specification | Value |
|---|---|
| Total power | 850 W |
| AC input voltage | 100 - 240 V |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 840 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 70 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 61 cm |
| Number of SATA power connectors | 8 |
| SATA power cable length | 120,150,410,450 mm |
| Peripheral (Molex) power connectors (4-pin) | 6 |
| Peripheral (Molex) power cable length | 120,450 mm |
| PCI Express power connectors (6+2 pin) | 3 |
| PCI Express power connectors (16-pin) | 1 |
| PCI Express power cable length | 67.5 cm |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 100 cm |
| ATX power connector (20+4 pin) | Yes |
| Cabling type | Fully-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Gold |
| Silent mode | Yes |
| Mean time between failures (MTBF) | 120000 h |
Design
| Specification | Value |
|---|---|
| Product colour | White |
| Cooling type | Active |
| Fan diameter | 13.5 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |

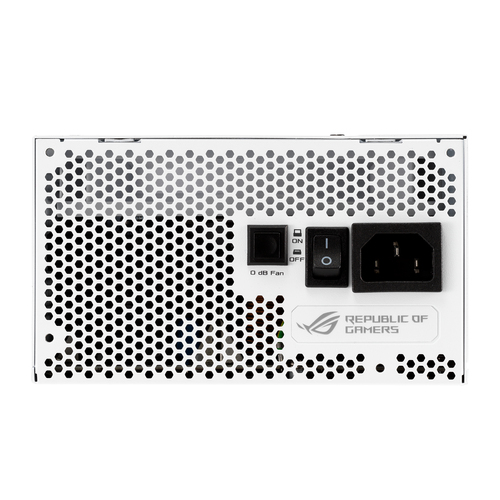

| On/off switch | Yes |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, CPU, PCIe, Peripheral (Molex), SATA |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 160 mm |
| Depth | 150 mm |
| Height | 86 mm |
| Weight | 1.83 kg |
Packaging data
| Specification | Value |
|---|---|

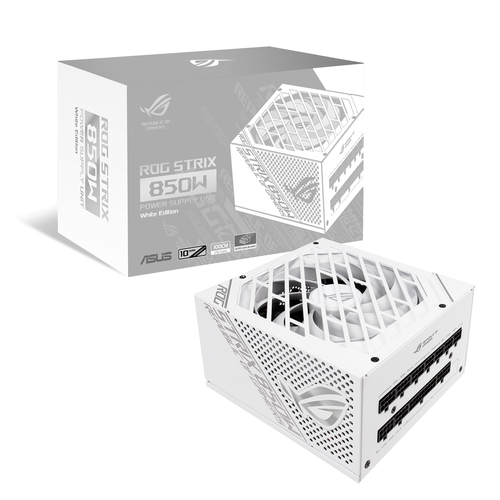

| Package type | Box |
