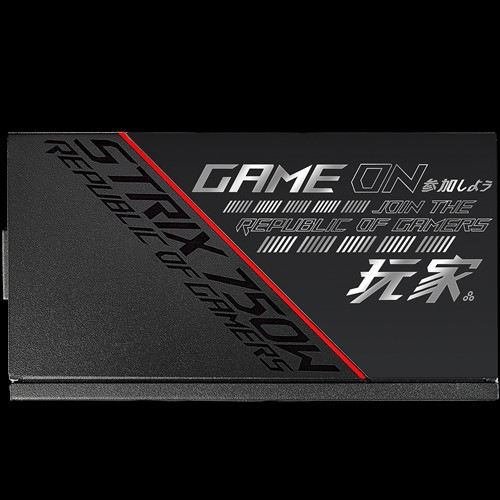

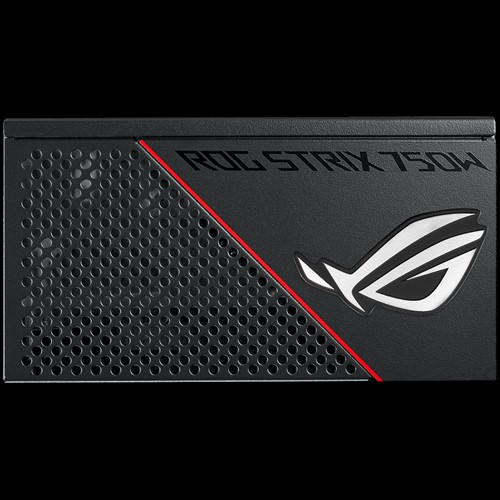

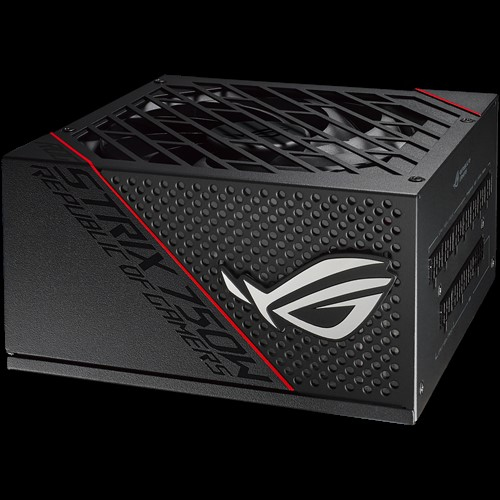

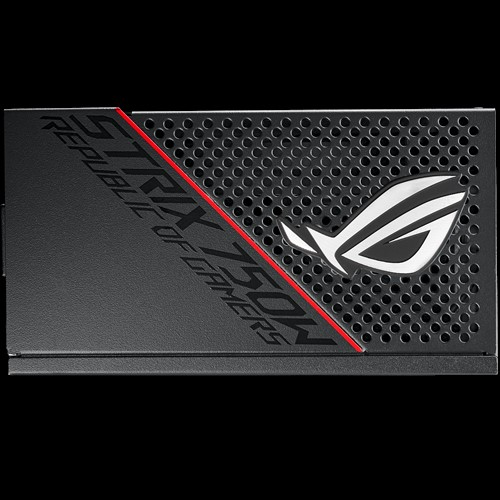

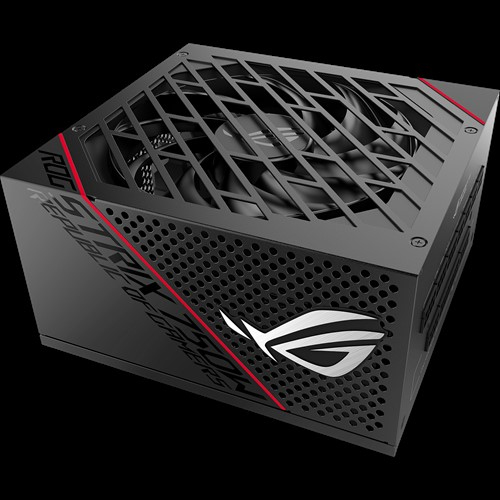

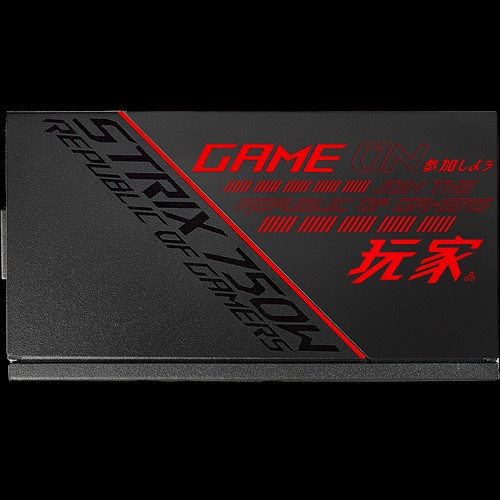

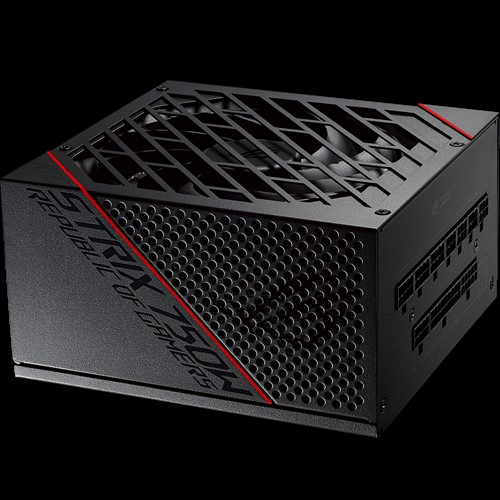

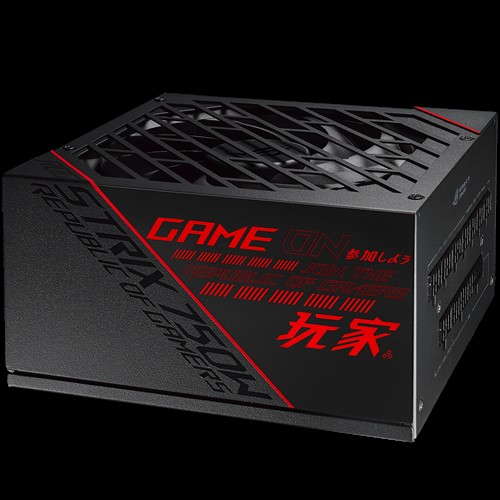

ROG-STRIX-750G power supply unit
750 W 20+4 pin ATX 1U
Model ROG-STRIX-750GPart no. 90YE00A0-B0WA00EAN 4718017375924
28 specifications
- Weight1.82 kg
- Total power750 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Fan diameter13.5 cm
- Width160 mm
Overview
- Weight
- 1.82 kg
- Total power
- 750 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Fan diameter
- 13.5 cm
- Width
- 160 mm
- Brand
- ASUS
- Category
- Power Supply Unit
- Model
- ROG-STRIX-750G
- Part numbers
- 90YE00A0-B0WA00, 90YE00A0-B0NA00, 90YE00A0-B0EA00
- EAN / UPC
- 4718017375924, 192876375914, 192876375983, 195553959629 +4 more
- Also known as
- ASUS ROG-STRIX-750G power supply unit 750 W 20+4 pin ATX 1U
Specifications
28 specifications in 10 groups
Power
| Specification | Value |
|---|---|
| Total power | 750 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 62 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features | Over current, Over power, Over voltage, Overload |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 8 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| PCI Express power connectors (6+2 pin) | 4 |
| CPU power connector (4+4 pin) | Yes |
| Cabling type | Fully-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | 1U |
| 80 PLUS certification | 80 PLUS Gold |
Design
| Specification | Value |
|---|---|
| Fan diameter | 13.5 cm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, PCIe, SATA |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 160 mm |
| Depth | 150 mm |
| Height | 86 mm |
| Weight | 1.82 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 3.14 kg |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
Other features
| Specification | Value |
|---|---|
| Cable ties included | Yes |
