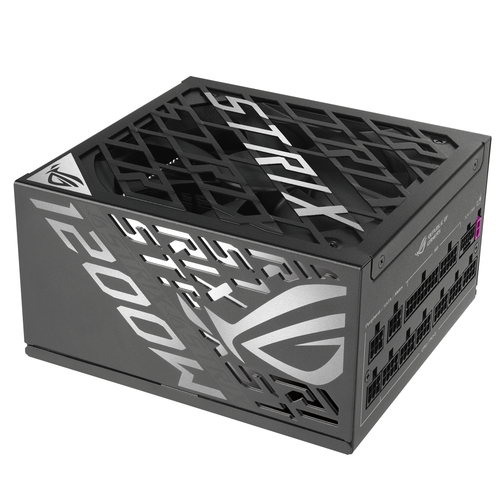

ROG -STRIX-1200P-GAMING-E power supply unit
1200 W 20+4 pin ATX ATX Black, Multicolour
Model ROG-STRIX-1200P-GAMING-EPart no. 90YE00W6-B0NA00EAN 4711636451116
47 specifications
- Noise25 dB
- Weight1.84 kg
- ColourBlack, Multicolour
- Total power1200 W
- Motherboard power connector20+4 pin ATX
- PurposePC
Overview
- Noise
- 25 dB
- Weight
- 1.84 kg
- Colour
- Black, Multicolour
- Total power
- 1200 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Brand
- ASUS
- Category
- Power Supply Unit
- Model
- ROG-STRIX-1200P-GAMING-E
- Part number
- 90YE00W6-B0NA00
- EAN / UPC
- 4711636451116
- Also known as
- ASUS ROG -STRIX-1200P-GAMING-E power supply unit 1200 W 20+4 pin ATX ATX Black, Multicolour
Specifications
47 specifications in 7 groups
Power
| Specification | Value |
|---|---|
| Total power | 1200 W |
| AC input voltage | 100 - 240 V |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 130 W |
| Combined power (+12V) | 1200 W |
| Combined power (+5V) | 130 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+12V) | 100 A |
| Max output current (+5V) | 25 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 61 cm |
| Number of SATA power connectors | 6 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| PCI Express power connectors (6+2 pin) | 4 |
| PCI Express power connectors (16-pin) | 1 |
| PCI Express power cable length | 75 cm |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 100 cm |
| ATX power connector (20+4 pin) | Yes |
| PCI Express connector | Yes |
| Cabling type | Fully-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Platinum |
| ATX version | 3.1 |
| Noise level | 25 dB |
| Bearing technology | DBB |
| Mean time between failures (MTBF) | 120000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Black, Multicolour |
| Cooling type | Active |
| Number of fans | 1 fan(s) |
| On/off switch | Yes |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, CPU, PCIe, Peripheral (Molex), SATA |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 160 mm |
| Depth | 150 mm |
| Height | 86 mm |
| Weight | 1.84 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 320 mm |
| Package depth | 200 mm |
| Package height | 108 mm |
| Package weight | 3.65 kg |
| Package type | Box |
