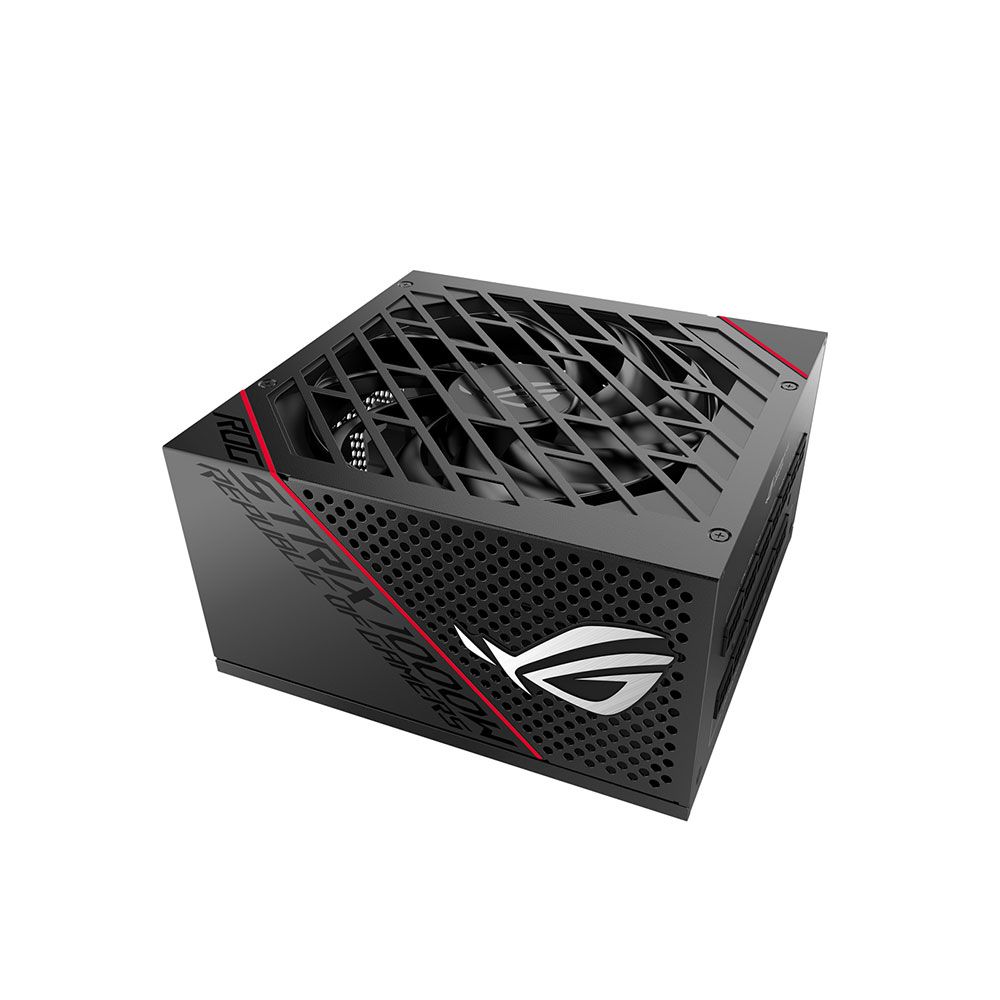

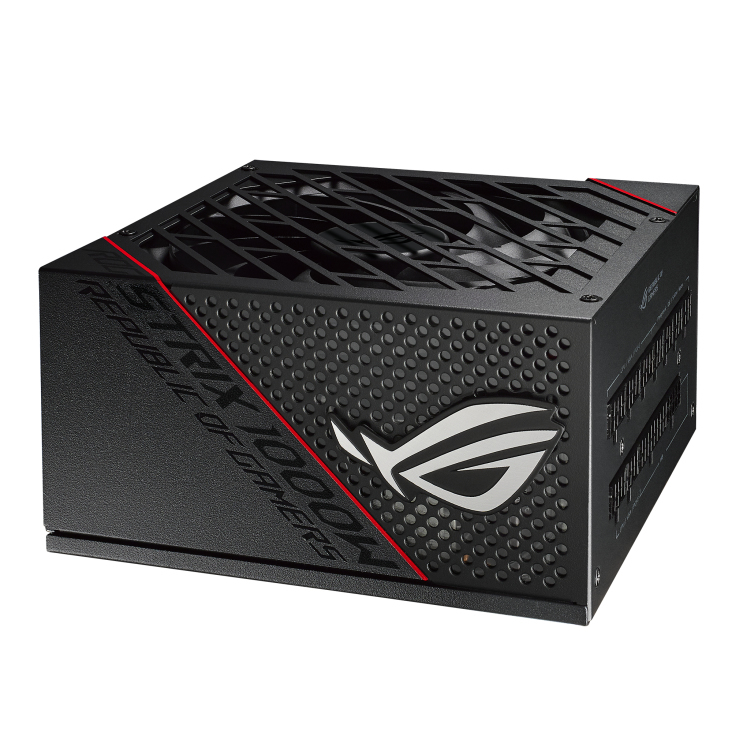

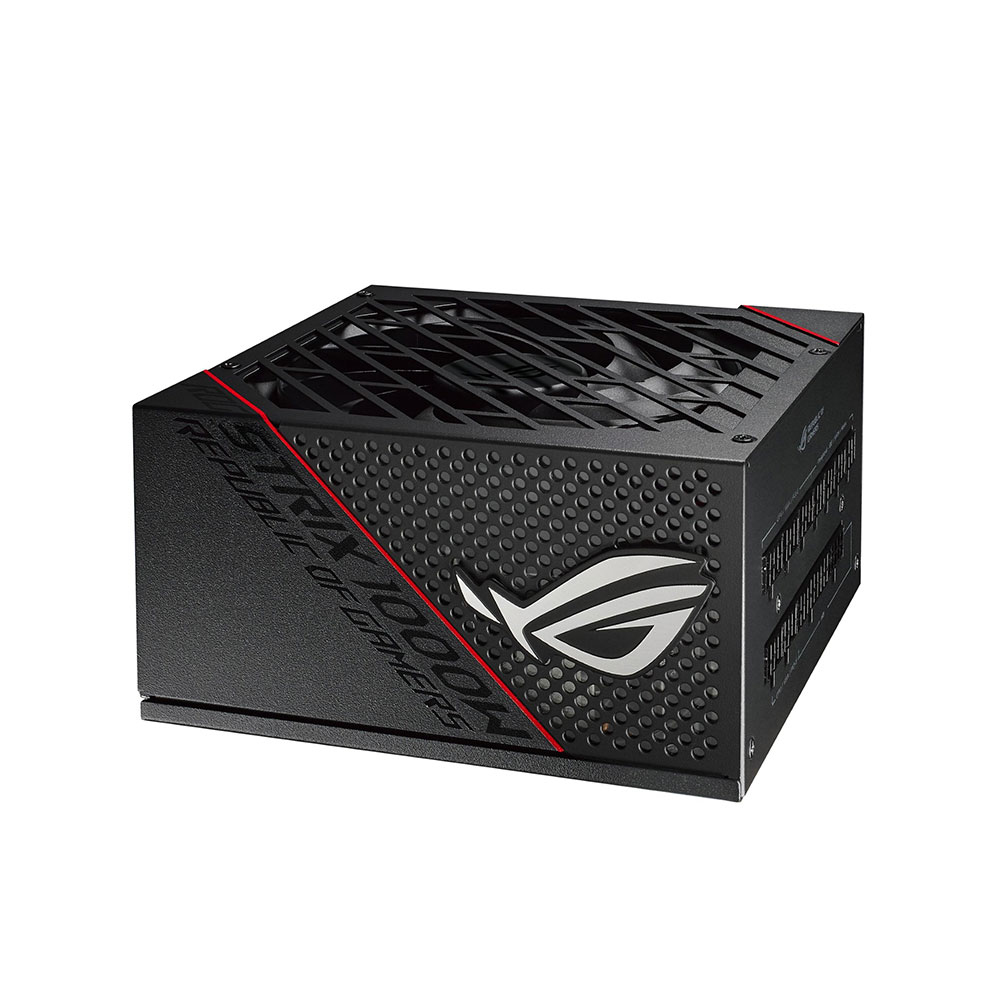

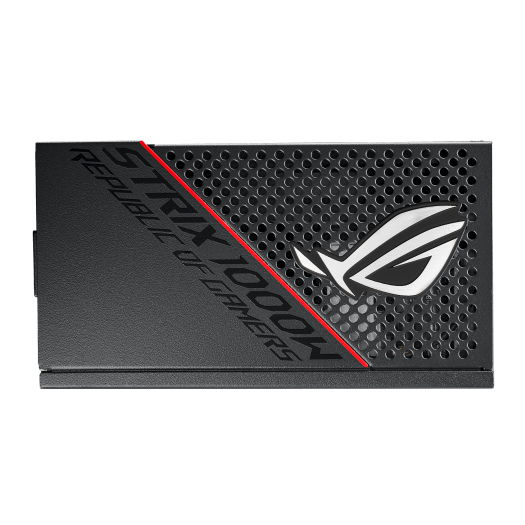

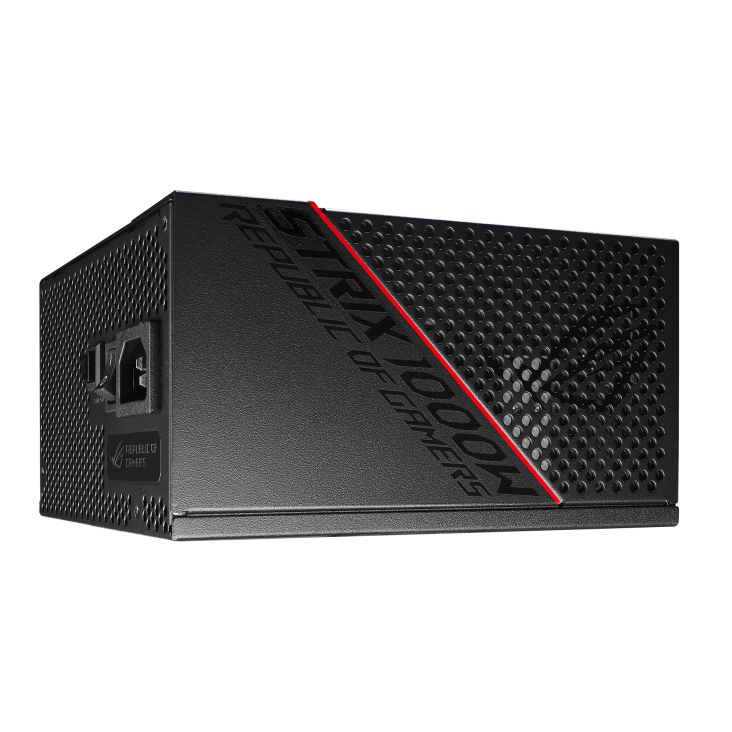

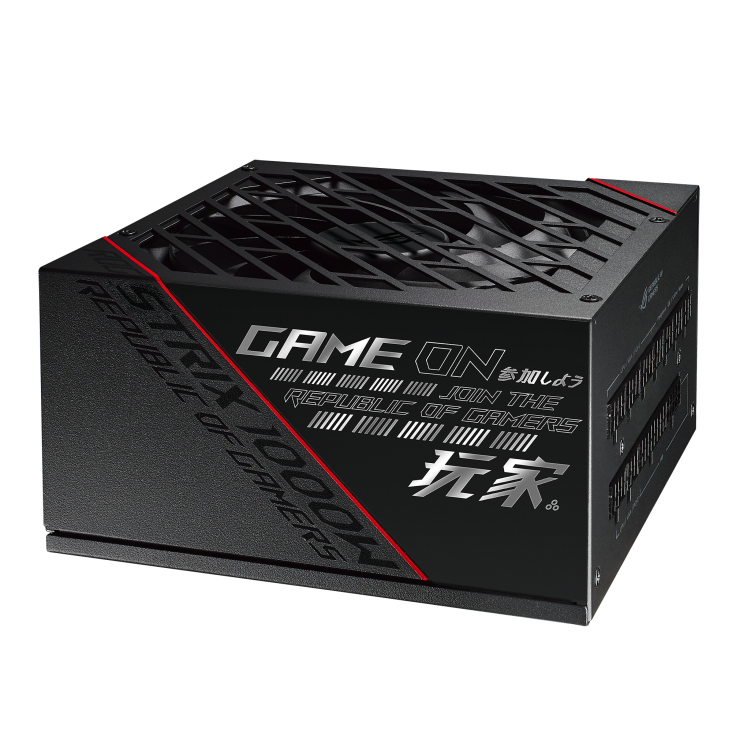

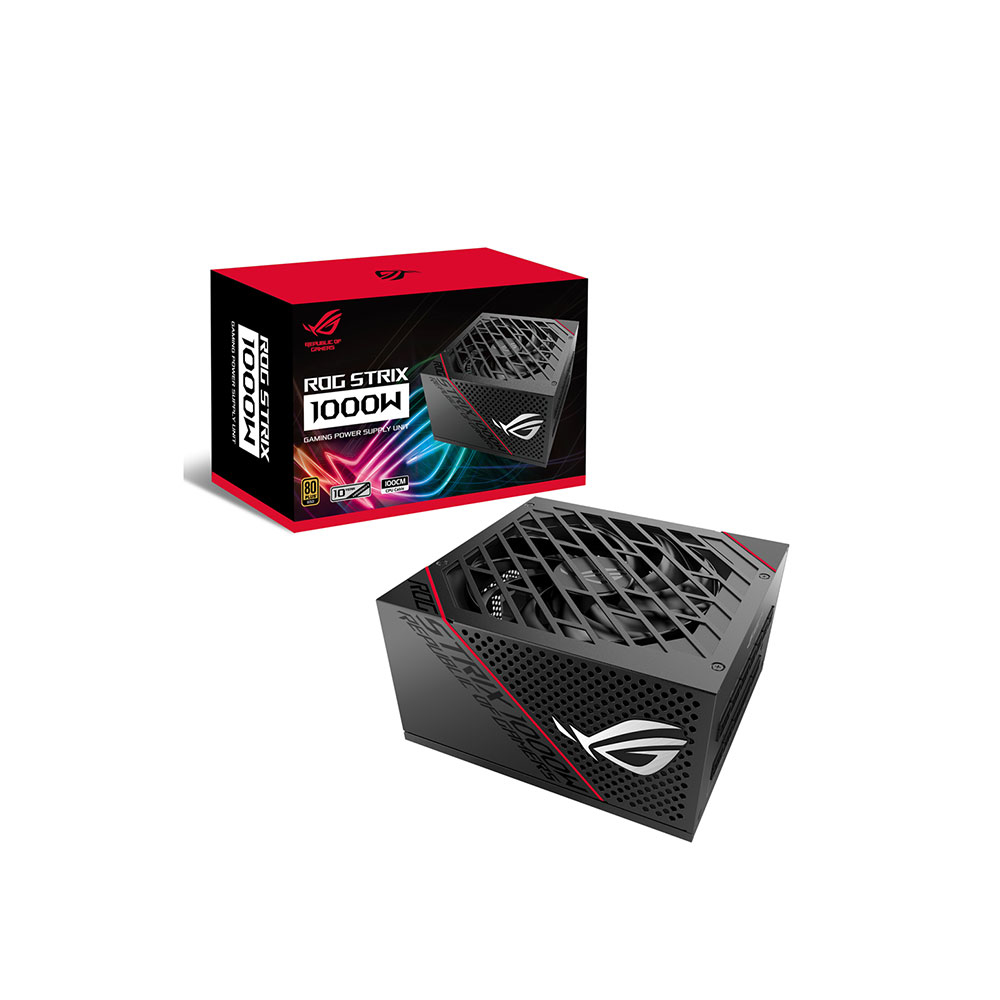

ROG-STRIX-1000G power supply unit
1000 W 20+4 pin ATX ATX Black
Model ROG-STRIX-1000GPart no. 90YE00A5-B0NA00EAN 4718017845571
27 specifications
- Weight1.89 kg
- ColourBlack
- Total power1000 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Width160 mm
Overview
- Weight
- 1.89 kg
- Colour
- Black
- Total power
- 1000 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Width
- 160 mm
- Brand
- ASUS
- Category
- Power Supply Unit
- Model
- ROG-STRIX-1000G
- Part number
- 90YE00A5-B0NA00
- EAN / UPC
- 4718017845571, 192876845660, 195553959117, 4718017845649 +1 more
- Also known as
- ASUS ROG-STRIX-1000G power supply unit 1000 W 20+4 pin ATX ATX Black
Specifications
27 specifications in 8 groups
Power
| Specification | Value |
|---|---|
| Total power | 1000 W |
| AC input voltage | 100 - 240 V |
| Max output current (+3.3V) | 26 A |
| Max output current (+12V) | 83 A |
| Max output current (+5V) | 26 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features | Over current, Over power, Over voltage, Short circuit |
Ports & interfaces
| Specification | Value |
|---|---|

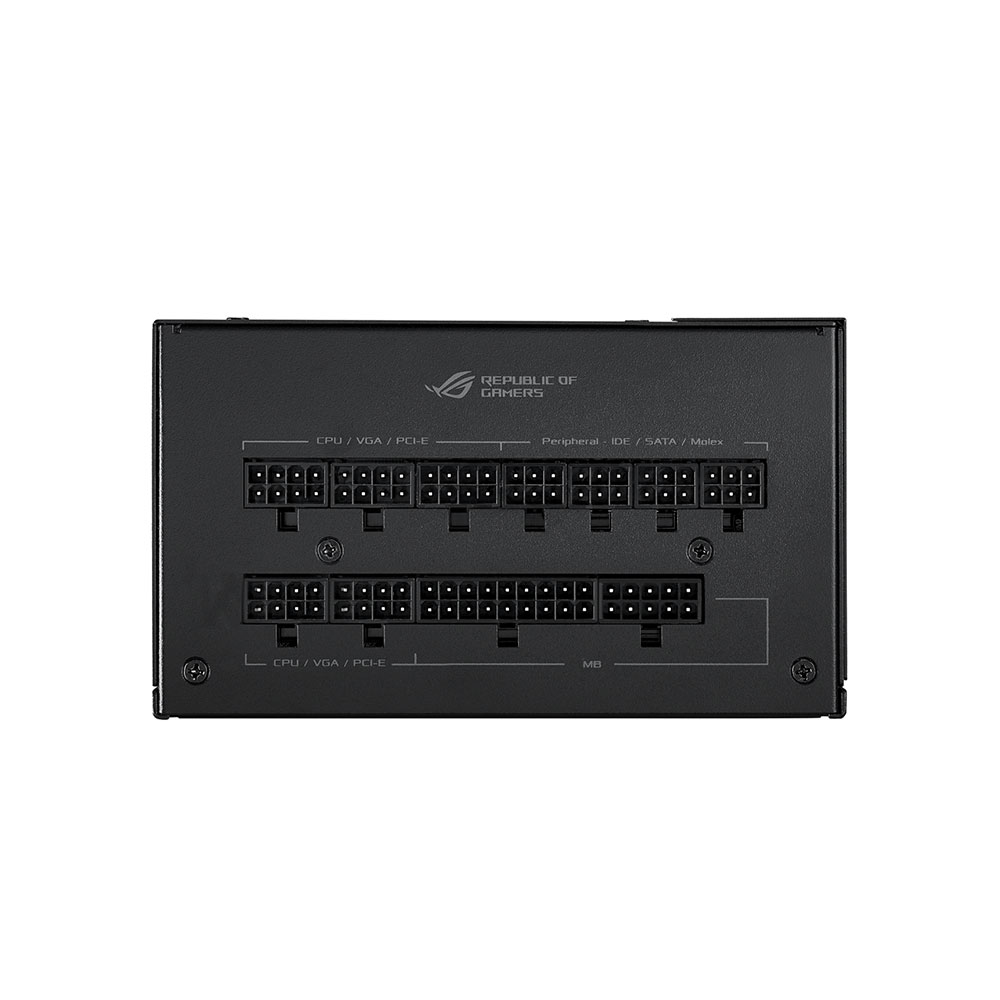

| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 8 |
| Peripheral (Molex) power connectors (4-pin) | 6 |
| EPS power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 6 |
| Cabling type | Fully-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Gold |
| Bearing technology | Ball bearing |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, CPU, PCIe, Peripheral (Molex), Peripheral (Molex) to SATA 3.3, SATA |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 160 mm |
| Depth | 150 mm |
| Height | 86 mm |
| Weight | 1.89 kg |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
