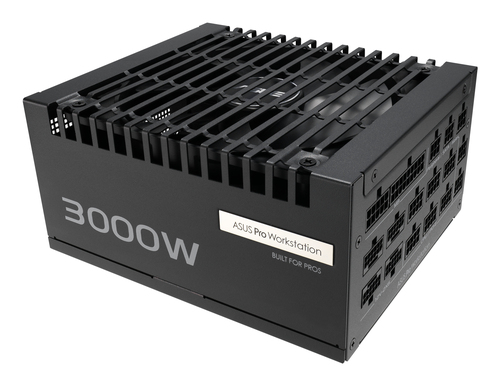

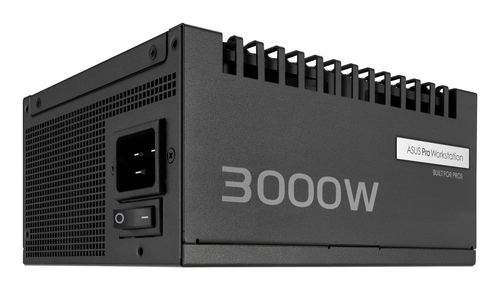

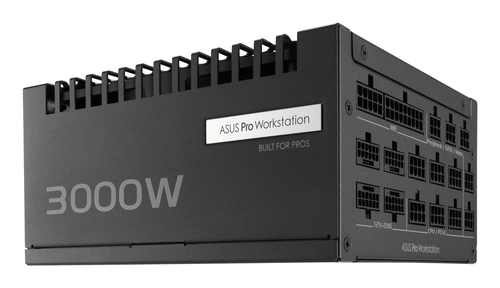

ASUS-PRO-WS-3000P power supply unit
3000 W 20+4 pin ATX ATX Black
Model ASUS-PRO-WS-3000PPart no. 90YE00Z0-B0EA00EAN 4711387972793
43 specifications
- Weight2.16 kg
- ColourBlack
- Total power3000 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Width175 mm
Overview
- Weight
- 2.16 kg
- Colour
- Black
- Total power
- 3000 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Width
- 175 mm
- Brand
- ASUS
- Category
- Power Supply Unit
- Model
- ASUS-PRO-WS-3000P
- Part numbers
- 90YE00Z0-B0EA00, 90YE00Z0-B0AA00
- EAN / UPC
- 4711387972793, 197105972780, 4711387972786
- Also known as
- ASUS ASUS-PRO-WS-3000P power supply unit 3000 W 20+4 pin ATX ATX Black
Specifications
43 specifications in 6 groups
Power
| Specification | Value |
|---|---|
| Total power | 3000 W |
| AC input voltage | 220 - 240 V |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 130 W |
| Combined power (+12V) | 3000 W |
| Combined power (+5V) | 130 W |
| Combined power (-12V) | 0.8 W |
| Combined power (+5Vsb) | 3 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+12V) | 250 A |
| Max output current (+5V) | 25 A |
| Max output current (-12V) | 9.6 A |
| Max output current (+5Vsb) | 15 A |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 61 cm |
| Number of SATA power connectors | 12 |
| SATA power cable length | 120,400 mm |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| Peripheral (Molex) power cable length | 150,400 mm |
| PCI Express power connectors (6+2 pin) | 4 |
| PCI Express power connectors (16-pin) | 4 |
| PCI Express power cable length | 75 cm |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 100 cm |
| Cabling type | Fully-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Platinum |
| ATX version | 3.1 |
| Bearing technology | DBB |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Illumination | No |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 175 mm |
| Depth | 150 mm |
| Height | 86 mm |
| Weight | 2.16 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 346 mm |
| Package depth | 208 mm |
| Package height | 144 mm |
| Package weight | 5.09 kg |
| Package type | Box |
