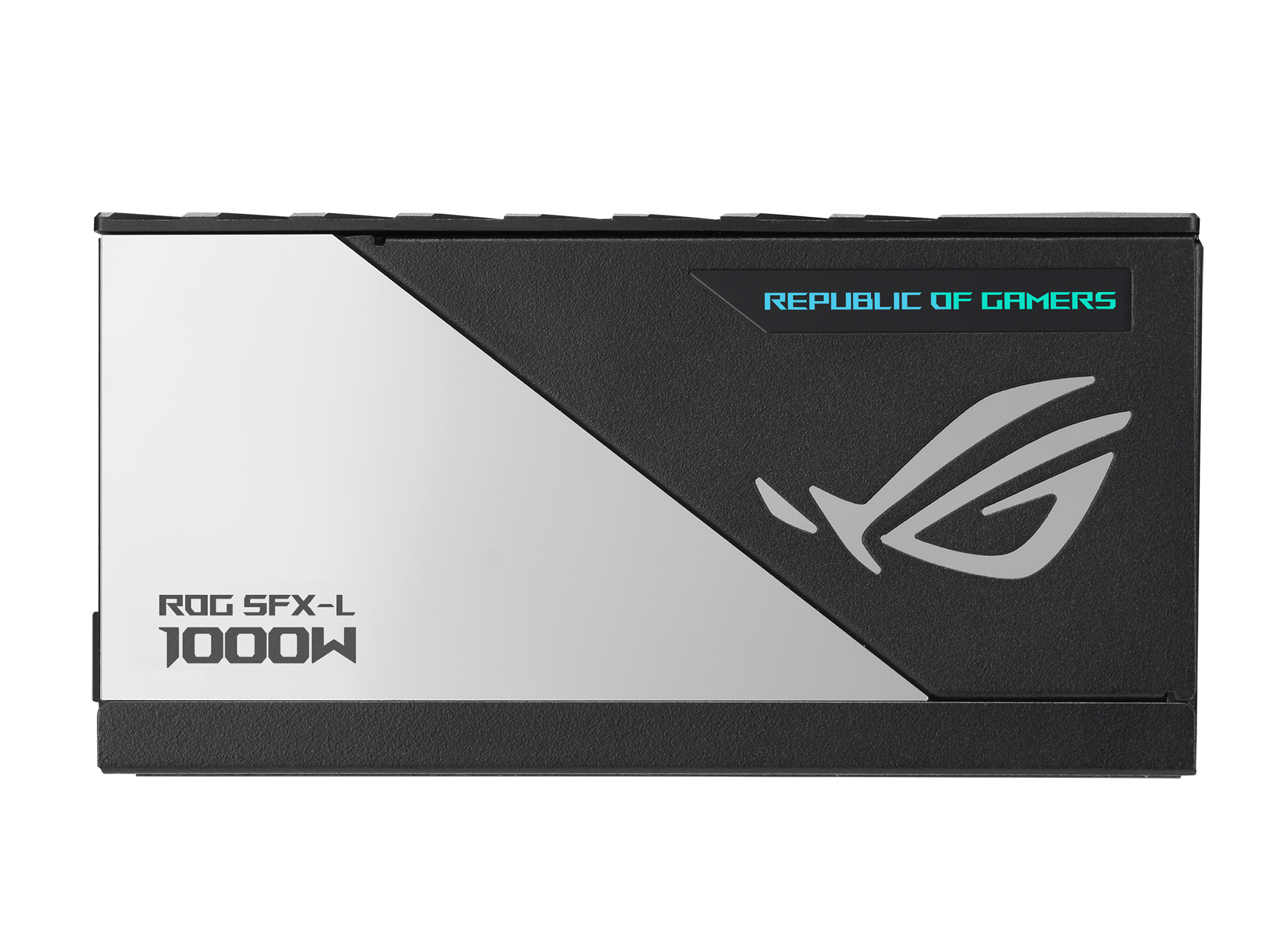

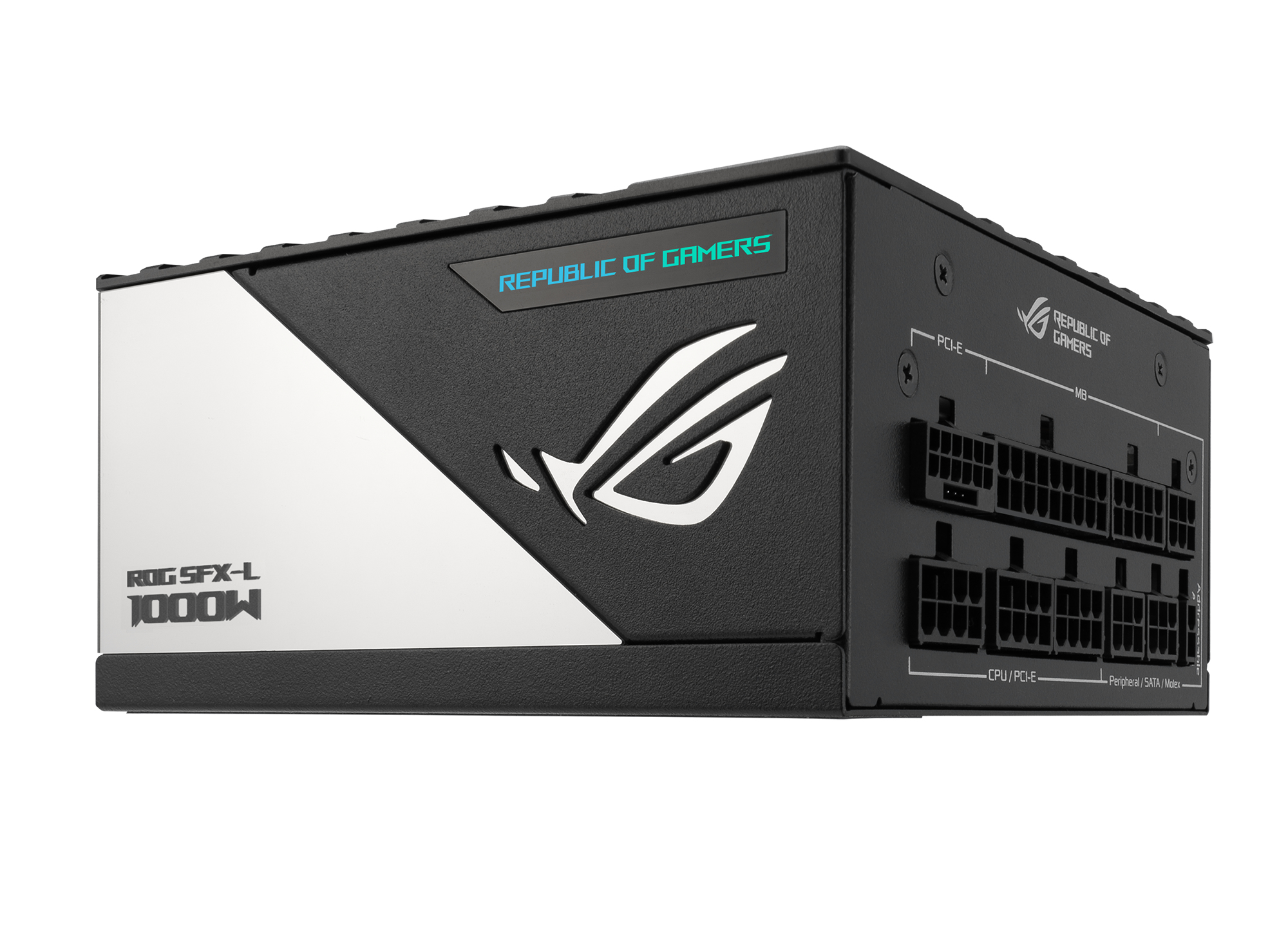

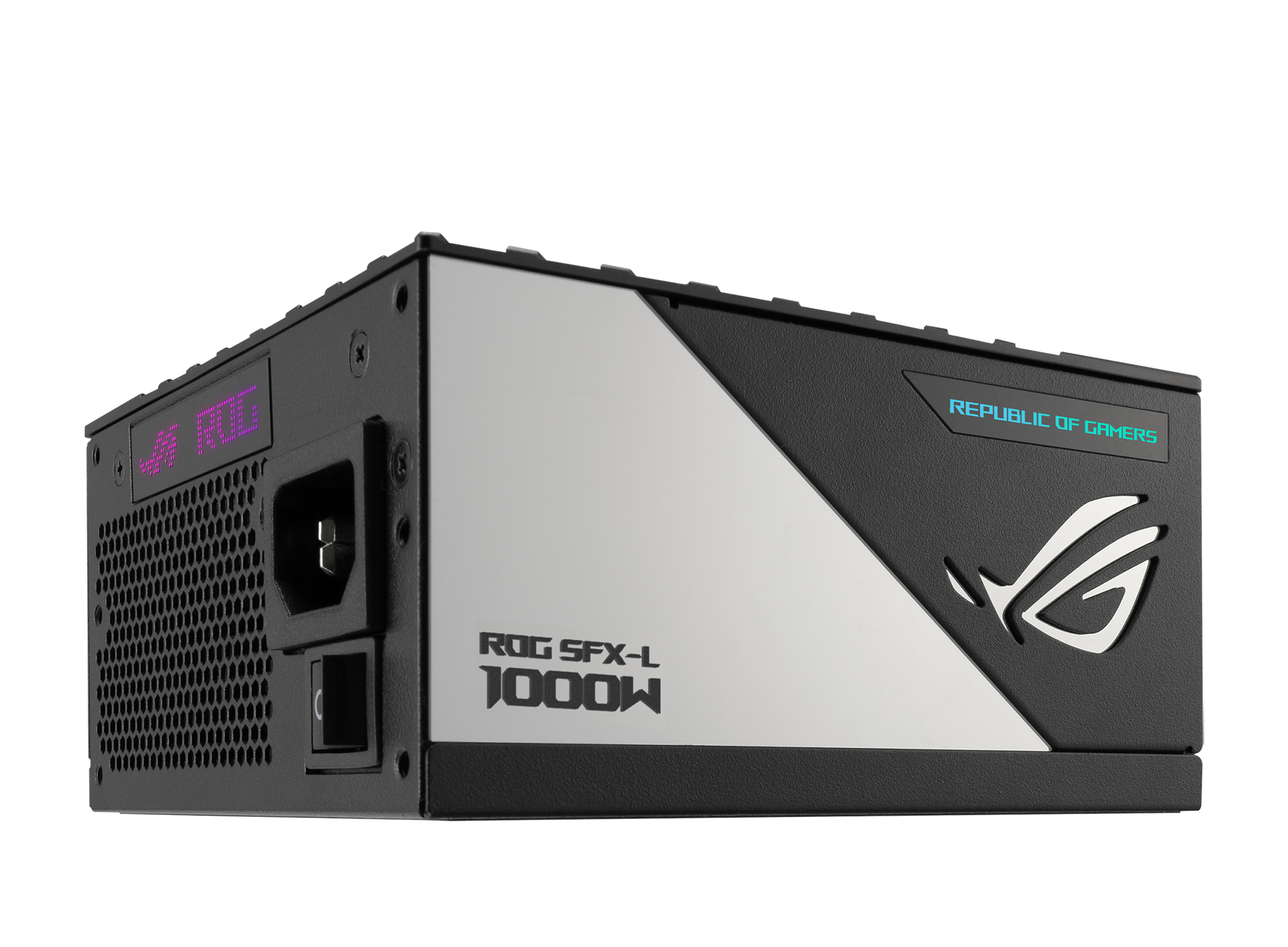

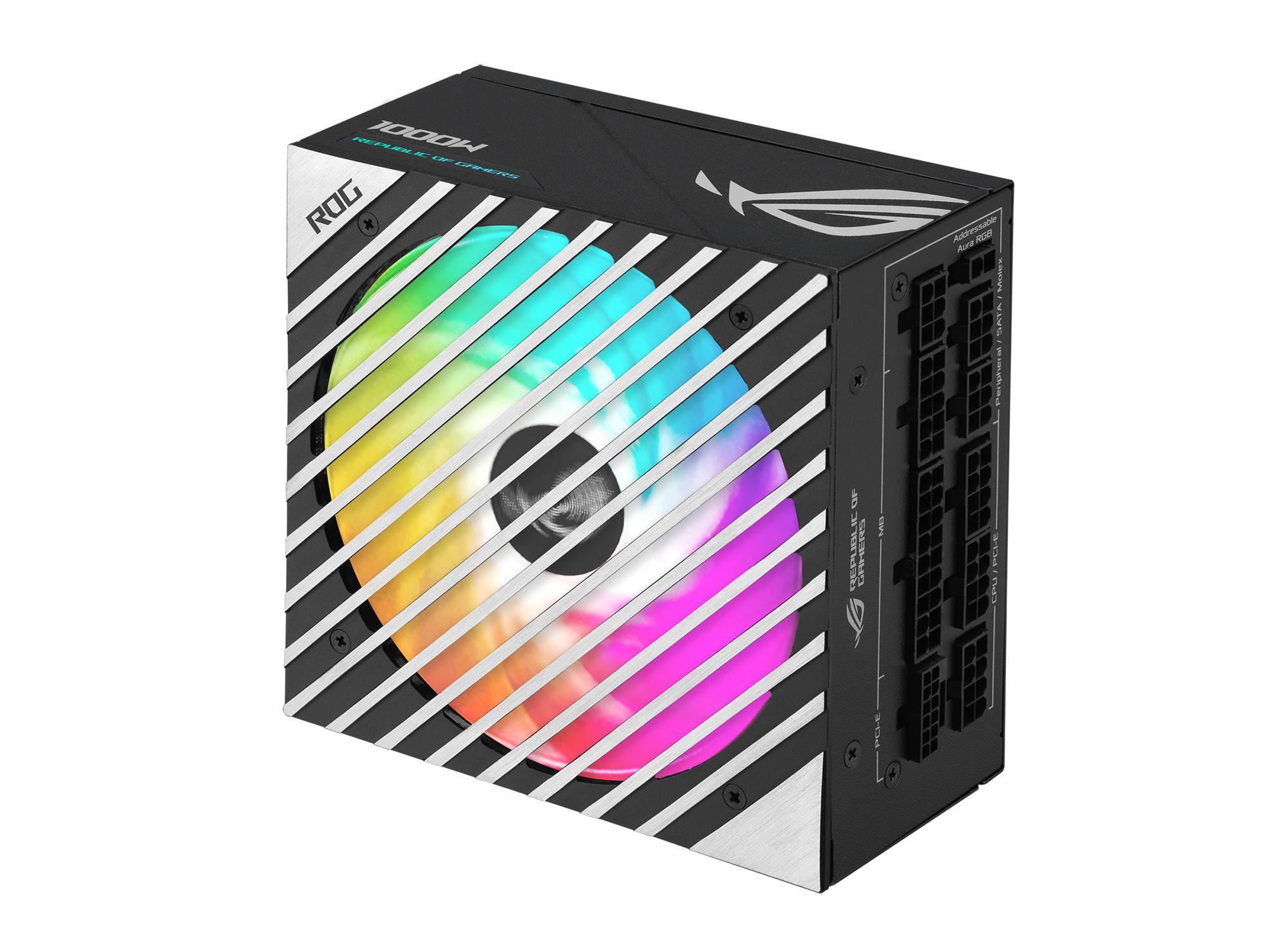

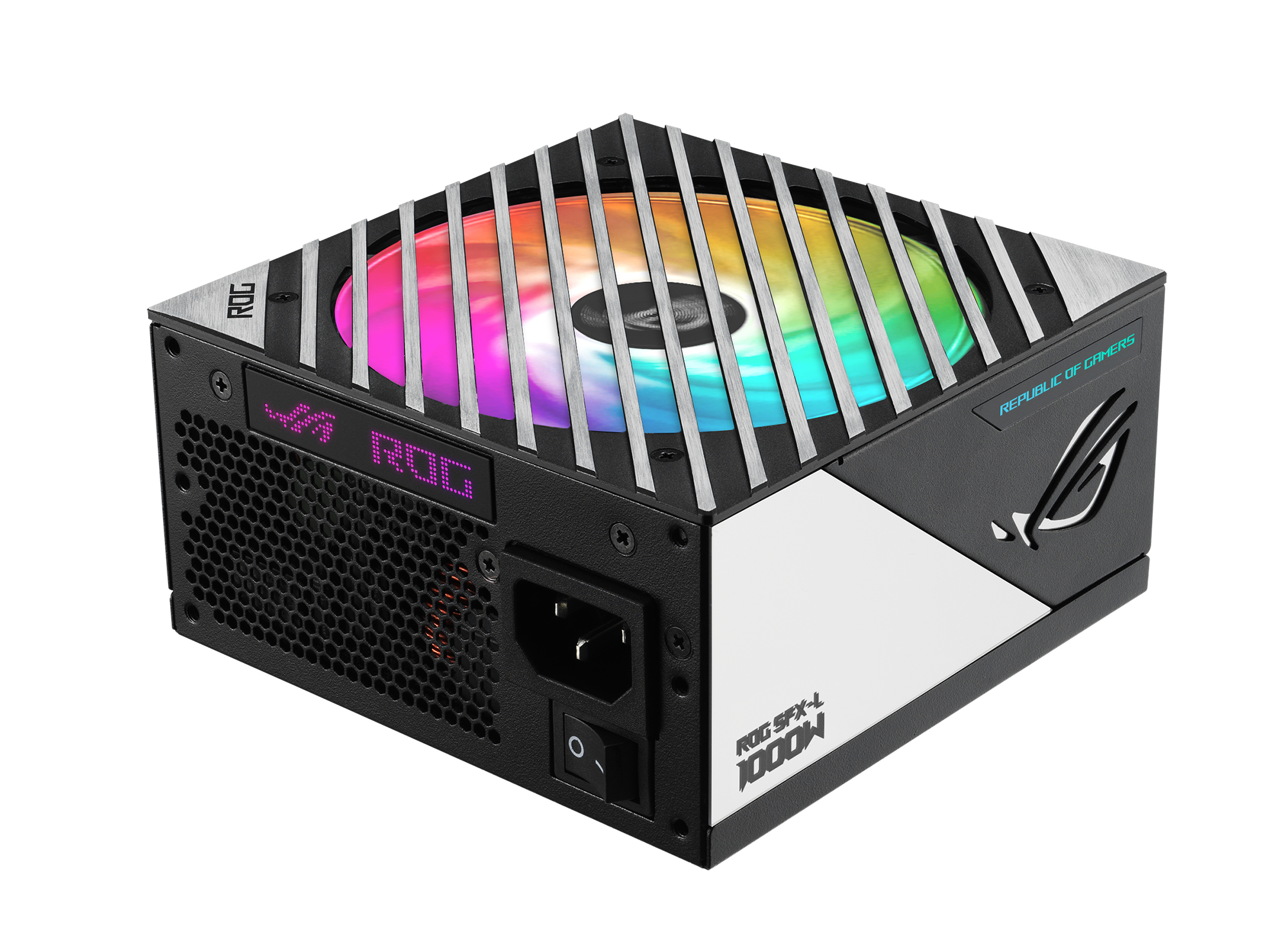

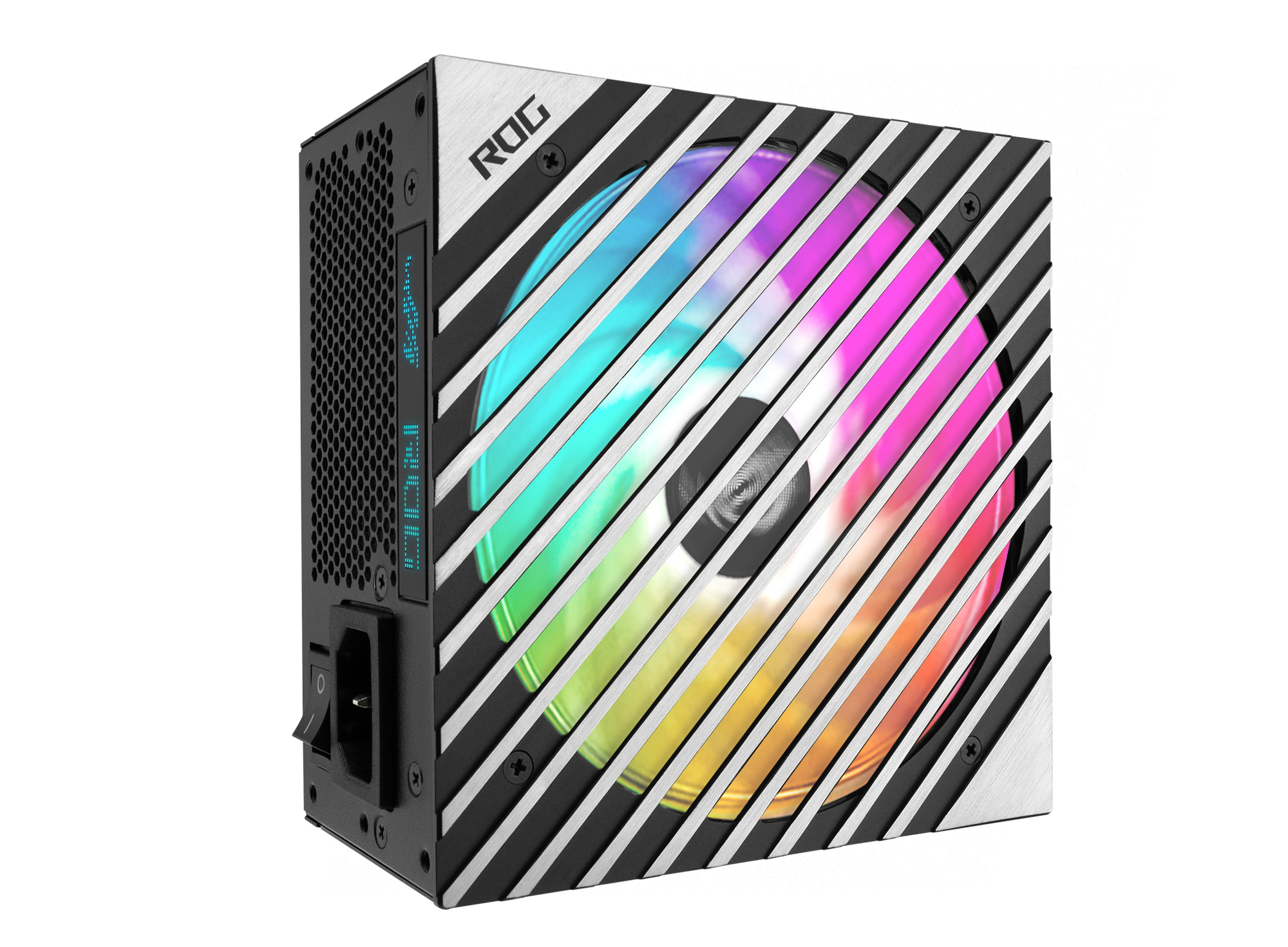

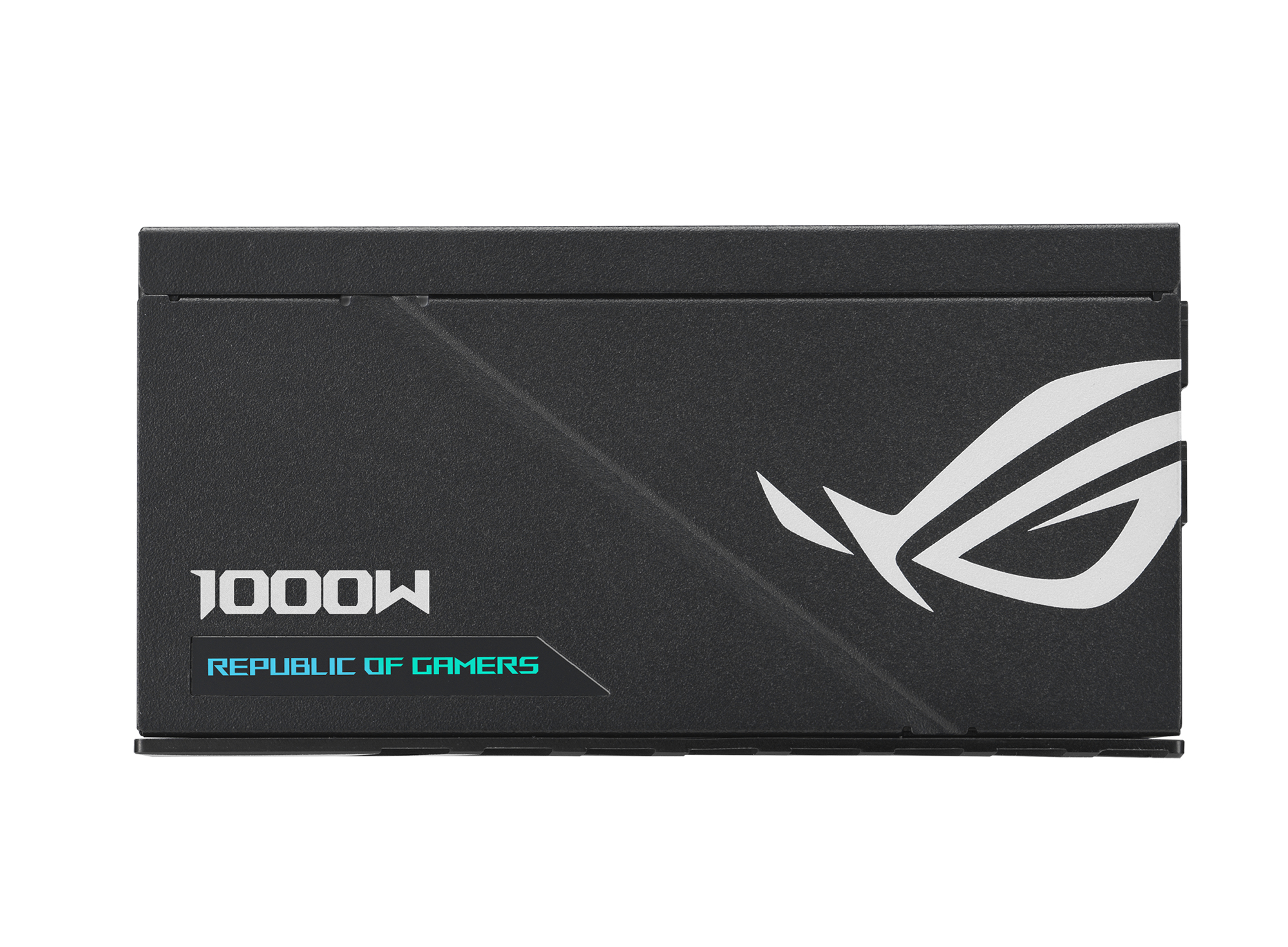

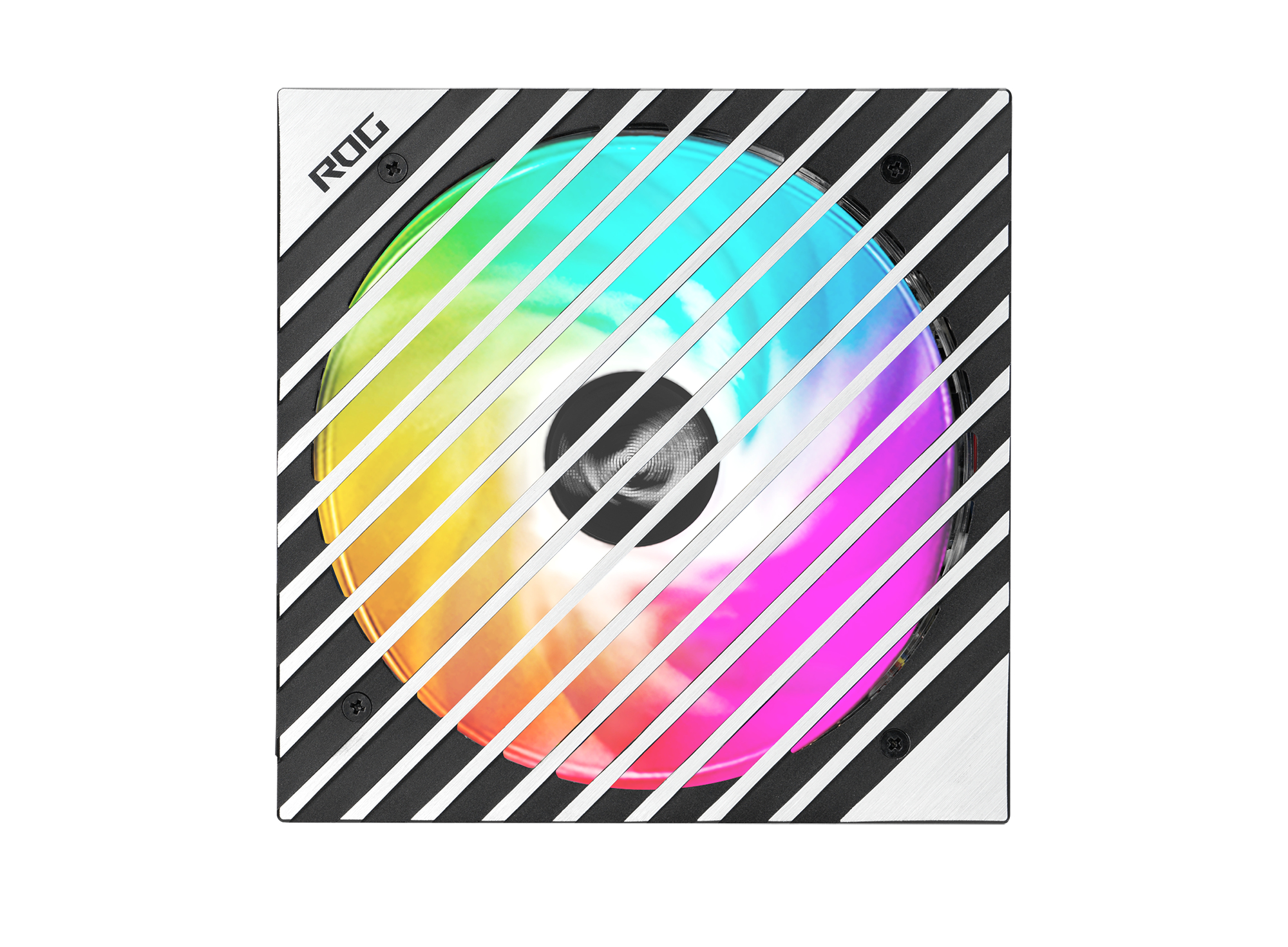

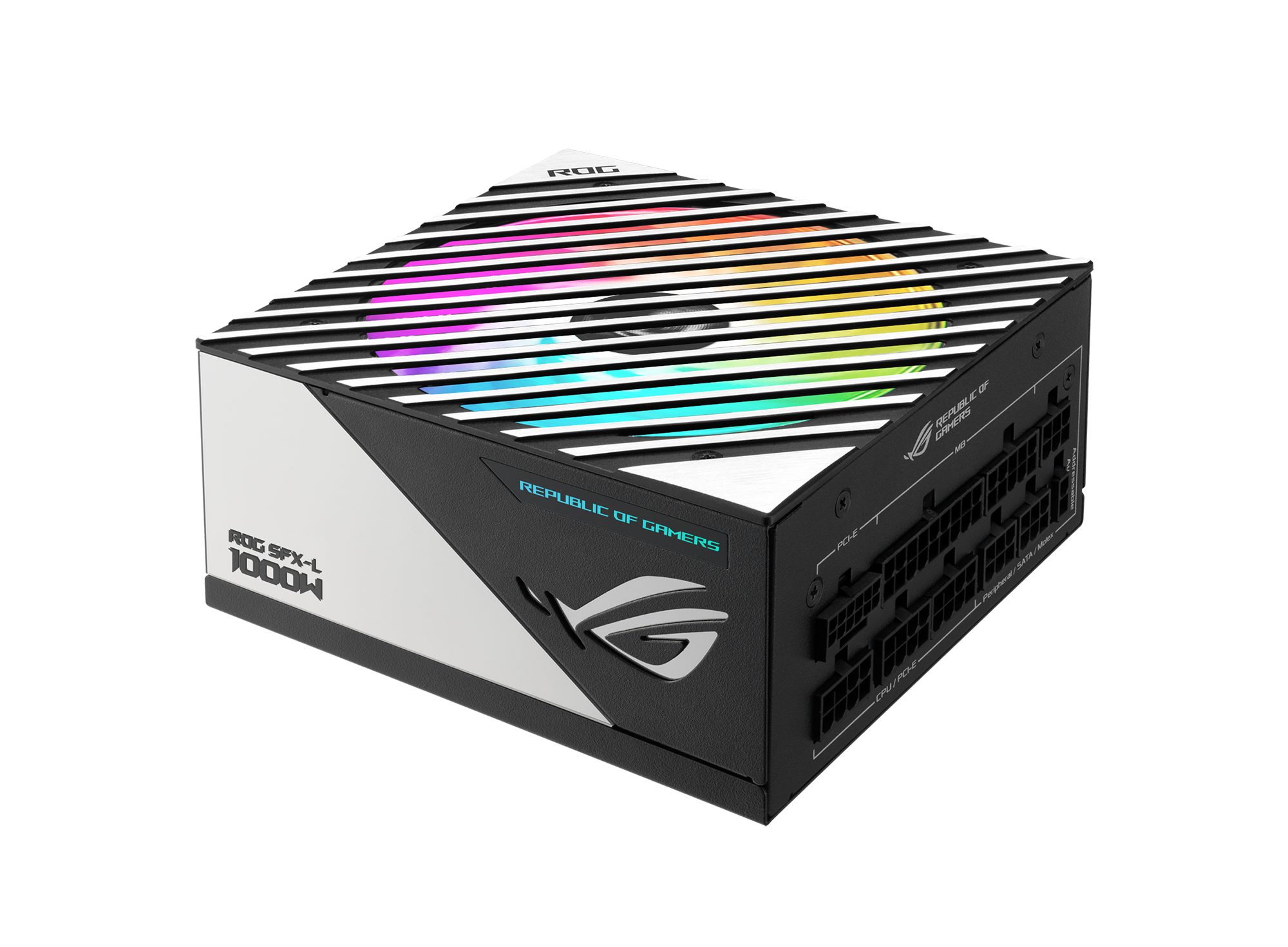

ROG Loki power supply unit
1000 W 24-pin ATX SFX-L Black, Silver
Model LokiPart no. 90YE00N1-B0ZA00
48 specifications
- Noise25 dB
- Weight1.81 kg
- ColourBlack, Silver
- Total power1000 W
- Motherboard power connector24-pin ATX
- PurposePC
Overview
- Noise
- 25 dB
- Weight
- 1.81 kg
- Colour
- Black, Silver
- Total power
- 1000 W
- Motherboard power connector
- 24-pin ATX
- Purpose
- PC
- Brand
- ASUS
- Category
- Power Supply Unit
- Model
- Loki
- Part numbers
- 90YE00N1-B0ZA00, 90YE00N3-B0ZA00, 90YE00N4-B0ZA00
- Also known as
- ASUS ROG Loki power supply unit 1000 W 24-pin ATX SFX-L Black, Silver
Specifications
48 specifications in 8 groups
Power
| Specification | Value |
|---|---|
| Total power | 1000 W |
| AC input voltage | 100 - 240 V |
| Combined power (+3.3V) | 110 W |
| Combined power (+12V) | 1000 W |
| Combined power (+5V) | 110 W |
| Combined power (-12V) | 9.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 83.3 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.8 A |
| Max output current (+5Vsb) | 2.5 A |
| Power protection features | Over current, Over power, Over voltage, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 24-pin ATX |
| Motherboard power cable length | 45 cm |
| Number of SATA power connectors | 6 |
| SATA power cable length | 300,500,600 mm |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| Peripheral (Molex) power cable length | 300,400,500,600 mm |
| PCI Express power connectors (16-pin) | 1 |
| PCI Express power connectors (8-pin) | 3 |
| PCI Express power cable length | 45 cm |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 55 cm |
| PCI Express connector | Yes |
| Cabling type | Fully-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | SFX-L |
| 80 PLUS certification | 80 PLUS Platinum |
| Supported motherboard form factors | ATX |
| ATX version | 3.0 |
| Noise level | 25 dB |
Design
| Specification | Value |
|---|---|
| Product colour | Black, Silver |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| Built-in display | Yes |
| Illumination | Yes |
| On/off switch | Yes |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, CPU, PCIe, Peripheral (Molex), SATA |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 125 mm |
| Depth | 125 mm |
| Height | 63.5 mm |
| Weight | 1.81 kg |
Packaging data
| Specification | Value |
|---|---|
| Manual | Yes |
| Package type | Box |
