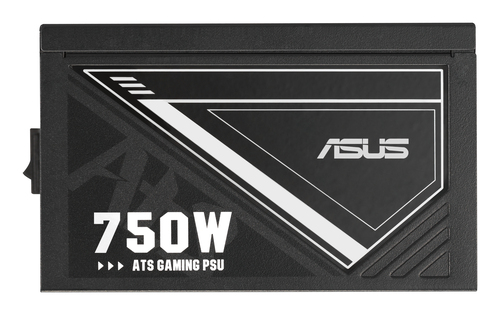

ATS-750G power supply unit
750 W 20+4 pin ATX ATX Black
Model ATS-750GPart no. 90YE04A1-B0AA00EAN 197105870093
46 specifications
- Weight1.53 kg
- ColourBlack
- Total power750 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Width150 mm
Overview
- Weight
- 1.53 kg
- Colour
- Black
- Total power
- 750 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Width
- 150 mm
- Brand
- ASUS
- Category
- Power Supply Unit
- Model
- ATS-750G
- Part numbers
- 90YE04A1-B0AA00, 90YE04A1-B0NC00
- EAN / UPC
- 197105870093, 704521168804, 4711387870020, 4711387870099
- Also known as
- ASUS ATS-750G power supply unit 750 W 20+4 pin ATX ATX Black
Specifications
46 specifications in 8 groups
Power
| Specification | Value |
|---|---|
| Total power | 750 W |
| AC input voltage | 110 - 240 V |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 750 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 62.5 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 92% |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 55 cm |
| Number of SATA power connectors | 3 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| PCI Express power connectors (6+2 pin) | 2 |
| PCI Express power cable length | 67.5 cm |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 65 cm |
| ATX power connector (20+4 pin) | Yes |
| Cabling type | Fully-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Gold |
| Bearing technology | Ball bearing |
| Mean time between failures (MTBF) | 120000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Number of fans | 1 fan(s) |
| On/off switch | Yes |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, PCIe, SATA |
| Packaging content | Power Cord x 1 Motherboard Power Cable x 1 (550mm) CPU 1-to-2 Cable x 1 (650+100mm) PCI-E 1-to-2 Cable x 1 (675+100mm) SATA 1-to-3 Cable x 1 (400+120+120mm) Peripheral 1-to-3 Cable x 3 (400+120+120mm) Chassis Screws Package x 1 Quick Start Guide x 1 |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
| Weight | 1.53 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 250 mm |
| Package depth | 180 mm |
| Package height | 115 mm |
| Package weight | 2.78 kg |
| Package type | Box |
