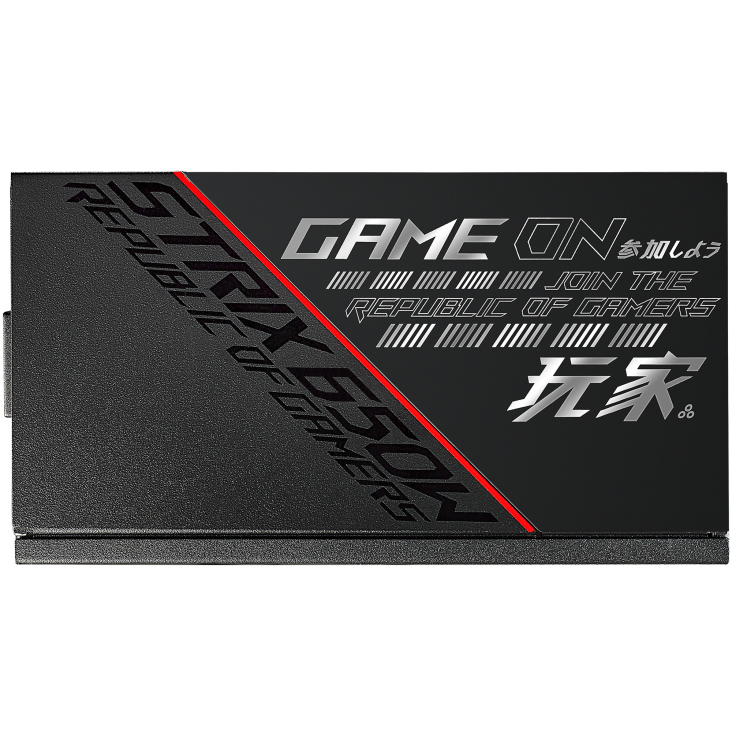

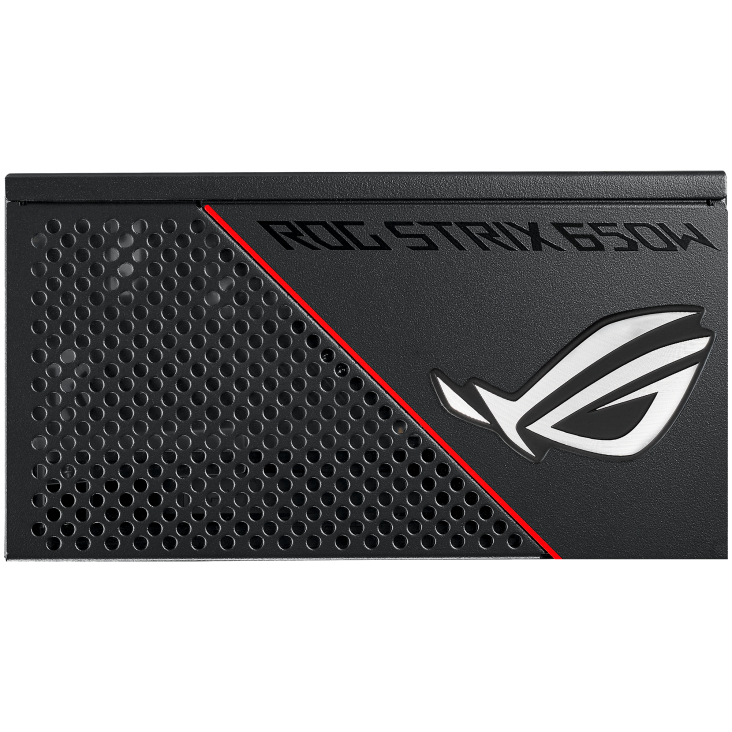

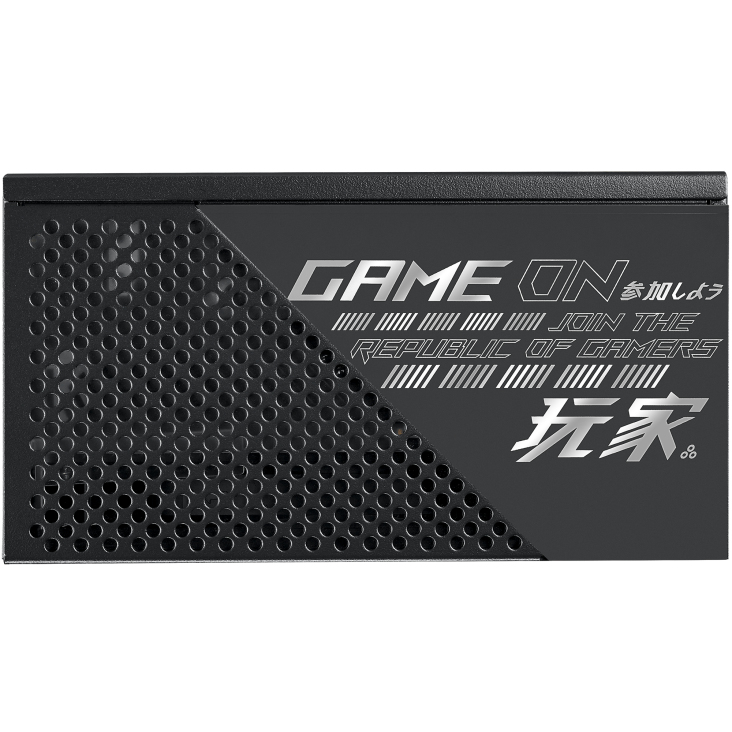

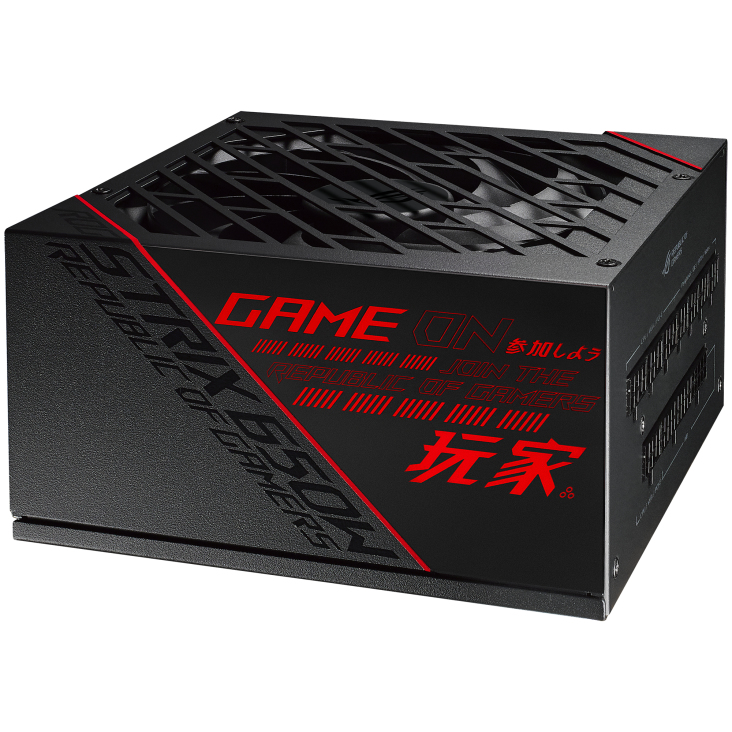

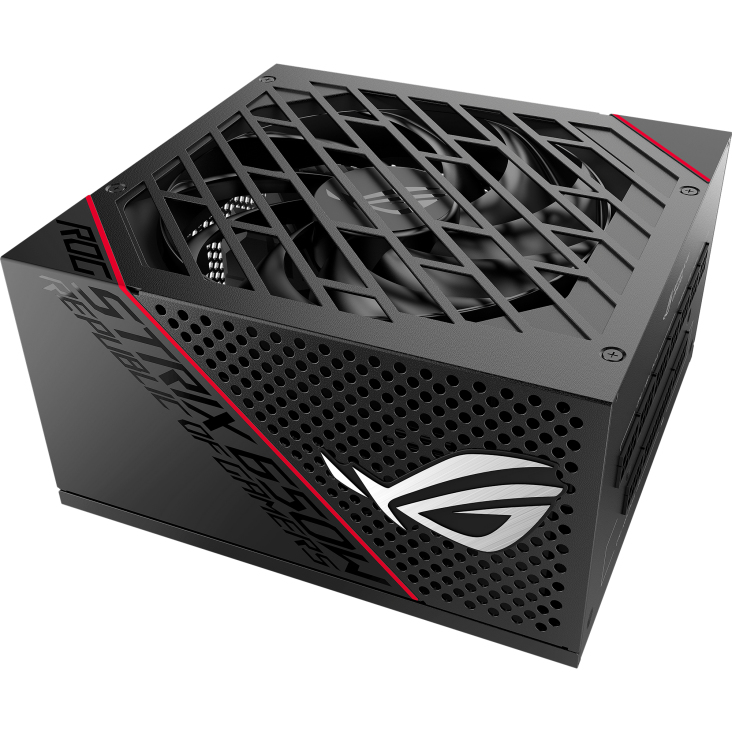

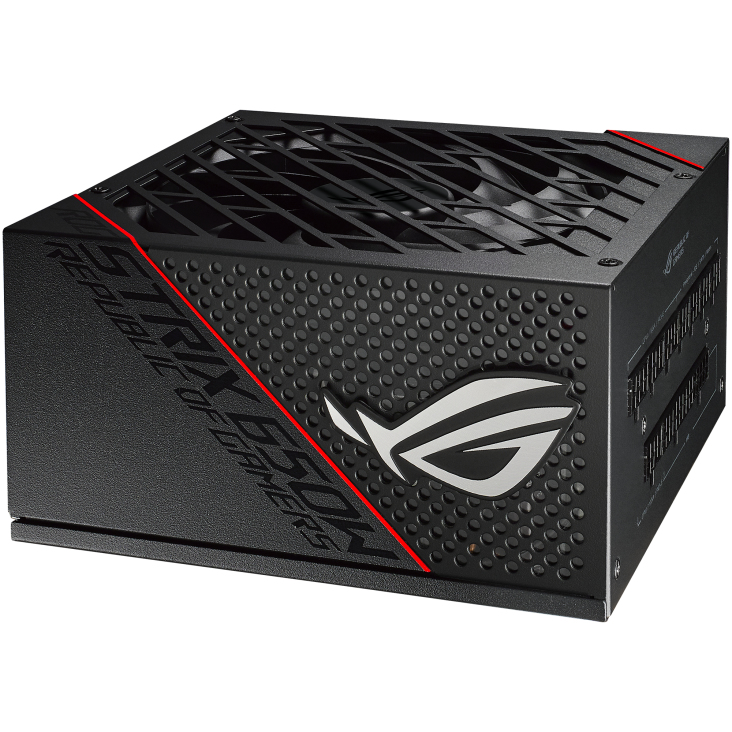

90YE00A1-B0EA00 power supply unit
600 W 20+4 pin ATX ATX Black
Model 90YE00A1-B0EA00EAN 4718017437691
26 specifications
- ColourBlack
- Total power600 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Width150 mm
Overview
- Colour
- Black
- Total power
- 600 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Width
- 150 mm
- Brand
- ASUS
- Category
- Power Supply Unit
- Model
- 90YE00A1-B0EA00
- Part number
- 90YE00A1-B0EA00
- EAN / UPC
- 4718017437691
- Also known as
- ASUS 90YE00A1-B0EA00 power supply unit 600 W 20+4 pin ATX ATX Black
Specifications
26 specifications in 7 groups
Power
| Specification | Value |
|---|---|
| Total power | 600 W |
| AC input voltage | 100 - 240 V |
| Power protection features | Over current, Over power, Over voltage, Short circuit |

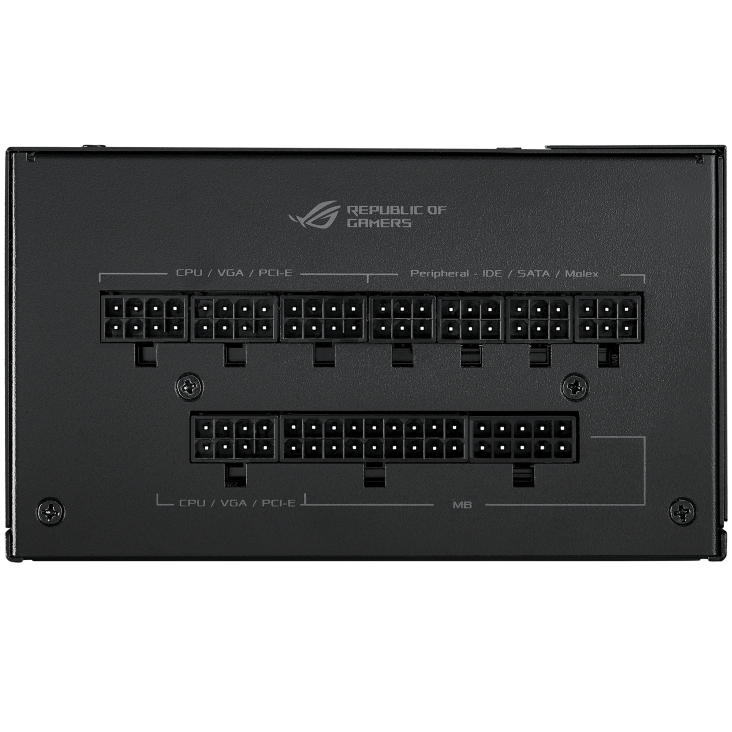

Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 8 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| PCI Express power connectors (6+2 pin) | 1 |
| CPU P4 connector (4-pin) | 2 |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 100 cm |
| Cabling type | Fully-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Gold |
| Supported motherboard form factors | ATX |
Design
| Specification | Value |
|---|---|
| Product colour | Black |

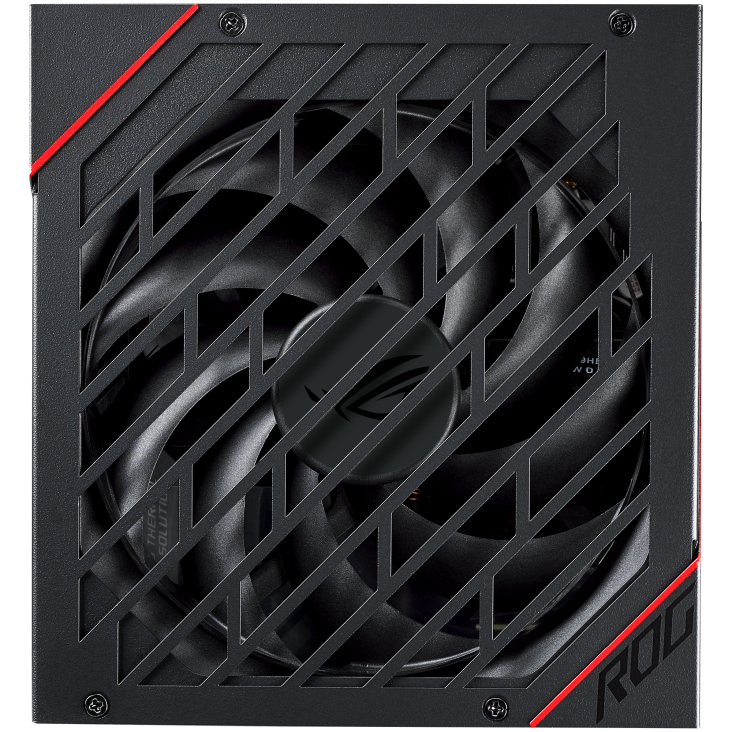

| Cooling type | Active |
| Fan diameter | 13.5 cm |
| Number of fans | 1 fan(s) |

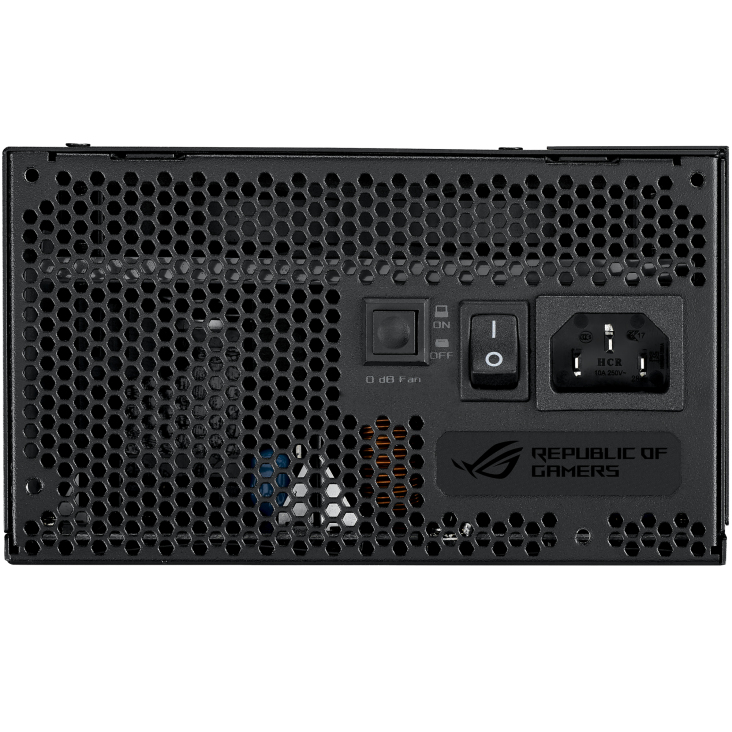

| On/off switch | Yes |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, CPU, PCIe, Peripheral (Molex) to SATA 3.3, SATA |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | ROHS, CE, EAC, CCC |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 86 mm |
| Height | 160 mm |
