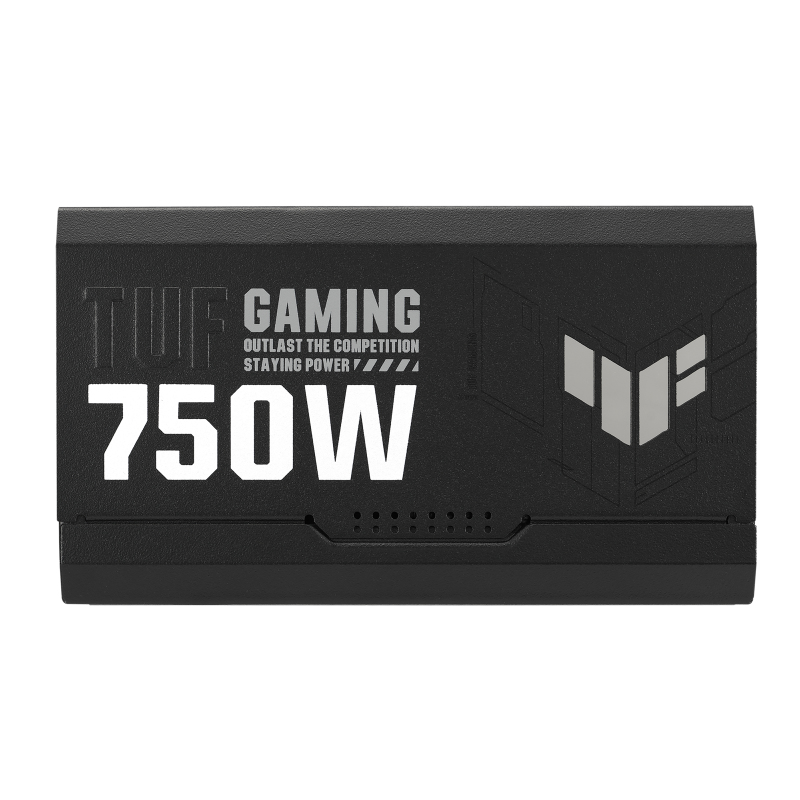

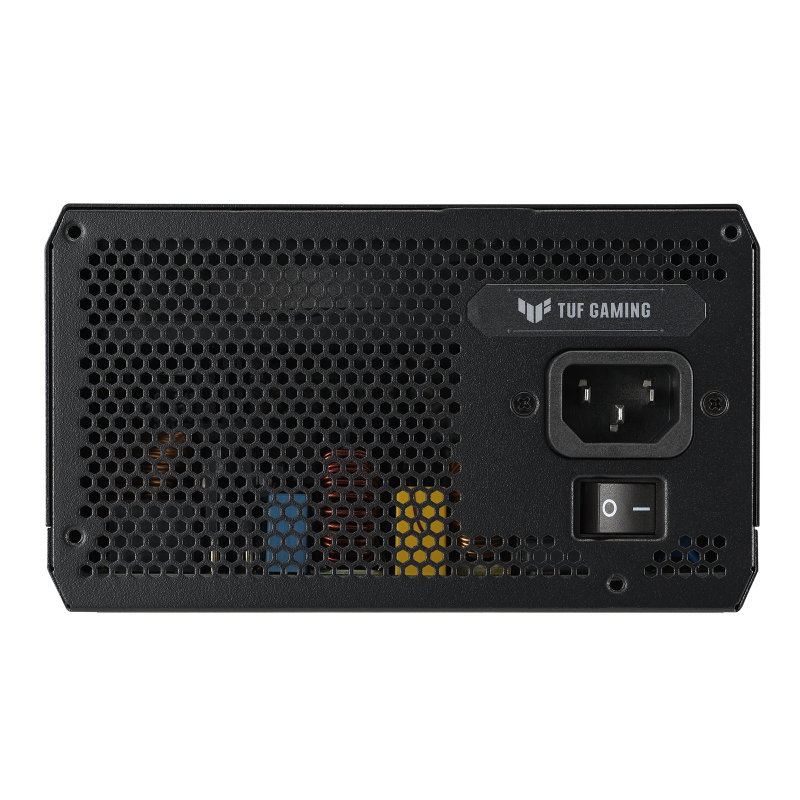

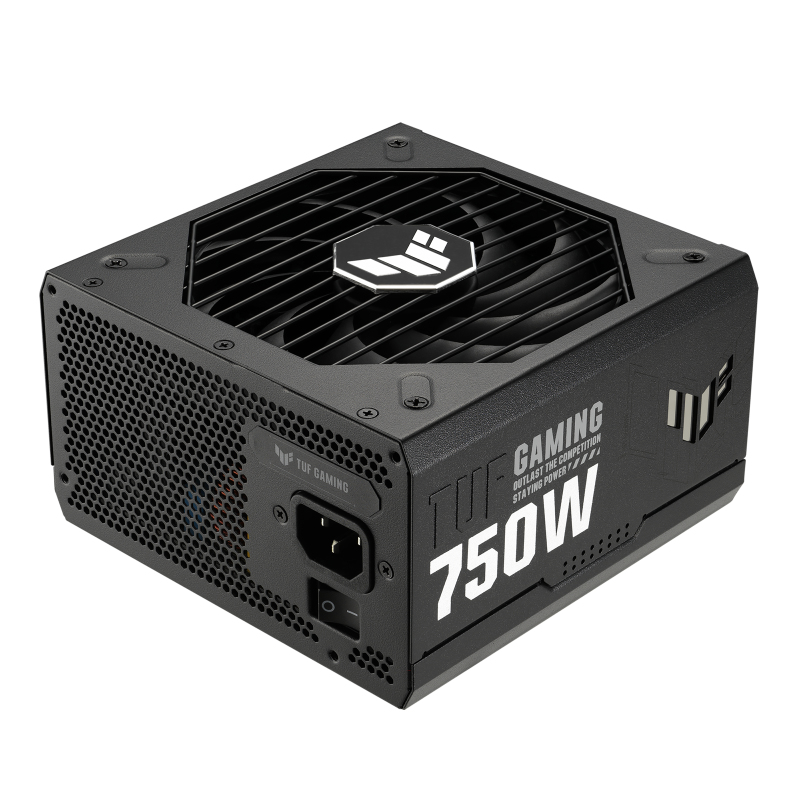

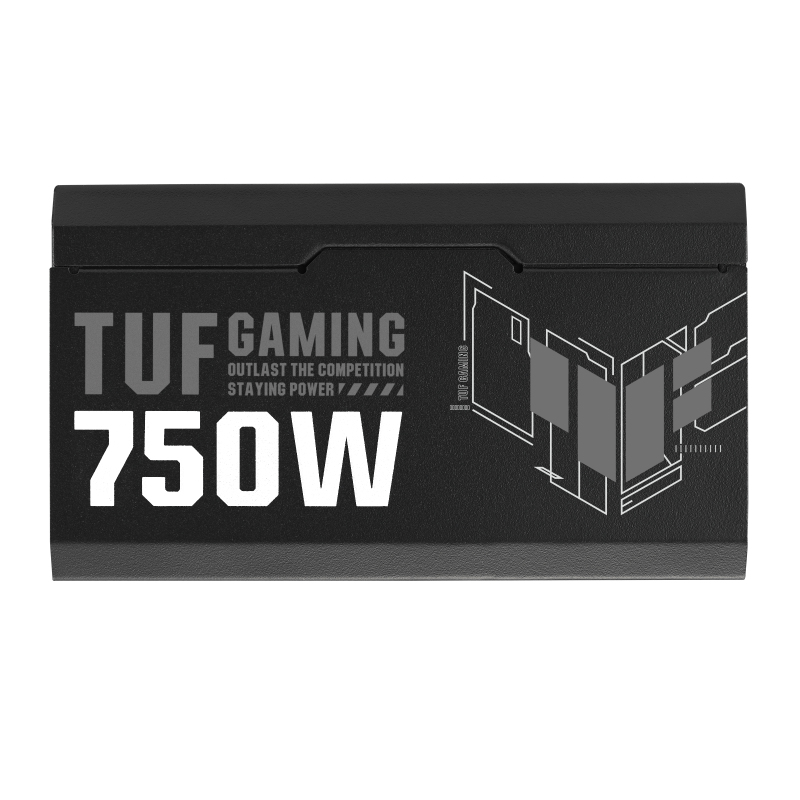

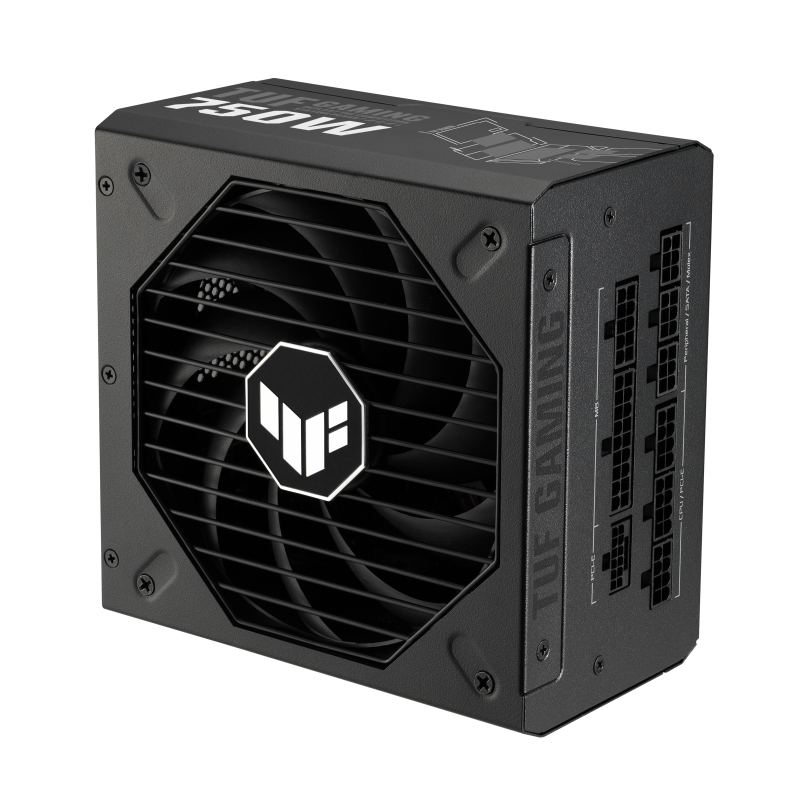

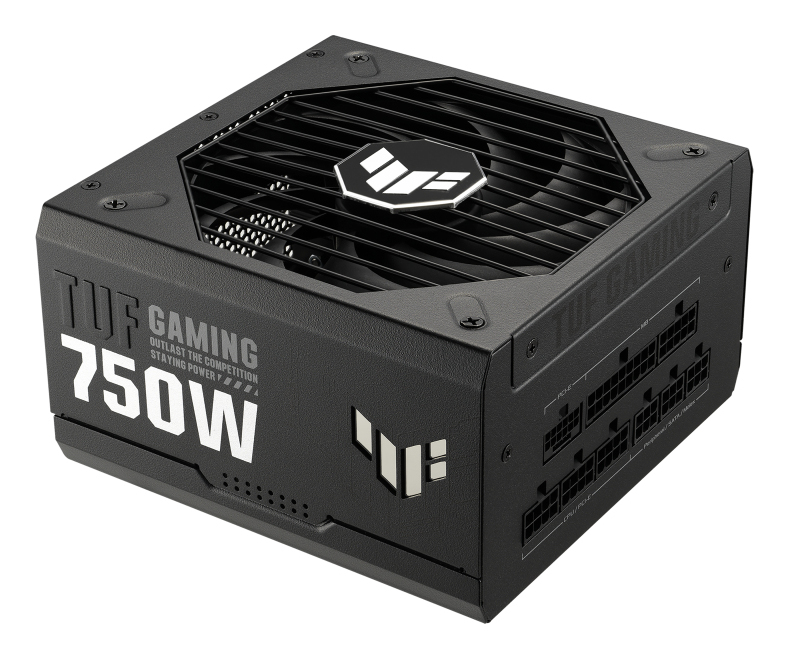

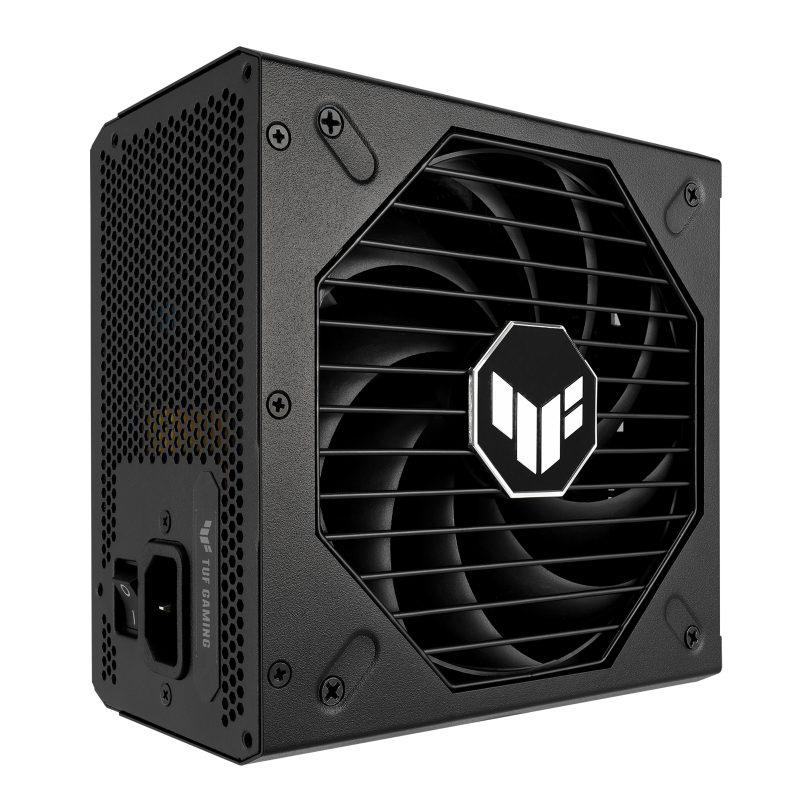

750W Gold
Model 750W GoldPart no. 90YE00S3-B0DA00EAN 4711081933595
49 specifications
- Weight2.38 kg
- ColourBlack
- Total power750 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Operating temperature (T-T)0 - 105 °C
Overview
- Weight
- 2.38 kg
- Colour
- Black
- Total power
- 750 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Operating temperature (T-T)
- 0 - 105 °C
- Brand
- ASUS
- Category
- Power Supply Unit
- Model
- 750W Gold
- Part number
- 90YE00S3-B0DA00
- EAN / UPC
- 4711081933595
- Also known as
- ASUS TUF Gaming 750W Gold power supply unit 20+4 pin ATX ATX Black
Specifications
49 specifications in 10 groups
Power
| Specification | Value |
|---|---|
| Total power | 750 W |
| AC input voltage | 100 - 240 V |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 130 W |
| Combined power (+12V) | 744 W |
| Combined power (+5V) | 130 W |
| Combined power (-12V) | 9.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+12V) | 62 A |
| Max output current (+5V) | 25 A |
| Max output current (-12V) | 0.8 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 92% |
| Power protection features | Over current, Over power, Over voltage, Short circuit, Under voltage |

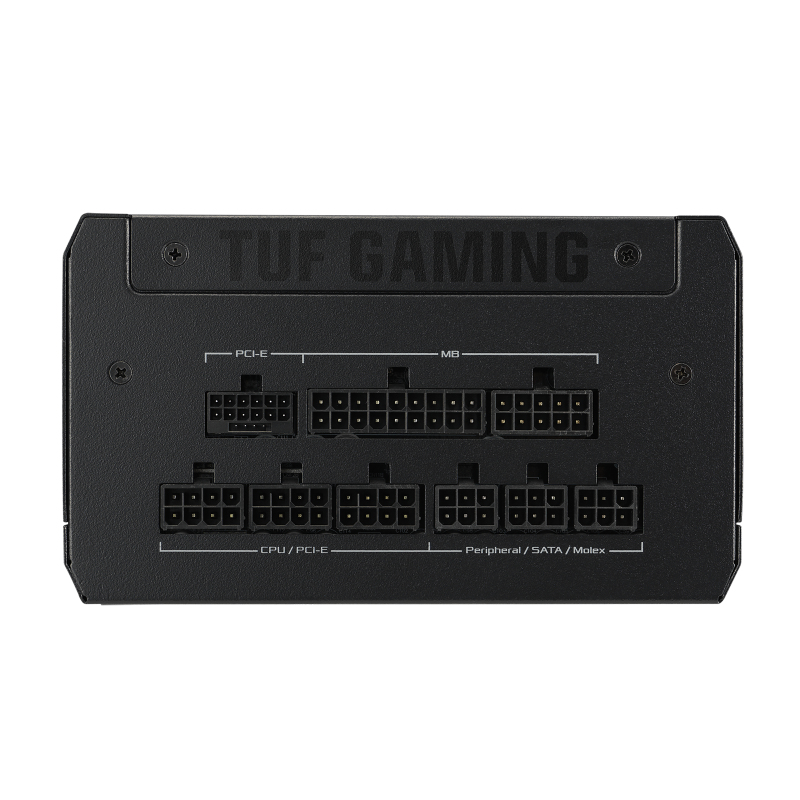

Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 61 cm |
| Number of SATA power connectors | 5 |
| SATA power cable length | 120,400 mm |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| Peripheral (Molex) power cable length | 150,400 mm |
| PCI Express power connectors (16-pin) | 1 |
| PCI Express power connectors (8-pin) | 3 |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 65 cm |
| ATX power connector (20+4 pin) | Yes |
| Cabling type | Fully-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Gold |
| ATX version | 3.0 |
| Bearing technology | Ball bearing |
| Mean time between failures (MTBF) | 170000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 13.5 cm |
| Number of fans | 1 fan(s) |
| Illumination | No |
| On/off switch | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 105 °C |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, CPU, PCIe, Peripheral (Molex), SATA |
| Cable tie(s) included | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 150 mm |
| Height | 86 mm |
| Weight | 2.38 kg |
Technical details
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Logistics data
| Specification | Value |
|---|---|
| Warranty period | 10 year(s) |
