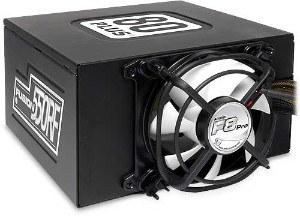

ARCTIC Fusion 550RF-EU
Model Fusion 550RF-EUPart no. PS-550-07A01EAN 872767002319
38 specifications
- ColourBlack
- Total power550 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Operating temperature (T-T)0 - 50 °C
- Width150 mm
Overview
- Colour
- Black
- Total power
- 550 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Operating temperature (T-T)
- 0 - 50 °C
- Width
- 150 mm
- Brand
- ARCTIC
- Category
- Power Supply Unit
- Model
- Fusion 550RF-EU
- Part number
- PS-550-07A01
- EAN / UPC
- 872767002319, 8727670023192
- Also known as
- ARCTIC Fusion 550-EU - 550 W ATX Power Supply Unit
Specifications
38 specifications in 8 groups
Power
| Specification | Value |
|---|---|
| Total power | 550 W |
| AC input voltage | 90 - 264 V |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 130 W |
| Combined power (+5V) | 130 W |
| Combined power (-12V) | 9.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 24 A |
| Max output current (+12V1) | 17 A |
| Max output current (+12V2) | 17 A |
| Max output current (+5V) | 24 A |
| Max output current (-12V) | 0.8 A |
| Max output current (+5Vsb) | 2.5 A |
| Efficiency | 86% |
| Hold time | 17 ms |
| Power protection features | Over power, Over voltage, Short circuit |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 6 |
| PCI Express power connectors (6-pin) | 2 |
| PCI Express power connectors (6+2 pin) | 2 |
| CPU P4 connector (4-pin) | 1 |
| ATX power connector (20+4 pin) | Yes |
| Floppy drive power connector | 1 |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| Mean time between failures (MTBF) | 100000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Fan speed | 2000 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 95% |
Certificates
| Specification | Value |
|---|---|
| Certification | CUL / CE / CB / FCC |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 160 mm |
| Height | 86 mm |
Other features
| Specification | Value |
|---|---|
| Package dimensions (WxDxH) | 190 x 265 x 110 mm |
