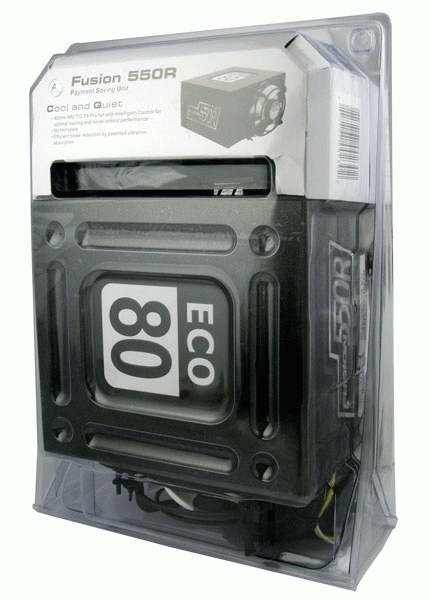

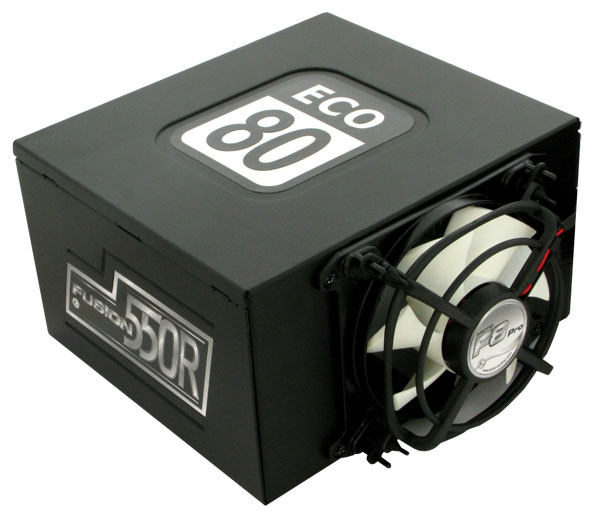

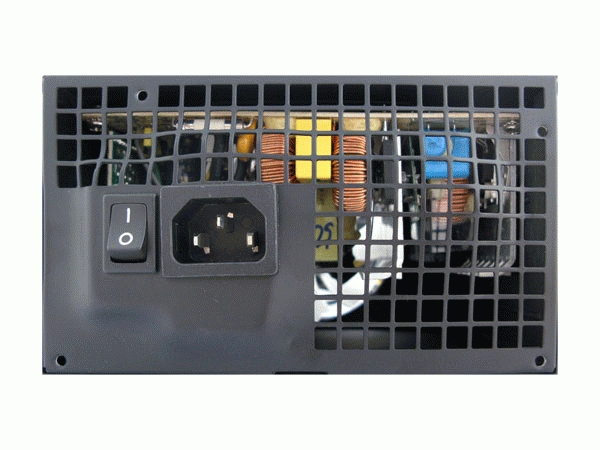

ARCTIC Fusion 550R
Model Fusion 550RPart no. AC-FUSION-550REAN 872767002210
52 specifications
- Noise20 dB
- ColourBlack
- Total power550 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Operating temperature (T-T)0 - 50 °C
Overview
- Noise
- 20 dB
- Colour
- Black
- Total power
- 550 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Operating temperature (T-T)
- 0 - 50 °C
- Brand
- ARCTIC
- Category
- Power Supply Unit
- Model
- Fusion 550R
- Part number
- AC-FUSION-550R
- EAN / UPC
- 872767002210, 872767002302
- Also known as
- ARCTIC Fusion 550R - 550 W ATX Power Supply Unit
Specifications
52 specifications in 11 groups
Power
| Specification | Value |
|---|---|
| Total power | 550 W |
| AC input voltage | 90 - 260 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 3 A |
| Power factor | 99 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 130 W |
| Combined power (+12V) | 408 W |
| Combined power (+5V) | 130 W |
| Combined power (-12V) | 9.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 24 A |
| Max output current (+12V1) | 17 A |
| Max output current (+12V2) | 17 A |
| Max output current (+5V) | 24 A |
| Max output current (-12V) | 0.8 A |
| Max output current (+5Vsb) | 2.5 A |
| Efficiency | 86% |
| Hold time | 17 ms |
| Power Good signal delay range | 100 - 500 ms |
| Power protection features | Over power, Over voltage, Short circuit |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 6 |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| PCI Express power connectors (6-pin) | 2 |
| PCI Express power connectors (6+2 pin) | 2 |
| Floppy disk drive connector | Yes |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| Noise level | 20 dB |
| Bearing technology | FDB |
| Mean time between failures (MTBF) | 100000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 8 cm |
| Number of fans | 1 fan(s) |
| Fan speed | 0 - 2000 RPM |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 80 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 95% |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | CE, CB, CUL (Level 6) |
Safety regulation & standards
| Specification | Value |
|---|---|
| Safety | CUL (Level 6) / CE / CB |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 160 mm |
| Height | 86 mm |
Packaging data
| Specification | Value |
|---|---|
| Manual | Yes |
Other features
| Specification | Value |
|---|---|
| Screws included | Yes |
| Number of screws | 4 |
What people say
Reviews & ratings
ARCTIC Fusion 550R
No reviews yet
Be the first to tell others how ARCTIC Fusion 550R works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare ARCTIC Fusion 550R
All power supply unit comparisons- ARCTIC Fusion 550R vsARCTIC Fusion 550RF-EUCompare specs

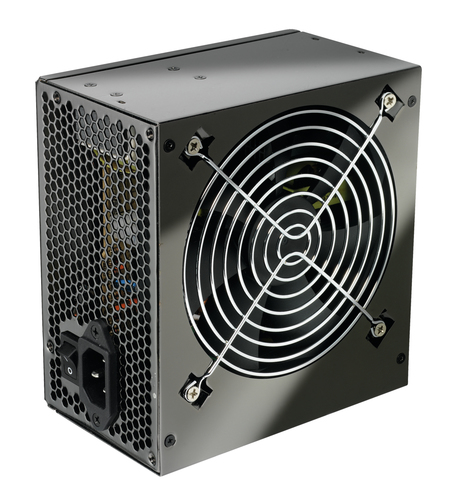

- ARCTIC Fusion 550R vsTrust 16117 power supply unitCompare specs
- ARCTIC Fusion 550R vsTrust 16116 power supply unitCompare specs

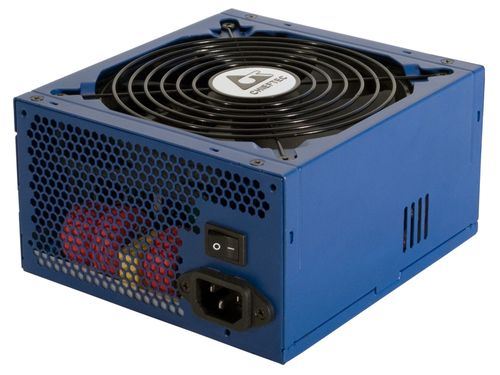

- ARCTIC Fusion 550R vsChieftec CFT-650-14C power supply unitCompare specs

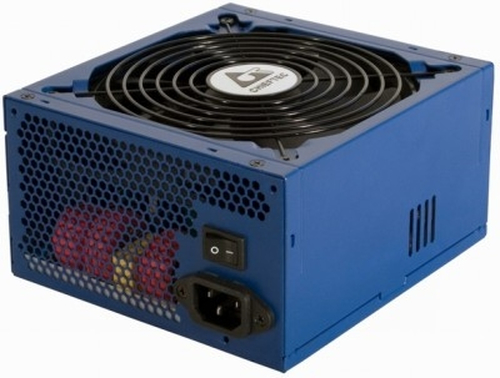

- ARCTIC Fusion 550R vsChieftec CFT-700-14C power supply unitCompare specs
