Allied Telesis DRB15 power supply unit Blue
Model DRB15Part no. AT-DRB15-24-1EAN 767035212821
15 specifications
- ColourBlue
- AC input voltage85 - 264 V
- Operating temperature (T-T)-20 - 70 °C
- Width18 mm
Overview
- Colour
- Blue
- AC input voltage
- 85 - 264 V
- Operating temperature (T-T)
- -20 - 70 °C
- Width
- 18 mm
- Brand
- Allied Telesis
- Category
- Power Supply Unit
- Model
- DRB15
- Part number
- AT-DRB15-24-1
- EAN / UPC
- 767035212821
- Also known as
- Allied Telesis DRB15 power supply unit Blue
Specifications
15 specifications in 5 groups
Power
| Specification | Value |
|---|---|
| AC input voltage | 85 - 264 V |
| AC input frequency | 47 - 63 Hz |
| Maximum input current (@110V) | 0.27 A |
| Power factor | 0.55 |
| Efficiency | 90% |
| Hold time | 20 ms |
| Power protection features | Over current, Over voltage |
Design
| Specification | Value |
|---|---|
| Product colour | Blue |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -20 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Certificates
| Specification | Value |
|---|---|
| Certification | UL508 Listed, UL60950-1, CSA22.2 No60950-1, EN60950-1, CE Mark |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 18 mm |
| Depth | 90 mm |
| Height | 75 mm |
Compare Allied Telesis DRB15 power supply unit Blue
Compare any products- Allied Telesis DRB15 power supply unit Blue vsAllied Telesis AT-PWR300-50 power supply unitCompare specs
- Allied Telesis DRB15 power supply unit Blue vsAllied Telesis AT-IE048-240-20 power supply unitCompare specs
- Allied Telesis DRB15 power supply unit Blue vsAllied Telesis AT-MWWDR-240-48 power supply unitCompare specs
- Allied Telesis DRB15 power supply unit Blue vsAllied Telesis AT-SBxPWRSYS2-50 power supply unitCompare specs
- Allied Telesis DRB15 power supply unit Blue vsASUS ROG -THOR-1200P power supply unitCompare specs
- Allied Telesis DRB15 power supply unit Blue vsbe quiet! Pure Power 11 300WCompare specs

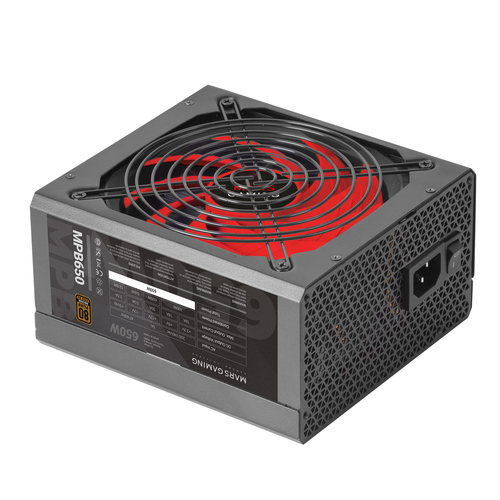

- Allied Telesis DRB15 power supply unit Blue vsMars Gaming MPB650 PC ATXCompare specs

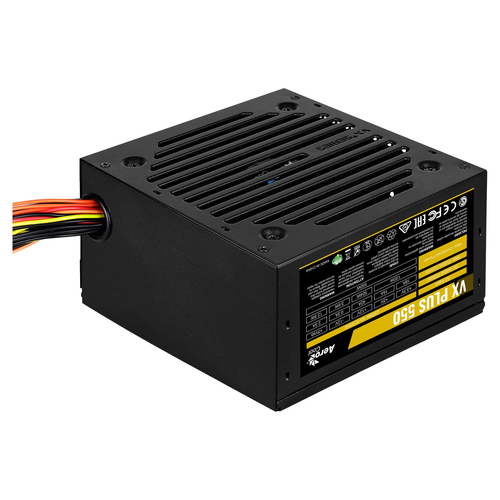

- Allied Telesis DRB15 power supply unit Blue vsAerocool VX PLUS 550Compare specs
