ASPC-500SFX-SEO power supply unit
500 W 20+4 pin ATX SFX Silver
Model ASPC-500SFX-SEOEAN 8435739904060
42 specifications
- ColourSilver
- Total power500 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Width125 mm
Overview
- Colour
- Silver
- Total power
- 500 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Width
- 125 mm
- Brand
- AISENS
- Category
- Power Supply Unit
- Model
- ASPC-500SFX-SEO
- Part number
- ASPC-500SFX-SEO
- EAN / UPC
- 8435739904060
- Also known as
- AISENS ASPC-500SFX-SEO power supply unit 500 W 20+4 pin ATX SFX Silver
Specifications
42 specifications in 9 groups
Power
| Specification | Value |
|---|---|
| Total power | 500 W |
| AC input voltage | 220 V |
| AC input frequency | 50/60 Hz |
| Input current | 2.5 - 5 A |
| Max output current (+3.3V) | 28 A |
| Max output current (+12V) | 20 A |
| Max output current (+5V) | 30 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |

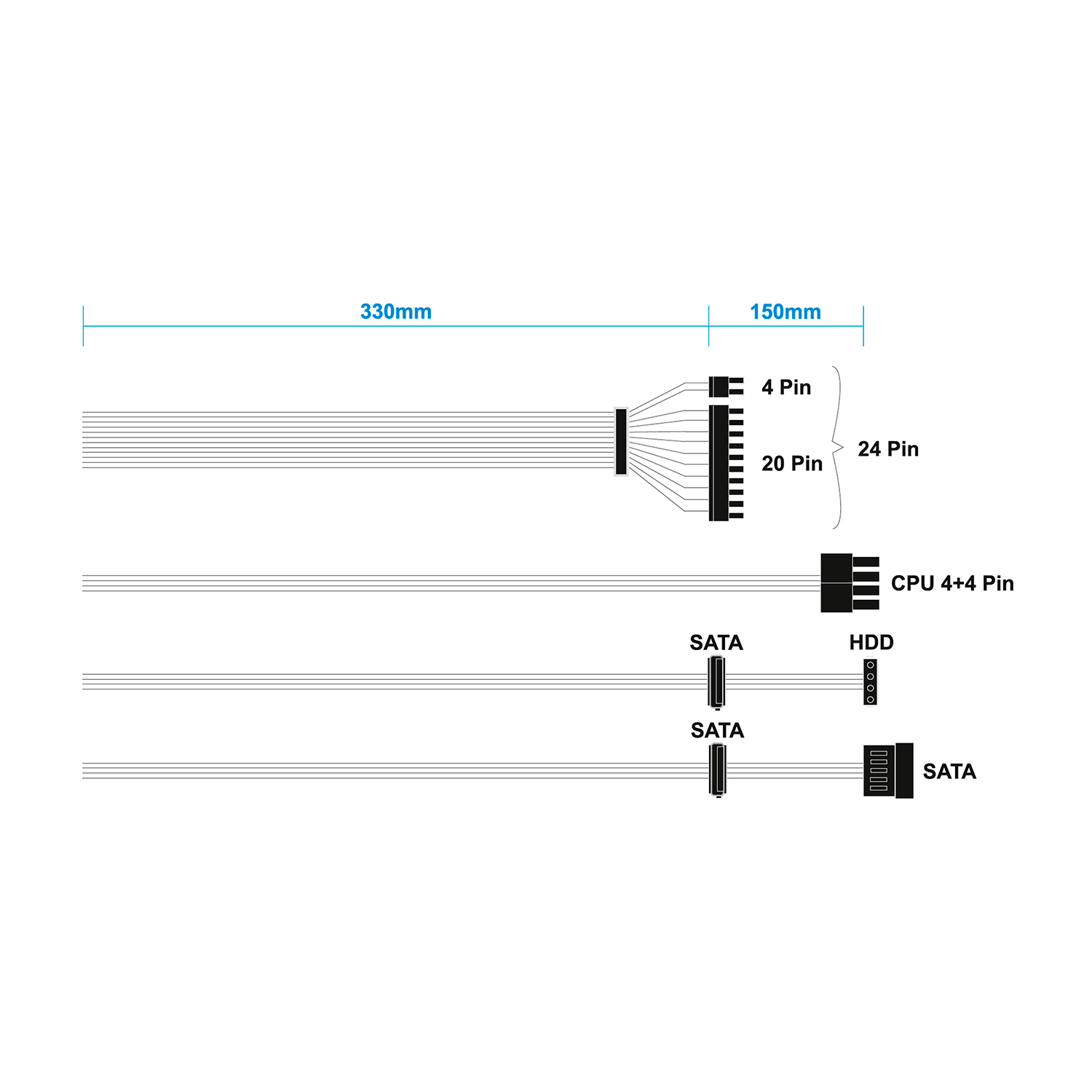

Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 33 cm |
| Number of SATA power connectors | 3 |
| SATA power cable length | 330,480 mm |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| Peripheral (Molex) power cable length | 330,480 mm |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 43 cm |
| ATX power connector (20+4 pin) | Yes |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | SFX |
| ATX version | 2.0 |
Design
| Specification | Value |
|---|---|
| Product colour | Silver |
| Cooling type | Active |
| Fan diameter | 8 cm |
| Number of fans | 1 fan(s) |
| On/off switch | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |

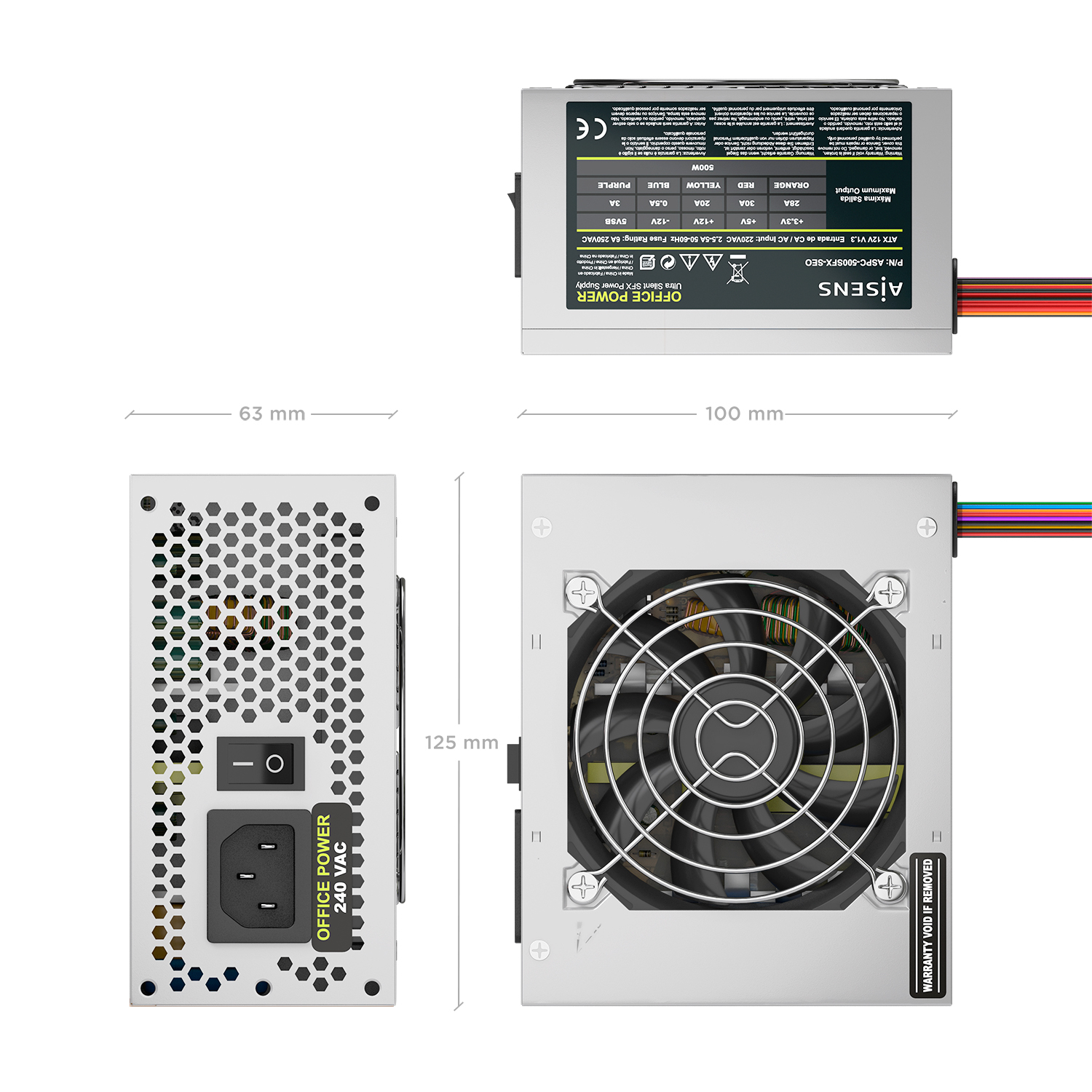

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 125 mm |
| Depth | 100 mm |
| Height | 63 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 165 mm |
| Package depth | 197 mm |
| Package height | 80 mm |
| Package weight | 790 g |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 350 mm |
| Master (outer) case length | 430 mm |
| Master (outer) case height | 230 mm |
| Master (outer) case net weight | 7.9 kg |
| Master (outer) case volume | 34615 cm³ |
| Products per master (outer) case | 10 pc(s) |
Other features
| Specification | Value |
|---|---|
| Package volume | 2600 cm³ |
