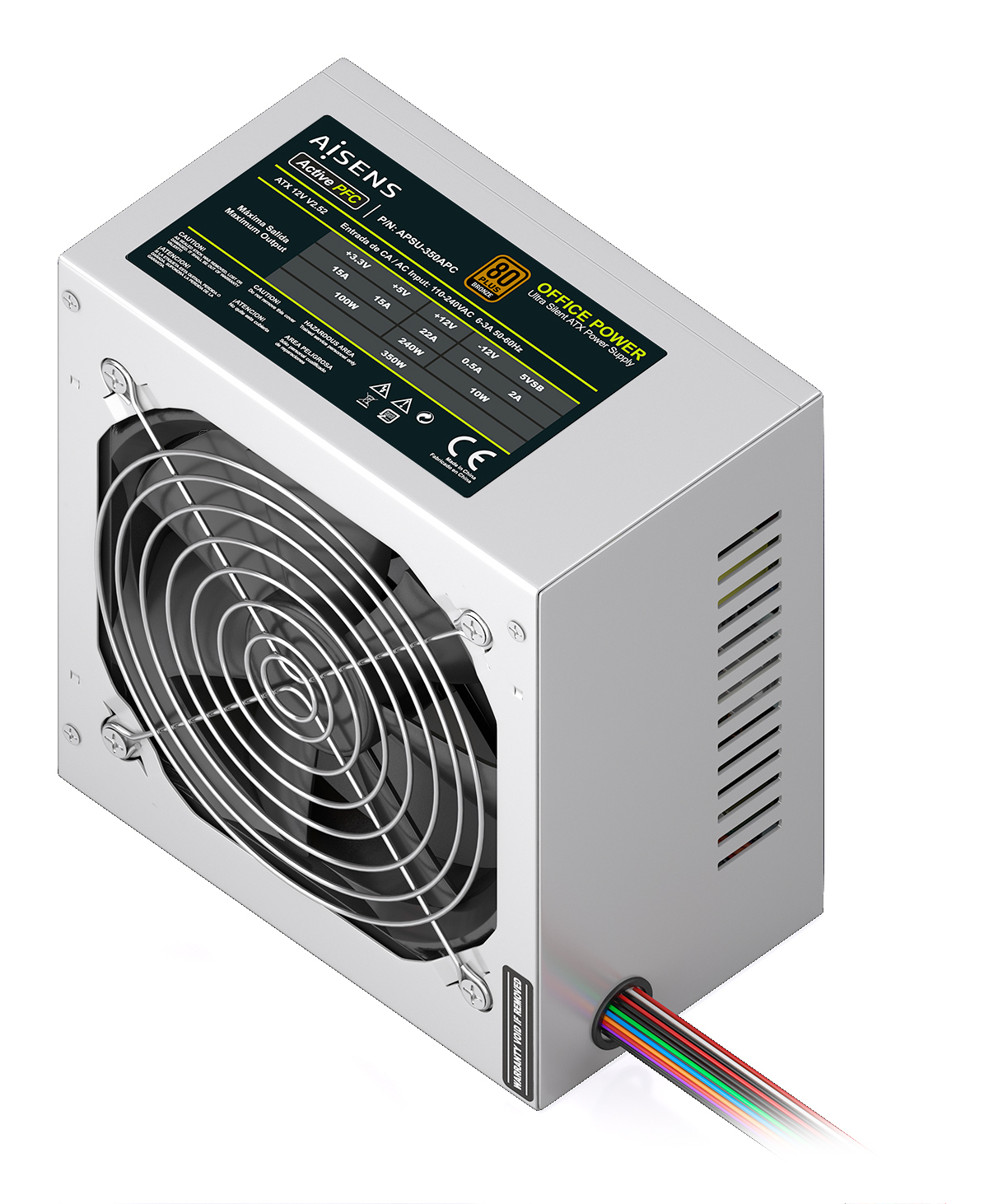

APSU-350APC power supply unit
350 W 20+4 pin ATX ATX White
Model APSU-350APCEAN 8436574709636
36 specifications
- ColourWhite
- Total power350 W
- Motherboard power connector20+4 pin ATX
- PurposePC
Overview
- Colour
- White
- Total power
- 350 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Brand
- AISENS
- Category
- Power Supply Unit
- Model
- APSU-350APC
- Part number
- APSU-350APC
- EAN / UPC
- 8436574709636
- Also known as
- AISENS APSU-350APC power supply unit 350 W 20+4 pin ATX ATX White
Specifications
36 specifications in 7 groups
Power
| Specification | Value |
|---|---|
| Total power | 350 W |
| AC input voltage | 110 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 6 - 3 A |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 240 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 10 W |
| Combined power (+5Vsb) | 10 W |
| Max output current (+3.3V) | 15 A |
| Max output current (+12V) | 22 A |
| Max output current (+5V) | 15 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 2 A |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 45 cm |
| SATA power cable length | 450,600 mm |
| Number of SATA power cables | 1 |
| PCI Express power cable length | 45 cm |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 45 cm |
| ATX power connector (20+4 pin) | Yes |
| Floppy disk drive cable length | 45 cm |
| PCI Express connector | Yes |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Bronze |
| ATX version | 2.52 |
Design
| Specification | Value |
|---|---|
| Product colour | White |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Illumination | No |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
