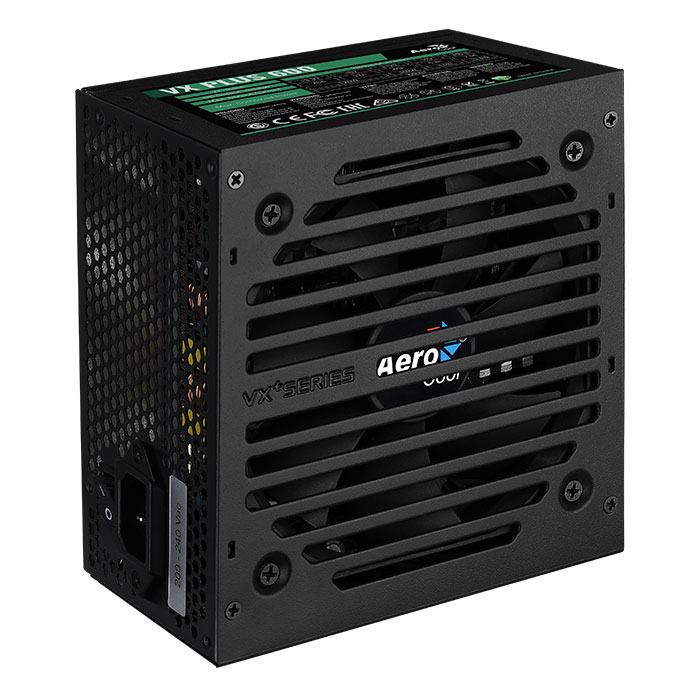

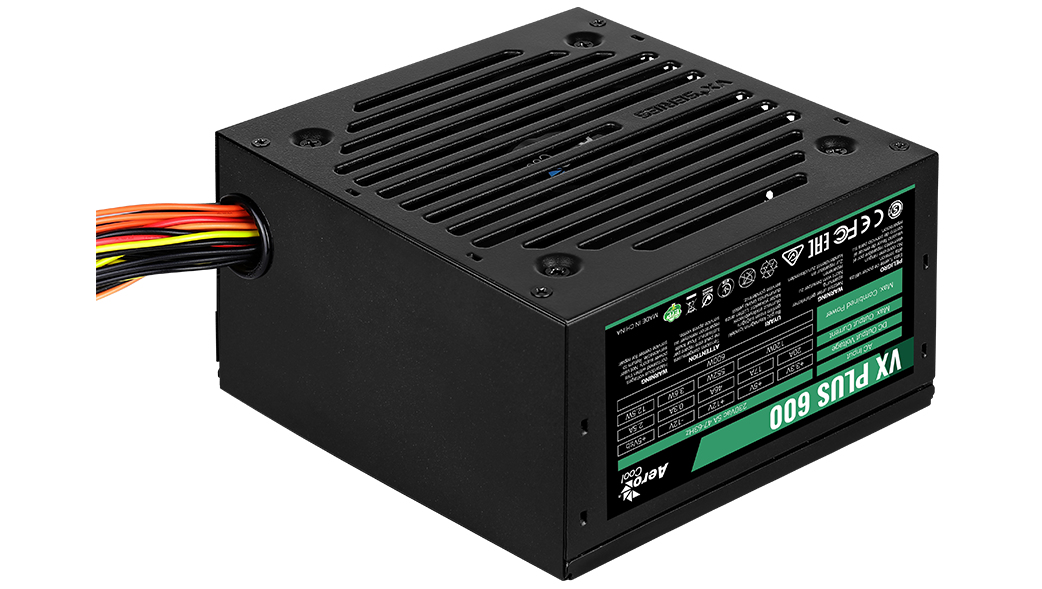

VX PLUS 600
Model VX PLUS 600Part no. AEROPGSVX-600PLUS-80EAN 4713105962772
31 specifications
- ColourBlack
- Total power600 W
- Motherboard power connector20+4 pin ATX
- PurposePC
Overview
- Colour
- Black
- Total power
- 600 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Brand
- Aerocool
- Category
- Power Supply Unit
- Model
- VX PLUS 600
- Part number
- AEROPGSVX-600PLUS-80
- EAN / UPC
- 4713105962772, 4718009159358
- Also known as
- Aerocool VX PLUS 600 power supply unit 600 W 20+4 pin ATX ATX Black
Specifications
31 specifications in 5 groups
Power
| Specification | Value |
|---|---|
| Total power | 600 W |
| AC input voltage | 230 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 5 A |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 552 W |
| Combined power (+5V) | 120 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 46 A |
| Max output current (+5V) | 17 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Power protection features | Over power, Over voltage, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 50 cm |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| Peripheral (Molex) power cable length | 450,750 mm |
| PCI Express power connectors (6+2 pin) | 1 |
| PCI Express power cable length | 55 cm |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 55 cm |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 2.3 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC, EAC |
