VX Plus 500
Model VX Plus 500Part no. AEROPGSVX-500PLUS-80EAN 4718009159341
42 specifications
- ColourBlack
- Total power500 W
- Motherboard power connector20+4 pin ATX
- PurposePC
Overview
- Colour
- Black
- Total power
- 500 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Brand
- Aerocool
- Category
- Power Supply Unit
- Model
- VX Plus 500
- Part number
- AEROPGSVX-500PLUS-80
- EAN / UPC
- 4718009159341
- Also known as
- Aerocool VX Plus 500 power supply unit 500 W 20+4 pin ATX ATX Black
Specifications
42 specifications in 6 groups

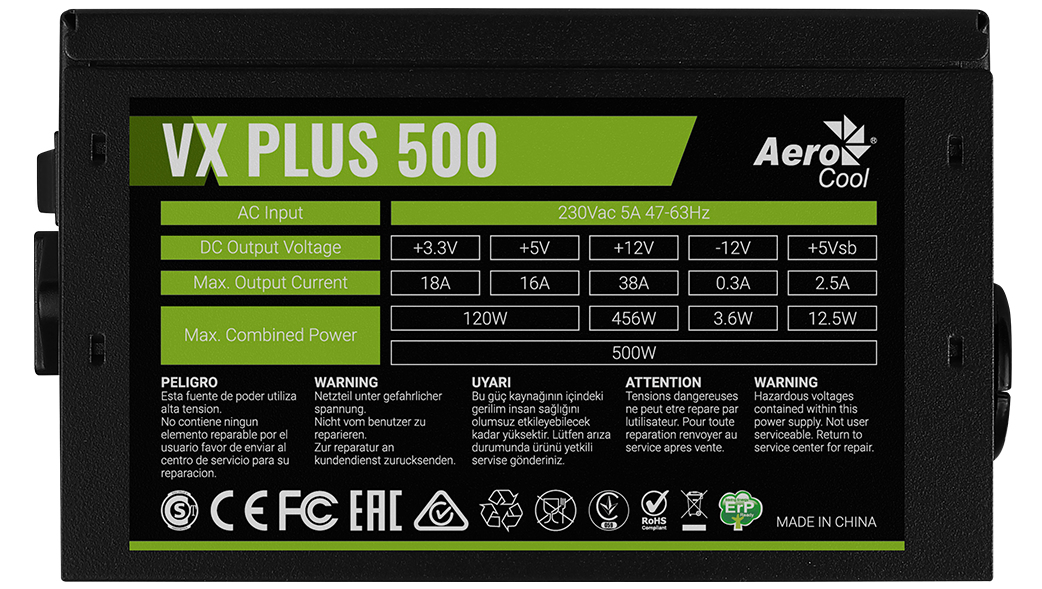

Power
| Specification | Value |
|---|---|
| Total power | 500 W |
| AC input voltage | 230 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 4 A |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 456 W |
| Combined power (+5V) | 120 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 18 A |
| Max output current (+12V) | 38 A |
| Max output current (+5V) | 16 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.4 A |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 50 cm |
| Number of PATA power connectors | 3 |
| Number of SATA power connectors | 3 |
| SATA power cable length | 300 mm |
| Peripheral (Molex) power connectors (4-pin) | 6 |
| Peripheral (Molex) power cable length | 450,600 mm |
| PCI Express power connectors (6+2 pin) | 1 |
| PCI Express power cable length | 40 cm |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 55 cm |
| ATX power connector (20+4 pin) | Yes |
| Floppy disk drive cable length | 75 cm |
| Floppy disk drive connector | Yes |
| Floppy drive power connector | 1 |
| PCI Express connector | Yes |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 2.3 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan speed | 700 - 1700 RPM |
| On/off switch | Yes |
Packaging content
| Specification | Value |
|---|---|
| Cables included | CPU, PATA, PCIe, SATA |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
