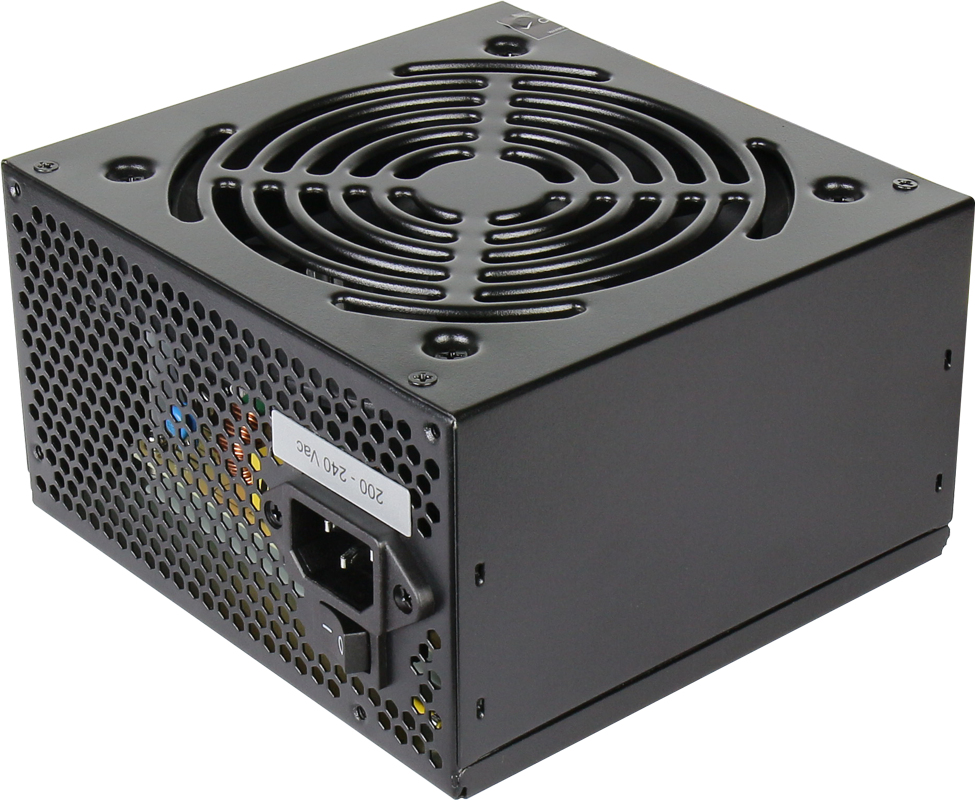

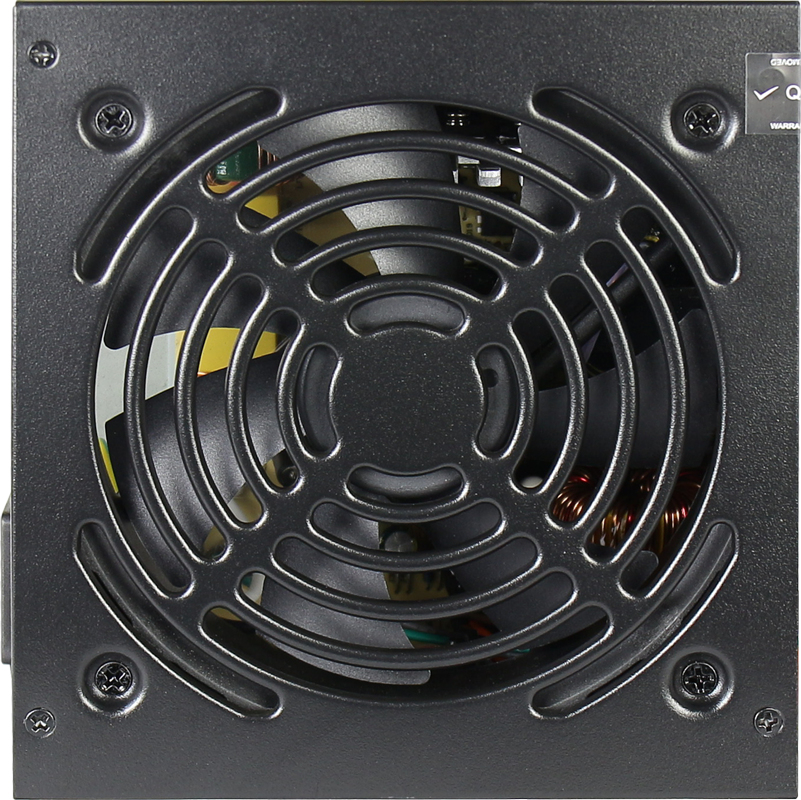

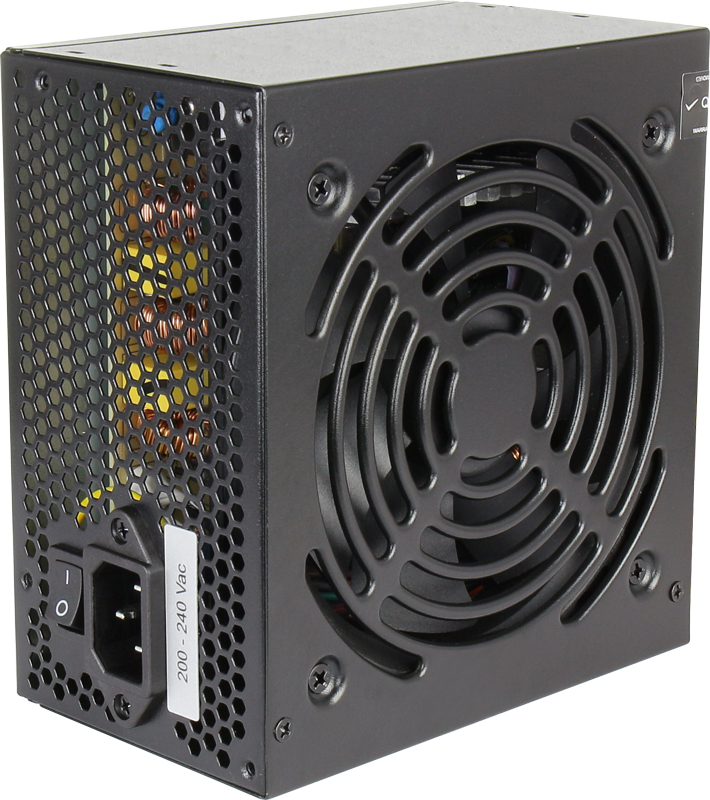

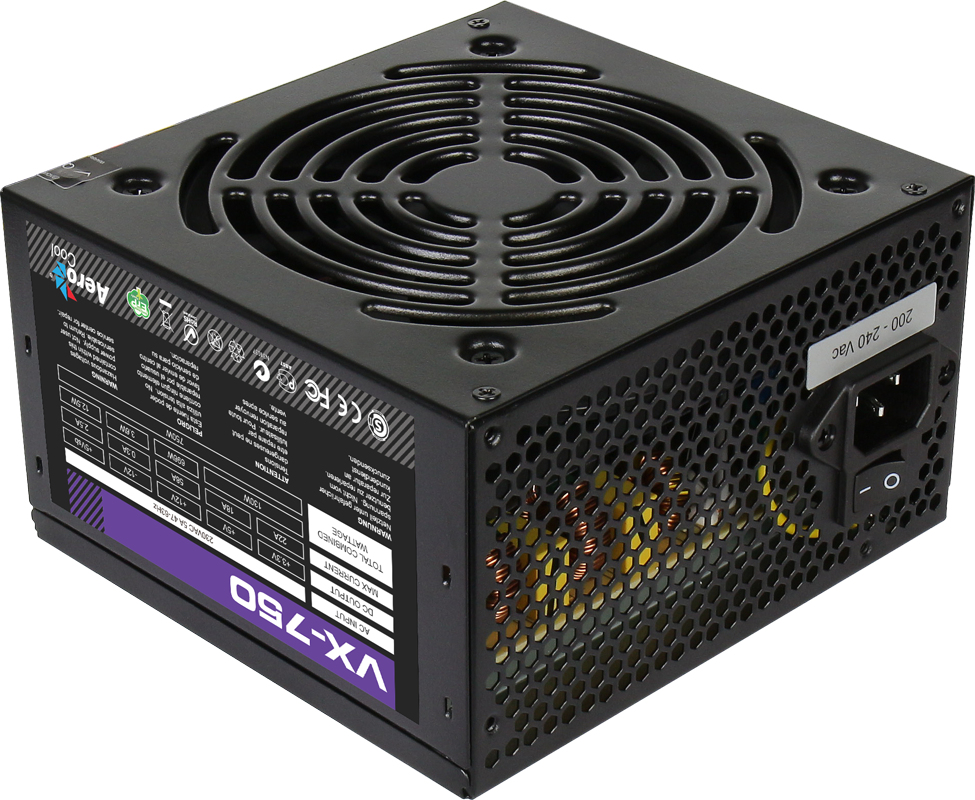

Aerocool VX-750W power supply unit ATX Black
Model VX-750WPart no. AEROPGSVX-750EAN 4713105953633
24 specifications
- ColourBlack
- Total power750 W
- Cabling typeNon-Modular
- PurposePC
Overview
- Colour
- Black
- Total power
- 750 W
- Cabling type
- Non-Modular
- Purpose
- PC
- Brand
- Aerocool
- Category
- Power Supply Unit
- Model
- VX-750W
- Part number
- AEROPGSVX-750
- EAN / UPC
- 4713105953633
- Also known as
- Aerocool VX-750W power supply unit ATX Black
Specifications
24 specifications in 4 groups
Power
| Specification | Value |
|---|---|
| Total power | 750 W |
| AC input voltage | 230 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 5 A |
| Combined power (+3.3V) | 130 W |
| Combined power (+12V) | 696 W |
| Combined power (+5V) | 130 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 22 A |
| Max output current (+12V) | 18 A |
| Max output current (+5V) | 18 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Power protection features | Over power, Over voltage, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| Supported motherboard form factors | ATX |
| ATX version | 2.3 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
