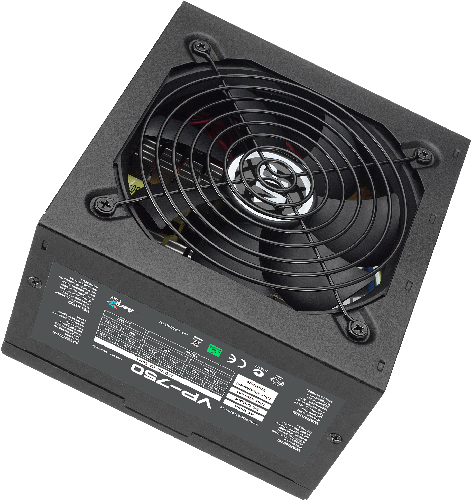

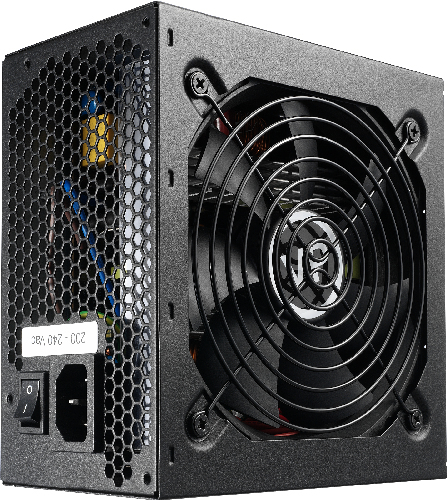

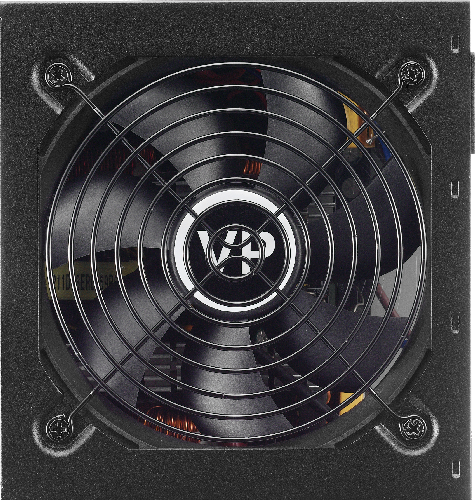

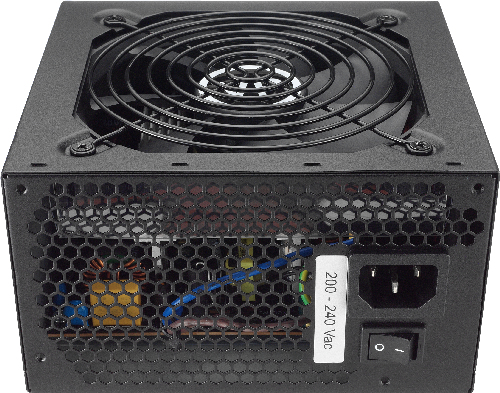

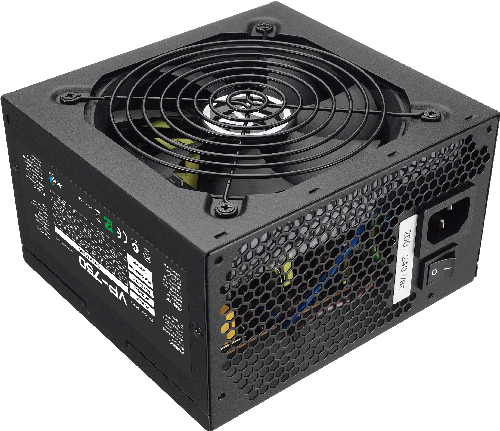

Aerocool VP-750 power supply unit
750 W 20+4 pin ATX ATX Black
Model VP-750Part no. AE-VP-750
47 specifications
- Weight1.72 kg
- ColourBlack
- Total power750 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Width185 mm
Overview
- Weight
- 1.72 kg
- Colour
- Black
- Total power
- 750 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Width
- 185 mm
- Brand
- Aerocool
- Category
- Power Supply Unit
- Model
- VP-750
- Part number
- AE-VP-750
- Also known as
- Aerocool VP-750 power supply unit 750 W 20+4 pin ATX ATX Black
Specifications
47 specifications in 6 groups
Power
| Specification | Value |
|---|---|
| Total power | 750 W |
| AC input voltage | 230 V |
| AC input frequency | 60 Hz |
| Input current | 6 A |
| Maximum input current (@110V) | +12V1,+12V2,+3.3V,+5V,+5Vsb,-12V |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 150 W |
| Combined power (+12V) | 600 W |
| Combined power (+5V) | 150 W |
| Combined power (-12V) | 6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 24 A |
| Max output current (+12V1) | 25 A |
| Max output current (+12V2) | 25 A |
| Max output current (+5V) | 24 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 2.5 A |
| Power protection features | Over power, Over voltage, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 6 |
| Peripheral (Molex) power connectors (4-pin) | 5 |
| PCI Express power connectors (6+2 pin) | 2 |
| CPU power connector (4+4 pin) | Yes |
| Floppy disk drive connector | Yes |
| Floppy drive power connector | 1 |
| CPU power connectors (8-pin) | 1 |
| PCI Express connector | Yes |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 2.3 |
| Mean time between failures (MTBF) | 120000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan speed | 1800 |
| On/off switch | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 185 mm |
| Depth | 240 mm |
| Height | 98 mm |
| Weight | 1.72 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 410 mm |
| Package depth | 495 mm |
| Package height | 200 mm |
| Package weight | 2.22 kg |
| Package type | Box |
