Aerocool VP power supply unit
550 W 20+4 pin ATX ATX Black
Model VPPart no. EN53679EAN 4710700953679
38 specifications
- Weight1.37 kg
- ColourBlack
- Total power550 W
- Motherboard power connector20+4 pin ATX
- PurposePC
Overview
- Weight
- 1.37 kg
- Colour
- Black
- Total power
- 550 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Brand
- Aerocool
- Category
- Power Supply Unit
- Model
- VP
- Part numbers
- EN53679, AE-VP-650, VP550, VP650, VP750, EN53792 +1 more
- EAN / UPC
- 4710700953679, 4713105957044, 4710700953747, 4710700953792 +2 more
- Also known as
- Aerocool VP power supply unit 550 W 20+4 pin ATX ATX Black
Specifications
38 specifications in 8 groups
Power
| Specification | Value |
|---|---|
| Total power | 550 W |
| AC input voltage | 230 V |
| AC input frequency | 50 Hz |
| Input current | 6 A |
| Maximum input current (@110V) | +12V,+12V1,+12V2,+3.3V,+5V,+5Vsb,-12V |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 150 W |
| Combined power (+12V) | 408 W |
| Combined power (+5V) | 150 W |
| Combined power (-12V) | 6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 24 A |
| Max output current (+12V1) | 20 A |
| Max output current (+12V2) | 20 A |
| Max output current (+5V) | 24 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 2.5 A |
| Power protection features | Over power, Over voltage, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 4 |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| PCI Express power connectors (6+2 pin) | 2 |
| CPU power connector (4+4 pin) | Yes |
| Floppy drive power connector | 1 |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 2.3 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |

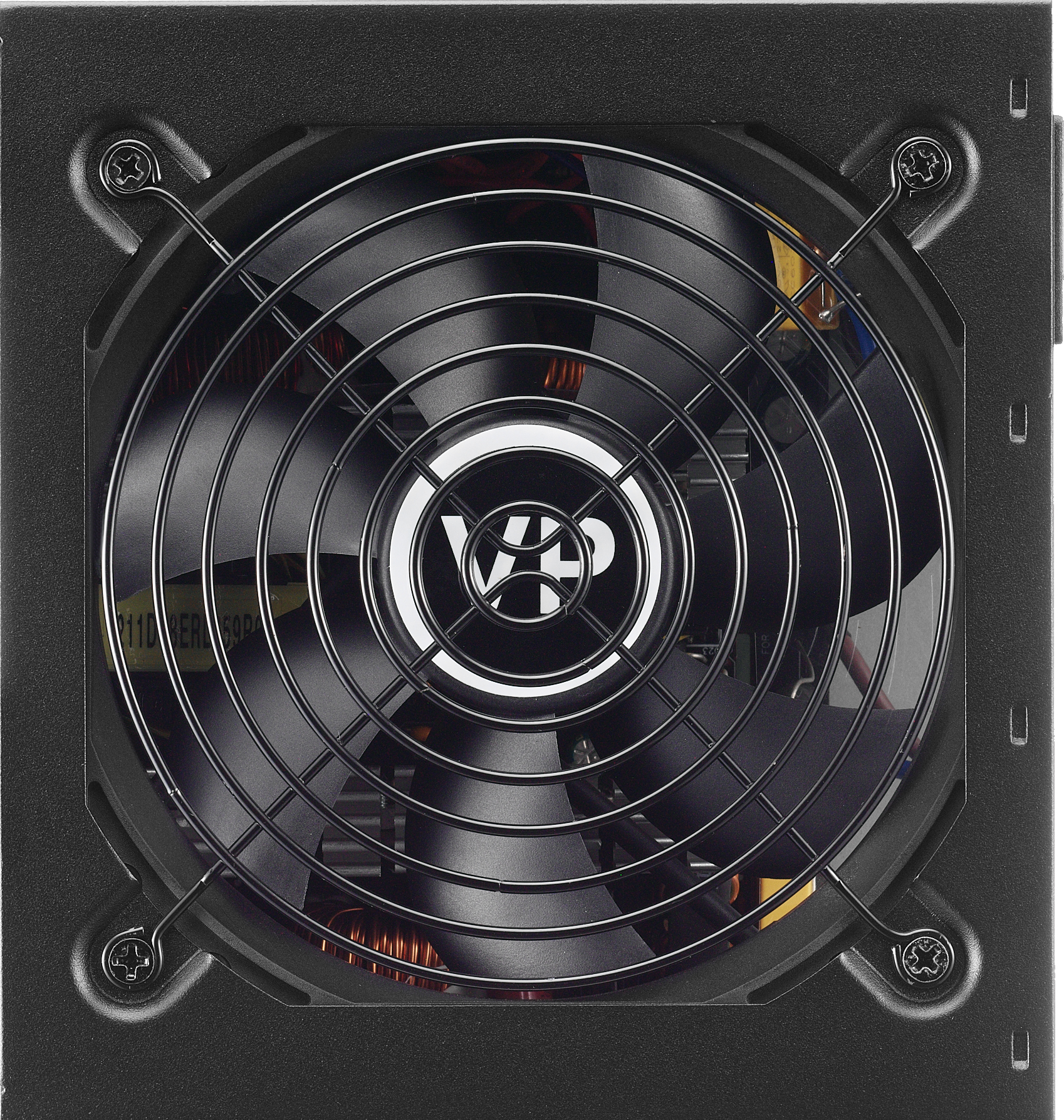

| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan speed | 1800 |
| On/off switch | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.37 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 1.87 kg |
Other features
| Specification | Value |
|---|---|
| Package dimensions (WxDxH) | 240 x 185 x 90 mm |
