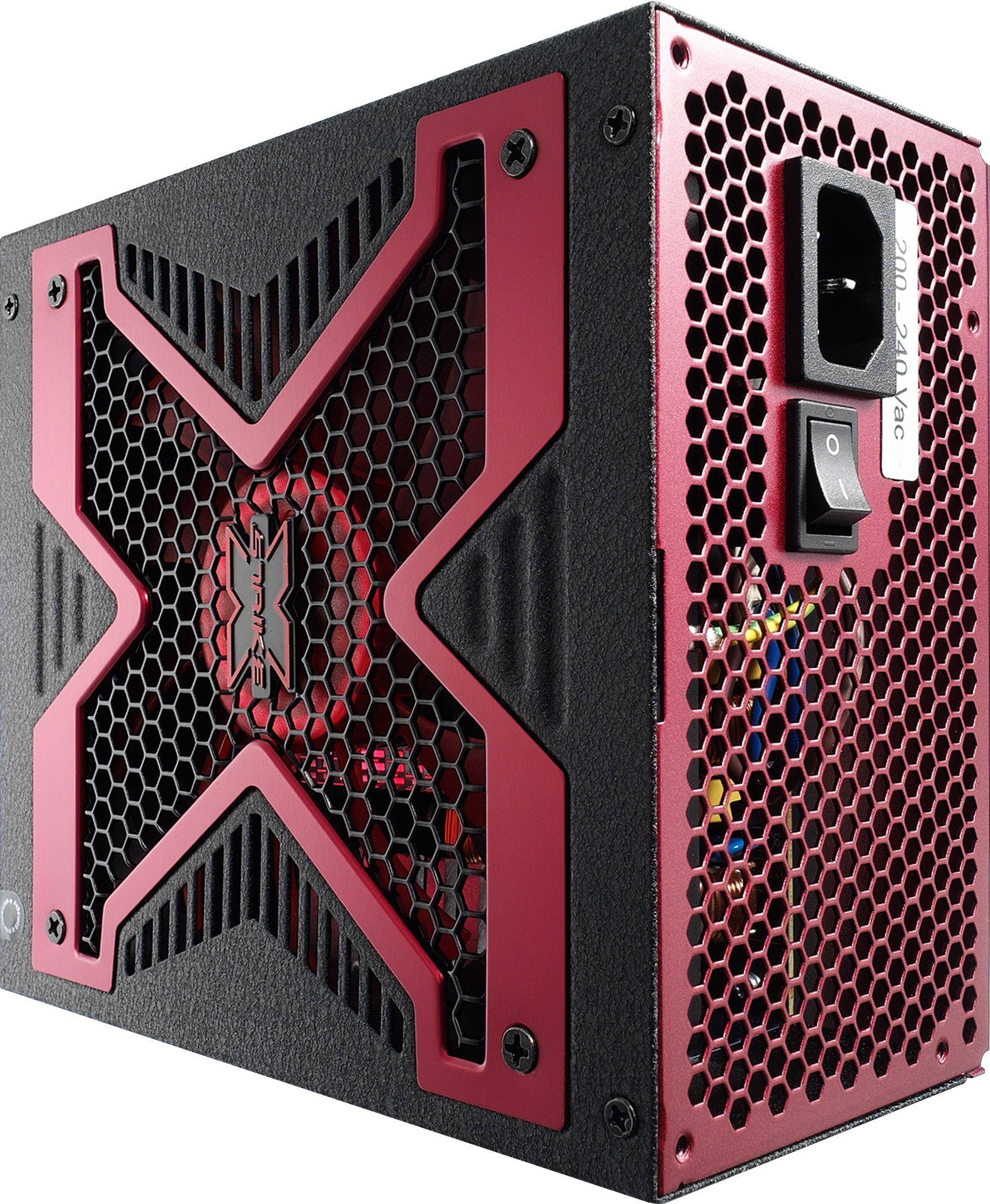

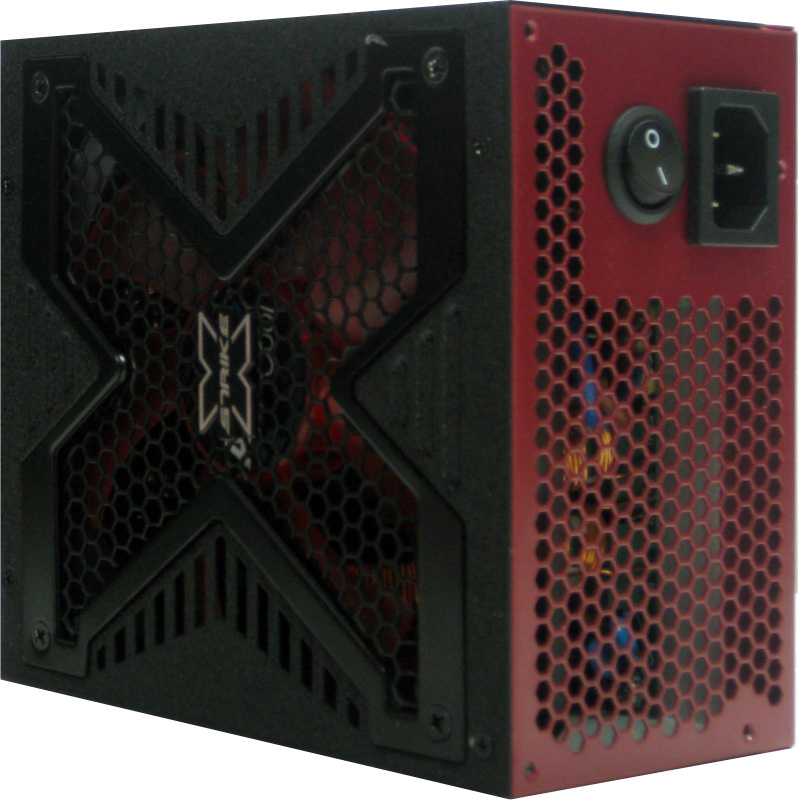

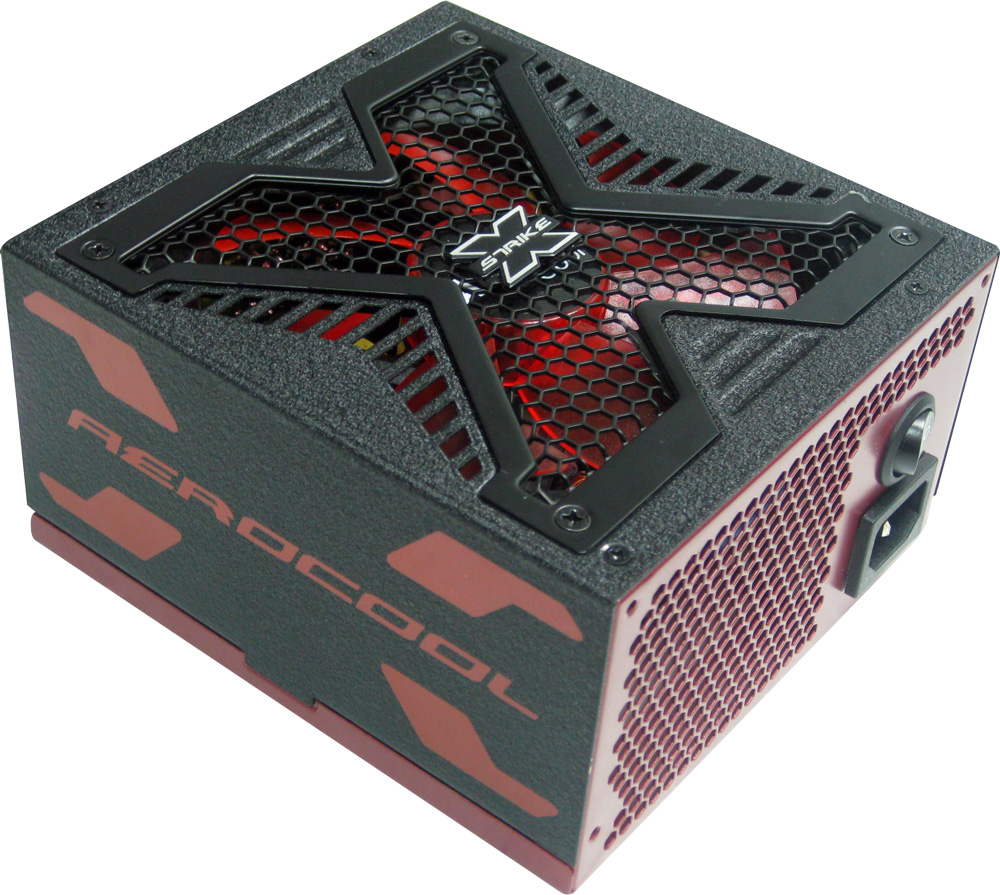

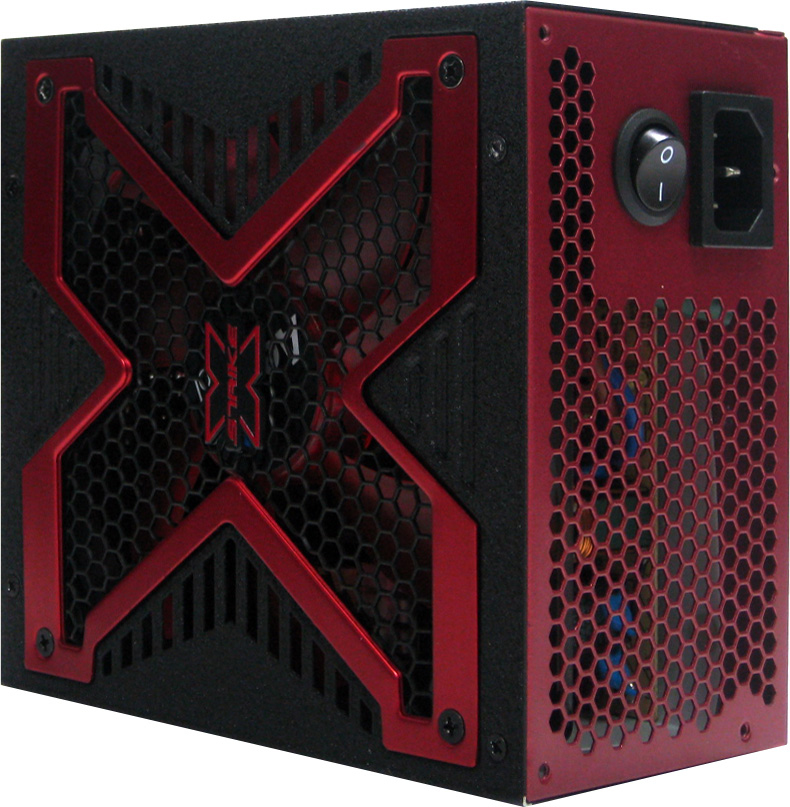

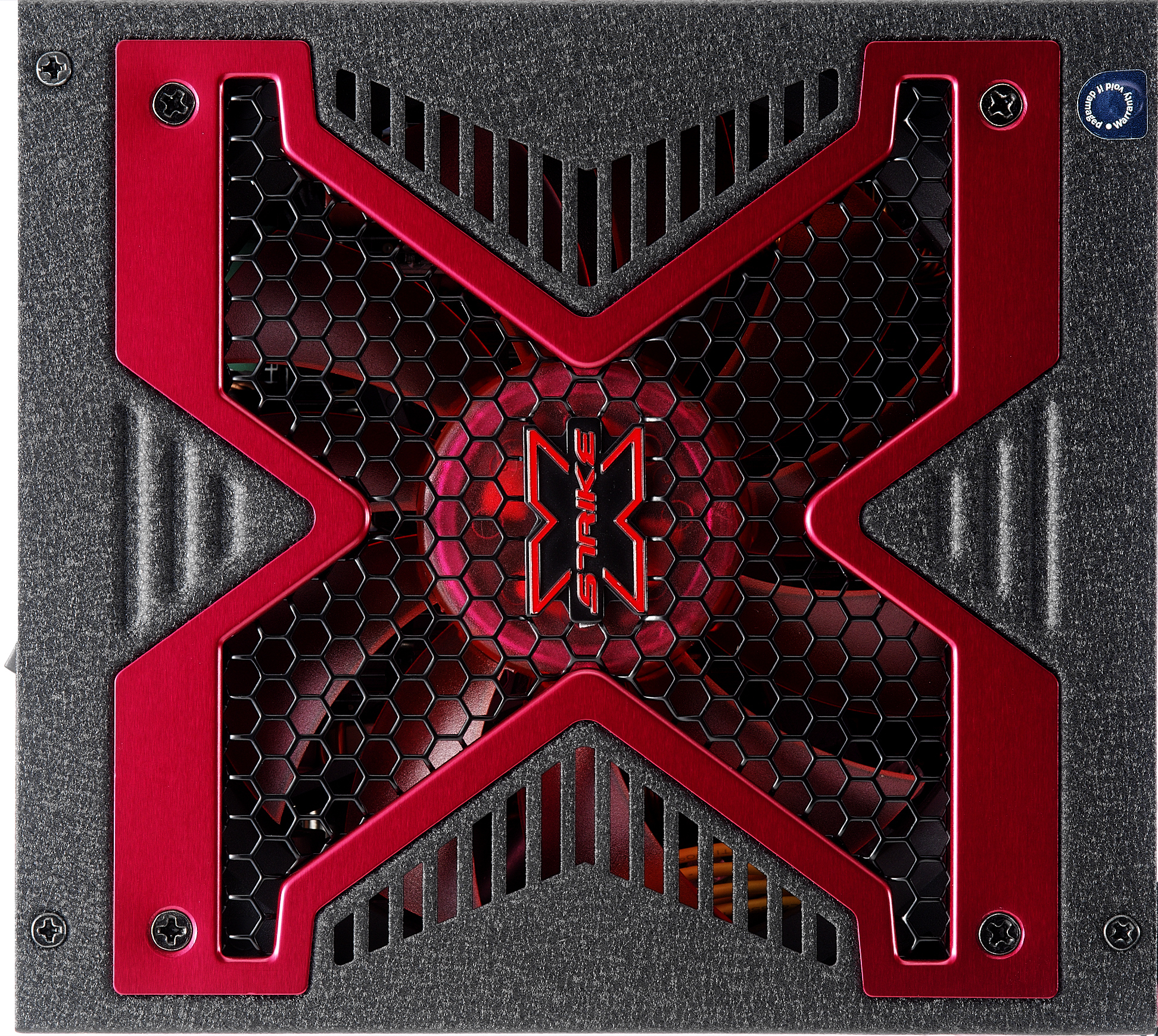

Aerocool Strike-X 500M
Model Strike-X 500MPart no. EN53884
46 specifications
- ColourBlack, Red
- Total power500 W
- Motherboard power connector20+4 pin ATX
- PurposePC
Overview
- Colour
- Black, Red
- Total power
- 500 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Brand
- Aerocool
- Category
- Power Supply Unit
- Model
- Strike-X 500M
- Part number
- EN53884
- Also known as
- Aerocool Strike-X 500M power supply unit 500 W 20+4 pin ATX ATX Black, Red
Specifications
46 specifications in 6 groups
Power
| Specification | Value |
|---|---|
| Total power | 500 W |
| AC input voltage | 230 V |
| Input current | 15 A |
| Maximum input current (@110V) | +12V1,+3.3V,+5V,+5Vsb,-12V |
| Power factor | 0.99 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 150 W |
| Combined power (+12V) | 492 W |
| Combined power (+5V) | 150 W |
| Combined power (-12V) | 6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 24 A |
| Max output current (+12V1) | 41 A |
| Max output current (+5V) | 24 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 2.5 A |
| Efficiency | 85% |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of PATA power connectors | 0 |
| Number of SATA power connectors | 9 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| EPS power connector (8-pin) | No |
| PCI Express power connectors (6-pin) | 0 |
| PCI Express power connectors (6+2 pin) | 2 |
| PCI Express power connectors (8-pin) | 0 |
| CPU P4 connector (4-pin) | 0 |
| CPU power connector (4+4 pin) | Yes |
| Floppy drive power connector | 1 |
| CPU power connectors (8-pin) | 0 |
| Cabling type | Semi-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Bronze |
| ATX version | 2.3 |
| EPS version | 2.92 |
| Mean time between failures (MTBF) | 120000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Black, Red |
| Cooling type | Active |
| Fan diameter | 13.9 cm |
| Number of fans | 1 fan(s) |
| On/off switch | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | CE, CB, TUV, FCC, UL |
Other features
| Specification | Value |
|---|---|
| Omnigrid (2-pin) power connectors | 0 |
| Omnigrid (4-pin) power connectors | 0 |
