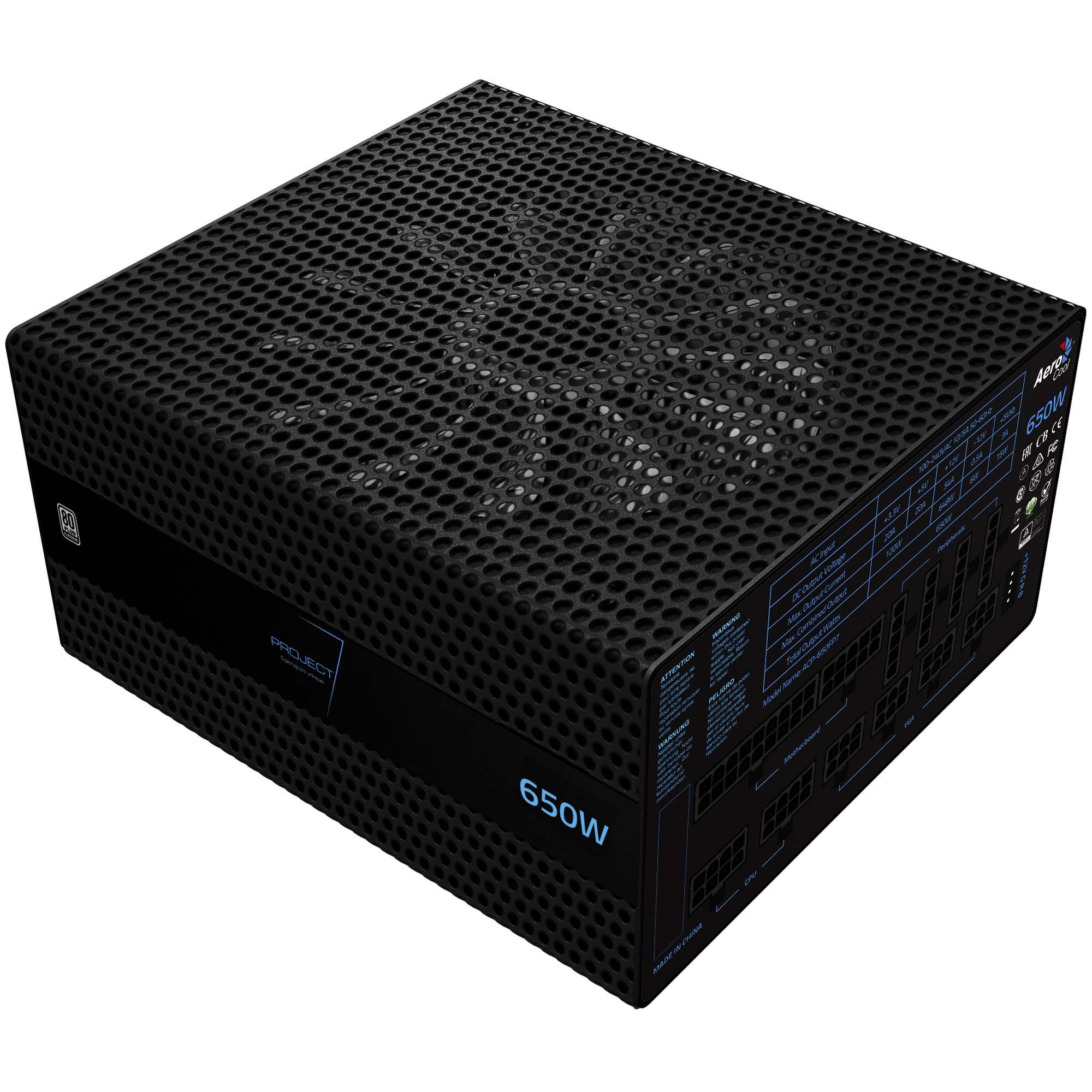

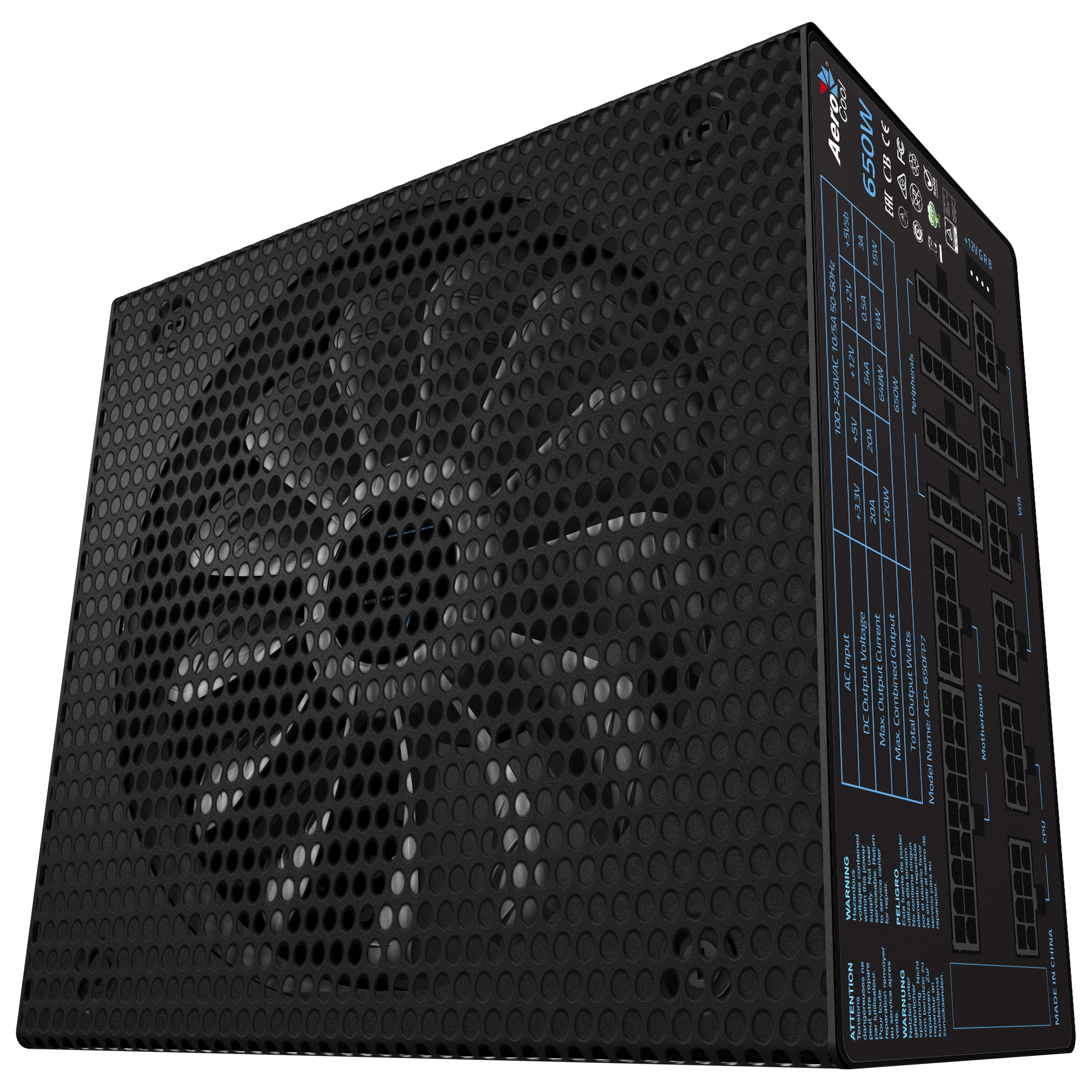

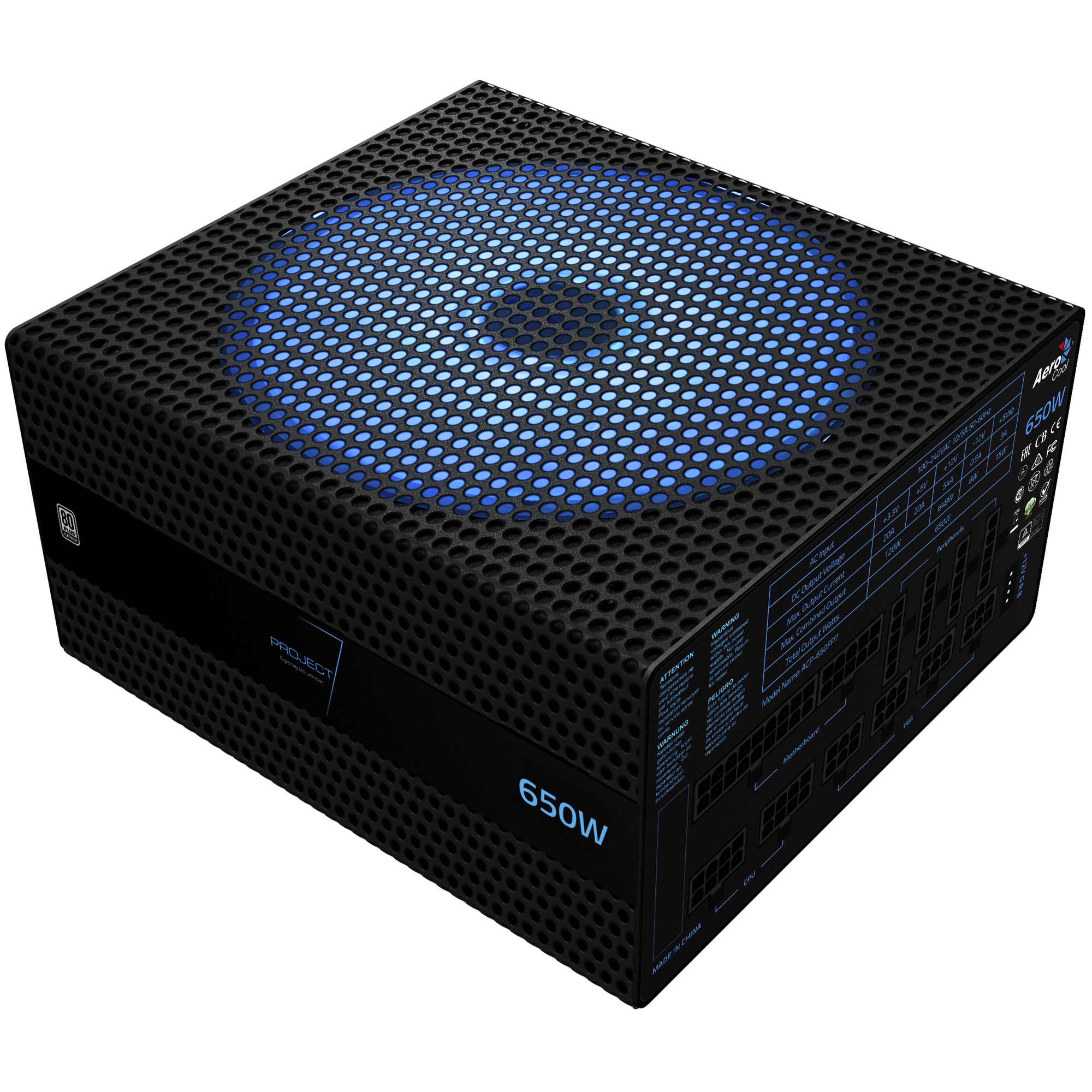

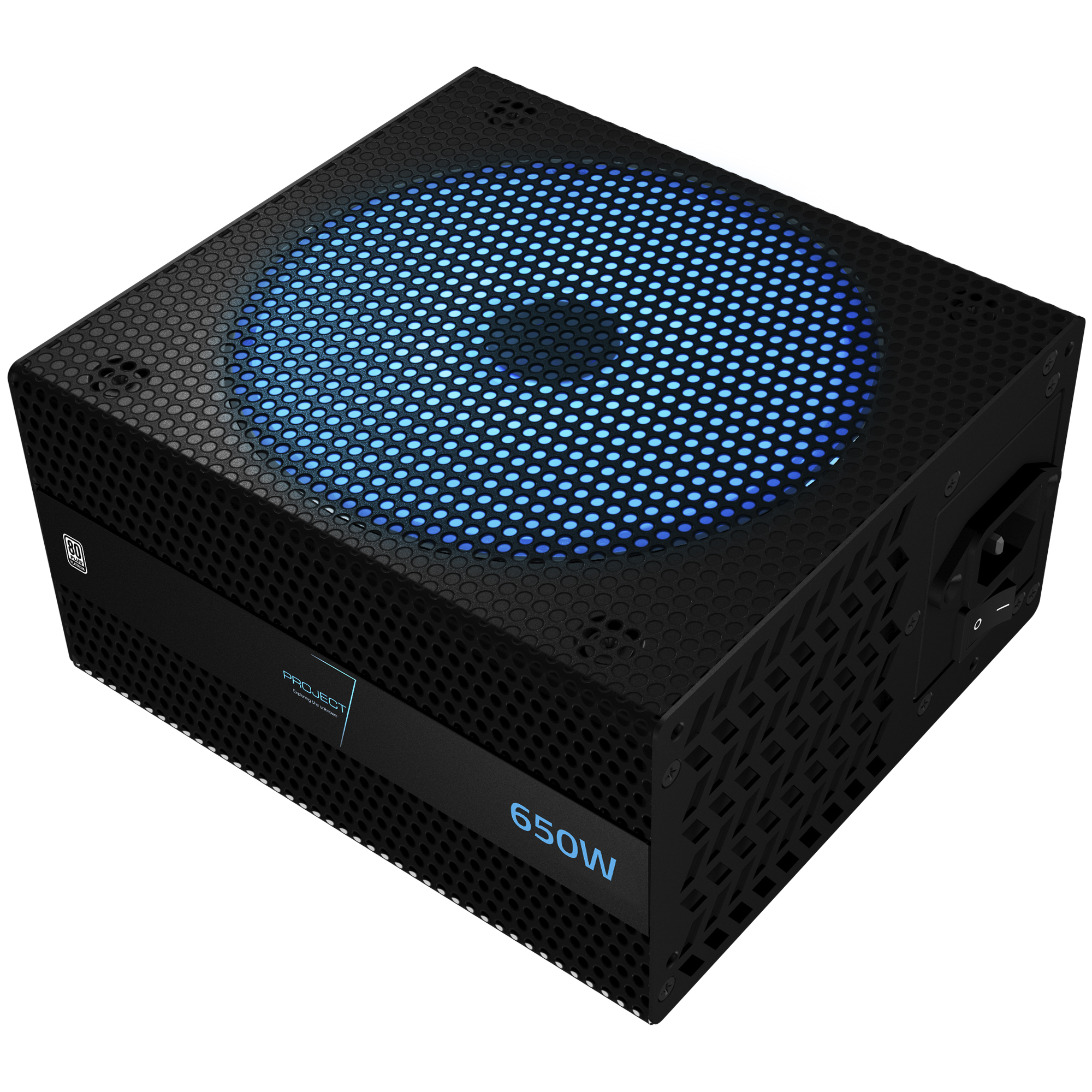

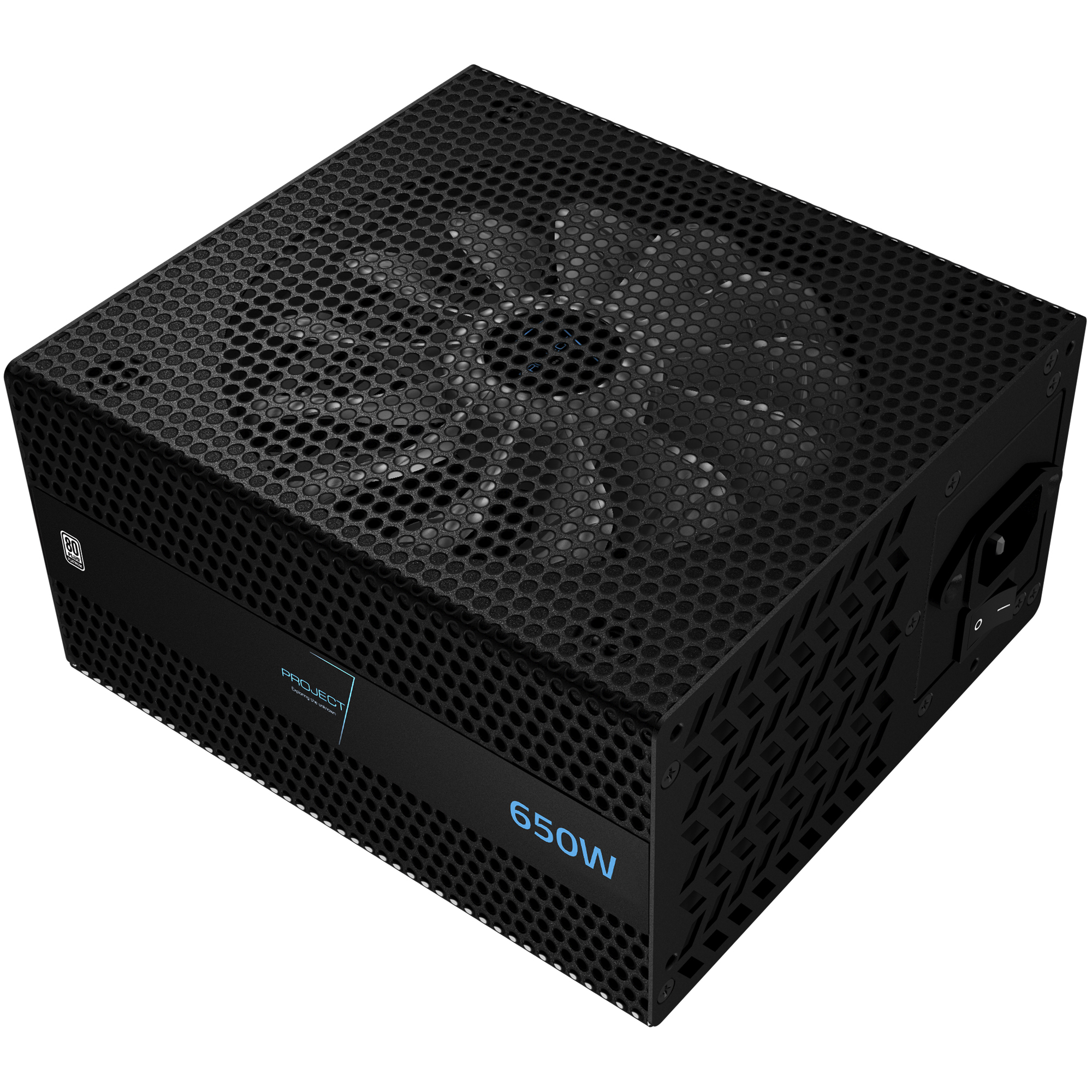

Aerocool P7 power supply unit

Aerocool P7 power supply unit

650 W 20+4 pin ATX ATX Black

Model P7Part no. P7850EAN 4713105957549

58 specifications
  • Noise13.45 dB
  • ColourBlack
  • Total power650 W
  • Motherboard power connector20+4 pin ATX
  • PurposePC
  • Sustainability certificatesENERGY STAR
See all specifications

Overview

Noise
13.45 dB
Colour
Black
Total power
650 W
Motherboard power connector
20+4 pin ATX
Purpose
PC
Sustainability certificates
ENERGY STAR
Brand
Aerocool
Model
P7
Part numbers
P7850, P7650, P7750
EAN / UPC
4713105957549, 841269051194, 4713105957525, 841269051200 +2 more
Also known as
Aerocool P7 power supply unit 650 W 20+4 pin ATX ATX Black

Specifications

58 specifications in 9 groups

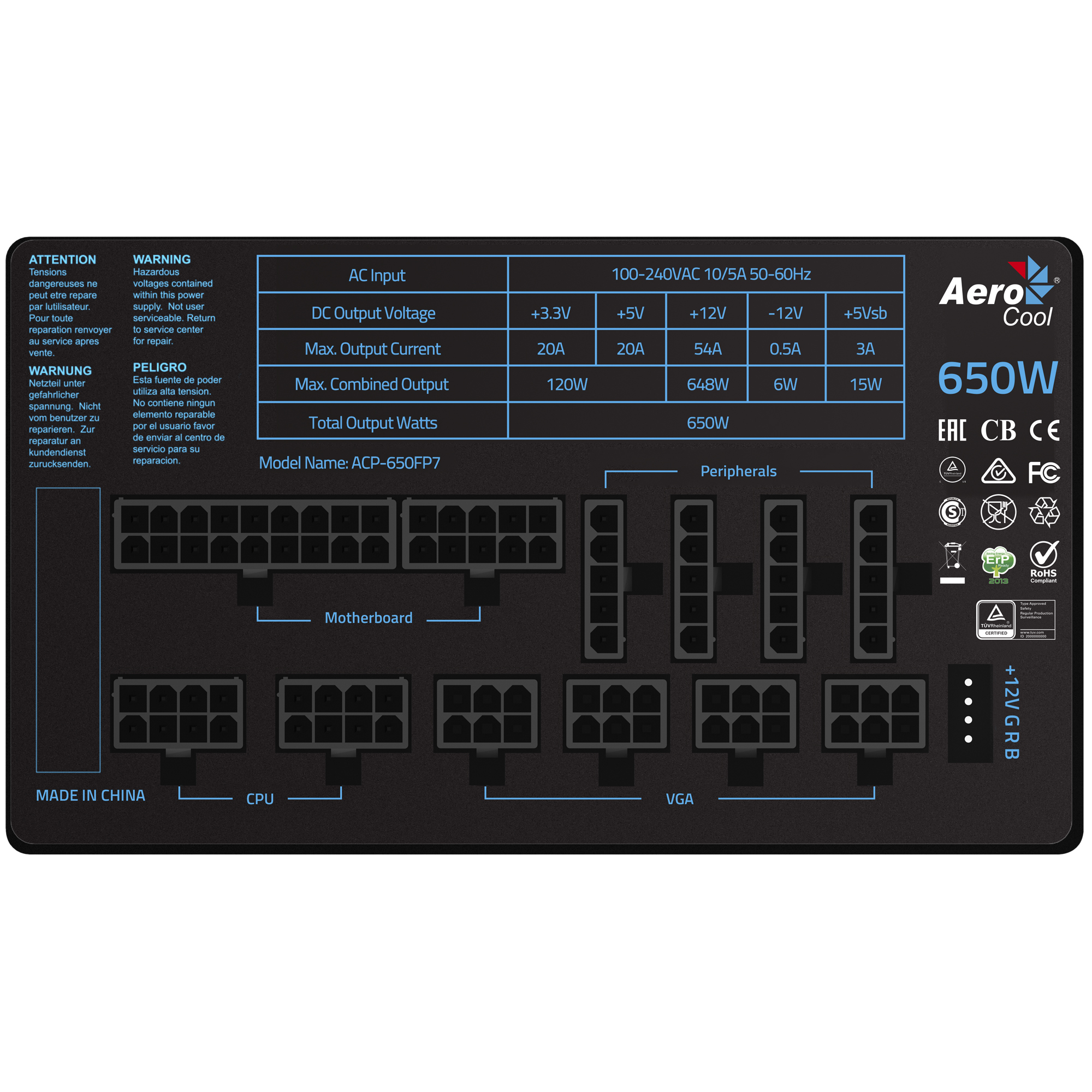

Power

Total power650 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Input current5 - 10 A
Power Factor Correction (PFC) typeActive
Combined power (+3.3V)120 W
Combined power (+12V)648 W
Combined power (+5V)120 W
Combined power (-12V)6 W
Combined power (+5Vsb)15 W
Max output current (+3.3V)20 A
Max output current (+12V)54 A
Max output current (+5V)20 A
Max output current (-12V)0.5 A
Max output current (+5Vsb)3 A
Efficiency94%
Power protection featuresOver current, Over power, Over voltage, Overheating, Under voltage

Ports & interfaces

Motherboard power connector20+4 pin ATX
Number of PATA power connectors1
Number of SATA power connectors3
Peripheral (Molex) power connectors (4-pin)2
EPS power connector (8-pin)Yes
PCI Express power connectors (6+2 pin)4
CPU power connector (4+4 pin)Yes
ATX power connector (20+4 pin)Yes
Cabling typeFully-Modular

Performance

PurposePC
Power supply unit (PSU) form factorATX
80 PLUS certification80 PLUS Platinum
ATX version2.4
EPS version2.92
Continuous output rated temperature50 °C
Noise level13.45 dB
Bearing technologyFDB

Design

Product colourBlack
Cooling typeActive

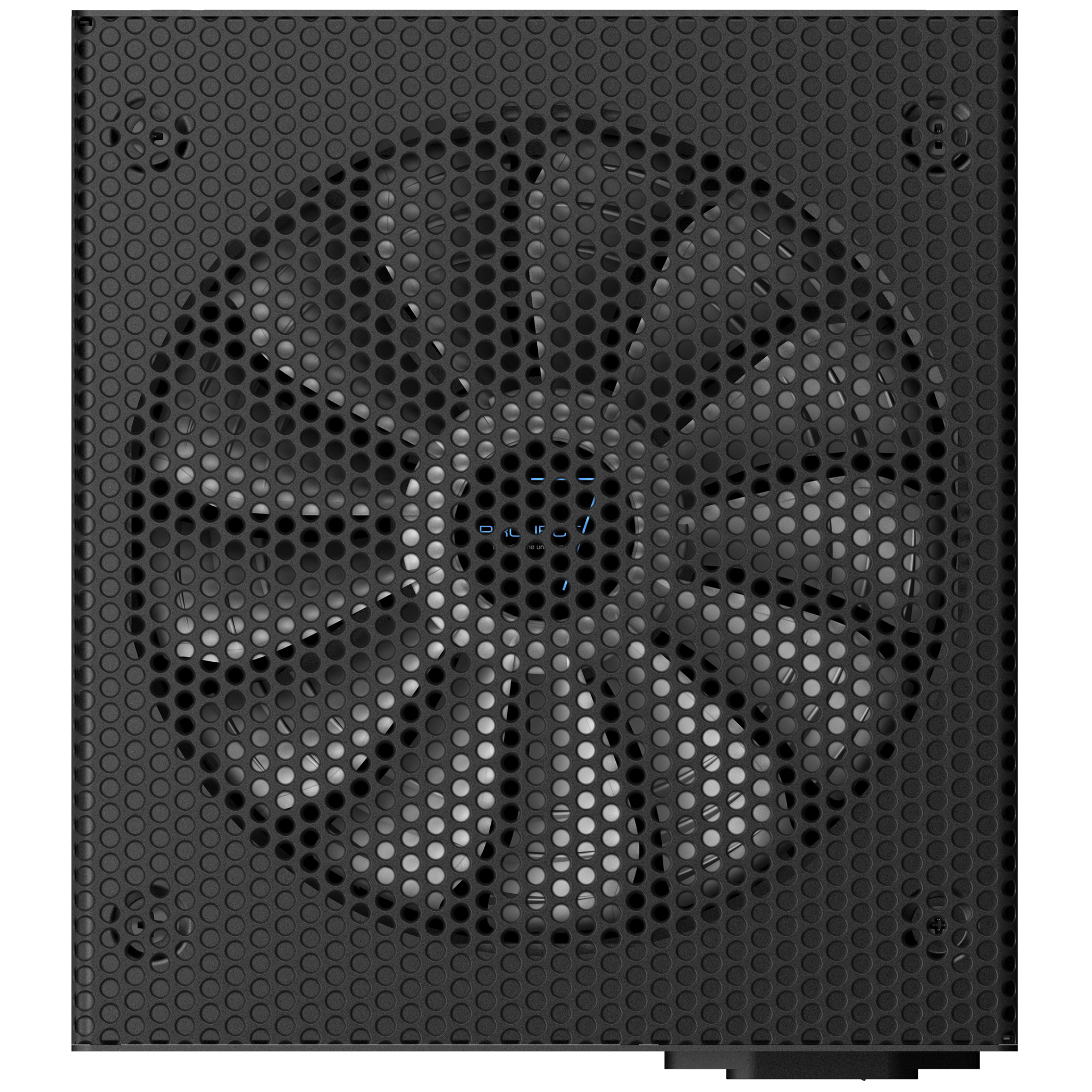

Fan diameter14 cm
Number of fans1 fan(s)
Fan locationTop

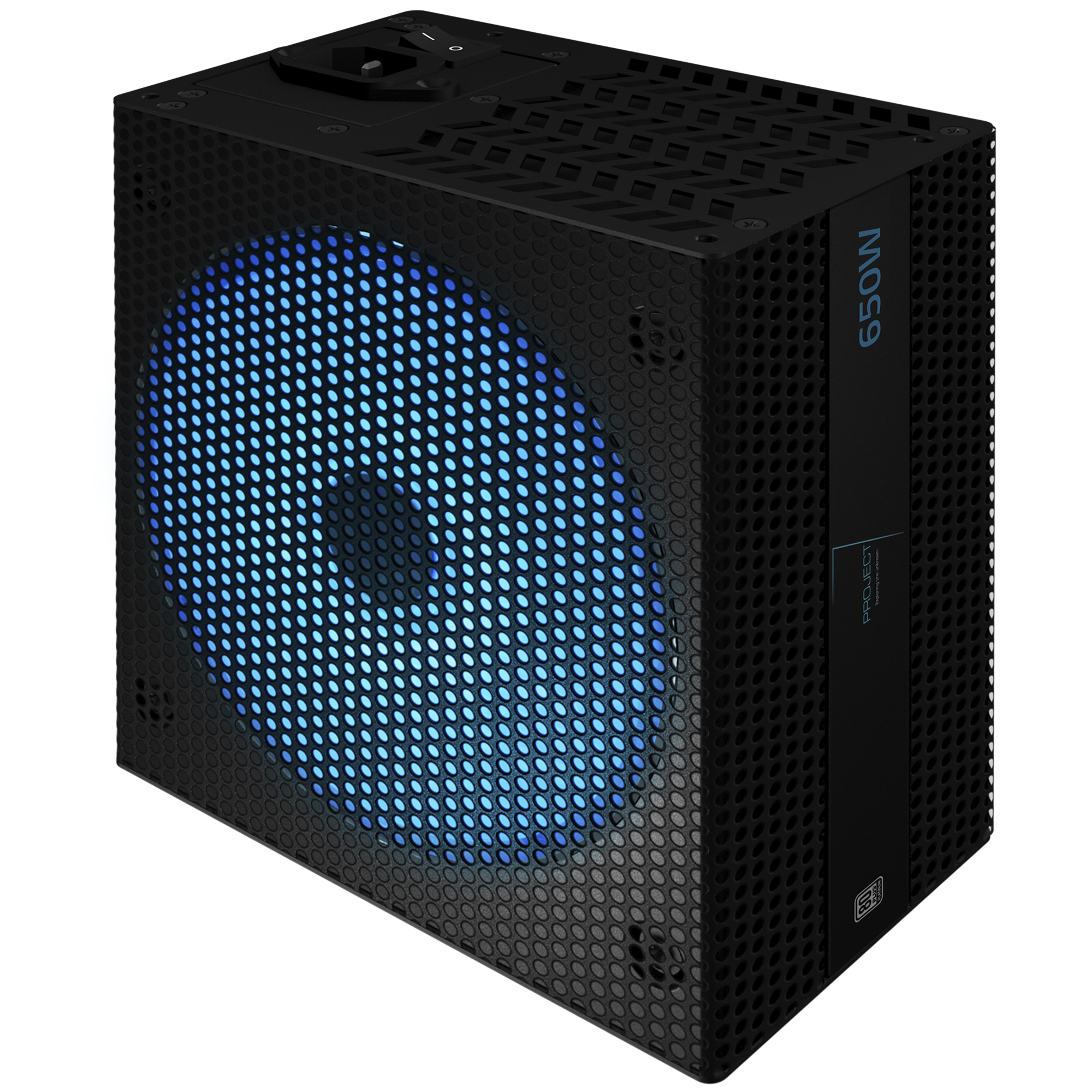

IlluminationYes
LED indicatorsYes

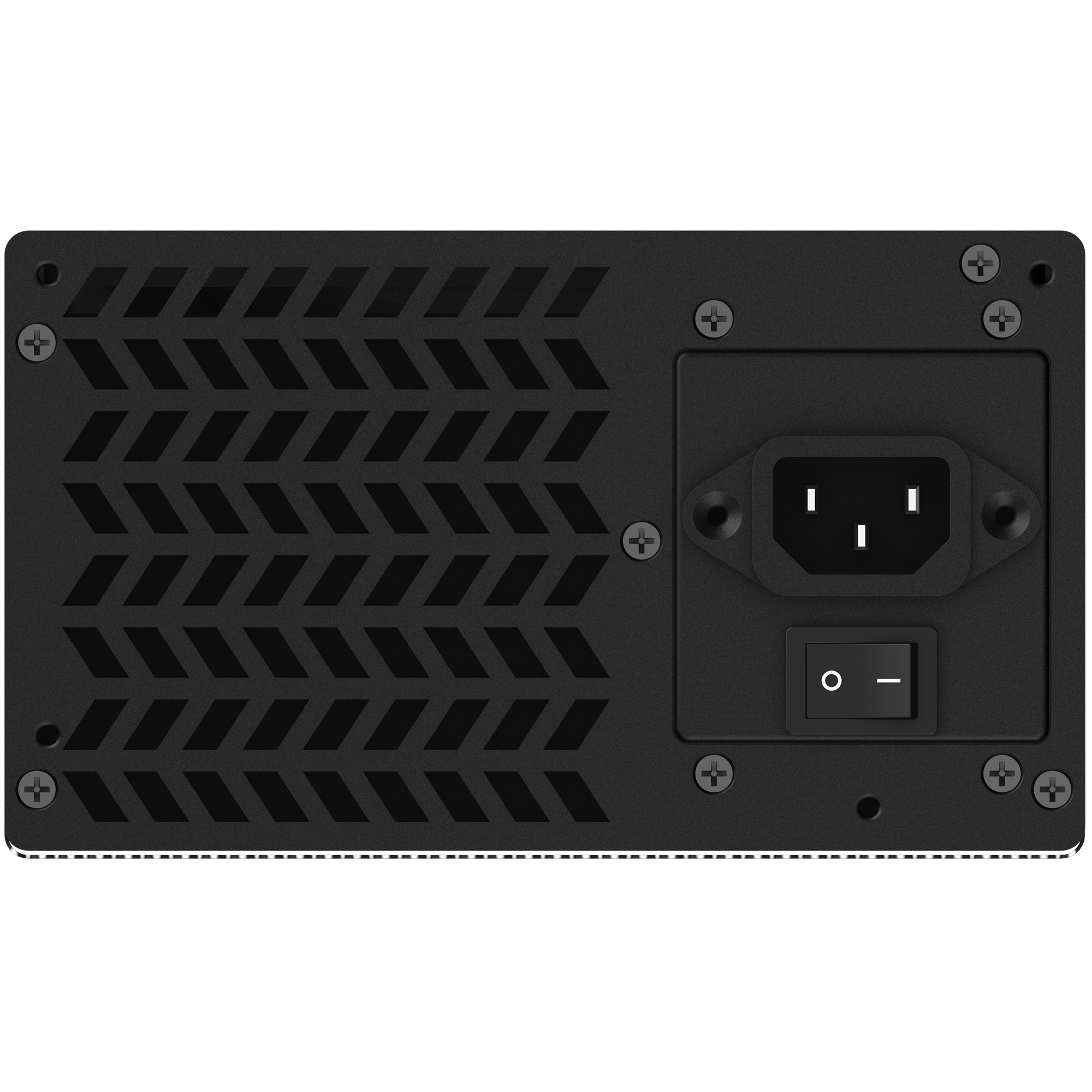

On/off switchYes

Certificates

Compliance certificatesRoHS
CertificationCE, EAC, CB, FC, WEEE, ETA, LAMBDA-A++,

Packaging data

ManualYes
Package width227 mm
Package depth351 mm
Package height136 mm
Package typeBox

Technical details

Sustainability certificatesENERGY STAR

Logistics data

Master (outer) case width370 mm
Master (outer) case length560 mm
Master (outer) case height250 mm
Products per master (outer) case4 pc(s)
Country of originChina

Other features

Mounting typeRack mounting
Illumination colourMulti
Power managementYes
