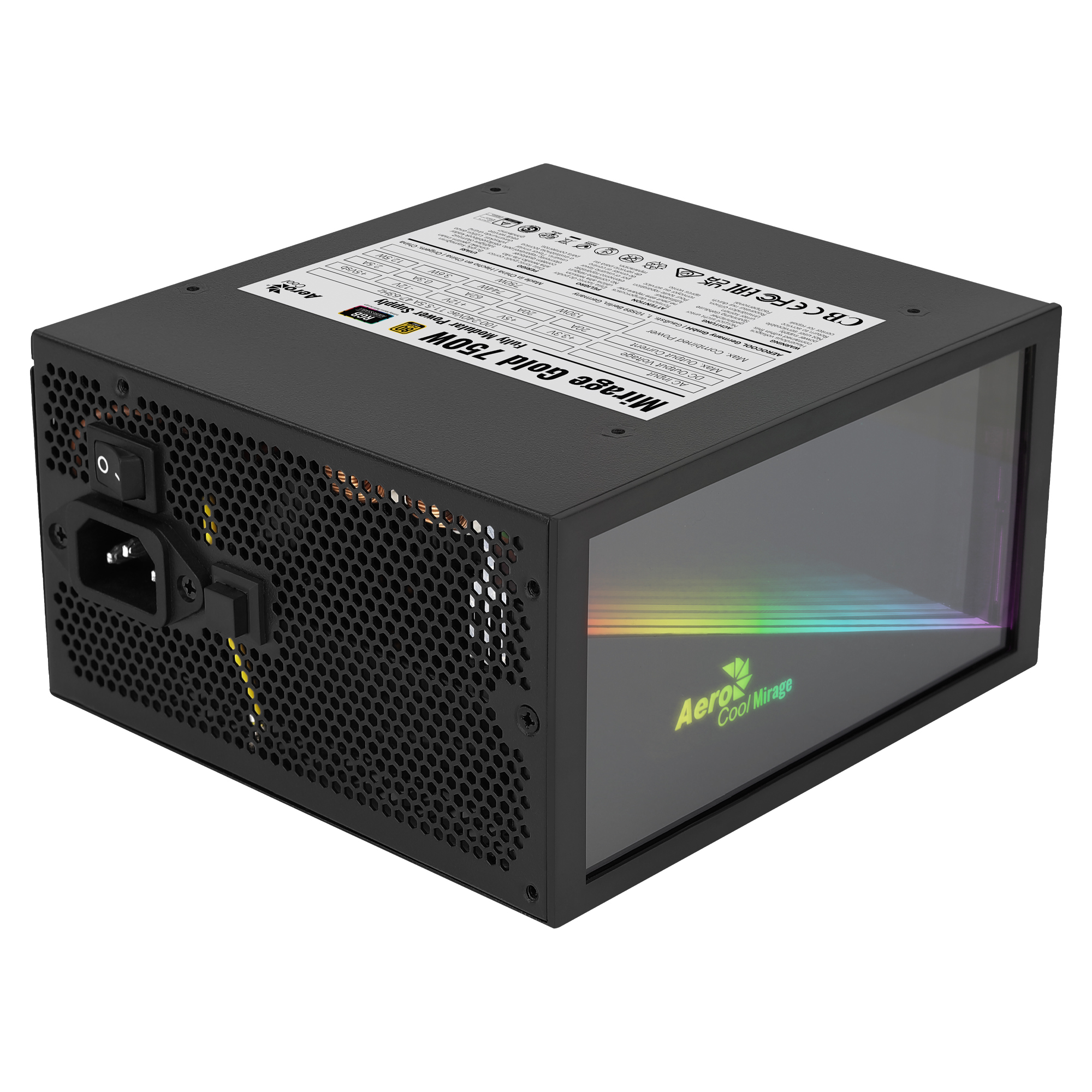

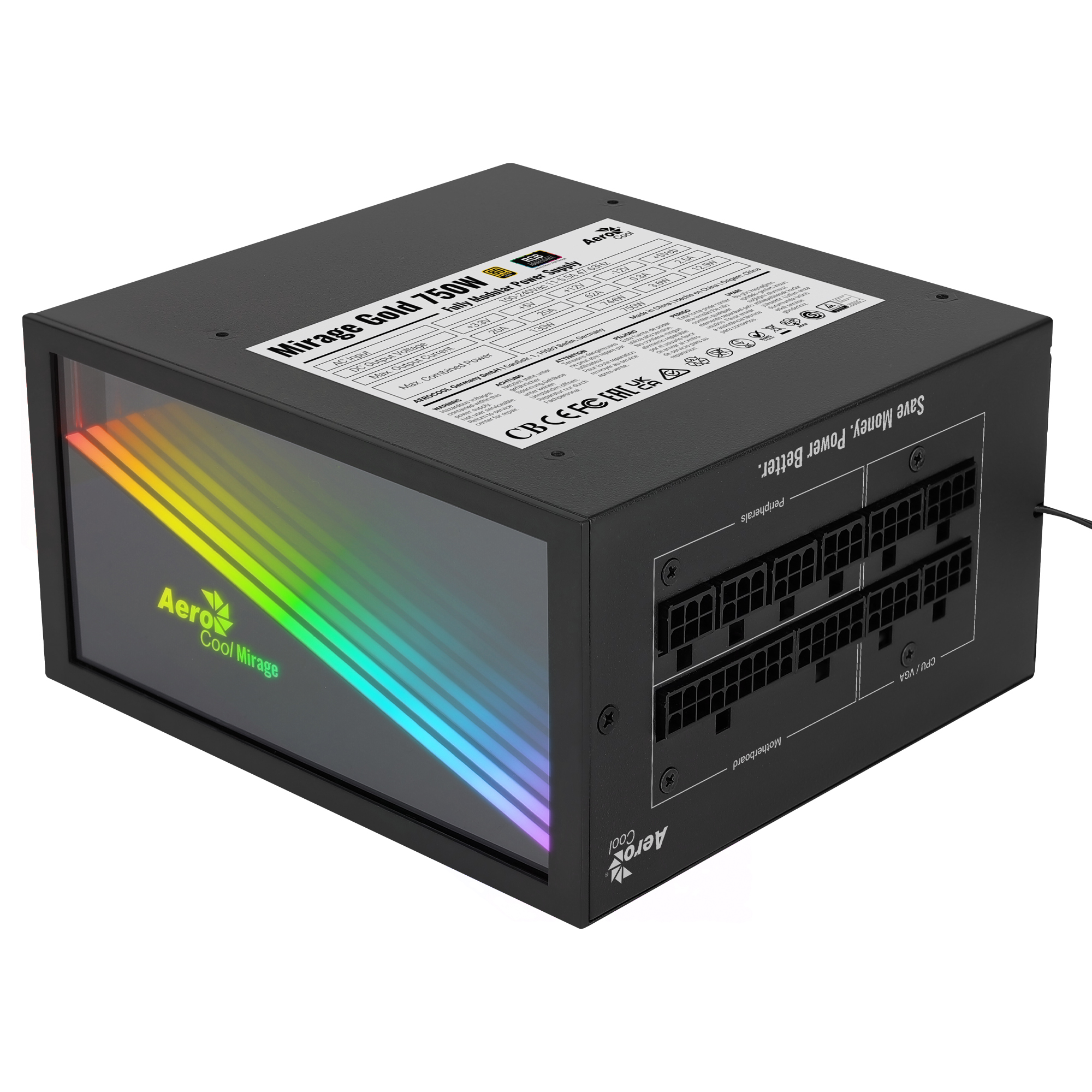

MIRAGEGOLD 750W RGB 80 Plus Gold Modular PC Power Supply Japanese Capacitors
Model MIRAGEGOLD750MEAN 4711099472598
30 specifications
- ColourBlack
- Total power750 W
- Motherboard power connector20+4 pin ATX
- PurposePC
Overview
- Colour
- Black
- Total power
- 750 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Brand
- Aerocool
- Category
- Power Supply Unit
- Model
- MIRAGEGOLD750M
- Part number
- MIRAGEGOLD750M
- EAN / UPC
- 4711099472598
- Also known as
- Aerocool MIRAGEGOLD 750W RGB 80 Plus Gold Modular PC Power Supply Japanese Capacitors
Specifications
30 specifications in 5 groups
Power
| Specification | Value |
|---|---|
| Total power | 750 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Combined power (+3.3V) | 130 W |
| Combined power (+12V) | 744 W |
| Combined power (+5V) | 130 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 62 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Efficiency | 90% |
| Power protection features | Over power, Over voltage, Under voltage, Over current, Short circuit |
Ports & interfaces
| Specification | Value |
|---|---|

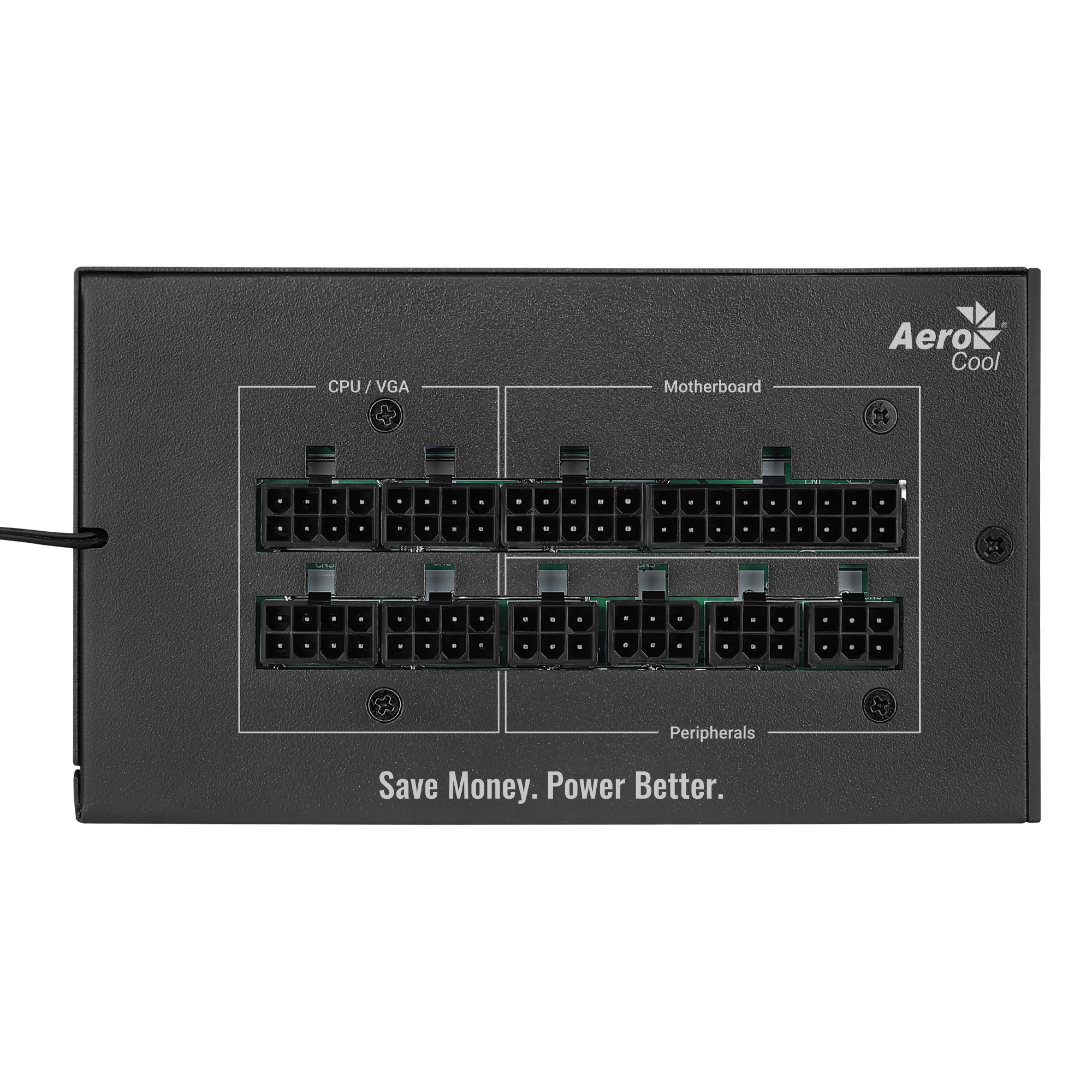

| Motherboard power connector | 20+4 pin ATX |
| Number of PATA power connectors | 4 |
| Number of SATA power connectors | 8 |
| PCI Express power connectors (6+2 pin) | 3 |

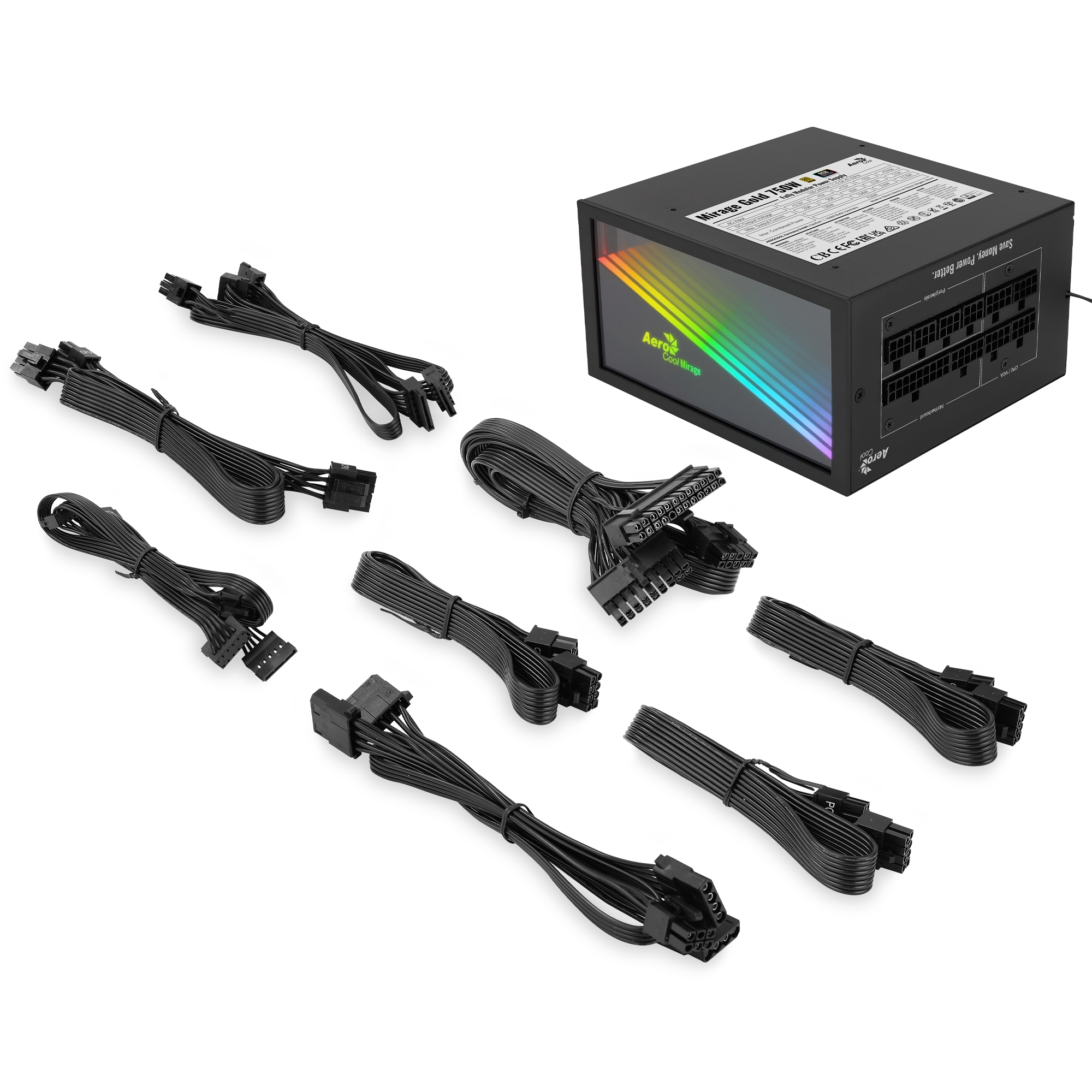

| Cabling type | Fully-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Gold |
| ATX version | 2.52 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |

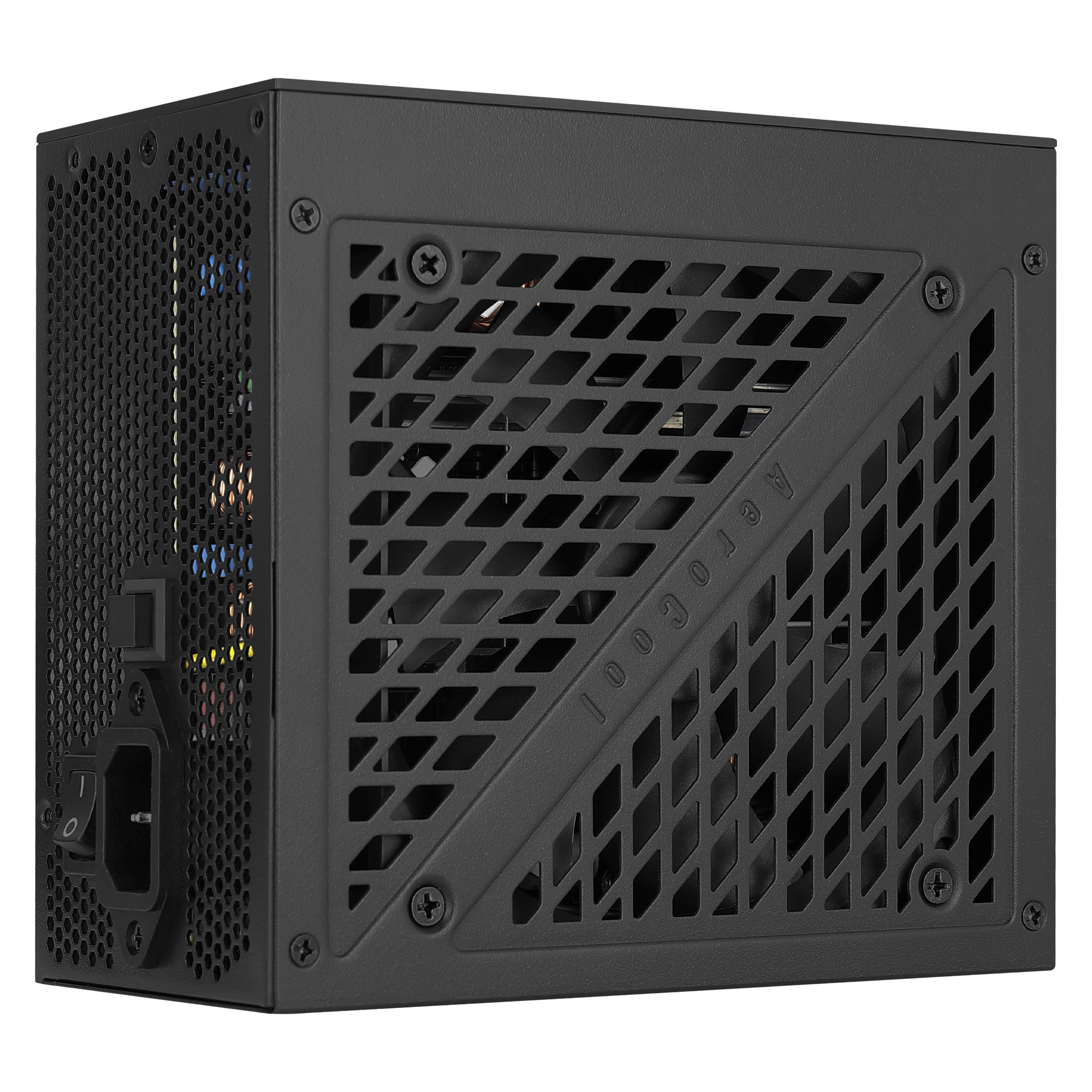

| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan speed | 900 - 1800 RPM |
| Illumination | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
