LUXPRO850 power supply unit
850 W 20+4 pin ATX ATX Black
Model LUXPRO850
39 specifications
- ColourBlack
- Total power850 W
- Motherboard power connector20+4 pin ATX
- PurposePC
Overview
- Colour
- Black
- Total power
- 850 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Brand
- Aerocool
- Category
- Power Supply Unit
- Model
- LUXPRO850
- Part number
- LUXPRO850
- Also known as
- Aerocool LUXPRO850 power supply unit 850 W 20+4 pin ATX ATX Black
Specifications
39 specifications in 5 groups
Power
| Specification | Value |
|---|---|
| Total power | 850 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 11 - 5.5 A |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 130 W |
| Combined power (+12V) | 846 W |
| Combined power (+5V) | 130 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 70.5 A |
| Max output current (+5V) | 15 A |
| Max output current (-12V) | 3.6 A |
| Max output current (+5Vsb) | 15 A |
| Efficiency | 90% |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 55 cm |
| Number of PATA power connectors | 3 |
| Number of SATA power connectors | 6 |
| SATA power cable length | 850,550,700 mm |
| PCI Express power connectors (6+2 pin) | 2 |
| PCI Express power cable length | 70 cm |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 60 cm |
| PCI Express connector | Yes |
| Cabling type | Semi-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Bronze |
| ATX version | 3.0 |

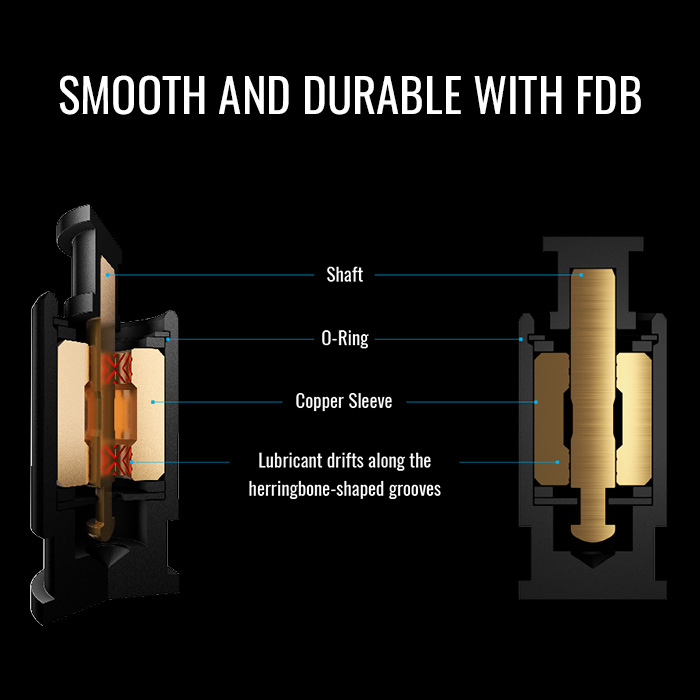

| Bearing technology | FDB |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |

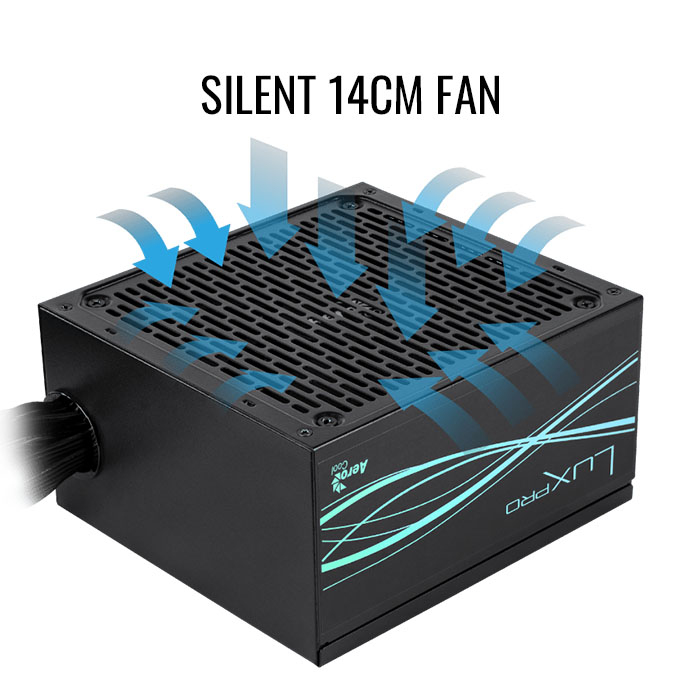

| Fan diameter | 14 cm |
| Number of fans | 1 fan(s) |
| On/off switch | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | EAC, TÜV mark, UKCA, Federal Communications Commission (FCC), RoHS, CB, CE |
