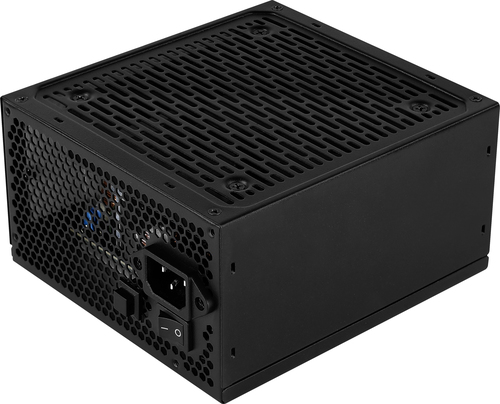

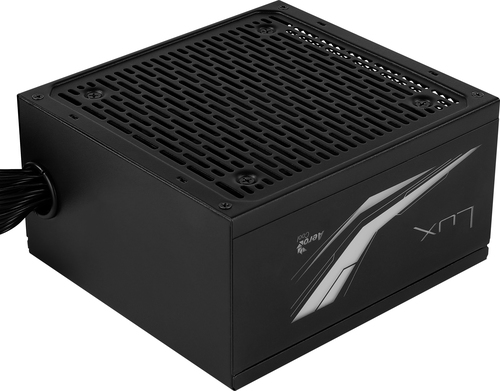

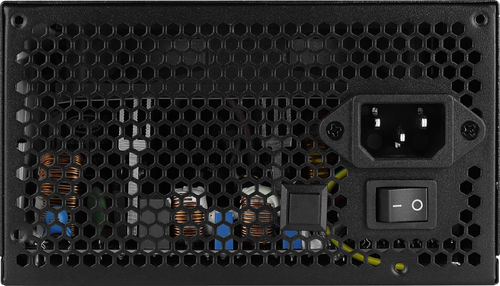

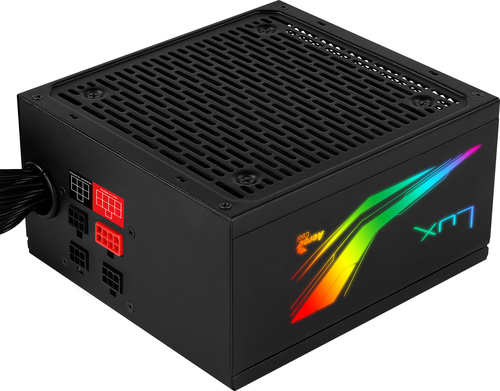

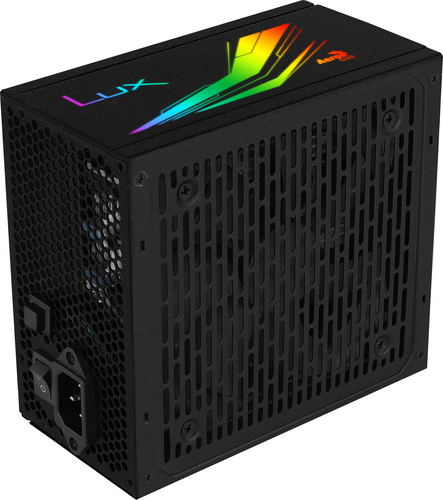

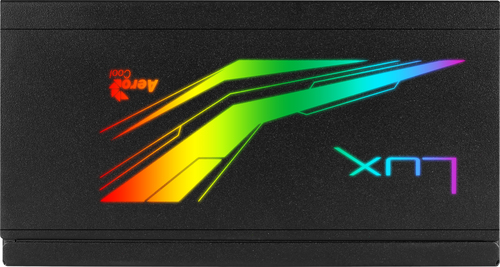

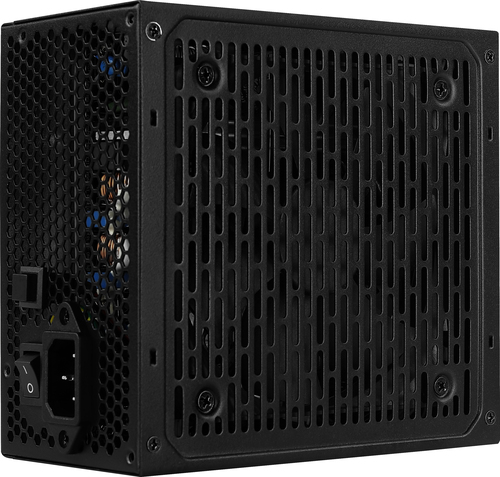

LUX RGB 650M
Model LUX RGB 650MPart no. LUXRGB650MEAN 4718009153875
48 specifications
- ColourBlack
- Total power650 W
- Motherboard power connector20+4 pin ATX
- PurposePC
Overview
- Colour
- Black
- Total power
- 650 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Brand
- Aerocool
- Category
- Power Supply Unit
- Model
- LUX RGB 650M
- Part number
- LUXRGB650M
- EAN / UPC
- 4718009153875, 4718009156210
- Also known as
- Aerocool LUXRGB650M RGB Modular PC Power Supply 650W 80Plus Bronze 230V Black
Specifications
48 specifications in 8 groups

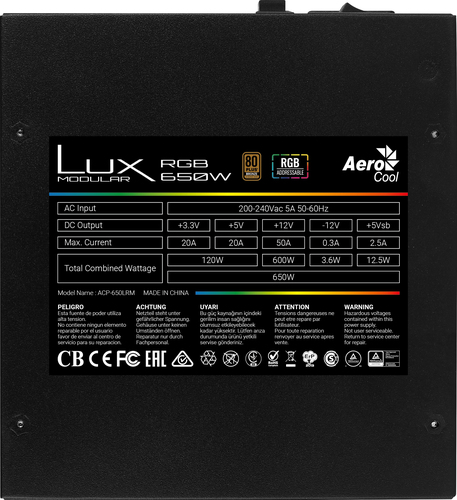

Power
| Specification | Value |
|---|---|
| Total power | 650 W |
| AC input voltage | 220 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 5 A |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 600 W |
| Combined power (+5V) | 120 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 50 A |
| Max output current (+12V4) | 0.3 A |
| Max output current (+5V) | 20 A |
| Max output current (+5Vsb) | 2.5 A |
| Efficiency | 88% |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 50 cm |
| Number of PATA power connectors | 3 |
| Number of SATA power connectors | 5 |
| SATA power cable length | 500,550 mm |
| PCI Express power connectors (6+2 pin) | 2 |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 55 cm |
| ATX power connector (20+4 pin) | Yes |
| PCI Express connector | Yes |
| Cabling type | Semi-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| 80 PLUS certification | 80 PLUS Bronze |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan speed | 0 - 800 RPM |
| Illumination | Yes |
| On/off switch | Yes |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
Packaging data
| Specification | Value |
|---|---|
| Manual | Yes |
| Package width | 230 mm |
| Package depth | 195 mm |
| Package height | 95 mm |
| Package type | Box |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 250 mm |
| Master (outer) case length | 495 mm |
| Master (outer) case height | 215 mm |
| Products per master (outer) case | 5 pc(s) |
Other features
| Specification | Value |
|---|---|
| Frequency tolerance | 94% |
| Cable ties included | Yes |
| Illumination colour | Blue, Green, Red |
