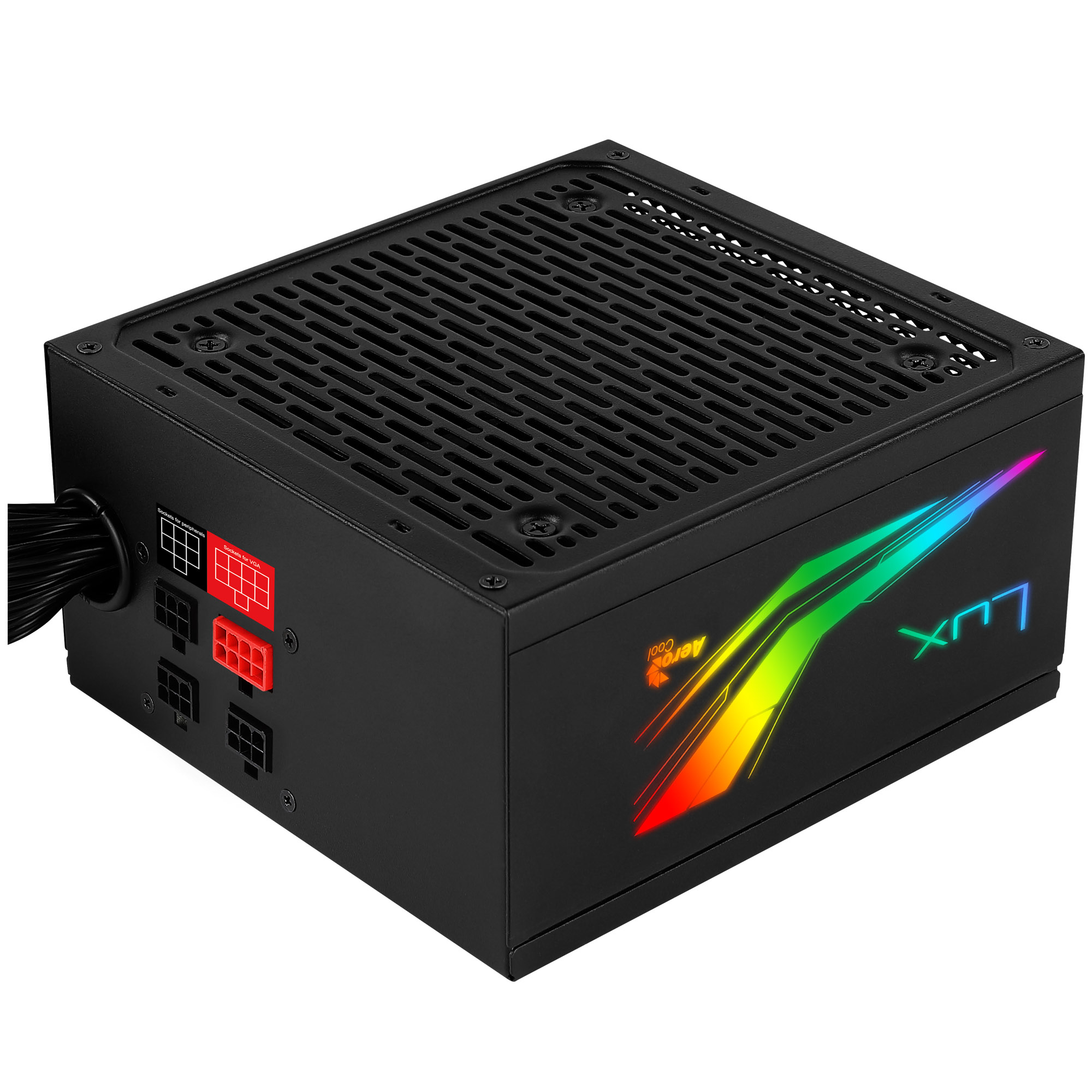

LUX RGB 550M
Model LUX RGB 550MPart no. LUXRGB550MEAN 4718009153868
44 specifications
- ColourBlack
- Total power550 W
- Motherboard power connector20+4 pin ATX
- PurposePC
Overview
- Colour
- Black
- Total power
- 550 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Brand
- Aerocool
- Category
- Power Supply Unit
- Model
- LUX RGB 550M
- Part numbers
- LUXRGB550M, LUX550
- EAN / UPC
- 4718009153868, 4718009156203
- Also known as
- Aerocool LUXRGB550M RGB Modular PC Power Supply 550W 80Plus Bronze 230V Black
Specifications
44 specifications in 7 groups
Power

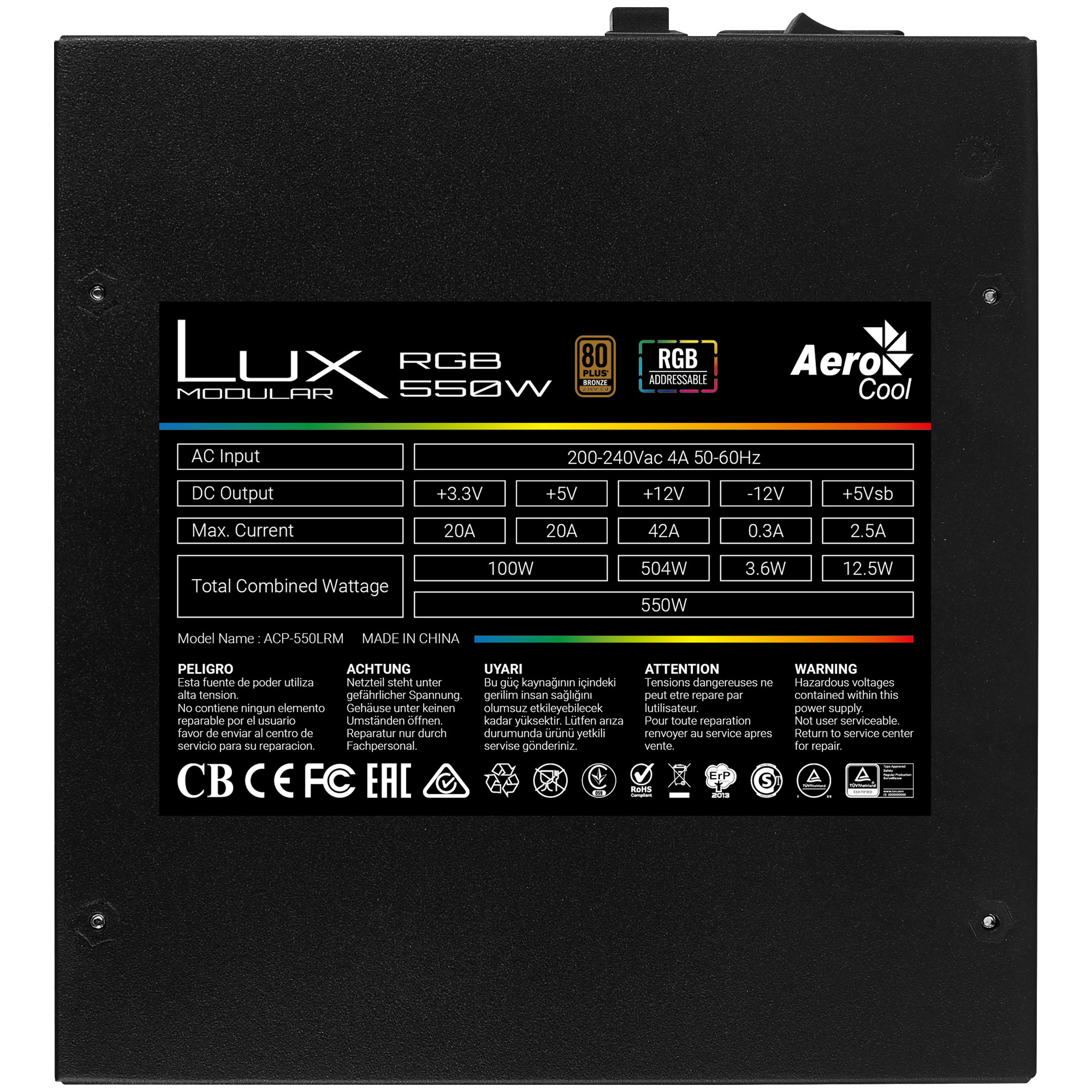

| Specification | Value |
|---|---|
| Total power | 550 W |
| AC input voltage | 200 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 4 A |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 504 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 42 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Efficiency | 88% |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 50 cm |
| Number of PATA power connectors | 2 |
| Number of SATA power connectors | 4 |
| SATA power cable length | 550 mm |
| PCI Express power connectors (6+2 pin) | 1 |
| PCI Express power cable length | 45 cm |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 55 cm |
| ATX power connector (20+4 pin) | Yes |
| PCI Express connector | Yes |
| Cabling type | Semi-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| 80 PLUS certification | 80 PLUS Bronze |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |

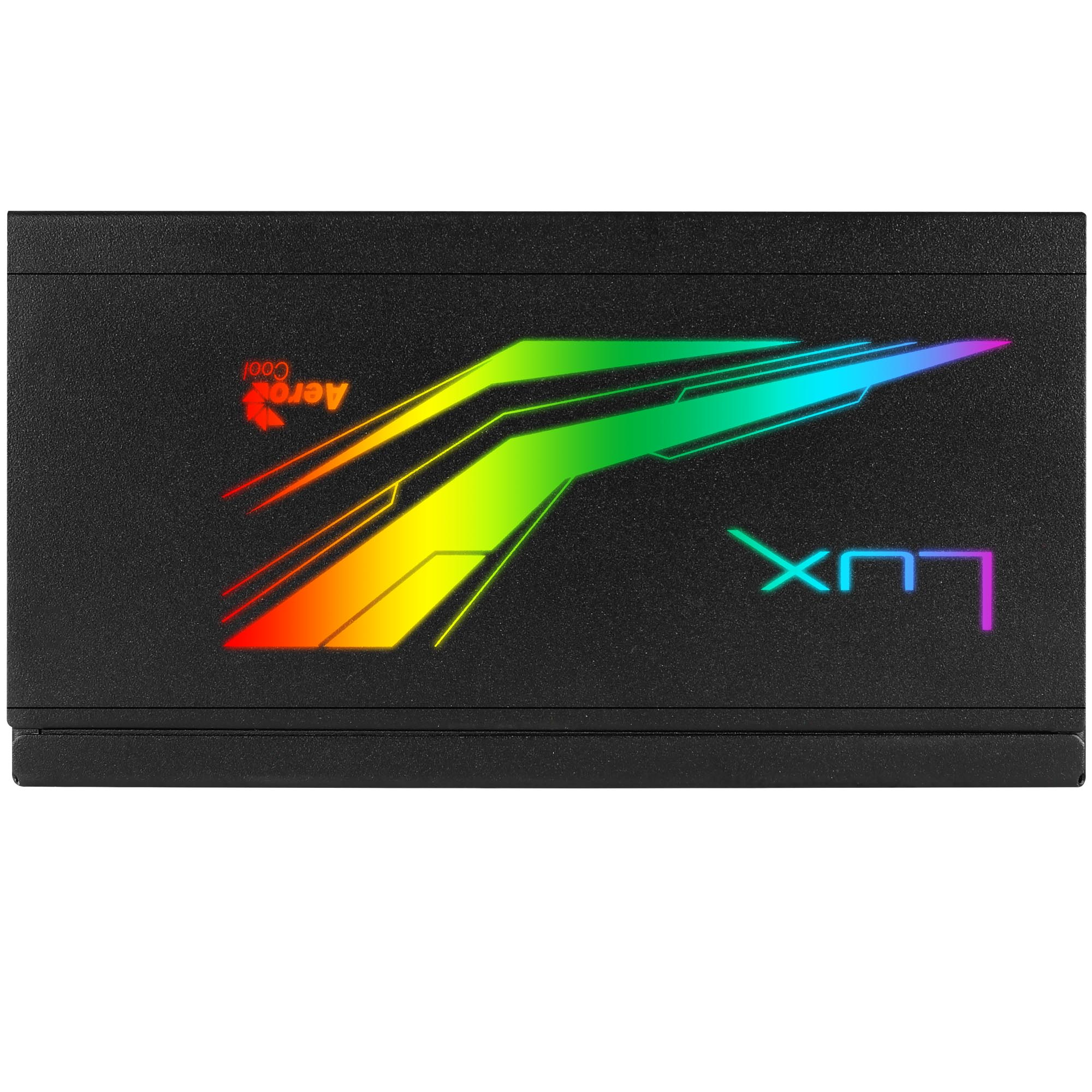

| Illumination | Yes |
Packaging data
| Specification | Value |
|---|---|
| Manual | Yes |
| Package width | 230 mm |
| Package depth | 195 mm |
| Package height | 95 mm |
| Package type | Box |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 250 mm |
| Master (outer) case length | 495 mm |
| Master (outer) case height | 215 mm |
| Products per master (outer) case | 5 pc(s) |
Other features
| Specification | Value |
|---|---|
| Illumination colour | Blue, Green, Red |
