LUX 850W
Model LUX 850WPart no. LUX850EAN 4710562759396
30 specifications
- ColourBlack
- Total power850 W
- Motherboard power connector20+4 pin ATX
- PurposePC
Overview
- Colour
- Black
- Total power
- 850 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Brand
- Aerocool
- Category
- Power Supply Unit
- Model
- LUX 850W
- Part number
- LUX850
- EAN / UPC
- 4710562759396
- Also known as
- Aerocool LUX850 PC Power Supply 850W 80 Plus Bronze 230V 88% Efficiency Black
Specifications
30 specifications in 5 groups
Power

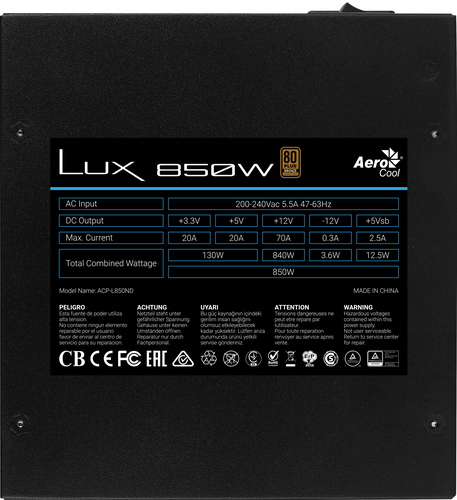

| Specification | Value |
|---|---|
| Total power | 850 W |
| AC input voltage | 200 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 5.5 A |
| Combined power (+3.3V) | 130 W |
| Combined power (+12V) | 840 W |
| Combined power (+5V) | 130 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 70 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Efficiency | 88% |
| Power protection features | Over voltage, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of PATA power connectors | 3 |
| Number of SATA power connectors | 5 |
| PCI Express power connectors (6+2 pin) | 2 |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| 80 PLUS certification | 80 PLUS Bronze |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
Packaging data
| Specification | Value |
|---|---|
| Package width | 195 mm |
| Package depth | 230 mm |
| Package height | 95 mm |
| Package type | Box |
