KCAS PLUS GOLD 650W
Model KCAS PLUS GOLD 650WPart no. AEROPGSKCAS+RGB650-GEAN 4710562759204
28 specifications
- ColourBlack
- Total power650 W
- Motherboard power connector20+4 pin ATX
- PurposePC
Overview
- Colour
- Black
- Total power
- 650 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Brand
- Aerocool
- Category
- Power Supply Unit
- Model
- KCAS PLUS GOLD 650W
- Part number
- AEROPGSKCAS+RGB650-G
- EAN / UPC
- 4710562759204
- Also known as
- Aerocool KCAS PLUS GOLD 650W power supply unit 20+4 pin ATX Black
Specifications
28 specifications in 5 groups

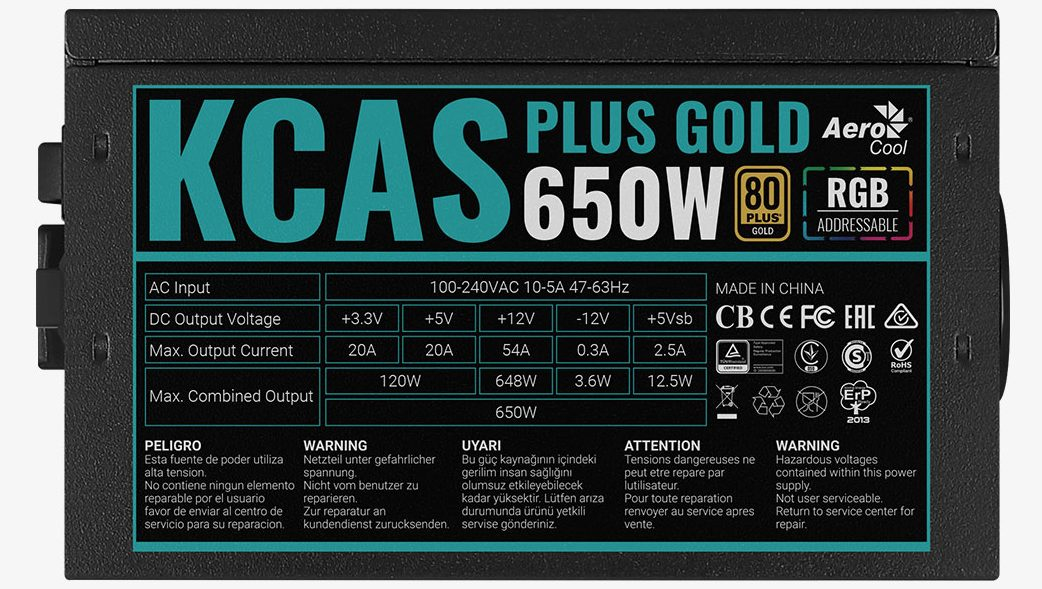

Power
| Specification | Value |
|---|---|
| Total power | 650 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 10 - 5 A |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 648 W |
| Combined power (+5V) | 120 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 54 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of PATA power connectors | 3 |
| Number of SATA power connectors | 8 |
| PCI Express power connectors (6+2 pin) | 2 |
| CPU power connector (4+4 pin) | Yes |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| 80 PLUS certification | 80 PLUS Gold |
| ATX version | 2.52 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Illumination | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | ROHS |
