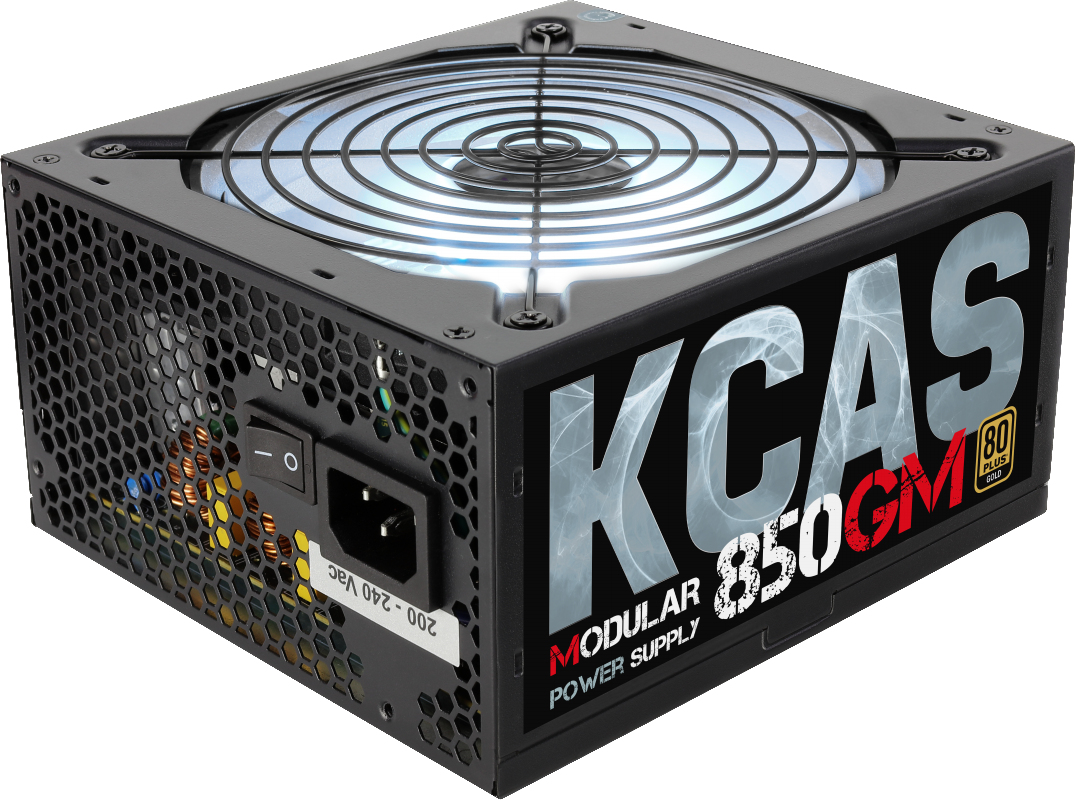

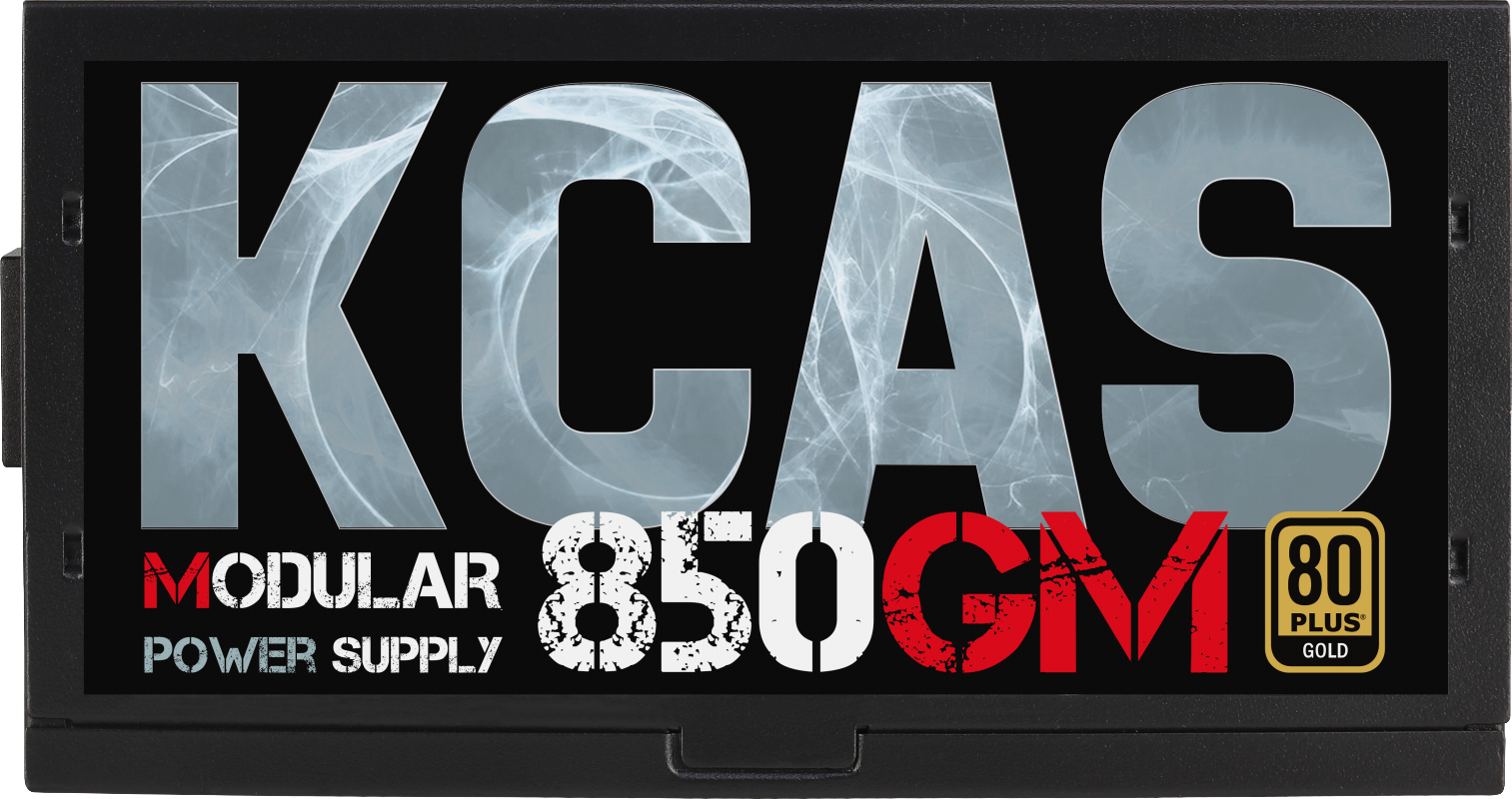

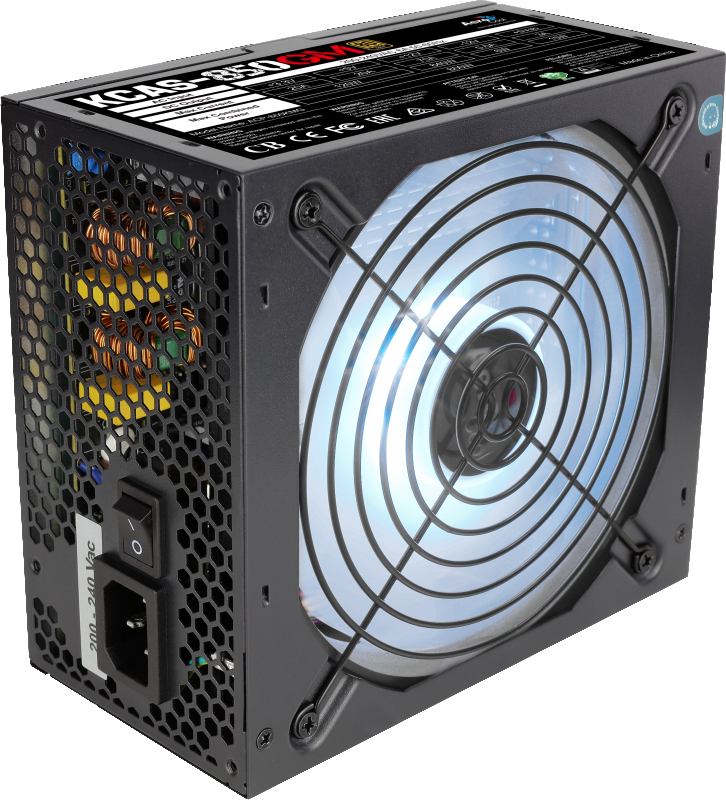

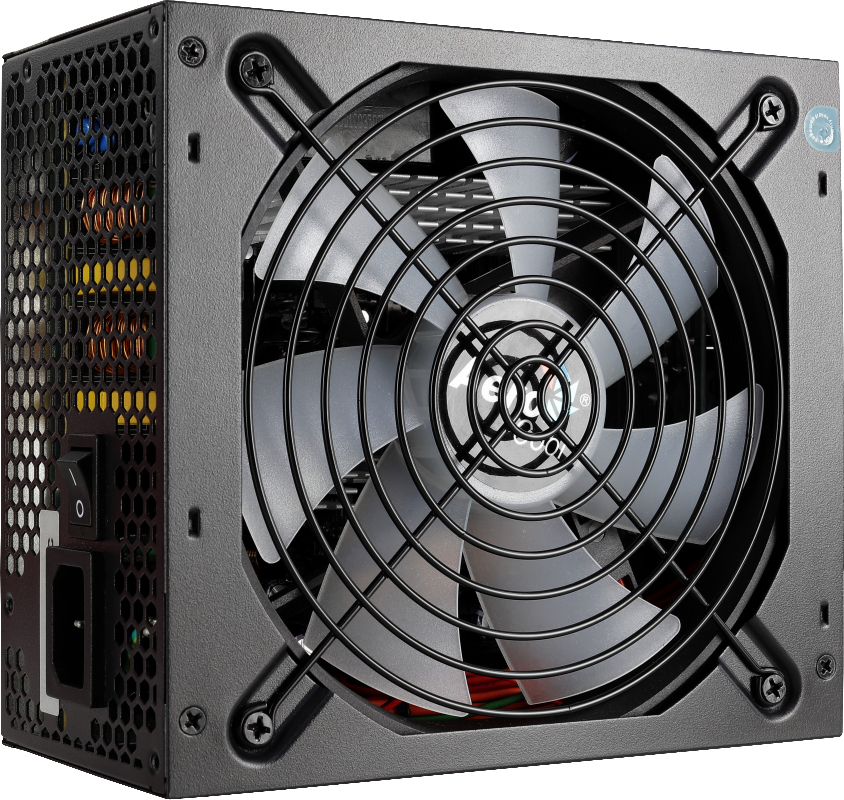

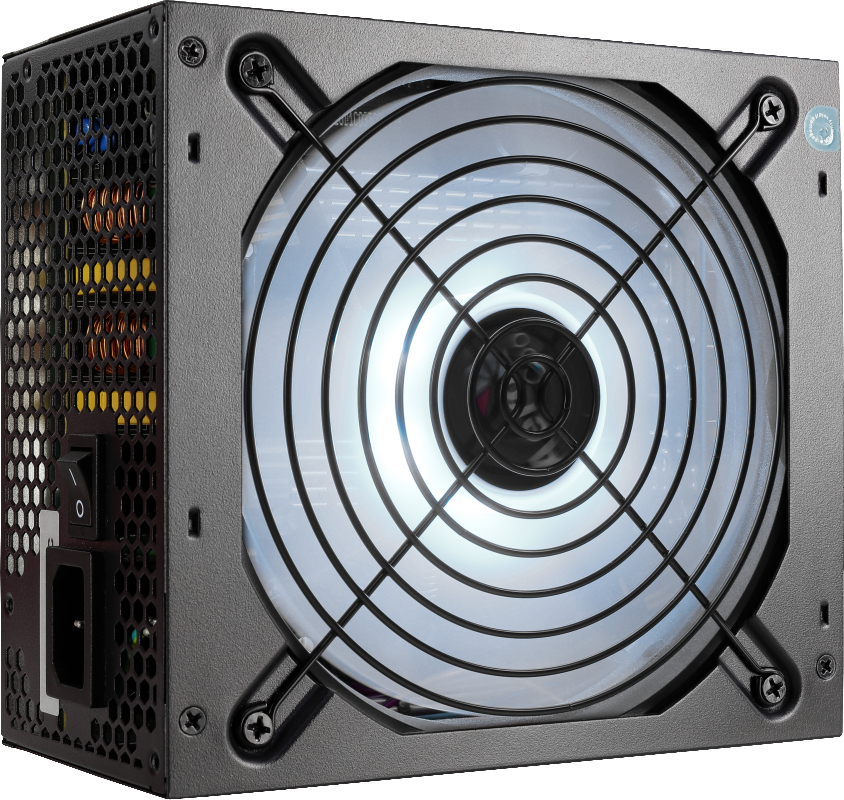

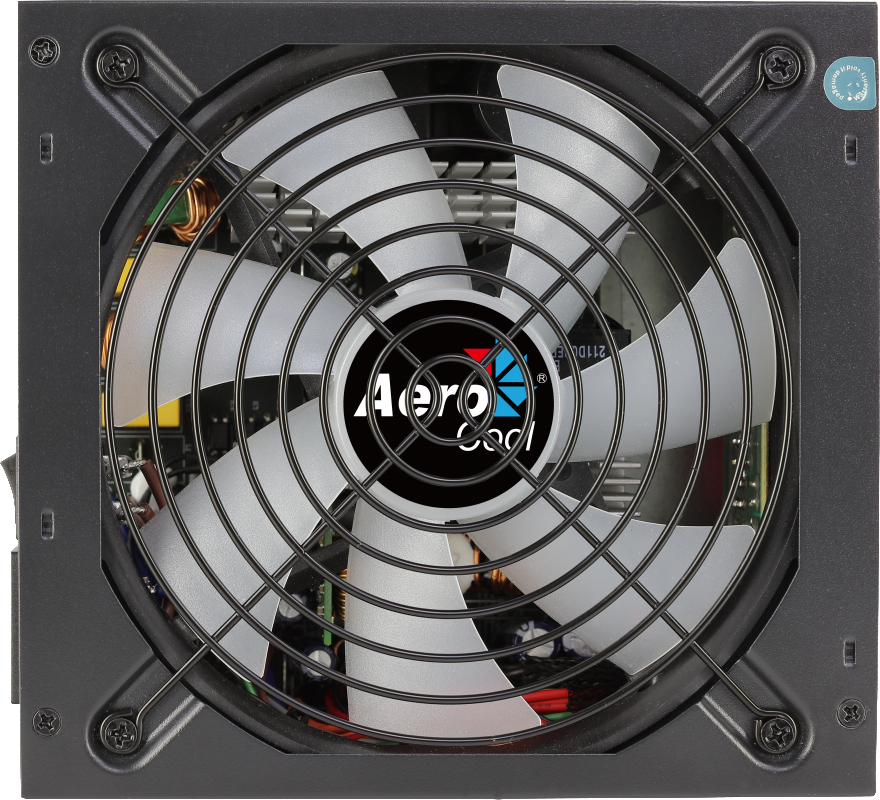

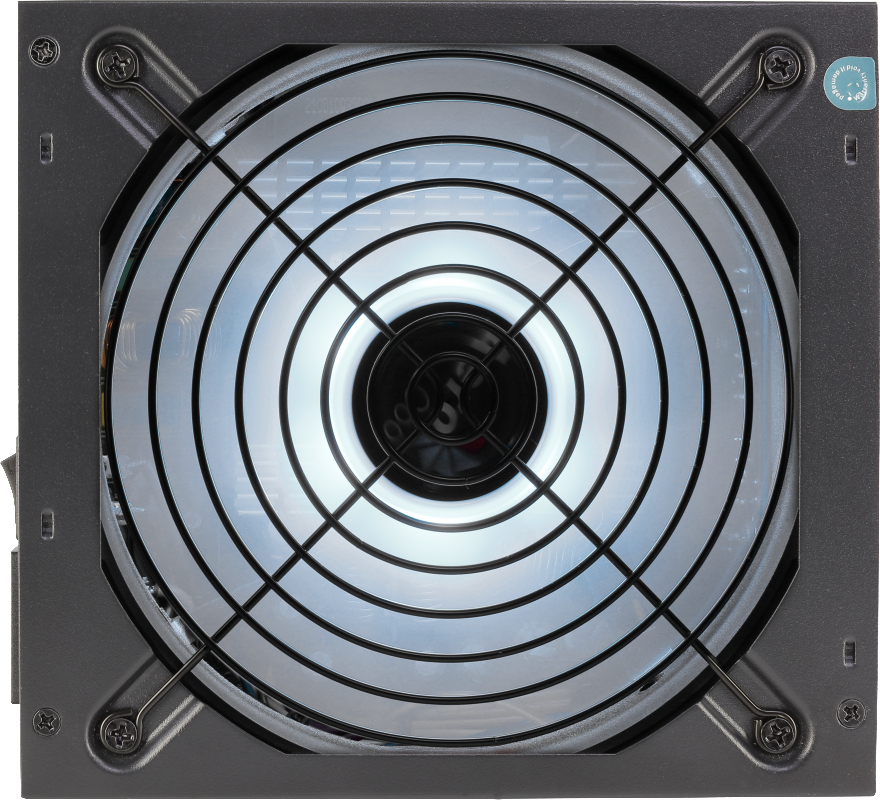

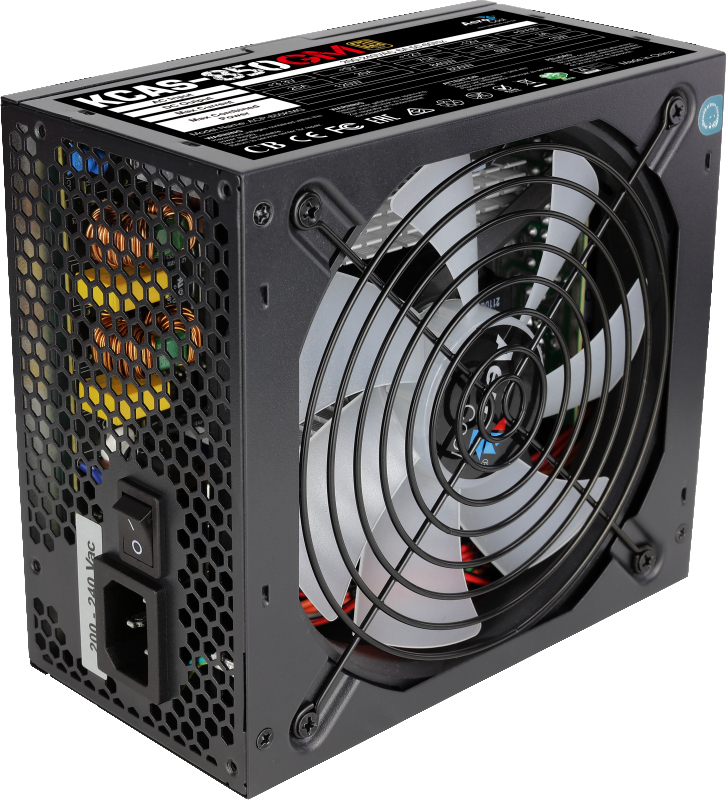

Aerocool KCAS-850GM power supply unit
850 W 20+4 pin ATX ATX Black
Model KCAS-850GMPart no. KCAS850GMEAN 4713105957655
42 specifications
- ColourBlack
- Total power850 W
- Motherboard power connector20+4 pin ATX
- PurposePC
Overview
- Colour
- Black
- Total power
- 850 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Brand
- Aerocool
- Category
- Power Supply Unit
- Model
- KCAS-850GM
- Part number
- KCAS850GM
- EAN / UPC
- 4713105957655
- Also known as
- Aerocool KCAS-850GM power supply unit 850 W 20+4 pin ATX ATX Black
Specifications
42 specifications in 6 groups

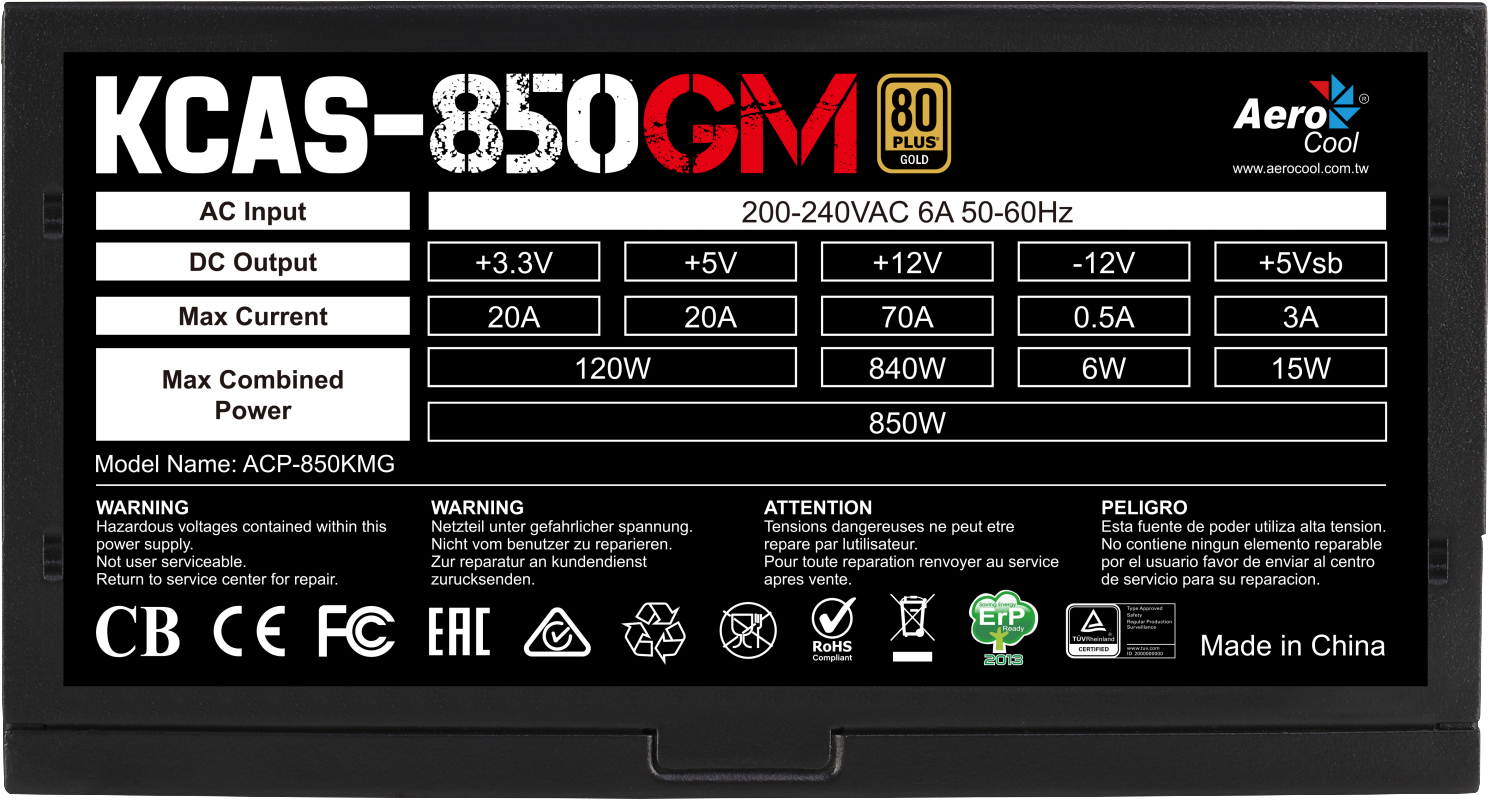

Power
| Specification | Value |
|---|---|
| Total power | 850 W |
| AC input voltage | 200 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 6 A |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 840 W |
| Combined power (+5V) | 20 W |
| Combined power (-12V) | 6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 70 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 90% |
| Power protection features | Over power, Over voltage, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 55 cm |
| Number of SATA power connectors | 7 |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| PCI Express power connectors (6+2 pin) | 4 |
| PCI Express power cable length | 65 cm |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 55 cm |
| ATX power connector (20+4 pin) | Yes |
| Floppy drive power connector | 1 |
| Cabling type | Semi-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Gold |
| ATX version | 2.4 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 14 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| Illumination | Yes |
| On/off switch | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | CE, TUV |
Packaging data
| Specification | Value |
|---|---|
| Manual | Yes |
| Package type | Box |
